Levoit LV-PUR131S Manuel utilisateur

Questions or Concerns?

Fragen oder Probleme?

[email protected]

Smart True HEPA Air Puriﬁer

Model No.: LV-PUR131S

Modellnr.: LV-PUR131S

LESEN SIE DIESE ANLEITUNG BITTE

SORGFÄLTIG UND BEWAHREN SIE SIE AUF

READ AND SAVE THESE INSTRUCTIONS

DEEN

INHALTSVERZEICHNIS

Lieferumfang

Technische Daten

Sicherheitshinweise

Ihr Luftreiniger

LED-Display

Bedienungstasten

Erste Schritte

·VeSync-App einrichten

Der Gebrauch des Luftreinigers

Laufende Reinigung

·Reinigung des Luftreinigers

·Wann muss man die Luftﬁlter ersetzen?

·Filteranzeige prüfen

·Luftﬁlter ersetzen

·Filteranzeige zurücksetzen

·Staubsensorlinse reinigen

Problemlösung

Garantie

Kundendienst

Your air puriﬁer is compatible with the VeSync app for

performing many smart home functions. For full details

on using the VeSync app with your air puriﬁer, scan the

QR code to see the extended digital manual.

You can also type the following link into a web browser: www.Levoit.com/LVPUR131S/downloads/

TABLE OF CONTENTS

Package Contents

Speciﬁcations

Safety Information

Getting to Know Your Air Puriﬁer

LED Display

Controls

Getting Started

·VeSync App Setup

Using Your Puriﬁer

Keeping Things Clean

·Cleaning the Air Puriﬁer

·When Should I Replace the Air Filters?

·Check Filter Indicator

·Replacing the Air Filters

·Resetting the Check Filter Indicator

·Cleaning the Dust Sensor Lens

Troubleshooting

Warranty Information

Customer Support

Dieser Luftreiniger ist kompatibel mit der VeSync-

Haustechnik-App. Für weitere Informationen zum

Gebrauch der VeSync-App mit Ihrem Luftreiniger

scannen Sie den QR-Code, um das ausführliche

digitale Handbuch abzurufen.

Oder geben Sie den folgenden Link in Ihren Webbrowser ein: www.Levoit.com/LVPUR131S/downloads/

TECHNISCHE DATEN

Stromversorgung 120V Wechselstrom, 60Hz

Leistung 40W

Wirkungsbereich ≤ 30m² (300ft²)

Betriebsbedingungen Temperatur: -10°C–40°C

(14°F–104°F)

Lärmpegel ≤ 52dB

Wirkungsgrad (Clean

Air Delivery Rate,

CADR)

230 m³/h (135 CFM)

Standby-

Stromverbrauch

< 0,8W

LIEFERUMFANG

1 Smart True HEPA Air Puriﬁer

1 Aktivkohleﬁlter

1 Vorﬁlter/True HEPA Kombinationsﬁlter

1 Benutzerhandbuch

SPECIFICATIONS

Power Supply AC 120V, 60Hz

Rated Power 40W

Eective Range ≤ 30m² (300ft²)

Operating

Conditions

Temperature: -10°C–40°C

(14°F–104°F)

Noise Level ≤ 52dB

Clean Air Delivery

Rate (CADR)

230 m³/h (135 CFM)

Standby Power < 0.8W

PACKAGE CONTENTS

1 x Smart True HEPA Air Puriﬁer

1 x Activated Carbon Filter

1 x Preliminary/True HEPA Combination Filter

1 x User Manual

EN DE

THANK YOU FOR PURCHASING

THE LVPUR131S SMART TRUE

HEPA AIR PURIFIER BY LEVOIT.

If you have any questions or concerns, please reach out to us

at [email protected]. We hope you enjoy your new air

puriﬁer!

SHARE THE LEVOIT LOVE

Find @LevoitLifestyle on social media for wellness + style

inspiration. We make every space mindful and chic.

@LevoitLifestyle

#LevoitLove • #LevoitLifestyle

English

Smart True HEPA Air Puriﬁer

Model No.: LV-PUR131S

SAFETY INFORMATION

• Only use your air puriﬁer as described in this manual.

• Do not use your air puriﬁer outdoors.

• Keep your air puriﬁer away from water, and wet or damp

areas. Never place in water or other liquids.

• Keep your air puriﬁer away from heat sources.

• Do not use where combustible gases or vapors are

present.

• Supervise children when they are near the air puriﬁer.

• Do not place anything into any opening on the air

puriﬁer, unless directed by the manual.

• Do not sit or place heavy objects on the air puriﬁer.

• Keep the inside of the air puriﬁer dry. To prevent

moisture buildup, avoid placing in rooms with major

temperature changes or underneath air conditioners.

• Always unplug your air puriﬁer before servicing (such

as when changing air ﬁlters).

• Do not use your air puriﬁer if it is damaged or not

working correctly, or if the cord or plug is damaged.

Do not try to repair it yourself. Contact Customer

Support (see page 16).

• WARNING: Do not use this air puriﬁer with solid-state

speed controls (such as a dimmer switch).

• Keep the air puriﬁer near the outlet it is plugged into.

• Never place the cord near any heat source.

• Do not cover the cord with a rug, carpet, or other

covering. Do not place the cord under furniture or

appliances.

• Keep the cord out of areas where people walk often.

Place the cord where it will not be tripped over.

• Your air puriﬁer has a polarized plug (one prong is wider

than the other), which ﬁts into a polarized outlet only

one way. This is a safety feature to reduce the risk of

electric shock. If the plug does not ﬁt, reverse the plug.

If it still does not ﬁt, do not use the plug in that outlet.

Do not bypass this safety feature.

To reduce the risk of ﬁre, electric shock, or other injury, follow all instructions and safety guidelines.

General Safety Plug and Cord

READ AND

SAVE THESE

INSTRUCTIONS

Not for commercial use. Household use only.

GETTING TO KNOW YOUR AIR PURIFIER

A. LED Display

B. Touch-Control Panel

C. Dust Sensor Lens

D. Dust Sensor Cover

E. Filter Indicator Reset Button

F. Button Vent

G. Housing

H. Safety Switch

I. Activated Carbon Filter

J. True HEPA Filter

K. Fine Preliminary Filter

L. Back Cover

J K

LED DISPLAY

A. On/O Indicator

B. WiFi Indicator

C. Check Filter Indicator

D. Timer Display

E. Air Quality Indicator

F. Auto Mode

G. Sleep Mode

H. Fan Speed

CONTROLS

On/O Button

• Turns the air puriﬁer on or o.

• Press and hold to conﬁgure your air puriﬁer.

See extended digital manual (QR code on

page 2).

WiFi Indicator

• The WiFi indicator will turn on, o, or blink to

indicate conﬁguration status. See extended

digital manual (QR code on page 2) for a

full chart.

Sleep Mode Button

• Turns Sleep Mode on or o (see page 11).

Air Quality Indicator

• Displays air quality using the dust sensor inside the air

puriﬁer.

• The air puriﬁer may take up to 1 minute to detect air

quality.

Display Button

• Turns the display o.

• Press any button (except ) to turn the

display back on.

Auto Button

• Turns Auto Mode on or o (see page 10).

Air Quality Indicator Chart

Color Air Quality

Red Bad

Yellow Moderate

Green Good

Blue Very Good

Fan Speed Button

• Cycles through fan speeds: low, medium,

and high.

• The fan speed cannot be changed during

Auto Mode or Sleep Mode.

Timer Button

• Creates or cancels a timer (see page 11).

GETTING STARTED

1st

2nd

3rd

Carbon

Filter

HEPA

Filter

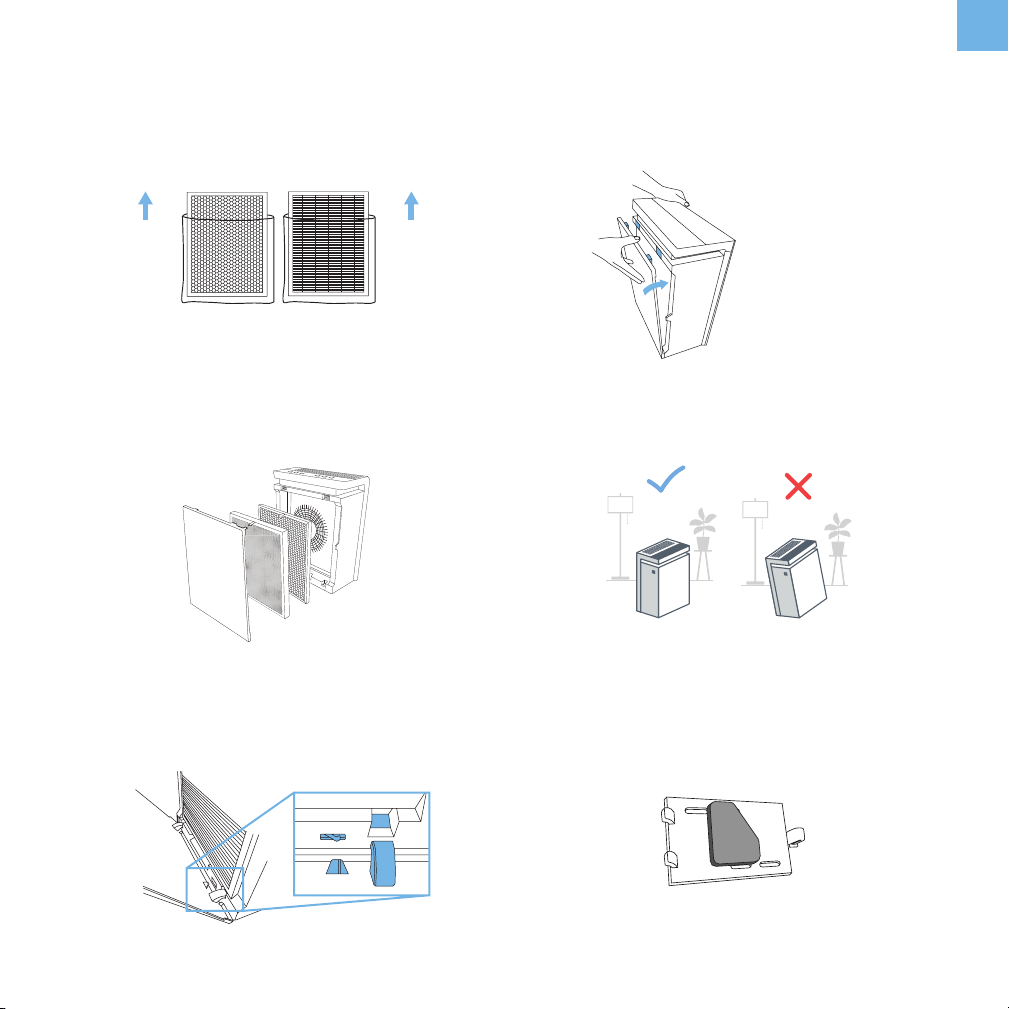

1. Open the back cover of the air puriﬁer and remove both

ﬁlters from their plastic packaging. [Figure 1.1]

Figure 1.1

Figure 1.3

Figure 1.4

Figure 1.5

Figure 1.6

Figure 1.2

NOTE: Do not remove the foam piece attached to the dust sensor

cover unless instructed by Customer Support. [Figure 1.6]

2. Place the black activated carbon ﬁlter back into the air

puriﬁer. Then, place the white HEPA ﬁlter back into the

air puriﬁer. Make sure the pull tabs on both ﬁlters are

facing out. [Figure 1.2]

3. Replace the back cover by lining up the cover’s feet

with the matching slots on the bottom of the housing.

Make sure that the triangular piece at the bottom of the

cover is touching the safety switch. [Figure 1.3]

4. Push the cover closed. [Figure 1.4]

5. Place the air puriﬁer on a hard, ﬂat surface. [Figure 1.5]

Leave 15 inches (38 cm) of clearance on all sides of the

puriﬁer.

VeSync App Setup

Figure 2.1

NOTE: You can use the VeSync app to connect your air puriﬁer to

Amazon® Alexa™ or Google Assistant™.

Available on the

App Store

GET IT ON

Google Play

1. Scan the QR code, or download the VeSync app from the

Apple App Store or Google Play Store. [Figure 2.1]

2. Create an account and follow the in-app instructions to

ﬁnish setting up your air puriﬁer. For more information, see

the extended digital manual (QR code on page 2).

General Operation

USING YOUR PURIFIER

1. Press to turn on the air puriﬁer. The air puriﬁer fan

will start automatically at low speed.

2. Optionally, press to increase fan speed. You can

also select Auto or Sleep Mode, or create a timer.

NOTE:

• You can use the VeSync app to control all these

functions, and more. For full instructions, see the

extended digital manual (QR code on page 2).

• For best results, run the air puriﬁer at maximum

speed for 15–20 minutes before using a lower

speed or Auto Mode.

• To eectively clean air, keep windows closed while

the air puriﬁer is operating.

3. Press to turn o the air puriﬁer.

Auto Mode uses the sensor inside the air puriﬁer to adjust

the fan speed automatically based on air quality. For

example, if the air quality is bad, the fan will automatically be

set to high speed. See chart.

Auto Mode

1. Press to turn on Auto Mode.

2. Press again to exit Auto Mode. Pressing or

will also exit Auto Mode.

Auto Mode Chart

Color Air Quality Fan Speed

Red Bad High

Yellow Moderate Medium

Green Good Low

Blue Very Good Sleep Mode

As a safety feature, the air puriﬁer will automatically turn o

if the back cover is removed.

Automatic Shuto

When the air puriﬁer is plugged in, it will remember its

programmed settings when turned o, and will resume

these settings when turned back on.

Memory Function

Autres manuels pour LV-PUR131S

Table des matières

Langues :

Autres manuels Levoit Purificateur d'air

Levoit

Levoit Tower Pro LV-H134 Manuel utilisateur

Levoit

Levoit LV-H135 Manuel utilisateur

Levoit

Levoit LV-H132XR Manuel utilisateur

Levoit

Levoit LV-H132 Manuel utilisateur

Levoit

Levoit Classic 300S Manuel utilisateur

Levoit

Levoit VeSync Core Pro 400S Manuel utilisateur

Levoit

Levoit LV-H134 Manuel utilisateur

Levoit

Levoit HERA LAP-C302S-WUSB Manuel utilisateur

Levoit

Levoit Vital 100S Manuel utilisateur

Levoit

Levoit LV-H133 Manuel utilisateur

Levoit

Levoit Tower Pro True HEPA Manuel utilisateur

Levoit

Levoit LV-H131S-RXW Manuel utilisateur

Levoit

Levoit LV-PUR131S Manuel utilisateur

Levoit

Levoit Core LAP-C161-WAS Manuel utilisateur

Levoit

Levoit Core 300 Manuel utilisateur

Levoit

Levoit LV-PUR131 Manuel utilisateur

Levoit

Levoit LV-H133 Manuel utilisateur

Levoit

Levoit LAP-V201S-AEUR Manuel utilisateur

Levoit

Levoit Tower Pro True HEPA Manuel utilisateur

Levoit

Levoit Pet Care True HEPA Core P350 Manuel utilisateur

Levoit

Levoit LV-H135-RWH Manuel utilisateur

Levoit

Levoit Core LAP-C161-WEU Manuel utilisateur

Levoit

Levoit LAP-C201S-AUSR Manuel utilisateur

Levoit

Levoit Core 200S Manuel utilisateur

Manuels Purificateur d'air populaires d'autres marques

IKEA

IKEA UPPÅTVIND Manuel utilisateur

Nash

Nash AP-1 PureSmart Manuel utilisateur

LG PH-U450 Series Manuel utilisateur

DeLonghi

DeLonghi DDSX 220WFA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Manuel utilisateur

Sharp

Sharp FU-40SE Manuel utilisateur

Philips

Philips AC2721 Manuel utilisateur

Hitachi

Hitachi EP-A3000 Manuel utilisateur

TruSens

TruSens Z-2000 Manuel utilisateur

Motorola

Motorola MBP87SN Manuel utilisateur

Beko

Beko ATP 7100I Manuel utilisateur

Carrier

Carrier INFINITY 1620 Manuel utilisateur

AtmosAir

AtmosAir P2002 Manuel utilisateur

Winix

Winix NK300 Manuel utilisateur

Friedrich

Friedrich C-90A Instructions d'utilisation et d'installation

Surgically Clean Air

Surgically Clean Air JADE2.0 Manuel utilisateur

Base aire

Base aire 555 Pro Manuel utilisateur

Champion

Champion CP25 Manuel utilisateur
