Lenovo ThinkSystem DM5000 series Manuel

Install hardwarePrepare for installation Cable storage Complete system setup

and conﬁguration

1 2 3 4

Prepare for installation |Stage 1

You provide

In the box

Pre-setup

1. Unpack all boxes and inventory contents.

2. Complete the Cluster Conﬁguration Worksheet.

Cluster Interconnect cables 10 GbE network cables

(order dependent)

Optical network cables

(order dependent)

Data and cluster

Interconnect cables Storage cables

mini-SAS HD to mini-SAS HD cables

Additional cables

Power

cables

Ethernet

cables

micro USB

console cable

Screwdriver Additional network cables ClientRack space

2U per chassis For connecting your storage system

to your network switch and

Microsoft® Windows® client

With a USB/serial connection

and access to a Web browser to

conﬁgure your storage system

DM3000x and DM5000x

Systems

Installation and Setup Instructions

Printed in China

(1P) P/N: SP47A30356

Install hardware |Stage 2

Uniﬁed conﬁguration

AC AC

• Install the rail kits, as needed, and then install and

secure your system using the instructions included with the kit.

• Attach cable management devices (as shown).

• Place the bezel on the front of the system.

Install system in a rack

Rear view of the controllers

3Cable controller for cluster

Ethernet cables

Cluster interconnect cables

Power cables

4Connect both power cords

Retaining clipsRetaining clips

To data network

switches

To management

network switches

Ethernet conﬁguration

10 GbE

network

cables

Optical

network

cables

Switchless cluster

Ethernet cables for use

with Ethernet conﬁguration

Uniﬁed

conﬁguration

For Uniﬁed conﬁguration

For Ethernet conﬁguration

DO NOT turn on the power supply switches.

Strap the cables to the cable

management arms. (not shown)

For switchless cluster

Connect port e0a to port e0a and port e0b

to port e0b.

Connect ports e0c and e0d OR ports e0e

and e0f to the data network switches.

Connect ports e0c and e0e OR ports e0d

and e0f to the data network switches.

Connect the wrench port (e0M)

on both controller modules to the

management subnet switches.

Connect the power cables to both power supplies.

• Use the retaining clips.

• Connect power cables to diﬀerent power sources.

For switched cluster

Connect port e0a and port e0b to the

cluster interconnect switches.

AC AC

To cluster interconnect

switches

Switched cluster

Uniﬁed

conﬁguration 2

To data network

switches

To management

network switches

Cable storage |Stage 3

STOP HERE. If you have NO external storage, skip to stage 4, complete system setup and conﬁguration.

Cabling a DM3000x or DM5000x series

with NO external storage

Cabling a DM3000x or DM5000x series

WITH external storage (DM120S or DM240S)

Connect the SAS ports of both controllers:

• Controller 1 0a to Controller 2 0b

• Controller 1 0b to Controller 2 0a

Connect the shelf-to-shelf ports

Connect each node to IOM A in the stack

Connect each node to IOM B in the stack

AC AC

IOM12

LNK L NK

IOM12

LNK L NK

IOM12

LNK L NK

IOM12

LNK L NK

IOM12

LNK L NK

IOM12

LNK L NK

AC AC

First

shelf

IOMA

Last

shelf

IOMB

AC AC

Dual controller system

Storage cables

Storage cables Orient the cable connector

pull-tab in the correct direction,

then gently push the connector

into place until it clicks.

Note: To unplug a cable, gently pull

the tab to release the locking

mechanism.

Pull-tab

facing down

1Cable and conﬁgure your client

Complete system setup and conﬁguration |Stage 4

If your system has one or more drive shelves, set the shelf IDs:

1. Power on the drive shelf, and then remove the end cap on the left of the shelf.

2. Press and hold the orange button until the ﬁrst digit blinks, and then press the

button to advance the ﬁrst digit (0-9) to the desired number. The ﬁrst digit

continues to blink.

3. Press and hold the button until the second digit blinks, and then press the button

to advance the second digit (0-9) to the desired number. The ﬁrst digit stops blinking,

and the second digit continues to blink. Each expansion shelf requires a unique shelf ID.

4. Press and hold the button until the second digit stops blinking, and then replace

the end cap on the shelf.

5. Wait about 10 seconds for both digits to start blinking again and for the LED to

illuminate, and then power-cycle the drive shelf to make the shelf ID take eﬀect.

6. Repeat these steps for any remaining drive shelves.

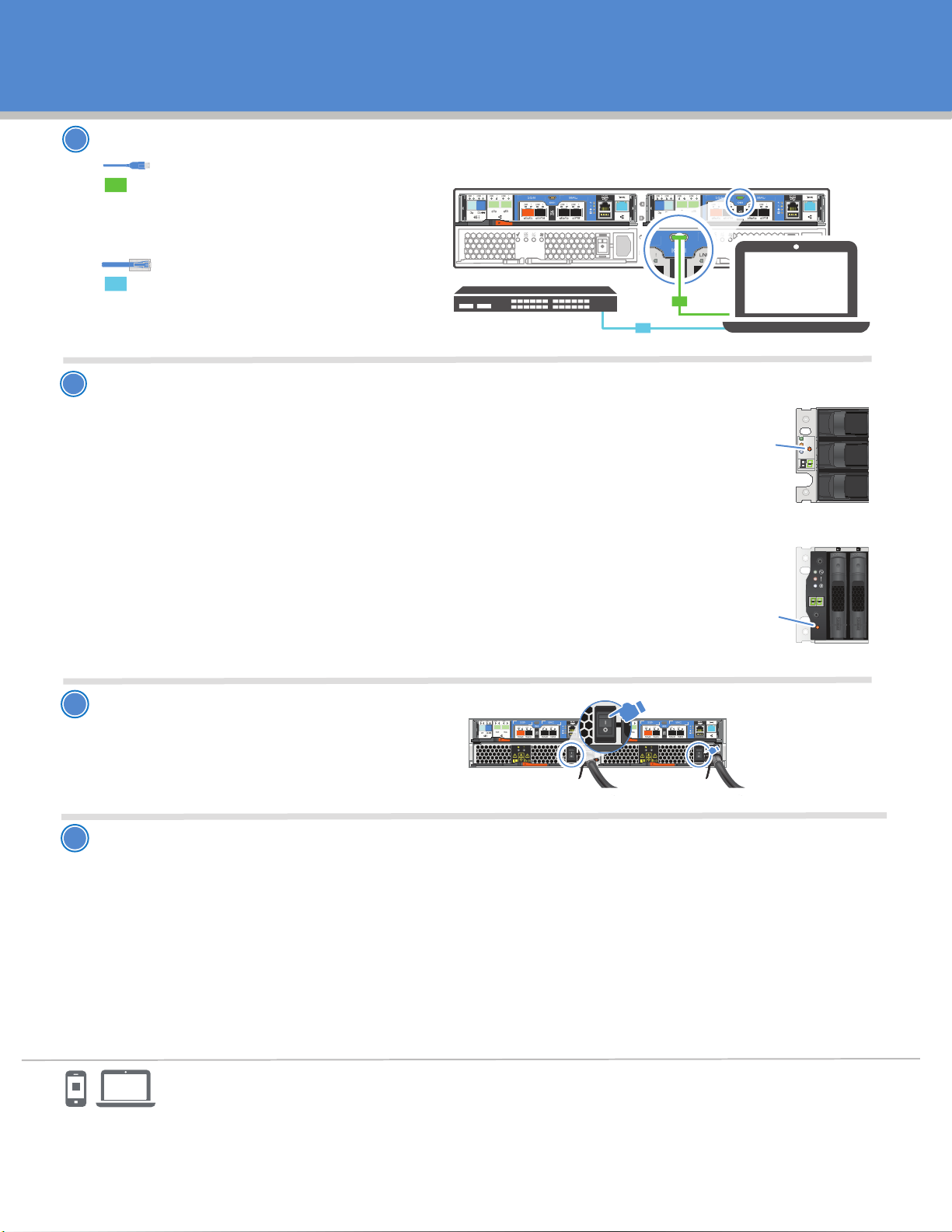

Connect the client to the switch

on the management subnet and give the

client a TCP/IP address on the

management subnet.

Set the console port on the client to

115,200 baud with N-8-1, connect to the

micro-USB port on the controller with

the console cable.

micro USB console cable

Ethernet cable

AC AC

DM3000x or DM5000x system

Client

Management subnet 2

2U12

2U24

Shelf ID

change

button

Shelf ID

change

button

3Turn on the power

switches to both nodes A

HELPFUL LINKS

• Lenovo Data Center Support Web site (worldwide):

http://datacentersupport.lenovo.com/

•Lenovo Data Center Support Web site (China):

http://support.lenovo.com.cn/EsWeb/

Third Edition (July 2019)

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to

a General Services Administration (GSA) contract, use, reproduction, or disclosure is

subject to restrictions set forth in Contract No. GS-35F-05925.

LENOVO and LENOVO logo are trademarks of Lenovo.

Microsoft and Windows are trademarks of the Microsoft group of companies.

All other trademarks are the property of their respective owners.

4Conﬁgure your system using the Application Setup Wizard

1. Assign an initial node management IP address to one of the

nodes If you have DHCP conﬁgured on your management

network, record the IP address assigned to the new controllers.

Otherwise,

a. Open a console session using PuTTY, a terminal server,

or the equivalent for your environment.

b. Enter the node management IP address when prompted.

2. Use Storage Manager Guided Setup to conﬁgure

your cluster.

a. Point your browser to the address you

assigned in step 1:

https://x.x.x.x.

b. Enter the data from your Cluster Conﬁguration

Worksheet.

Note: When using Guided Setup to conﬁgure your

cluster, ensure that your service processor addresses

are conﬁgured in an isolated network so that the

addresses are not routable.
