LEGRAND Sanus VDMF20 Manuel utilisateur

VDMF

INSTRUCTION MANUAL

GET IT

RIGHT

THE FIRST TIME

Follow this step-by-step

instruction manual to

speed up your installation.

Texto en español, página 26

WE’RE HERE TO HELP

Ourlive, US-based install

experts are standing by to help.

Call us at:

US: +1 (800) 359-5520

Get it right the ﬁrst time.

HeightFinder™ shows you

where to drill.

Check it out at:

SANUS.com/1172

Want to watch a video that

shows how easy this DIY

project will be?

Watch it now at:

SANUS.com/3078

Or, chat at:

SANUS.com/chatSP

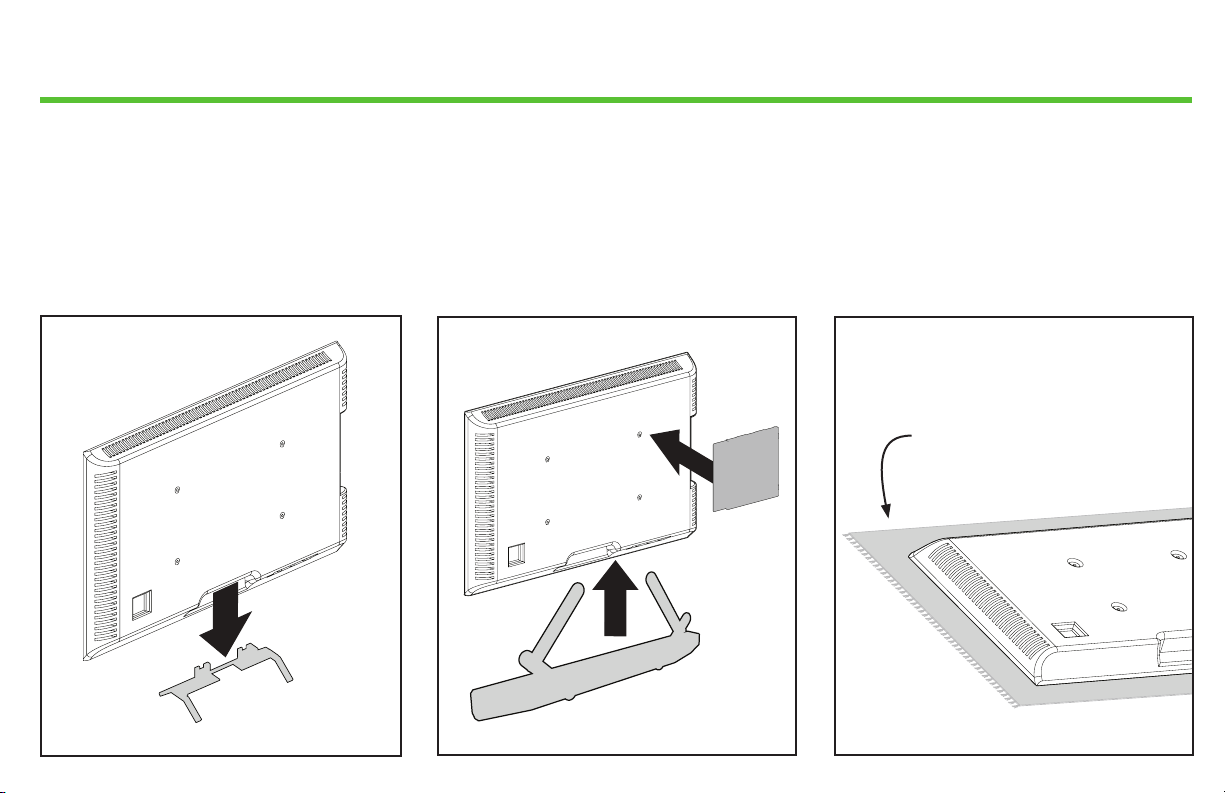

Before you begin

Soft clean surface

Remove the stand from your TV —

if attached.

Install any accessories

you may have purchased —if they require

the TV to be removed from the wall for

assembly. The TV is removable for future

accessory purchases.

Protect the face of your TV

when laying it down for installation.

55 lbs.

(24.9 kg)

IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,

contact Customer Service: +1 (800) 359-5520.

CAUTION: Avoid potential personal injuries and property damage!

●This product is designed ONLY to be installed into wood studs, solid concrete or concrete block.

—DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV.

●This product is designed for INDOOR USE ONLY.

●The wall must be capable of supporting five times the weight of the TV and mount combined.

●Do not use this product for any purpose not explicitly specified by manufacturer.

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

TV Weight Limit

(including accessories)

DO NOT EXCEED

If your TV (including accessories) exceeds this

weight, this mount is NOT compatible.

Visit SANUS.com or call customer service to find a

compatible mount.

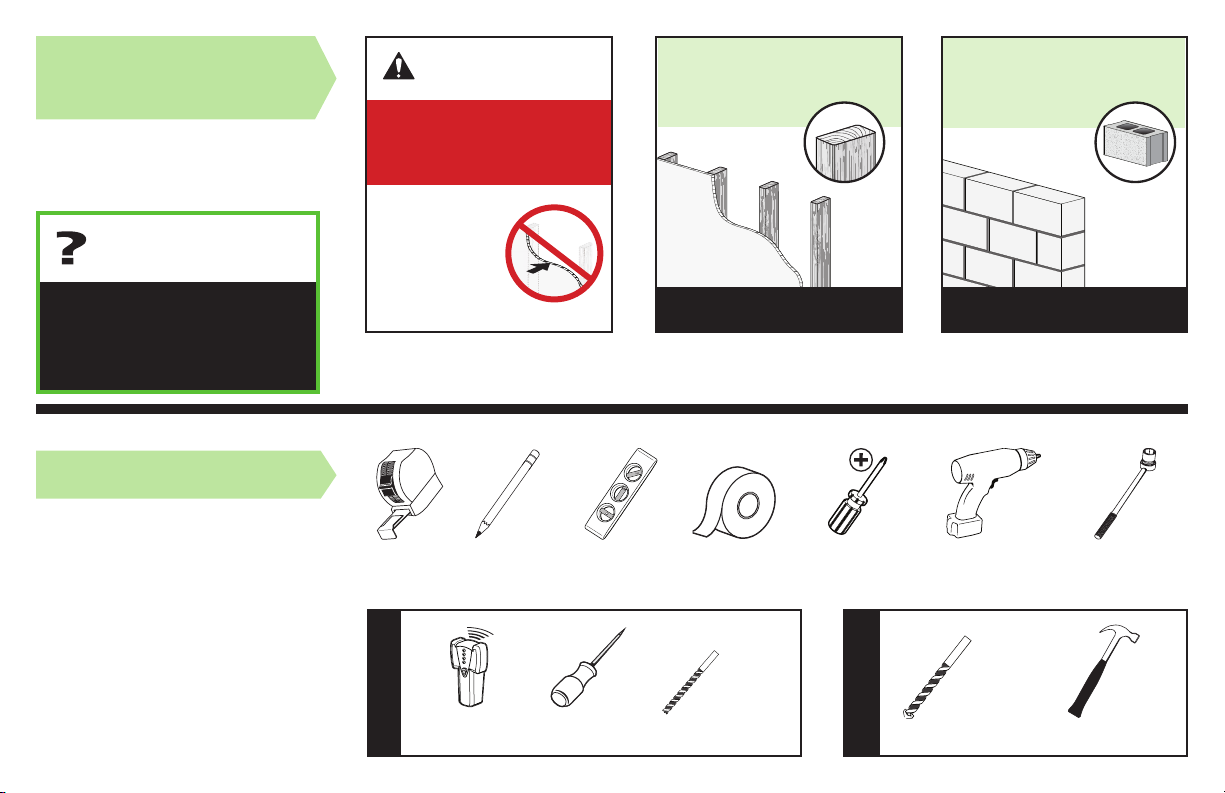

Tools Needed

Wall

Construction

Drywall alone

will NOT hold

the weight of

your TV.

wood studs Solid concrete or

concrete block

ACCEPTABLE ACCEPTABLE

Wood Stud Install

Concrete Install

Awl

Pencil Level Tape

Stud

Finder

ScrewdriverTape

Measure

1/8 in.

(3 mm)

Wood

Drill Bit

Electric

Drill

Hammer

7/16 in.

(11 mm)

Socket

Wrench

Drill Bit

3/8 in.

(10 mm)

Concrete

CAUTION:

DO NOT install

in drywall alone

ONLY install on

these acceptable

wall types.

Call Customer Service

+1 (800) 359-5520

Unsure

M8 x 35mm

M8 x 16mm

M5 x 10mm

M6 x 12mm M6 x 35mm

M4 x 12mm M4 x 35mm

M8 x 50mm 22mm

2.5mm

5mm

M8 x 25mm

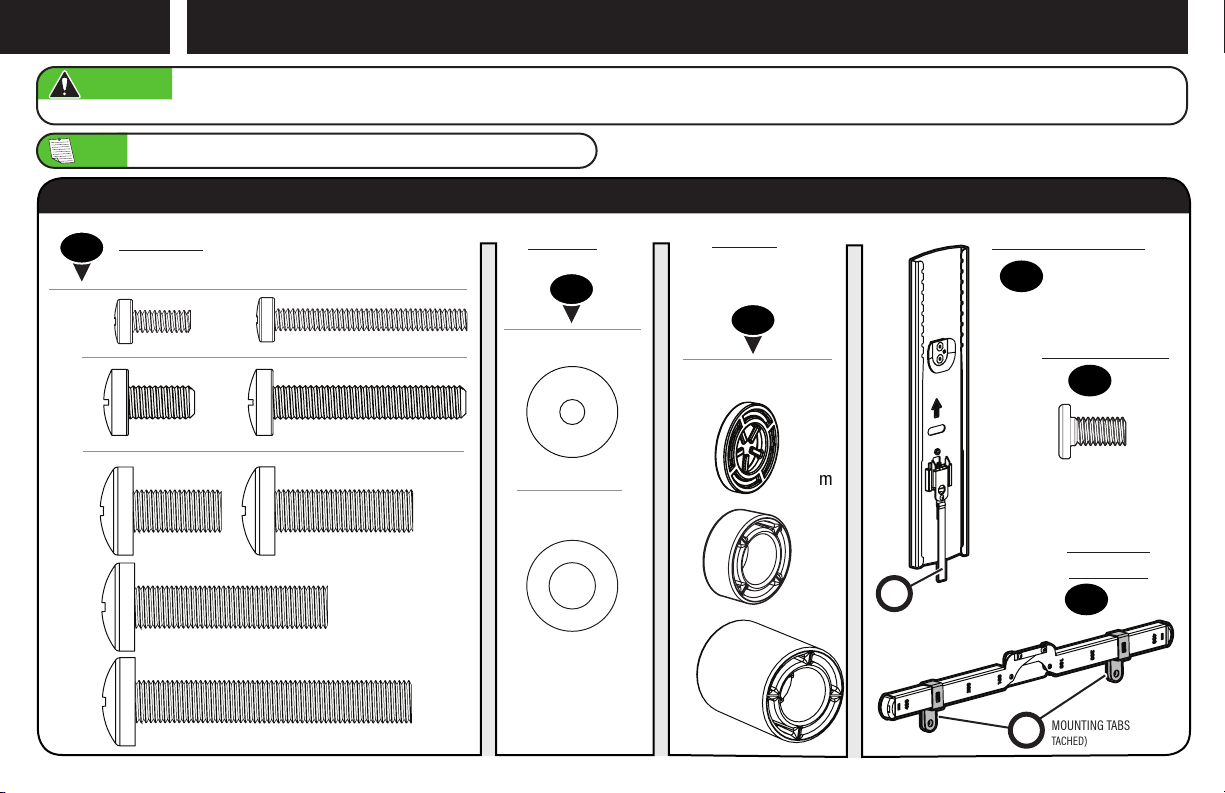

STEP 1 Parts and Hardware

TV Screws

(qty. 4 each) [Only one size fits your TV]

Washers

(qty. 4 each)

Spacers

[If necessary]

(qty. 4 each)

M6/M8

M4/M6/M8

(qty. 1)

(qty. 4)

(qty. 2)

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are

missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

TV Bracket Vertical

Interface Screw

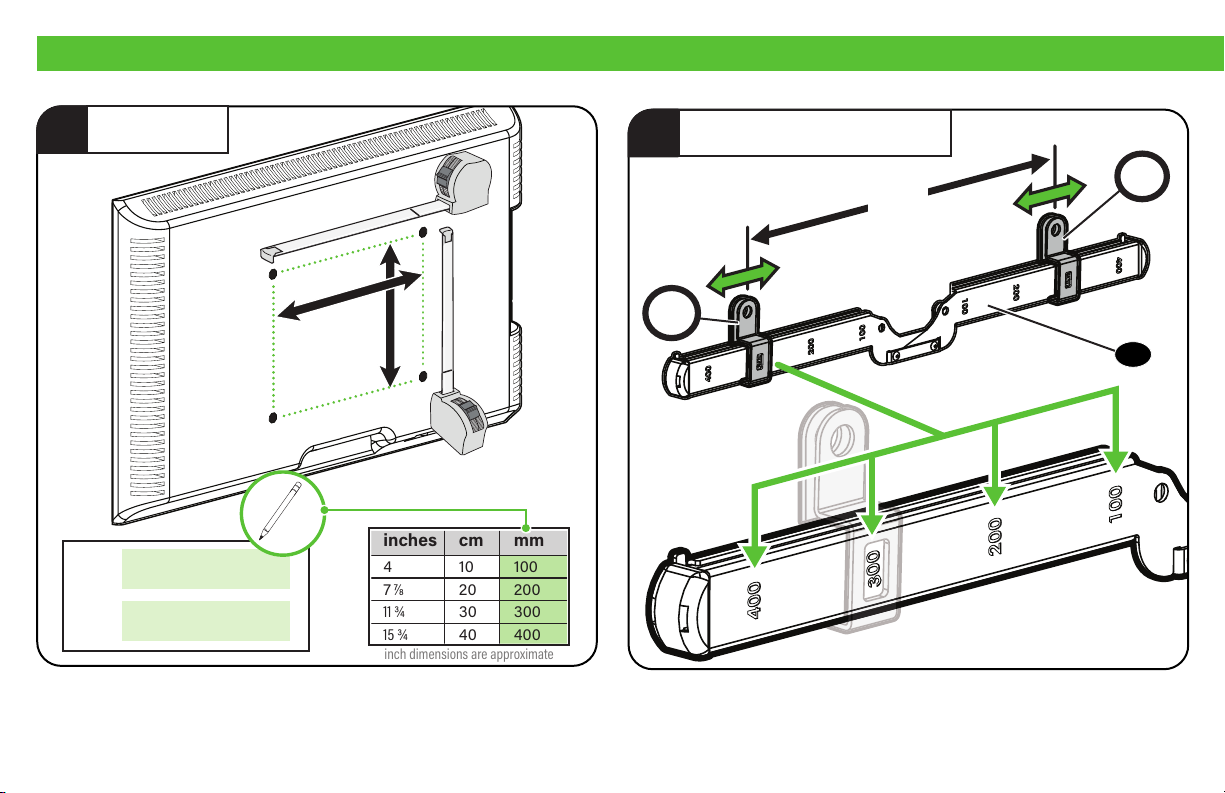

TV Bracket

Horizontal

Attach TV Bracket to TVSTEP 1

MOUNTING TABS (AT-

TACHED)

RELEASE CORD

(ATTACHED)

02 01

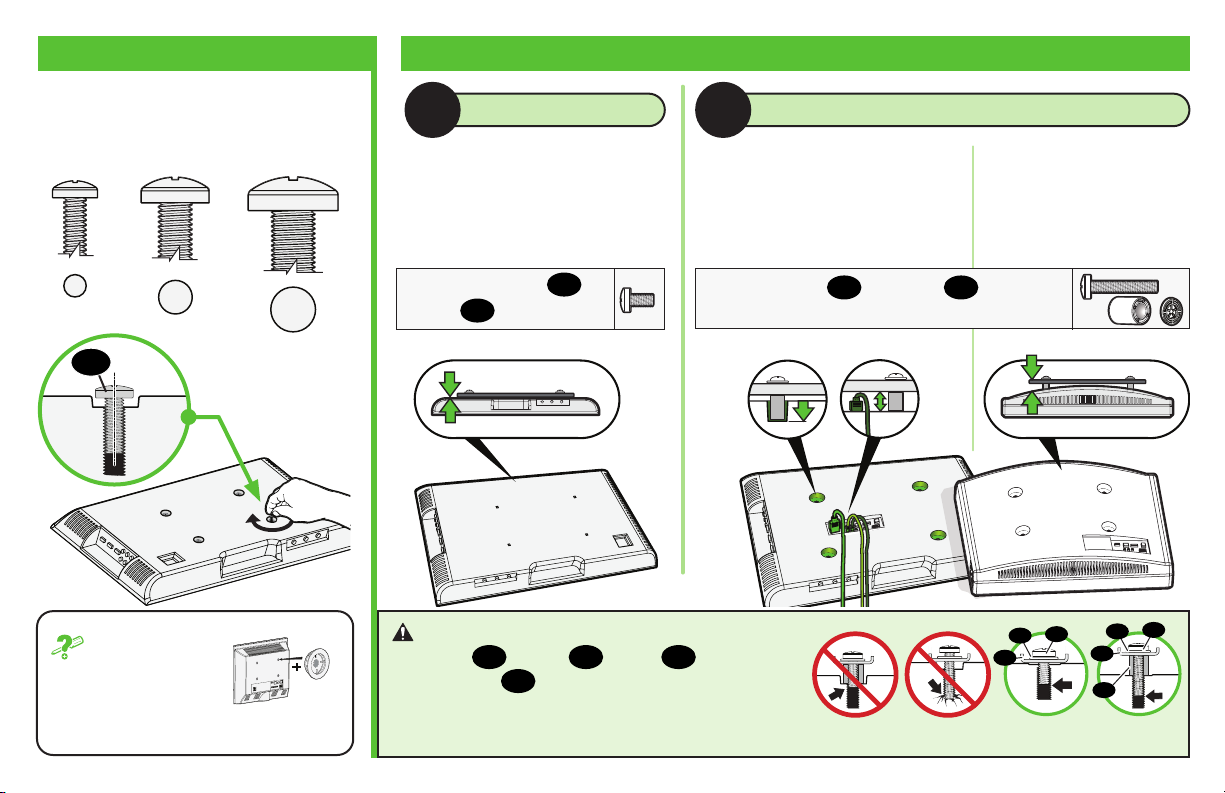

Too Short Too Long Correct

Inset Holes Cables Rounded Back

Only one screw size fits your TV.

M6 M8 • Flat Back TV

[TV brackets

lay flat on your TV]

NO SPACER SPACER NEEDED

• Flat Back TV with

Extra Space Needed

[for deep inset holes

or cable interference]

• Rounded or

Irregular Back TV

[TV brackets NOT

resting flat on your TV]

A B

Use short TV screws 01 .

Spacers 03 not needed.

Use long TV screws 01 and spacers 03 to create extra

space between the TV and TV bracket.

1.2 Select TV Screw Length and Spacers1.1 Select TV Screw Diameter

If your TV included

inset spacers or wall

mount adapters, see

Troubleshooting on PAGE 25.

CAUTION: Verify adequate thread engagement with

your screw 01 , washer 02 , spacer 03 combination

AND TV bracket 06 .

—Too short will not hold your TV.

—Too long will damage your TV.

TV Bracket

Horizontal

300 mm position illustrated

2ADJUST TO WIDTH W

1MEASURE

inch dimensions are approximate

inches cm mm

410 100

7⅞20 200

11 ¾ 30 300

15 ¾ 40 400

1.3 Attach TV Brackets to Your TV

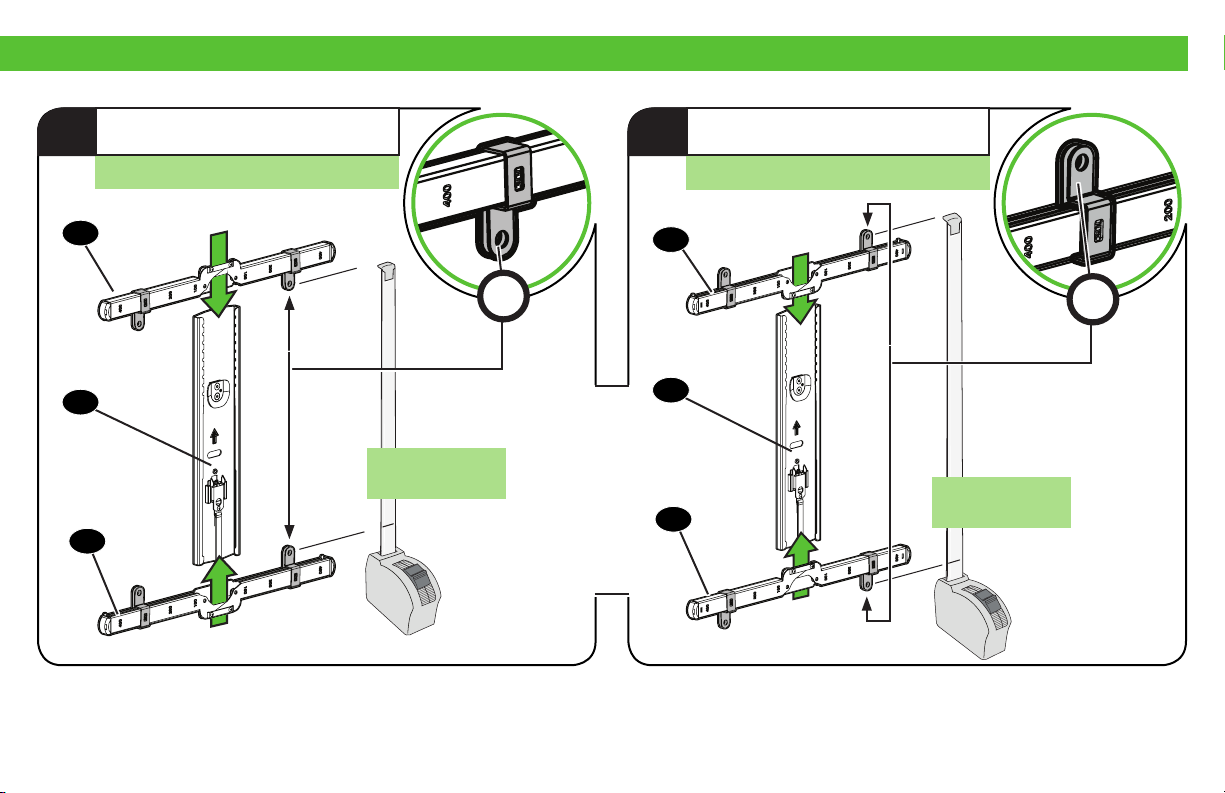

For height 200 mm or less For height greater than 200 mm

3a ASSEMBLE FOR HEIGHT H3b ASSEMBLE FOR HEIGHT H

≤200 mm >200 mm

04 04

06 06

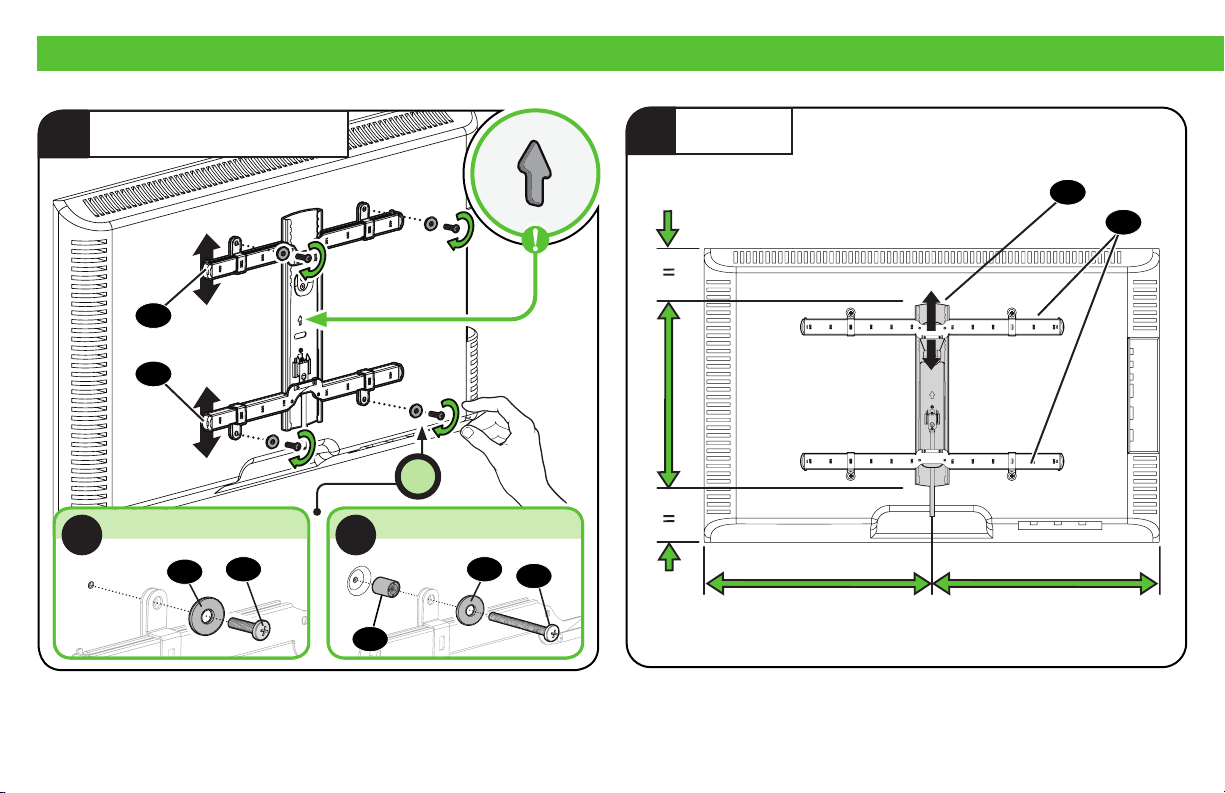

1.3 Attach TV Brackets to Your TV

5CENTER

4LOOSELY ASSEMBLE

1.3 (continued)

02 02

NO SPACER SPACER NEEDED

A B
