LEGRAND SANUS ELITE BSWME2 Manuel utilisateur

Era 100™Era 300™

Texto en español, página 38

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

US: +1 (800) 359-5520 We’re ready to help!

BSWME2

Tilt & Swivel Speaker Wall Mount

For SONOS®Era 100™ and Era 300™

INSTRUCTION MANUAL

5 lbs.

(2.2 kg) 10 lbs.

(4.5 kg)

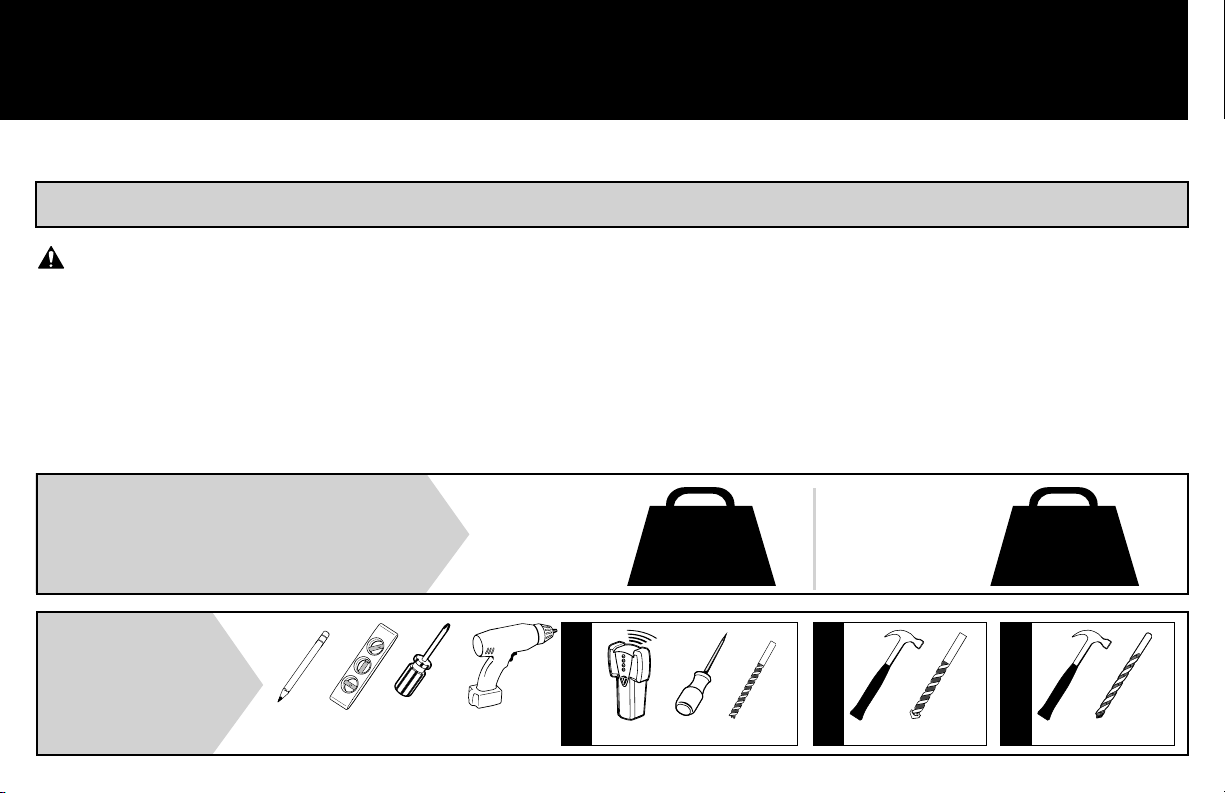

Speaker Weight Limit

DO NOT EXCEED

Tools

Needed

Wood Stud Install

Concrete Install

Awl

Pencil Level Stud Finder

Screwdriver Drill Bit

Electric Drill

Hammer Drill Bit

1/4 in.

(6.5 mm)

Masonry

1/4 in.

(6.5 mm)

1/8 in.

(3 mm)

Wood

Drywall Install

Hammer Drill Bit

CAUTION: Avoid potential personal injuries and property damage!

•Check your speaker owner’s manual to see if there are any special requirements for mounting your speaker.

•Please read through these instructions completely to be sure you’re comfortable with this easy install process.

• Do not use this product for any purpose not explicitly specified by manufacturer.

• Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

• The wall must be capable of supporting five times the weight of the speaker and mount combined.

• If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,

contact Customer Service at +1 (800) 359-5520.

This stand is designed to support only Sonos® Era 100™ and Era 300™ speakers.

Before getting started, let’s make sure this product is perfect for you!

IMPORTANT SAFETY INSTRUCTIONS

—PLEASE READ ENTIRE MANUAL PRIOR TO USE —SAVE THESE INSTRUCTIONS

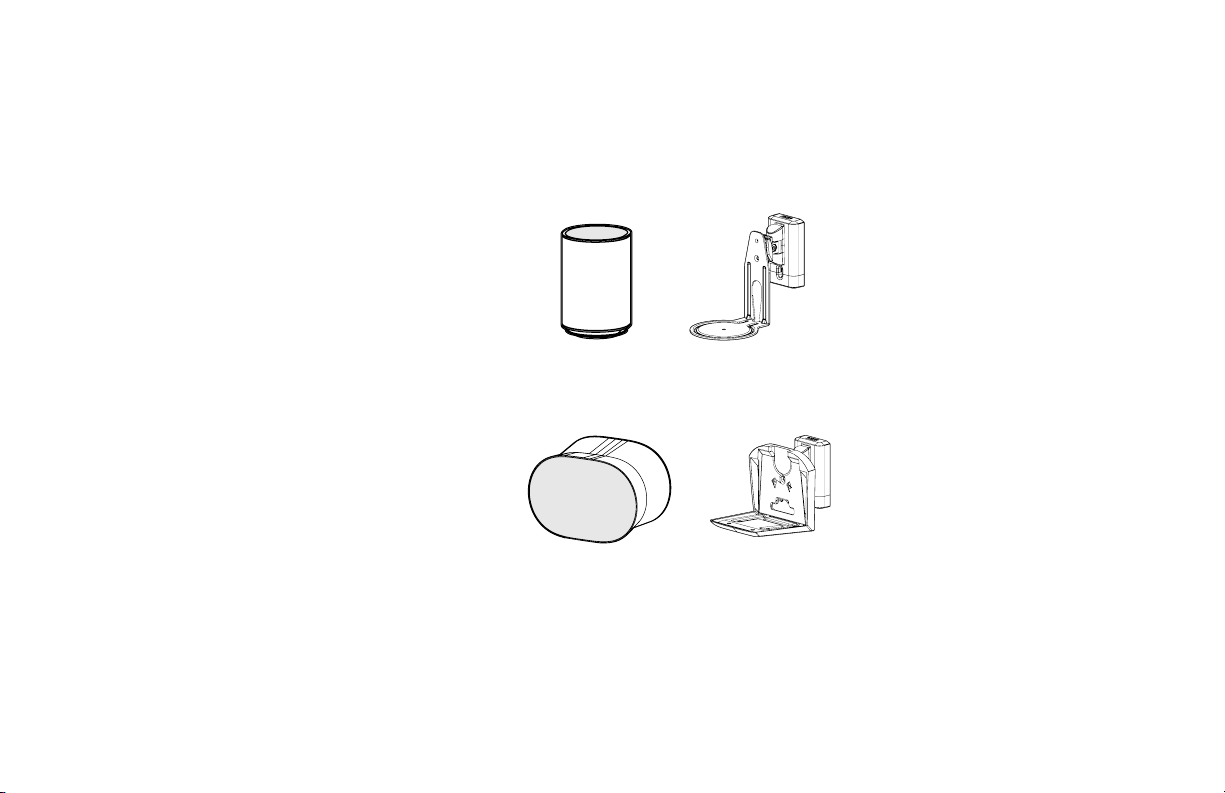

Sonos®

Era 100™

Sonos®

Era 300™

Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . .4-5

EraTM 100 Speaker . . . . . . . . . . . . . . . . . . . . . 6-21

Instructions

EraTM 300 Speaker. . . . . . . . . . . . . . . . . . . . 22-37

Instructions

Texto en español . . . . . . . . . . . . . . . . . . . . 38-39

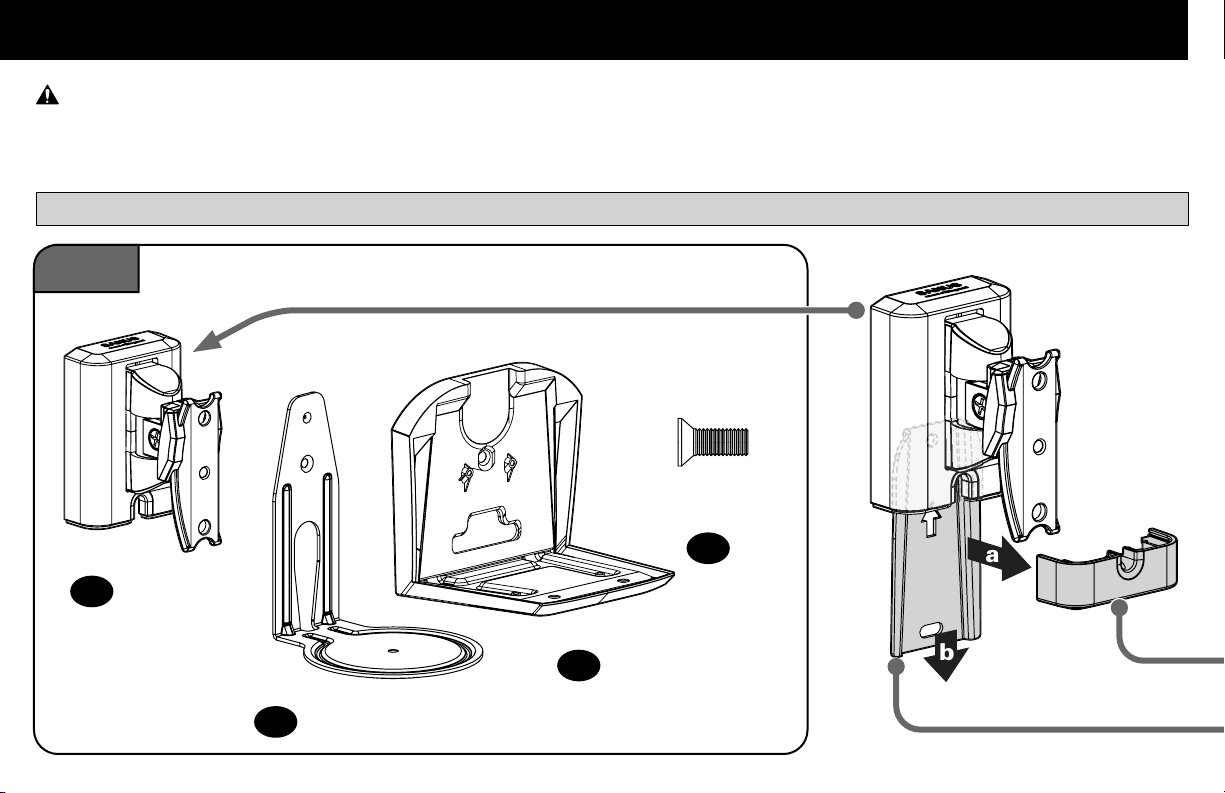

Supplied Parts and Hardware









Era 100™

Era 300™







STEP 1

Wall Mount

Era 100™ Speaker Bracket

Era 300™ Speaker Bracket

Speaker Bracket

Assembly Screw

01 x1

02 x1

03 x1

04 x1

Quantities shown are for one speaker mount.

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact

Customer Service. Never use damaged parts!









Era 100™

Era 300™







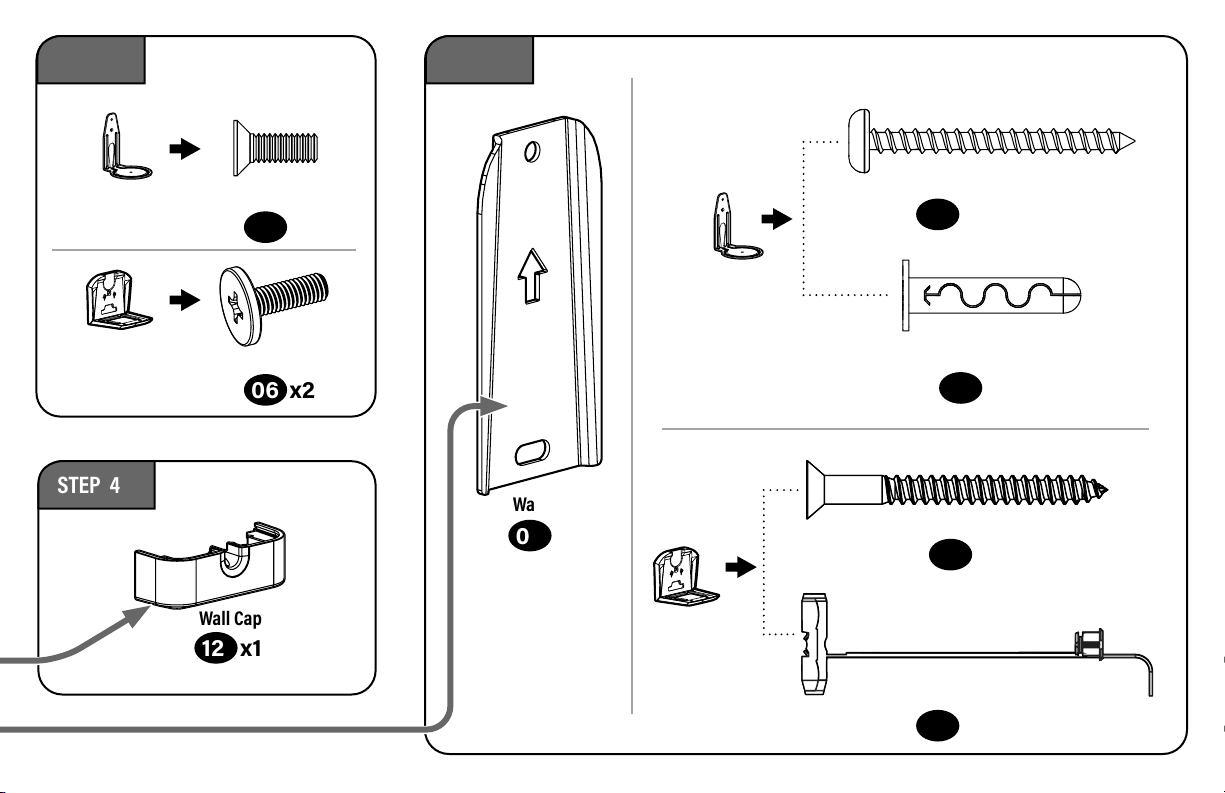

STEP 4

Wall Plate Screw

Wall Cap

Speaker Screw

Wall Plate

Drywall / Concrete Anchor

08 x2

10 x2

07 x1

09 x2

11 x2

12 x1

05 x1

06 x2

STEP 3STEP 2

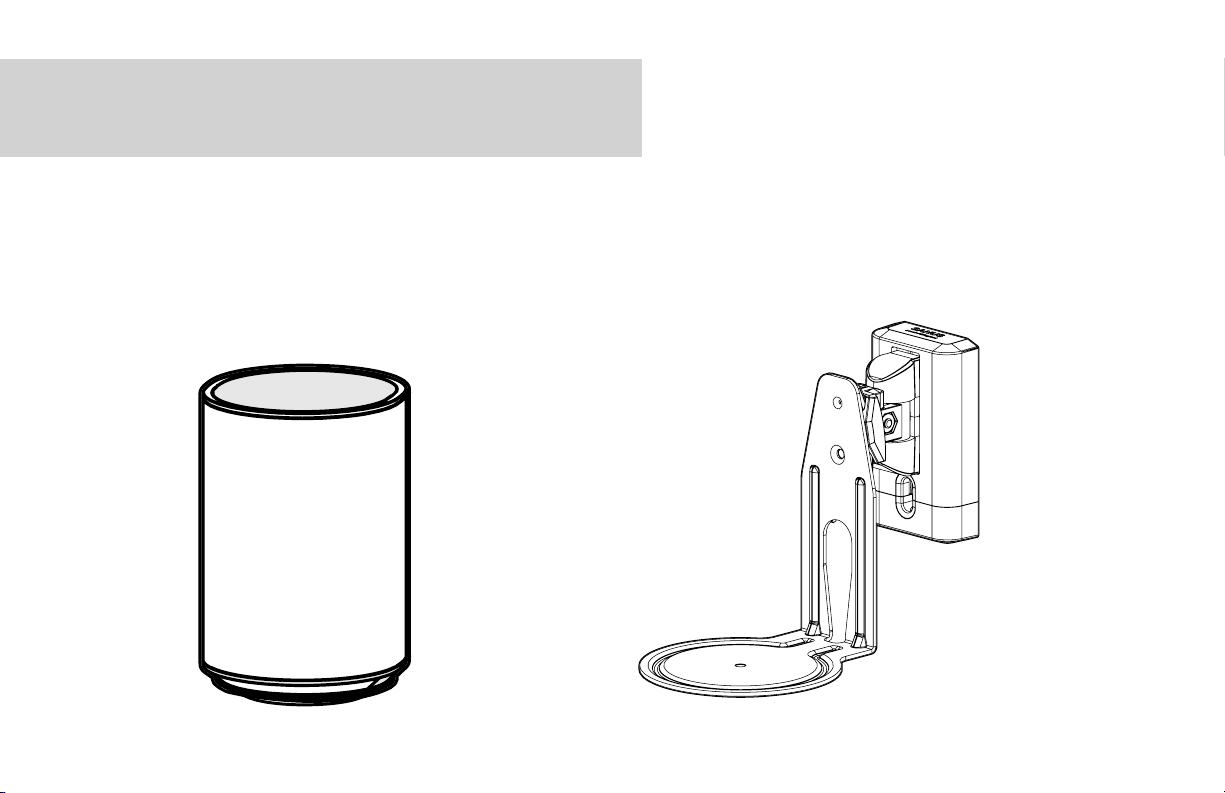

For SONOS®Era 100™

Pages 6-21



























3.00in

76.1mm

0.26in

6.6mm

1.73in

44mm

0.22in

5.6mm

3.50in

88.9mm

3.94in

100mm

7.36in

186.9mm

0.84in

21.3mm

1.17in

29.8mm

2.31in

58.8mm

2.64in

66.9mm

5.88in

149.3mm

2.32in

59mm

1.97in

50mm

4.04in

102.7mm

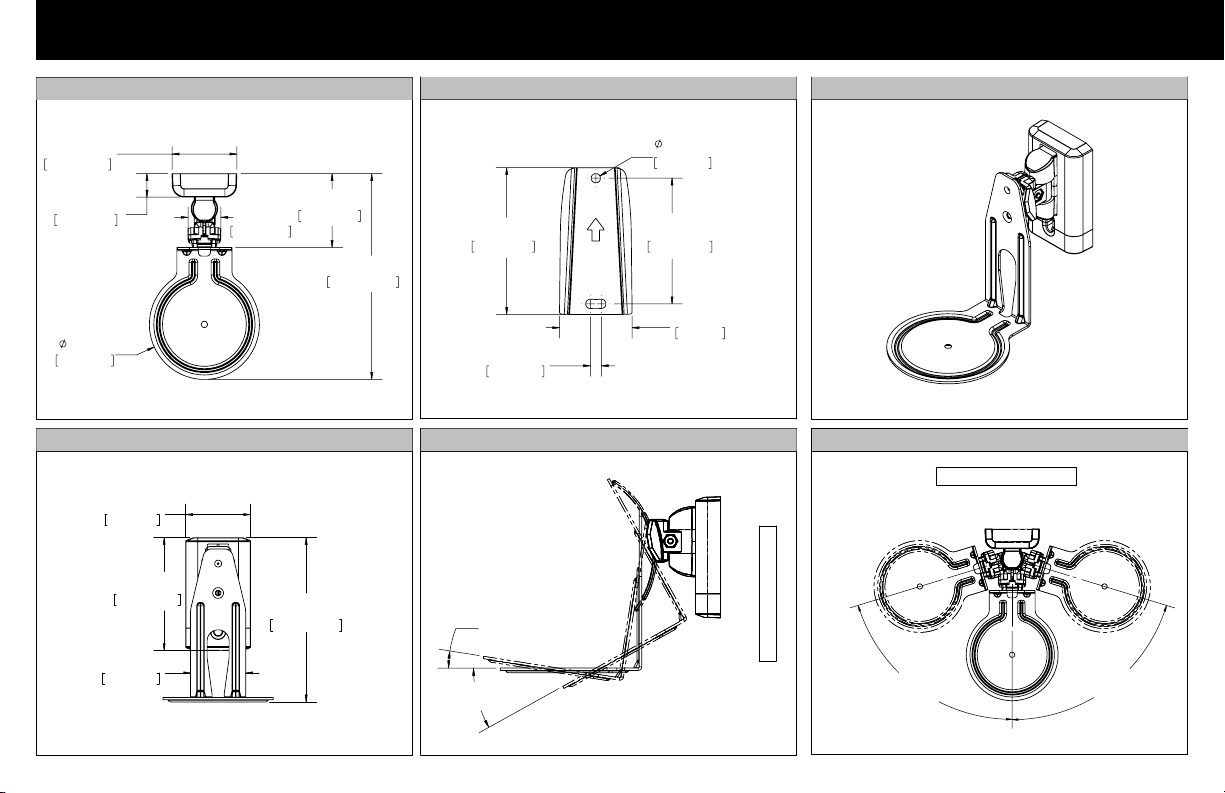

Dimensions

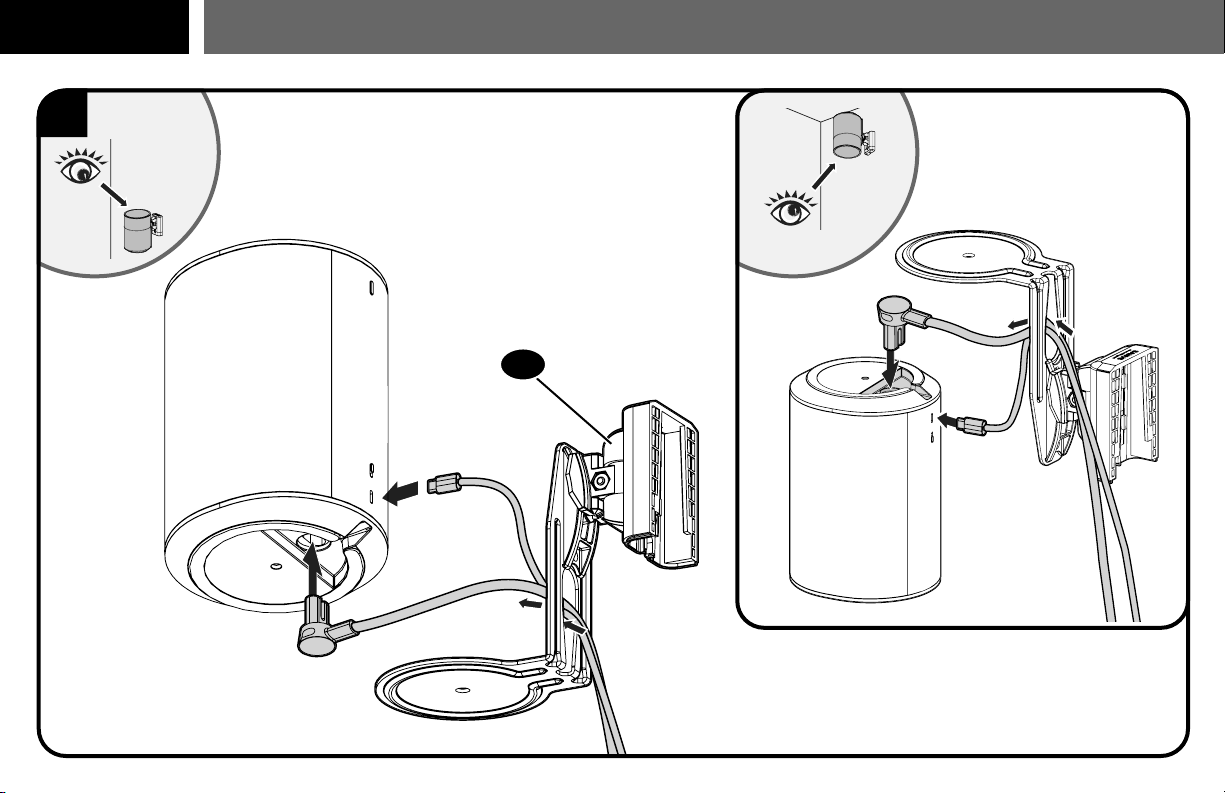

Assemble Brackets

STEP 1

BELOW

Eye Level

Installation

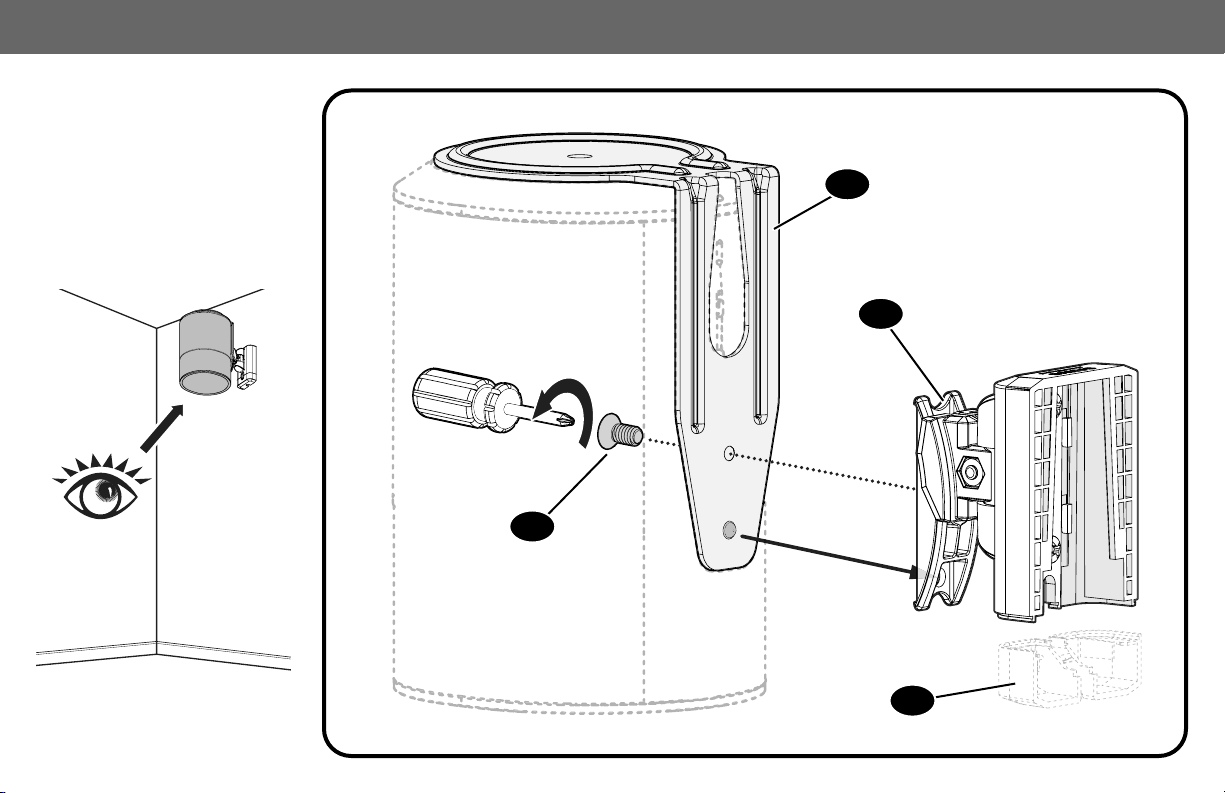

Assemble Brackets

ABOVE

Eye Level

Installation

(Speaker Upside Down)

Attach Speaker to Bracket

STEP 2
