Omni Tri-9

(Order code: LEDJ150 - Black)

(Order code: LEDJ153 - White)

USER MANUAL

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

CAUTION!

THIS UNIT ONLY ACCEPTS AN

INPUT VOLTAGE OF 240V

SAFETY INSTRUCTIONS

Every person involved with the installation, operation & maintenance of this

equipment should:

- Be competent

- Follow the instructions of this manual

CAUTION! TAKE CARE USING THIS EQUIPMENT!

HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!

Before your initial start-up, please make sure that there is no damage caused during

transportation. Should there be any, consult your dealer and do not use the

equipment.

To maintain the equipment in good working condition and to ensure safe operation, it is necessary

for the user to follow the safety instructions and warning notes written in this manual.

Please note that damages caused by user modifications to this equipment are not

subject to warranty.

LEDJ Omni Tri-9 Safety

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused

by the non-observance of this manual or any unauthorised modification to the

equipment.

• Never let the power-cable come into contact with other cables. Handle the power-cable

and all mains voltage connections with particular caution!

• Never remove warning or informative labels from the equipment.

• Do not open the equipment and do not modify the equipment.

• Do not connect this equipment to a dimmer-pack.

• Do not switch the equipment on and off in short intervals, as this will reduce the

system’s life.

• Do not expose to flammable sources or gases.

• Always disconnect the power from the mains when equipment is not in use or before

cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the

power-cable.

• Make sure that the available voltage is between 220v/240v.

• Make sure that the power-cable is never crimped or damaged. Check the equipment and

the power-cable periodically.

• If the equipment is dropped or damaged, disconnect the mains power supply immediately.

Have a qualified engineer inspect the equipment before operating again.

• If your product fails to function correctly, discontinue use immediately. Pack the unit

securely (preferably in the original packing material), and return it to your Prolight dealer

for service.

• Only use fuses of same type and rating.

• Repairs, servicing and power connection must only be carried out by a qualified

technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.

• WARRANTY; One year from date of purchase.

OPERATING DETERMINATIONS

If this equipment is operated in any other way, than those described in this manual,

the product may suffer damage and the warranty becomes void.

Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,

lamp failure etc.

Do not endanger your own safety and the safety of others!

Incorrect installation or use can cause serious damage to people and property.

You should find inside the LEDJ carton the following items:

1, Omni Tri-9 Unit 2, Instruction manual

Technical Specifications:

DMX channels: 6

400Hz flicker free 9W Tri Colour LEDs

Power supply: AC 240 ~ 50Hz

9 x Mega Bright 9W Tri Colour LEDs

Power Consumption: 78W

Beam angle: 25 degrees

Dimensions: 183 x 306 x 330mm

Weight: 6Kgs

Operating modes: 1, Static Colour mode

2, Colour change mode

3, Colour Fade mode

4, Sound active mode

5, Slave mode

6, DMX mode

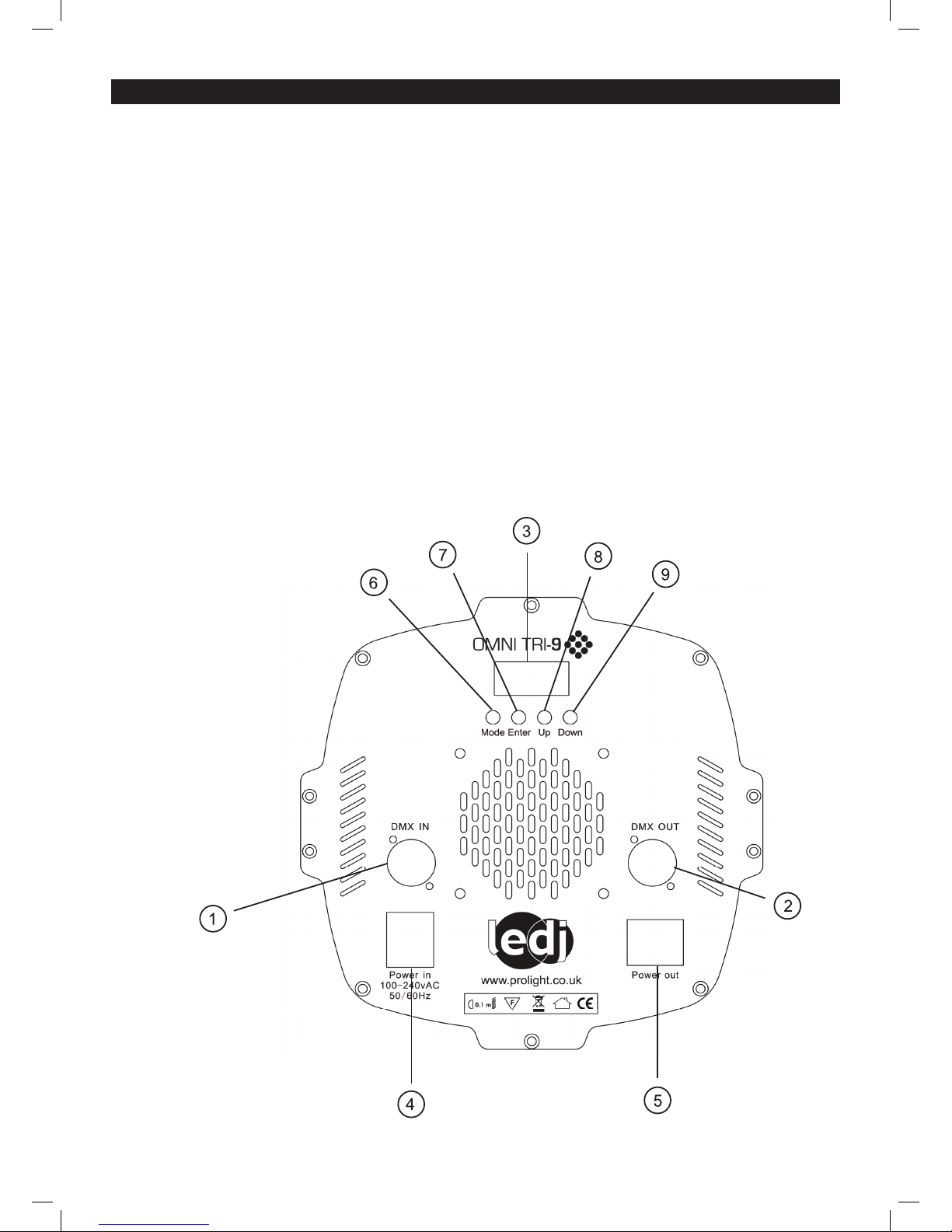

Overview:

1, DMX input

2, DMX output

3, LED display

4, Power input

5, Power output

6, Mode selection button

7, Set up button

8, Function up button

9, Function down button

LEDJ Omni Tri-9 Technical specifications

1, Static colour mode

Mode button - Press the “MODE” button under the LED display, to show “C000”, then press the

“ENTER” button to choose one of the static colours using the “UP” and “DOWN” buttons.

The “C1” represents Red, “C2” = Green, “C3” = Blue and “CF” = strobe.

The two digits after it are the brightness 00 to 99 or in “CF” they are the strobe speed.

Examples: If you set C1, C2 and C3 to zero, the Omni tri will have no LEDs on (blackout).

If you set C1 to 99 and C2 and C3 to zero, the Omni tri will be 100% Red.

2, Colour change mode

Mode button - Press the MODE button until the LED display shows “J000”, then press the

“ENTER” button to choose one of the colour changing modes using the “UP” and “DOWN” buttons.

1, “J300” = RGB, 2, “J700” = 7 colour, 3, “JF00” = Strobe,

Now press the “ENTER” button again and you can then select the colour change speed using the

“UP” and “DOWN” buttons.

The speed settings are from 00-99 (00 = slow, 99 = fast)

The strobe speed settings are from 00-99 (00 = slow, 99 = fast)

3, Colour fade mode

Mode button - Press the MODE button until the LED display shows “F000”, then press the

“ENTER” button to choose one of the colour fading modes using the “UP” and “DOWN” buttons.

1, “F300” = RGB, 2, “F700” = 7 colour, 3, “FF00” = Strobe,

Now press the “ENTER” button again and you can then select the colour fade speed using the

“UP” and “DOWN” buttons.

The speed settings are from 00-99 (00 = slow, 99 = fast)

The strobe speed settings are from 00-99 (00 = slow, 99 = fast)

4, Sound active mode

Mode button - Press the MODE button until the LED display shows “S000”, then press the

“ENTER” button to choose one of the sound active modes using the “UP” and “DOWN” buttons.

1, “S300” = RGB, 2, “S700” = 7 colour,

5). Slave mode

Link the units together using a 3-pin DMX cable, then press the MODE button to select one of the

above modes. On the Slave units press the mode button until the LED display shows “SLAV”. The

Slave units will then follow in sequence with the Master unit.

6). DMX Addressing mode

To access the DMX address mode, press the MODE button until the LED display shows “A000”,

then press the “ENTER” button and set the first digit in the DMX address using the “UP” and

“DOWN” buttons. Now repeat this step to set the second and third digits for the desired DMX

address setting. Once you have set the DMX address, cycle through the other operating modes back

to the DMX mode. The unit will now remember your DMX address setting.

Follow the DMX channel assignment and function table overleaf.

Note: Always press the “ENTER” button a fourth time to confirm the setting.

LEDJ Omni Tri-9 Operation

6 Channel DMX chart

LEDJ Omni Tri-9 Operation

Channel

Value

000-255

0-4

5-84

85-169

170-255

0-255

Function

Master dimmer

Red (0 - 100%)

Green (0 - 100%)

Blue (0-100%)

No function

Colour macro

Colour change

Colour fade

Strobe
