ALU TRI PAR 64
Order code: LEDJ112
USER MANUAL
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
CAUTION!
Keep this equipment away from rain,
moisture and liquids.
SAFETY INSTRUCTIONS
Every person involved with the installation, operation & maintenance of this
equipment should:
- Be competent
- Follow the instructions of this manual
CAUTION! TAKE CARE USING THIS EQUIPMENT!
HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!
Before your initial start-up, please make sure that there is no damage caused during
transportation. Should there be any, consult your dealer and do not use the
equipment.
To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
Please note that damages caused by user modications to this equipment are not
subject to warranty.
Alu Tri Par 64 Safety
Alu Tri Par 64 Safety
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused
by the non-observance of this manual or any unauthorised modication to the
equipment.
• Never let the power-cable come into contact with other cables. Handle the power-cable
and all mains voltage connections with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Do not connect this equipment to a dimmer-pack.
• Do not switch the equipment on and off in short intervals, as this will reduce the
system’s life.
• Only use the equipment indoors.
• Do not expose to ammable sources, liquids or gases.
• Always disconnect the power from the mains when equipment is not in use or before
cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the
power-cable.
• Make sure that the available voltage is between 220v/240v.
• Make sure that the power-cable is never crimped or damaged. Check the equipment and
the power-cable periodically.
• If the equipment is dropped or damaged, disconnect the mains power supply immediately.
Have a qualied engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic temperature uctuation (e.g. after
transportation), do not switch it on immediately. The arising condensation might damage
the equipment. Leave the equipment switched off until it has reached room temperature.
• If your product fails to function correctly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Prolight dealer
for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be carried out by a qualied
technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.
• WARRANTY; One year from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual,
the product may suffer damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,
lamp failure etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and property.
You should nd inside the LEDJ carton the following items:
1, ALU TRI Par 64 Unit 2, Instruction manual
Technical Specications:
DMX Channels: 5
Voltage: AC 240 ~ 50Hz
18 Ultra bright 3W TRI colour LED’s
Power Consumption: 80W
Beam Angle: 40˚
Built-in microphone
LED display
Dimensions: 300 x 270 x 220mm
Weight: 6.7Kgs
Operating modes: 1, Static colour mode
2, Colour change mode
3, Colour fade mode
4, Auto run mode
5, Sound active mode
6, Slave mode
7, DMX mode

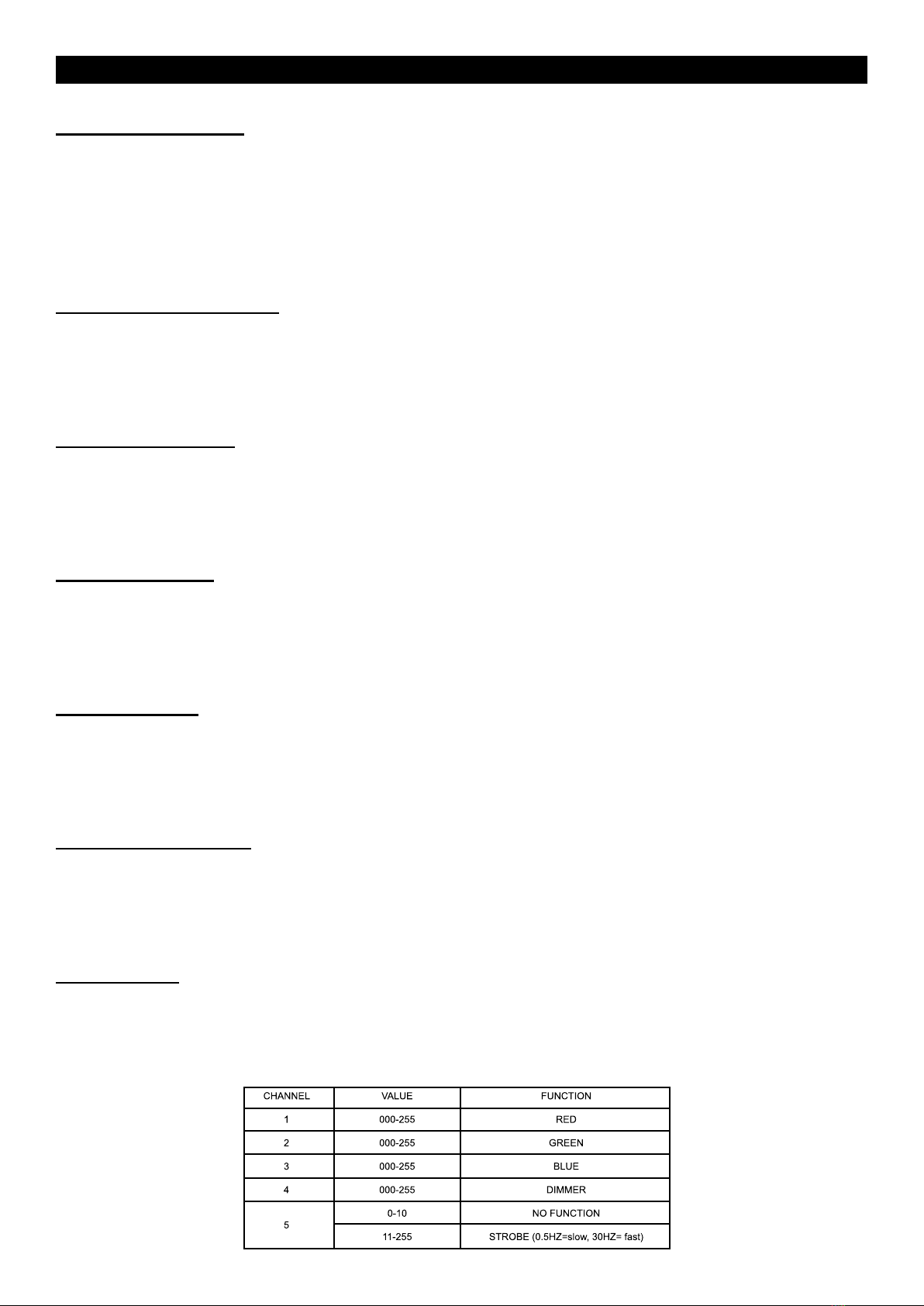

DMX Channel Summary
Alu Tri Par 64 Technical specications
CHANNEL
1
2
3
4
5
VALUE
000-255
000-255
000-255
000-255
0-10
11-255
FUNCTION
RED
GREEN
BLUE
DIMMER
NO FUNCTION
STROBE (0.5HZ=slow, 30HZ= fast)
Overview:
1, DMX output
2, DMX input
3, LED display
4, Power cable
5, Fuse (1A/240V)
Setup
Operating Instructions
The Alu Tri Par 64 is a DMX-512 controllable, full RGB colour mixing Par Can made up of high
efciency and super bright 3W LED’s. There are three colour groups (red, blue and green) whose
intensity can be controlled individually allowing the creation of an unlimited range of colours.
The Alu Tri Par 64 will operate in Stand-alone, Master/Slave, Sound activated and
DMX-512 control modes.
Operations:
There are 7 different operation modes to choose from:
1) Static colour mode 2) Colour changing mode 3) Colour fade mode
4) Auto run mode 5) Sound active mode 6) Slave mode
7) DMX mode
1
2
3
4
5
Alu Tri Par 64 Overview
Alu Tri Par 64 Operations
1, Static colour mode
Mode button - By pressing the “MODE” button under the LED display, the LED display will show
“CL0”, then you can select one of the 7 static colours using the “UP” and “DOWN” buttons. The
Colours range from 1 - 7 and are listed below:
1, Red 2, Green 3, Blue 4, Purple 5, Yellow 6, Cyan 7, White
2, Colour changing mode
Mode button - Press the MODE button until the LED display shows “J00”, then the unit will run in
Colour change mode. Select the speed from 01 - 99 via the “UP” and “Down” buttons.
(01 = Slow, 99 = Fast)
3, Colour fade mode
Mode button - Press the MODE button until the LED display shows “F00”, the unit will then run in
Colour Fade mode. Select the fade speed from 01 - 99 via the “UP” and “Down” buttons.
(01 = Slow, 99 = Fast)
4, Auto Run mode
Mode button - Press the MODE button until the LED display shows “A--”, the unit will then run
in Auto Run mode. The Par Can alternates automatically between colour fade and colour change
modes using the speed that you have previously set by following the instructions above.
5). Sound active
Mode button - Press the MODE button until the LED display shows “S00”, the unit will then run in
Sound Active mode. Select the sensitivity level from 01 - 30 via the “UP” and “Down” buttons.
Please note: The higher the value the more sensitive it will be.
6). Master/Slave mode
Link the units together using a 3-pin DMX cable, then press the MODE button to select one of the
above modes. On the Slave units press the mode button until the LED display shows “SLA”. The
Slave units will then follow in sequence with the Master unit.
7). DMX mode
To access the 5 channel DMX mode, press the MODE button until the LED display
shows “001 - 512” (DMX address), this unit occupies 5 DMX channels. The DMX values and
functions are as follows.
Alu Tri Par 64 DMX setup
8). Led display ON/OFF
This unit has two LED display options:
1, Once the unit is turned on, press the “MODE” button plus the “UP” button, and the led
display will always stay on.
2, Once the unit is turned on press the “MODE” button plus the “DOWN” button, and if no
operations are selected within 20 seconds, the led display will turn off automatically.
DMX-512:
• DMX (Digital Multiplex) is a universal protocol used as a form of communication between
intelligent xtures and controllers. A DMX controller sends DMX data instructions form the
controller to the xture. DMX data is sent as serial data that travels from xture to xture via the
DATA “IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only have
a data “out” terminal).
DMX Linking:
• DMX is a language allowing all makes and models of different manufactures to be linked together
and operate from a single controller, as long as all xtures and the controller are DMX compliant.
To ensure proper DMX data transmission, when using several DMX xtures try to use the
shortest cable path possible. The order in which xtures are connected in a DMX line does not
inuence the DMX addressing. For example; a xture assigned to a DMX address of 1 may be
placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a
xture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to
address 1 to that unit, no matter where it is located in the DMX chain.
DATA Cable (DMX cable) requirements (for DMX operation):
• The Alu Tri Par 64 can be controlled via DMX-512 protocol. The DMX address is set on the back
of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data
input/output (gure 1).
Figure 1
Also remember that DMX cable must be daisy chained and cannot be split.
Further DMX cables can be purchased
from all good sound and lighting suppliers
or Prolight dealers.
Please quote:
CABL10 – 2M
CABL11 – 5M
CABL12 – 10M
Alu Tri Par 64 DMX setup
Notice:
• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield
conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer
casing. Grounding the shield could cause a short circuit and erratic behaviour.
Special Note: Line termination:
• When longer runs of cable are used, you may need to use a terminator on the last unit to
avoid erratic behaviour.
Using a cable terminator (part number CABL90) will decrease the possibilities of erratic
behaviour.
5-Pin XLR DMX Connectors:
• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin
XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin
XLR connectors in to a 3-pin line a cable adaptor must be used. The Chart below details the
correct cable conversion.
Termination reduces signal transmission problems
and interferance. it is always advisable to connect a
DMX terminal, (resistance 120 Ohm 1/4 W) between
pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.
Technical Specications
Weight & Dimensions
• Length…..............................................................................................................................300mm
• Width....................................................................................................................................270mm
• Height………....................................................................………...…………………………..220mm
• Weight……………………………………….............................................................................6.7kgs
Power
• AC input……………………………………..................................................AC 120V/240V, 50/60Hz
Fuse
• Main……………………………………………….....................................20mm Glass 1A Fast Blow
Control & Programming
• Data input…………………………………...........................……...Locking 3-pin XLR male socket
• Data output…………………………………….......................….Locking 3-pin XLR female socket
• Protocols…………………………………………...................................................DMX-512 UTSITT
• DMX channels………………………………….................................................................................5
Alu Tri Par 64 Specications
