Ledj HBR 1D Manuel utilisateur

www.prolight.co.uk

(Order code: LEDJ123)

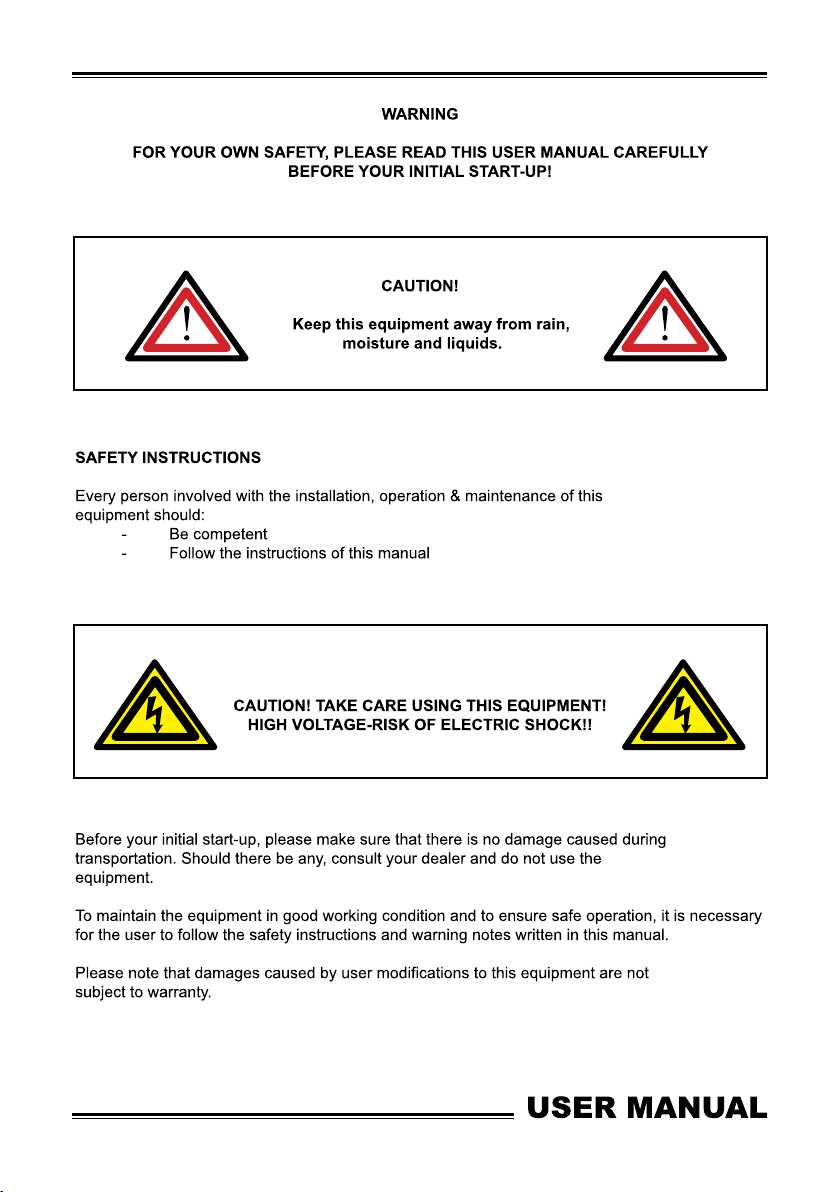

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused

by the non-observance of this manual or any unauthorised modication to the

equipment.

• Never let the power-cable come into contact with other cables. Handle the

power-cable and all mains voltage connections with particular caution!

• Never remove warning or informative labels from the equipment.

• Do not open the equipment and do not modify the equipment.

• Do not switch the equipment on and off in short intervals, as this will reduce the

system’s life.

• Only use the equipment indoors.

 •Donotexposetoammablesources,liquidsorgases.

• Always disconnect the power from the mains when equipment is not in use or before

cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling

the power-cable.

• Make sure that the available voltage is between 220v/240v.

• Make sure that the power-cable is never crimped or damaged. Check the equipment

and the power-cable periodically.

• If the equipment is dropped or damaged, disconnect the mains power

supply immediately.

 Haveaqualiedengineerinspecttheequipmentbeforeoperatingagain.

 •Iftheequipmenthasbeenexposedtodrastictemperatureuctuation(e.g.after

transportation), do not switch it on immediately. The arising condensation might

damage the equipment. Leave the equipment switched off until it has reached room

temperature.

• If your product fails to function correctly, discontinue use immediately. Pack the unit

 securely(preferablyintheoriginalpackingmaterial),andreturnittoyourProlight

dealer for service.

• Only use fuses of same type and rating.

 •Repairs,servicingandpowerconnectionmustonlybecarriedoutbyaqualied

technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.

• WARRANTY; One year from date of purchase.

OPERATING DETERMINATIONS

If this equipment is operated in any other way, than those described in this manual,

the product may suffer damage and the warranty becomes void.

Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,

lamp failure etc.

Do not endanger your own safety and the safety of others!

Incorrect installation or use can cause serious damage to people and property.

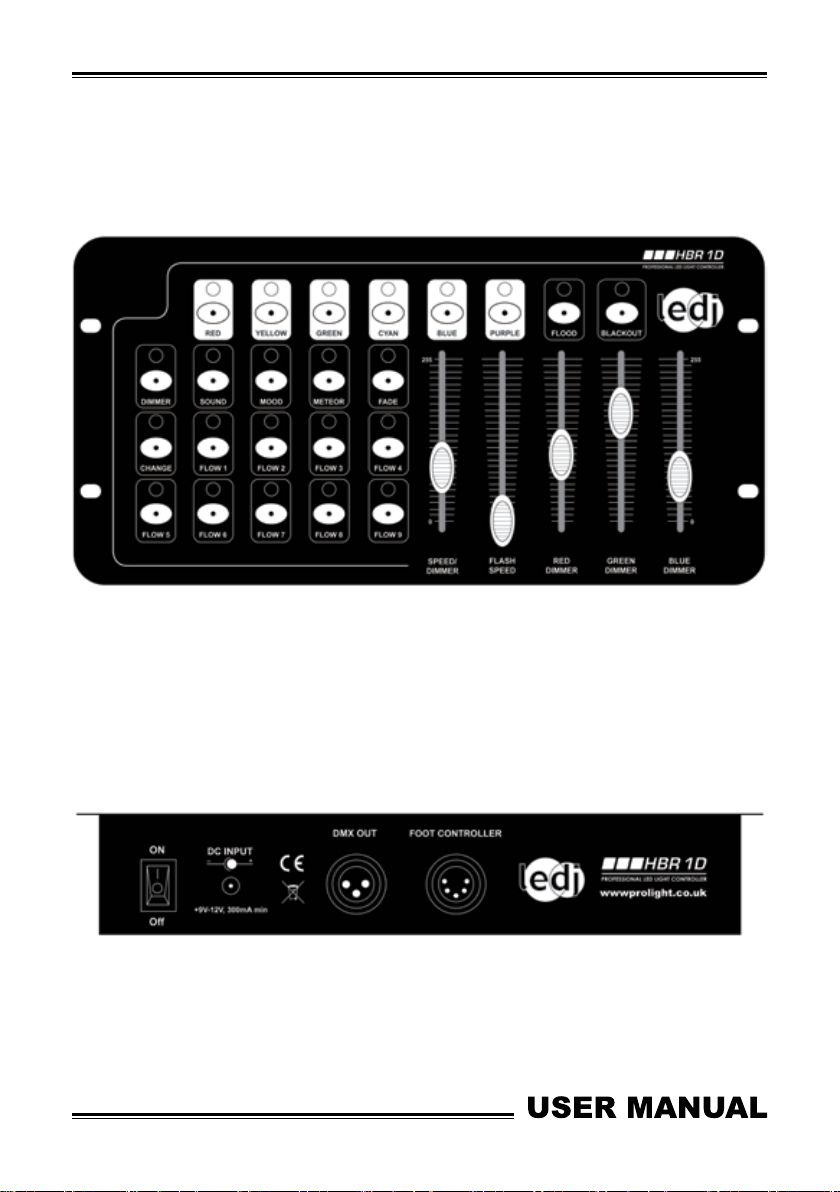

Over view:

Front:

Rear:

Features:

7 Preset colour buttons for instant colour selection.

6 Buttons for dimmer, sound, mood, meteor, fade and change.

9 Flow buttons for instant light shows.

Sound active function with adjustable sensitivity.

Blackout,ood&strobefunctions.

1, Blackout mode:

When you power up your HBR-1D controller, the LED above the “BLACKOUT” button will

illuminate, indicating that the unit is set to blackout mode. To exit the blackout mode simply press

any one of the function buttons.

2, Preset colour mode

In this mode you can select one of the seven preset colours by pressing one of the designated

colourbuttons.Onceyouhaveselectedyourcolouryoucannowsetthedesiredashspeedfrom

slow - fast by using the “FLASH SPEED”slider.(0=slow,255=fast)

3, Dimmer mode

Toactivatethismoderstpressthe‘DIMMER” button and make sure that the “SPEED/DIMMER”

sliderissetto255.Nowyoucanuseanyofthe“RED, GREEN and BLUE” colour sliders to set

thedesiredoutputbrightnessandcolour.Tosettheashspeedusethe “FLASH SPEED” slider

tosetthedesiredspeed(0=slow,255=fast).

4, Sound Active mode

To activate this mode, press the “SOUND” button. You will need to adjust the “SPEED/DIMMER”

slidertosetthemusicinputsensitivitylevel.(0=low,255=high)Youcanthenusethe“FLASH

SPEED”slidertosetthedesiredstrobespeed.(0=slow,255=fast)

5, Colour Mood mode

To activate this mode, press the “MOOD” button, then adjust the speed to the desired level using

the “SPEED/DIMMER” slider(0=slow,255=fast).Youcannowusethe“FLASH SPEED” slider

tosetthedesiredstrobespeed(0=slow,255=fast).Thismodeisidealforwallandup/down

lighting to create different mood effects in bars, restaurants and shops etc.

6, Meteor mode

To activate this mode press the “METEOR” button, then adjust the speed to the desired level by

using the “SPEED/DIMMER” slider(0=slow,255=fast).Theunitwillnowrunfromrighttoleft

through its built-in preset colours. You can now use the “FLASH SPEED” slider to set the desired

strobespeed(0=slow,255=fast).

7, Colour Fade mode

To activate this mode press the “FADE” button, then adjust the speed to the desired level by us-

ing the “SPEED/DIMMER” slider(0=slow,255=fast).Theunitwillnowfadethroughitsbuilt-in

preset colours. You can now use the “FLASH SPEED” slider to set the desired strobe speed

(0=slow,255=fast).

8, Colour change mode

To activate this mode press the “CHANGE” button and adjust the speed to the desired level by

using the “SPEED/DIMMER” slider(0=slow,255=fast).Theunitwillnowchangethroughits

built-in preset colours. You can now use the “FLASH SPEED” slider to set the desired strobe

speed(0=slow,255=fast).

Flow function button:

The Flow buttons 1-9 are equipped with built-in chase patterns. Each “FLOW” chase button is

described below.

Flow 1:

Flows from left to right through its built-in preset colours.

Flow 2:

Flows from left-right, right-left, running through its built-in preset colours.

Flow 3:

Flows from left-right, fading through its built-in preset colours.

Flow 4:

Bounces from left-right, right-left, through its built-in preset colours.

Flow 5 :

Anti-clockwise rotation running through its built-in preset colours.

Flow 6:

Clockwise rotation running through its built-in preset colours.

Flow 7:

Left to right in a worm fashion through its built-in preset colours.

Flow 8:

Jumps from left to right with individual colours or you can mix it yourself with two colours of your

choice. To chose the desired colours use the “RED DIMMER” slider.

Flow 9:

Jumps from left-right, right-left with selected individual colours or you can mix it yourself with two

colours of your choice. To chose the desired colours use the “RED DIMMER” slider.

NOTE: Each of the above ow patterns can be controlled by using the “SPEED/ DIMMER”

slider to select the desired running speed and the “FLASH SPEED” slider

to chose the desired ash level.

Specications

Power supply: DC 9-12V 300mA Min.

Size:294x145x64mm

Weight: 1.1 Kgs

Notes:
