Quadrum DigiPlus / Quadrum DigiPlus Green

IP 66

Please read the operating instructions as well as the enclosed brochures „Guarantee and

additional notices“ and „Laser class 3R safety instructions“. Follow the instructions they

contain. Safely keep these documents for future reference.

Two-axis grade laser with red or green laser technology.

– With additional red plumb laser

– Laser modes: spot, scan, rotary and hand receiver mode

– The laser modes can be set using the remote control.

– optional SensoLite 310: Laser receiver range up to 300 m radius

– optional SensoLite 410: Laser receiver range up to 400 m radius

– optional SensoMaster 400 (Quadrum DigiPlus red only): Laser receiver range in excess of 300 m

radius. With longer laser receiver unit and millimetre exact distance reading for laser level.

Caution: Prior to using the laser, you must read the safety instructions for laser class 3R thoroughly.

Warning signs must not be removed from the laser measuring device! Do not look directly into the

beam. Lasers must be kept out of reach of children. Never intentionally aim the device at people.

This is a quality laser measuring device and is 100% factory adjusted within the stated tolerance. For

reasons of product liability, we must also draw your attention to the following: Regularly check the

calibration before use, after transport and after extended periods of storage. We also wish to point

out that absolute calibration is only possible in a specialist workshop. Calibration by yourself is only

approximate and the accuracy of the calibration will depend on the care with which you proceed.

Laser radiation!

Avoid direct exposure

to the eyes.

Laser class 3R

< 5 mW Ċ530 - 670 nm

EN60825-1:2007-10

General safety instructions

Special product features and functions

The device characterised by specific protection against dustand rain.

Transport LOCK: The device is protected by a special motor brake during transport.

The rotary laser aligns itself automatically. It is set to the required initial position (to within

an operating angle of ± 6°) and the automatic system then performs the necessary fine

adjustment, with three electronic measurement sensors detecting the X, Y and Z axes.

Quadrum_DigiPlus_Rev0112.indd 13 13.02.12 12:02

auto

man

auto auto x auto y

The anti-drift system (ADS) prevents erroneous or inaccurate measurements. How it works:

continuous monitoring of the alignment of the laser is activated 30 seconds after the ADS is switched on.

If the device moves due to external factors or if the laser loses its height reference, the laser will come to

a standstill and blink. In addition, TILT will be illuminated continuously, a warning triangle will appear on

the LC display and the system will beep. To continue working, press the tilt button again or switch the

device off then on again. Erroneous and inaccurate measurements are thus prevented simply and reliably.

The ADS is not active following switch-on. Once the device has been set up, press the tilt button to

activate the ADS, enabling you to protect the laser from changes in position caused by the device being

disturbed by external factors. The word „TILT“ will flash on the display to indicate that the ADS function

is active; see the diagram below.

The ADS does not activate the monitoring function until 30 seconds after the laser levelling

procedure has been completed (set-up phase). The word „TILT“ will flash every second during

the set-up phase and then flash more slowly when the ADS is active.

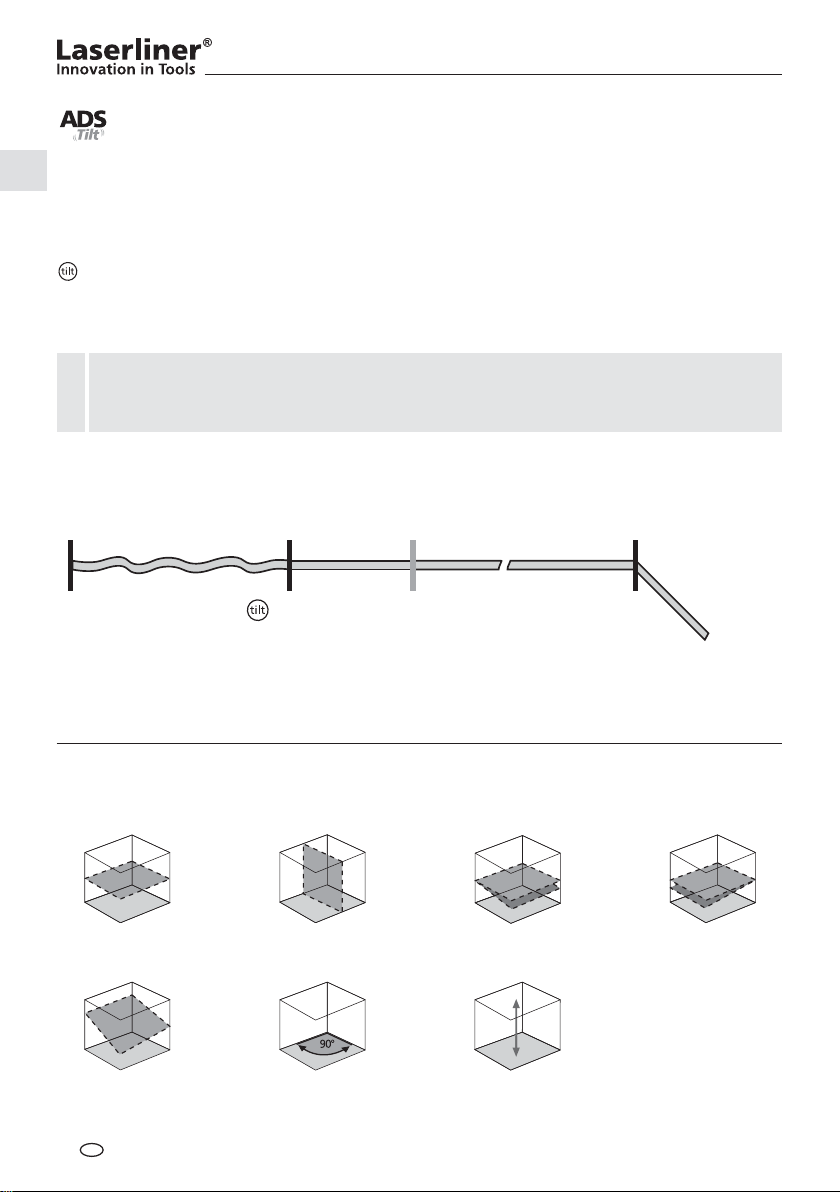

ADS function

ON External influence

Adjustment phase

Sensor Automatic ADS activation: press

the Tilt button; the

word „TILT“ will

flash every second

The

laser will

remain stationary as a

precaution. Then the laser

will flash and the word

„TILT“ will be illuminated

continuously.

ADS active after

30 seconds; „TILT“

flashes slowly.

Rotation

begins

Space grids: These show the laser planes and functions.

auto: Automatic alignment / man: Manual alignment

Horizontal levelling

Slope function

Vertical levelling

90° angle

X axis slope

Plumb function

Y axis slope

Quadrum_DigiPlus_Rev0112.indd 14 13.02.12 12:02

Quadrum DigiPlus / Quadrum DigiPlus Green

–

Quadrum DigiPlus Green: green laser technology

The distance at which a laser is visible to the naked eye depends on its colour i.e. wavelength. This is

because of the human eye‘s physiology – green appears brighter to us than red. Depending on ambient

light, green lasers are therefore many times more visible than red lasers; in indoor areas this is as much

as 12 times brighter. This permits applications on dark surfaces, over longer distances and work in very

bright ambient light. A red laser with a 635 nm wavelength is used as a reference value for brightness

differentiation.

In contrast to red lasers, green laser light can only be produced indirectly. This is a source of potential

characteristic fluctuations:

– The optimal operating temperature is 20°C. Outside of its operating temperature range of 0 – 40°C,

the green rotary laser will be darker. IMPORTANT: Allow the unit enough time to adapt to the

ambient temperature before switching the unit on.

– Laser brightness may vary somewhat from one unit to another. This is a natural phenomena and

excluded from warranty claims.

– Green Laser will only work with certain Receivers. The maximum range of the Receiver is shorter,

please refer to technical details.

Battery charging

– Charge the device‘s battery completely prior to use.

– Connect the charger to mains power supply and the charging

socket (J) of the battery compartment (L). Please only use the

charger supplied; using a different charger will invalidate the

warranty. The rechargeable battery can also be charged when

it is not inserted in the device.

– When the rechargeable battery is being charged, the LED on

the charger (N) lights up red. When the LED changes to green,

charging is complete. When the unit is not connected to the

charger the power charger‘s LED lamp will blink.

– Alkaline batteries (4 x type C) can be used as an alternative.

Insert them in the battery compartment (K) as per the

installation symbols.

– Insert battery (L) / battery compartment (K) into slot (G) and

secure it in place with fastening screw (I). The electrical

contacts (H) must be connected.

– With the rechargeable battery inserted, the device is ready

to run even during charging.

– If the battery symbol (14) flashes continuously on the LC display,

the batteries must be replaced or the rechargeable battery must

be charged.

Insert batteries into the remote control

– Observing the correct polarity.

Quadrum_DigiPlus_Rev0112.indd 15 13.02.12 12:02

Reference / plumb laser outlet

Prism head / laser beam outlet

Receiver diodes for remote control (4 x)

Control panel

LC display

5/8“ thread /

Reference, plumb laser outlet

Slot for rechargeable battery / battery

compartment

Electrical contacts

Battery compartment /

battery fastening nut

Charging socket

Battery compartment

Rechargeable battery

compartment

Mains unit / charger

Operation indicator

red: battery is charging

green: charging process complete

Vertical operation

Quadrum_DigiPlus_Rev0112.indd 16 13.02.12 12:02

Quadrum DigiPlus / Quadrum DigiPlus Green

Control panel Quadrum DigiPlus

LC display

Quadrum DigiPlus

Remote control

auto/slope function

Switching the x and y-axes

Rotary speed for selection

600 / 300 / 120 / 60 / 0 rpm

ON/OFF button

Plus button for setting the

inclination with the digital and

manual slope function

Minus button for setting the

inclination with the digital and

manual slope function

Scan mode

Tilt function

Display of inclination setting

of the x-axis

Display of inclination setting

of the y-axis

Tilt function warning indicator

Scan mode indicator

Dual grade function indicator

Battery charge status indicator

Calibrating mode indicator

Speed indicator

Levelling indicator

Tilt function indicator

Manual mode indicator

Positioning button

(rotate to the left)

Positioning button

(rotate to the right)

Quadrum_DigiPlus_Rev0112.indd 17 13.02.12 12:02

auto auto

auto

±6°

1. 2.

Horizontal levelling and vertical levelling

– Horizontal: Position the device on a level surface or on a tripod.

– Vertical: Set the unit on its side feet. The operator panel should be

at the top. With the optional wall bracket (product ref. 080.70),

the device can be mounted on a tripod for vertical usage.

– Press the „ON/OFF“ switch

The rotary laser aligns itself automatically once it is turned on.

– The device levels itself automatically to within a range of ± 6°. During the set-up phase, the laser flas-

hes and the prism head remains stationary. When levelling is complete, the laser lights up continuously

and rotates at maximum speed. Refer also to the sections about „Sensor Automatic“ and „ADS Tilt“.

If the device has been placed on a surface with too much of a slope (more than 6°), the prism

head will remain stationary and the laser will flash and emit a warning sound. The device must

then be placed on a more even surface.

Positioning the vertical laser level

In vertical mode the laser level can be positioned exactly. „Sensor Automatic“ remains active and levels

to the vertical laser level. Refer to the illustration below.

When the maximum slope range of 6° has been reached, the laser will stay fixed and blink and

emit a sound. In this case, reduce the slope angle.

Quadrum_DigiPlus_Rev0112.indd 18 13.02.12 12:02

Quadrum DigiPlus / Quadrum DigiPlus Green

(±10°)

Xauto

1. 2. 3. 4. 5.

±6°

Xauto man man

3 sec

1. 2. 3. 4. 5.

Manual slope function up to 6° – horizontal

Activation of the slope function deactivates the automatic sensor, To return the laser to manual mode,

keep the ON/OFF button pressed until the hand symbol (19) appears on the LC display. Press the X/Y

button to set the horizontal plane. The plus/minus buttons are used to re-adjust the slope by means of

a motor. In the process the X-and Y-axis can be adjust separately. Refer to the illustrations below.

Digital inclination function (dual grade function)

The horizontal plane can be inclined digitally in the x and y-axes. The maximum

inclination of a plane is up to ±10%. In the sum of both axes, the maximum value

is reduced per each axis. On the large LC display, the values are displayed and can

be entered independently.

Setting the axes: Press the auto/slope button (1). The x-axis indicator blinks on the

LC display. The numbers can be set with the Plus and Minus buttons (5/6). Switch to

the y-axis by pressing the X/Y button (2). Then the y value can be set with the Plus

and Minus buttons (5/6). Pressing the X/Y button (2) again confirms the entry. The

device then adjusts to the desired value. Refer to the illustrations below.

Important: It is not possible to enter any information while the device is levelling. The LC display shows

the blinking levelling symbol (17). When the levelling symbol stops blinking, levelling is complete and

new numbers can be entered.

On 2 planes

The automatic sensor is activated whenever the digital slope function is in use.

The X/Y axes are marked on the device.

On 1 plane

Quadrum_DigiPlus_Rev0112.indd 19 13.02.12 12:02

auto man man

3 sec

1. 2. 3. 4.

man

3 sec

Manual slope function > 6°

Steeper slopes can be set using the angle plate, which is

available as an optional extra (product ref. 080.75).

TIP: Allow the device to align itself automatically and set

the angle plate to the zero position. Then switch off the

automatic sensor. See: Manual slope function up to 6°.

Finally, incline the device to the angle you require.

Manual slope function up to 6° – vertical

When the maximum slope range of 6° has been reached, the laser will stay fixed and blink and

emit a sound. In this case, reduce the slope angle.

When the hand symbol appears on the LC display, the automatic sensor is not activated

and therefore horizontal and vertical levelling is not possible.

Rotary mode

The following speeds can be set using the rotary button:

0, 60, 120, 300, 600 rpm

Laser modes

Spot mode

You access spot mode by pressing the rotary button repeatedly until

the laser stops rotating. The laser can then be positioned exactly at

the measuring point by means of the direction buttons.

Scan mode

The scan button can be used to activate and set a lightintensive

segment in 4 different widths. You position the segment via the

direction buttons.

Hand receiver mode

Working with the laser receiver (available as an optional extra): Set the

rotary laser to maximum speed and switch on the laser receiver. Refer

to the operating instructions for the respective laser receiver about this.

Quadrum_DigiPlus_Rev0112.indd 20 13.02.12 12:02

Quadrum DigiPlus / Quadrum DigiPlus Green

Technical data

(Subject to technical alterations)

Self-levelling range

± 6°

Accurancy

± 0,75 mm / 10 m

Horizontal / vertical levelling Automatic with electronic sensors

and servo motors

Self-levelling alignment time Approx. 30 seconds over the entire

operating angle

Vertical reference beams 90° to rotation plane

Rotation speed 0, 60, 120, 300, 600 RPM

Remote control Infrared IR

Laser wavelengths green / red 635 nm / 532 nm

Laser class red / green 3R (EN60825-1:2007-10)

Laser output rating red / green < 5 mW

Power supply High-performance rechargeable

battery /batteries (4 x type C)

Rechargeable battery life red / green

approx. 35 h / approx. 14 h

Non-rechargeable battery life red / green

approx. 50 h / approx. 8 h

Battery recharging time ca. 6 h

Operating temperature red / green -10°C ... + 50°C / 0°C ... + 40°C

Storage temperature -10°C ... + 70°C

Protection class IP 66

Dimensions (W x H x D) /

Weight (incl. batteries) 215 x 205 x 165 mm /

2,6 kg

Remote control

Power supply 2 x type AAA

Remote control range

max. 40 m (IR-Control)

Dimensions (W x H x D) /

Weight (incl. batteries)

63 x 130 x 24 mm /

0,15 kg

EU directives and disposal

This device complies with all necessary standards for the free movement

of goods within the EU.

This product is an electric device and must be collected separately for disposal

according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: www.laserliner.com/info

Working with the reference/plumb laser

The unit has two reference lasers. In horizontal operation these lasers

can be used to drop a perpendicular. In vertical operation these reference

lasers are used to align the unit. This is done by adjusting the reference

lasers parallel to the wall. This aligns the vertical laser plane at a right

angle to the wall, see illustration.

Quadrum_DigiPlus_Rev0112.indd 21 13.02.12 12:03

Autres manuels pour Quadrum DigiPlus

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels LaserLiner Niveau laser

LaserLiner

LaserLiner SuperLine 3D Manuel utilisateur

LaserLiner

LaserLiner SuperLine 2D Manuel utilisateur

LaserLiner

LaserLiner ThermoSpot Manuel utilisateur

LaserLiner

LaserLiner SuperCross-Laser Compact Manuel utilisateur

LaserLiner

LaserLiner SmartCross-Laser Manuel utilisateur

LaserLiner

LaserLiner DigiLevel Compact Manuel utilisateur

LaserLiner

LaserLiner SuperCross-Laser 2GP Manuel utilisateur

LaserLiner

LaserLiner DualAxis-Laser Manuel utilisateur

LaserLiner

LaserLiner BeamControl-Master Manuel utilisateur

LaserLiner

LaserLiner AutoCross-Laser ACL 2C RX Manuel utilisateur

LaserLiner

LaserLiner Greenline-Laser 3P Manuel utilisateur

LaserLiner

LaserLiner SmartLine-Laser 360 Manuel utilisateur

LaserLiner

LaserLiner AL 22 Classic Manuel utilisateur

LaserLiner

LaserLiner EasyCross-Laser Manuel utilisateur

LaserLiner

LaserLiner BeamControl-Master Manuel utilisateur

LaserLiner

LaserLiner AutoCross-Laser 2 XP Manuel utilisateur

LaserLiner

LaserLiner SuperSquare-Laser Manuel utilisateur

LaserLiner

LaserLiner SmartCross-Laser Manuel utilisateur

LaserLiner

LaserLiner SuperCross-Green 3 Manuel utilisateur

LaserLiner

LaserLiner MasterLevel Box Manuel utilisateur

LaserLiner

LaserLiner MasterLevel Compact Plus Manuel utilisateur

LaserLiner

LaserLiner CompactCross-Laser Pro Manuel utilisateur

LaserLiner

LaserLiner DigiLevel Pro 120 Manuel utilisateur

LaserLiner

LaserLiner DigiLevel Pro 120 Manuel utilisateur

Manuels Niveau laser populaires d'autres marques

Nedo

Nedo ET-5 Manuel utilisateur

geo-FENNEL

geo-FENNEL Maxi-Liner FL 65 HP Manuel utilisateur

Spectra

Spectra LL300N Manuel utilisateur

geo-FENNEL

geo-FENNEL Selection PRO FLG 40-PowerCross GREEN SP Manuel utilisateur

Nedo

Nedo Crossliner 4 Manuel utilisateur

Lasertec

Lasertec FX360G Manuel utilisateur

Flex

Flex ALC 8 Manuel utilisateur

Black & Decker

Black & Decker LZR5 Manuel utilisateur

Johnson

Johnson 40-6692 Manuel utilisateur

Cocraft

Cocraft HL 20-SG Manuel utilisateur

Zircon

Zircon iLine Manuel utilisateur

HWH

HWH 310 SERIES Manuel utilisateur

Leica

Leica iCON robot 60 Manuel utilisateur

DeWalt

DeWalt DW082 Manuel utilisateur

imex

imex EL20 Manuel utilisateur

Fixturlaser

Fixturlaser NXA D I-0912 Manuel utilisateur

Wacker Neuson

Wacker Neuson PAL450 Manuel utilisateur

Metrica

Metrica 33806 Manuel utilisateur
