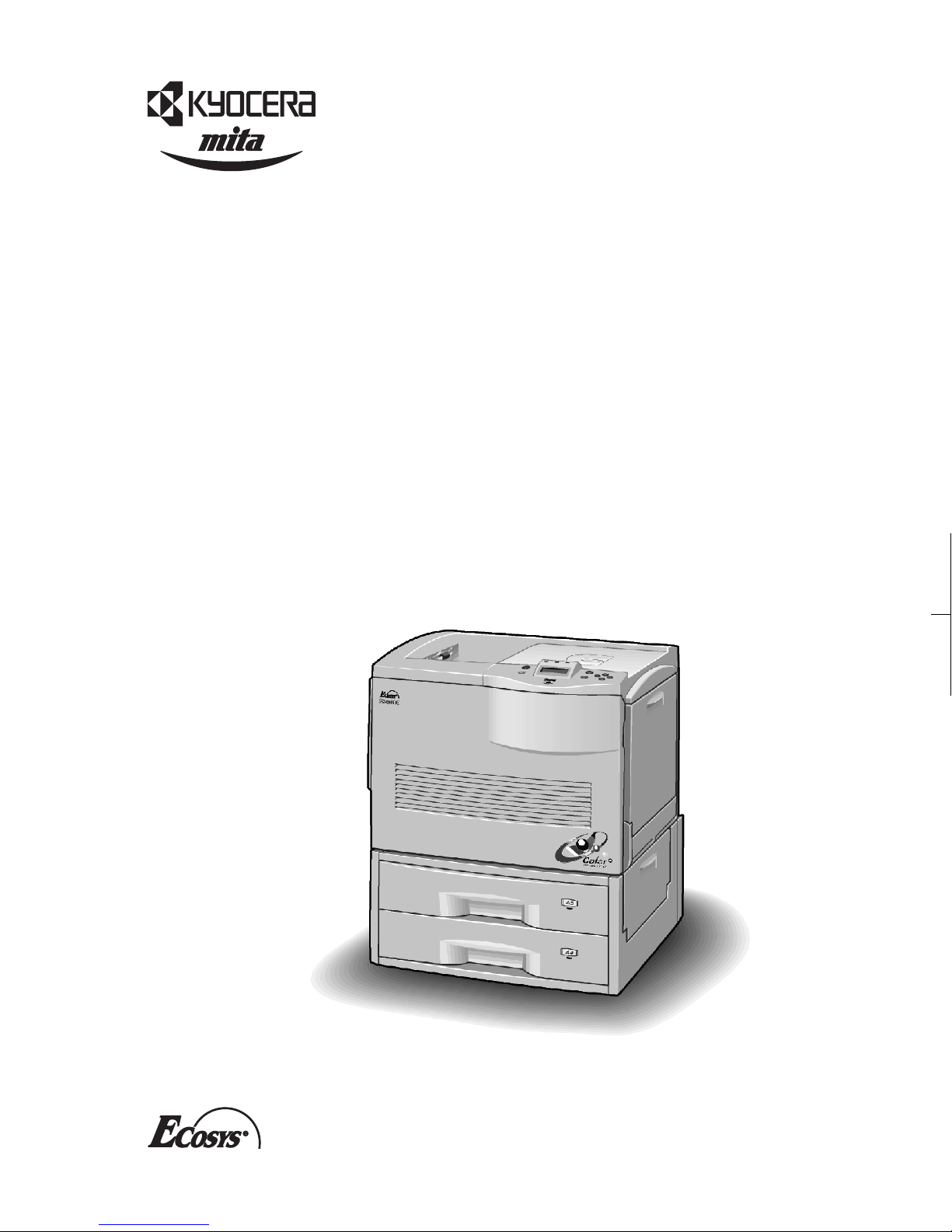

Kyocera Mita FS 8000C - Color Laser Printer Manuel utilisateur

FS-8000C

FS-8000CD

FS-8000CN

Color Printer

Quick Reference Guide

Kyocera Corporation

14-9, Tamagawadai 2-Chome, Setagaya Ward

Tokyo 158-8610, Japan

Printed in Japan

2BM80030D

Notice

NO LIABILITY IS ASSUMED FOR ANY DAMAGE CAUSED BY

IMPROPER INSTALLATION OF THE PRODUCT.

SOFTWARE USED WITH THIS PRINTER MUST SUPPORT THE

PRINTER’S NATIVE MODE OR ONE OF ITS EMULATION

MODES.

The information in this manual is subject to change without notifi-

cation. Additional pages may be inserted in future editions. The

user is asked to excuse any technical inaccuracies or typographi-

cal errors in the present edition.

No responsibility is assumed if accidents occur while the user is

following the instructions in this manual. No responsibility is

assumed for defects in the printer’s firmware (contents of its read-

only memory).

This manual, any copyrightable subject matter sold or provided

with or in connection with the sale of the page printer, are pro-

tected by copyright. All rights are reserved. Copying or other repro-

duction of all or part of this manual, any copyrightable subject

matter without the prior written consent of Kyocera Corporation is

prohibited. Any copies made of all or part of this manual, any copy-

rightable subject must contain the same copyright notice as the

material from which the copying is done.

The names of actual companies and products mentioned herein

may be the trademarks of their respective owners.

FS8000QR.book Page 0 Tuesday, December 25, 2001 10:47 AM

FS-8000C Quick

Reference Guide

FS8000QR.book Page 1 Tuesday, December 25, 2001 10:47 AM

Contents

Guide to the information about the printer .................................3

Understanding the Error Messages ...........................................4

Loading Paper .........................................................................11

Clearing Paper Jams ...............................................................14

[Paper Jam — Feeder # Cover] ..................................15

[Paper Jam — Cassette #] ..........................................15

[Paper Jam — MP Tray] .............................................16

[Paper Jam — Duplexer Drawer] ................................16

[Paper Jam — Paper Feed Unit] .................................17

[Paper Jam — Side Cover] .........................................22

[Paper Jam — Option Stacker] ...................................23

Toner Container Replacement ................................................24

Replacing the Toner Container ...................................25

Replacing the Waste Toner Bottle ..............................27

Replacing the Oil Unit ..............................................................29

Replacing the Maintenance Kit D (Separation Charger Unit) ..32

Cleaning the Printer .................................................................36

Cleaning the Paper Feed Unit .....................................36

Cleaning the Main Charger Unit ..................................38

FS8000QR.book Page 2 Tuesday, December 25, 2001 10:47 AM

Guide to the information about the printer

The following documentation and CD-ROM are sup-

plied:

Quick Reference

Guide (This bro-

chure)

This manual provides common information

about the printer such as loading paper,

understanding messages, etc. This manual

can be retained in the plastic pocket at the

printer.

Operation Guide This guide is supplied as an online manual

(PDF) in the CD-ROM. This guide fully

details the information on the printer fea-

tures, hardware, troubleshooting, printer

driver handling, etc.

Installation Guide This guide provides information on install-

ing the printer and other options before

starting to use.

Kyocera Mita Digital

Library CD-ROM

This CD includes the printer software for

Kyocera Mita printers such as printer driv-

ers, network printer monitors, and various

software utilities.

Web site The latest versions of printer drivers and

utilities are available at: http://www.kyo-

cera.com/w2k/.

FS8000QR.book Page 3 Tuesday, December 25, 2001 10:47 AM

Understanding the Error Messages

These messages appear on the printer’s message dis-

play when the printer needs the operator’s attention.

For more details, refer to chapter 6 of the Operation

Guide.

Message Corrective Action

Add paper (with

paper source indica-

tion)

The paper has run out in the paper source

(paper cassettes, MP tray, or optional

paper feeders). Supply paper according to

the paper source displayed.

Add staples

Press GO

The optional document finisher has run

out of staples. Replenish staples and

press the GO key.

Call service

####:0123456

A mechanical error (#=0, 1, 2, ...). Contact

your Kyocera Mita dealer for service. The

printer does not operate when this mes-

sage is displayed. The total number of

pages printed is also indicated, e.g.

0123456.

Call service

F####:0123456

A controller error. Contact your Kyocera

Mita dealer for service. The printer does

not operate when this message is dis-

played.

Call service

Person F0

A data communication error between the

printer controller and the operator panel.

Contact your Kyocera Mita dealer for ser-

vice. The printer does not operate when

this message is displayed.

Cassette 1

not loaded

No. 1 (topmost) paper cassette is not

installed. Install the cassette. The cas-

sette number can be 1(topmost) to 6 (bot-

tom), or, for the FS-8000CD, 2 to 6

(bottom).

FS8000QR.book Page 4 Tuesday, December 25, 2001 10:47 AM

Check waste

toner bottle

The waster toner bottle is not installed or

full. Install the waste toner bottle.

Clean printer

Press GO

The printer has reached the schedule to

conduct cleaning. Clean the inside of the

printer. After cleaning the inside of the

printer, press the GO key and the printer

will resume printing.

Duplex drawer

not loaded

This message is applicable to the FS-

8000CD only. The duplexer drawer is not

installed. Install the duplexer drawer.

Face-down tray

paper full

The face-down tray has become full

(approx. 500 pages). Remove all printed

pages from the face-down tray.

Face-up tray

path error

The face-up tray is not open although you

have attempted to print in the face-up tray.

Open the face-up tray.

File not found

Press GO

You have attempted to print a job that is

not contained in the virtual mailbox.

Format error

Hard disk

The hard disk installed in the printer is not

formatted, and therefore cannot be read

or written.

Format error

Memory Card

The memory card inserted in the printer is

not formatted, and therefore cannot be

read or written.

Front cover

open

The front cover is open. Close the front

cover.

Hard disk err ##

Press GO

A hard disk error has occurred. Press the

GO key to proceed.

I/F occupied You have attempted to use the operator

panel to change a setting on the interface

from which data are presently being

received. Wait until the printer finishes

printing jobs on the interface.

Message Corrective Action

FS8000QR.book Page 5 Tuesday, December 25, 2001 10:47 AM

ID error The user ID entered on the operator panel

for a private job, or a stored job is not cor-

rect. Check the user ID that you specified

on the printer driver.

Insert the same

memory card

This message is displayed when you acci-

dentally removed the memory card while

the printer is reading it and you inserted

the wrong memory card after urged by the

printer to replace the memory card

(Insert again). Remove the wrong

memory card from the memory card slot

and insert the correct memory card.

Install MK

[A]or[A2]

Replace Maintenance Kit A or A2 which is

displayed on your printer message win-

dow. Depending on the printer you have

purchased, the maintenance kit may be

type A or type A2. Replacement of the

maintenance kit requires professional ser-

vicing. Contact your Kyocera Mita dealer.

Install MK

[B]

Replace Maintenance Kit B. Replacement

of the maintenance kit requires profes-

sional servicing. Contact your Kyocera

Mita dealer.

Install MK

[C]

Replace Maintenance Kit C. Replacement

of the maintenance kit requires profes-

sional servicing. Contact your Kyocera

Mita dealer.

Install MK

[D]

Replace Maintenance Kit D. Replacement

of the maintenance kit requires profes-

sional servicing. Contact your Kyocera

Mita dealer.

Note: This message is not applicable for

European countries and Australia.

Message Corrective Action

FS8000QR.book Page 6 Tuesday, December 25, 2001 10:47 AM

KPDL Error ##

Press GO

KPDL (PostScript) error has occurred.

Press the GO key to resume printing. Or,

you can abandon printing by the CANCEL

key.

Load Cassette #

(paper size)/(paper

type)

The paper cassette (indicated by #)

matching the paper size and paper type of

the current job is empty. Load paper into

the paper cassette. Press the GO key to

resume printing.

Load MP tray

(paper size)/(paper

type)

There is no paper cassette installed in the

printer that matches the paper size and

paper type of the current job. Set alterna-

tive paper in the MP tray. Press the GO

key to resume printing.

Memory card err

Insert again

The memory card is accidentally removed

from the memory card slot during reading.

If you continue reading the memory card,

insert the same memory card into the slot

again. The printer again reads it from the

beginning of the data. Also see Insert

the same memory card on page 6.

MemoryCard err##

Press GO

A memory card error has occurred. Press

the GO key to resume.

Memory overflow

Press GO

The total amount of data received by the

printer exceeds the printer memory. Try

adding more memory. Press the GO key

to resume printing.

Missing

duplex unit

You have attempted to duplex-print while

the duplexer is not installed. Install the

duplex unit.

Missing

stapler unit

The stapler unit is not installed in the

option document finisher. Install the

stapler unit.

Message Corrective Action

FS8000QR.book Page 7 Tuesday, December 25, 2001 10:47 AM

Missing toner

TK-82 #######

Install the toner container using a toner kit

for the particular color. The printer does

not operate when this message is dis-

played.

Option interface

Error ##

A failure has occurred with the option

network interface card. Check the option

network interface card installed in the

printer.

Option stacker

cover open

The cover of the optional output device

(stacker, document finisher, or sorter) is

open. Close the cover.

Option stacker

paper full

The tray of the stacker is full. Remove

paper sheets.

Option stacker

path error

The optional stacker, document finisher,

or sorter is not installed properly. Correct

the installation.

Option tray ##

paper full

A tray of the option sorter or the document

finisher is full. Remove paper sheets in

tray 01 to 09 as displayed in place of ##.

Paper feeder #

Side cover open

The side cover of the paper feeder is

open. Close the cover of the paper feeder

1 (topmost) to 3 (bottom) as displayed in

place of #.

Paper jam

###############

A paper jam has occurred. The location of

the paper jam is indicated in place of the

#'s. For details, see section Clearing

Paper Jams on page 14.

Paper loading After the paper cassette is closed, paper

loading is in progress in the paper cas-

sette.

Message Corrective Action

FS8000QR.book Page 8 Tuesday, December 25, 2001 10:47 AM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kyocera Mita Imprimante

Kyocera Mita

Kyocera Mita KM-P4845w Manuel utilisateur

Kyocera Mita

Kyocera Mita Ecosys FS-1000+ Manuel utilisateur

Kyocera Mita

Kyocera Mita DP-2800 Manuel

Kyocera Mita

Kyocera Mita FS-6750 Manuel utilisateur

Kyocera Mita

Kyocera Mita KM-P4845w Manuel utilisateur

Kyocera Mita

Kyocera Mita FS-1900N Manuel utilisateur

Kyocera Mita

Kyocera Mita FS-C5016N Manuel utilisateur

Kyocera Mita

Kyocera Mita FS-3700 Manuel utilisateur

Kyocera Mita

Kyocera Mita Ecosys FS-6020 Manuel utilisateur

Kyocera Mita

Kyocera Mita KM-P4850w Manuel utilisateur

Kyocera Mita

Kyocera Mita Ecosys FS-1800+ Manuel utilisateur

Kyocera Mita

Kyocera Mita Ecosys FS-1010 Manuel utilisateur

Kyocera Mita

Kyocera Mita Ecosys FS-1800 Manuel utilisateur

Kyocera Mita

Kyocera Mita KM-1500 Manuel utilisateur

Kyocera Mita

Kyocera Mita FS-C5016N Manuel utilisateur

Kyocera Mita

Kyocera Mita FS-C5016N Manuel utilisateur

Kyocera Mita

Kyocera Mita Ecosys FS-6020 Manuel utilisateur

Kyocera Mita

Kyocera Mita FS-1050 Manuel utilisateur

Kyocera Mita

Kyocera Mita KM-1505 Manuel utilisateur

Kyocera Mita

Kyocera Mita FS-C5016N Manuel utilisateur

Kyocera Mita

Kyocera Mita FS-9500DN Manuel utilisateur

Kyocera Mita

Kyocera Mita Ecosys FS-6020 Manuel utilisateur

Kyocera Mita

Kyocera Mita Ecosys FS-1800+ Manuel utilisateur

Kyocera Mita

Kyocera Mita FS-8000CD Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur
