Chapter 1

Installing the Printer

This chapter explains how to unpack and install the printer. The topics covered are:

Positioning the printer

Unpacking and inspection

Names of parts

Setting up and interfacing

1.1. Positioning the Printer

Clearance

Allow at least the necessary minimum clearance around the printer (see below). A total space

of 92 cm by 61 cm by 138 cm (36 by 24 by 54 inches) is needed.

Places to Avoid

Avoid installing the printer in locations subject to:

Direct drafts of hot or cold air

Direct drafts from outside (Avoid locations near doors leading outside.)

Sudden temperature or humidity changes

Sources of high temperature, for example, near stoves or radiators

Excessive dust

30 cm (12 inches)

40 cm (16 inches)

[20 cm (8 inches) when

the face-up output tray is

not installed.]

25 cm (10 inches)

60 cm (24 inches)

30 cm (12 inches)

1.1. Positioning the Printer

1-1

Vibration

Ammonia or other harmful fumes. (If you are planning to fumigate the room, or make

liberal use of insecticide, remove the printer first!)

Excessive sunlight or humidity

Lack of ventilation

Low air pressure, e.g., located more than 2000 meters (6500 feet) above sea level

Basic requirements

The printer will work best if it is installed in a location that is:

Near the computer

If the parallel interface is used to connect the printer to the computer, the connecting cable

should be shielded type and not be longer than 3 meters (10 feet).

Level and well supported

Place the printer on a sturdy table or desk. Do not place the printer on an unstable cart, stand,

or table. The printer may fall, causing injury, or serious damage to the printer.

Near an AC wall outlet, preferably one that can be used for the printer alone (see sec-

tion Power Supply on next page).

Power requirements are:

Voltage 120 V (U.S.A./Canada), 220 V to 240 V (European countries), 10 % at each voltage

Frequency 60 Hz (120 V), 2 %

50 Hz (220 V to 240 V), 2 %

Current

capacity FS-1700: Max. 5.8 A at 120 V, or Max 3 A at 220 V to 240 V

FS-3700: Max. 7.8 A at 120 V, or Max 4 A at 220 V to 240 V

The outlet should be earthed, or an adapter should be used.

If an extension cord is used, the total length of the power cord plus extension should be 5 me-

ters (17 feet) or less.

Well ventilated, not too hot or cold, and not too damp or dry

Temperature 10°C to 32.5°C, ideally about 20°C (50°F to 90.5°F, ideally about 68°F)

Humidity 20% to 80%, ideally 65%

If you install the printer where the temperature or humidity is outside the above ranges, you

may not get the best print quality, and there will be an increased chance of paper jams.

±±

1.1. Positioning the Printer

1-2

Power Supply

The printer should not be on the same power circuit as an air conditioner, fluorescent light,

copier, or shredder, because these devices generate electrical noise on the power line. If it

must share a power circuit with equipment like this, a high-frequency noise filter or isolation

transformer is advisable. (Filters and transformers are available commercially.)

Avoid using plug multipliers to connect a large number of devices on the same circuit as the

printer.

If the power from the outlet itself appears to be unstable, a line stabilizer should be used. In

places where the voltage tends to fluctuate, it may be necessary to install a voltage regulator.

1.2. Unpacking and Inspection

The printer is packed as shown below. Unpack the printer following diagrams 1 and 2 on the

next page. While unpacking it, check that the listed parts are all accounted for.

Examine the package for any signs of damage that may have been caused during transporta-

tion. If the carton is found to be badly damaged, leave the carton unopened and immediately

notify the dealer from whom you purchased the printer.

Save the box and other packing materials in case you have to repack the printer for transporta-

tion at a later date.

As the disconnect device is not incorporated in the printer’s AC primary circuit, an

easily accessible socket outlet must be provided near the equipment.

If the printer is used with the optional Sorter (SO-6) or Stacker (ST-20), in order to

avoid short-circuiting, it should be ensured that these devices are plugged securely

into their respective power outlets.

Da kein Trennschalter in den Wechselstrom-Primärkreis des Druckers eingebaut ist,

muß eine leicht zugängliche Steckdose in der Nähe des Gerätes vorhanden sein.

Wenn der Drucker mit dem gesonderten Sorter (SO-6) oder Stapler (ST-20) verwen-

det wird, muß darauf geachtet werden, daß diese Geräte einwandfrei an separate

Steckdosen angeschlossen sind, um Kurzschluß zu vermeiden.

1.2. Unpacking and Inspection

1-3

List of shipped components

❐(A) Toner kit, including a toner container, waste toner bottle, and a wiper cloth

❐(B) Paper stopper

❐(C) Container for the developer unit (including a plastic bag)

❐(D)Manuals : User’s Manual (Kyocera Digital Library CD-ROM, including the printer

drivers), Installation Manual (this booklet)

❐(E) Face-up output tray

❐(F) Power cord

To remove the printer from the box, grasp the handholds on either side of the printer. Lift the

printer from the carton as shown below.

☛

Always use these handholds

whenever you lift or move

the printer.

The handhold on the right

side of the printer doubles as

the memory card slot. Be sure

to remove the memory card

first, if inserted, before lifting

or moving the printer.

(B)

(C)

(D)

(E)

(A)

1 2

Printer

(F)

1.2. Unpacking and Inspection

1-4

1.3. Names of Parts

This section takes you on a guided tour of the printer, pointing out its major parts. The part names

introduced here will be used throughout this manual.

Front View

Memory Card Slot

Transfer Roller

Registration Roller

Paper Feed Unit

Multi-Purpose

Tray

Paper Cassette

Control Panel

Multi-Purpose

Tray

Paper Feed Unit

Release Lever

Paper Cassette

Side Cover

Power Switch

Face-down

Output Tray Paper Stopper

Paper Full Sensor

(Model FS-3700 only)

1.3. Names of Parts

1-5

Interior View

Rear View

Rear Cover

Power Cord

Receptacle

Option Paper

Handler/Stacker Connector*

Serial Interface

(RS-232C/RS-422A) Connector*

Parallel Interface

Connector*

Option Interface Slot Cover

*: To protect the printer against static discharge, the connector must be covered with the supplied

protective cap when not in use.

Toner Container Release

Lever (Green)

Toner Container

Top Cover

Side Cover

Waste Toner Bottle

Cleaner Knob (Green)

Main Charger Unit

1.3. Names of Parts

1-6

1.4. Setting Up and Interfacing

Before you can use the printer for the first time, you must set up the printer by installing the

printer components and interfacing with the computer. The steps to be followed in setting up

are:

1. Open the top cover.

2. Install the toner container.

3. Close the top cover.

4. Install the waste toner bottle.

5. Add paper.

6. Open the paper stopper on the face-down output tray.

7. Install the face-up output tray (if required).

8. Connect the printer to the computer.

9. Attach the power cord.

10. Print a status page.

11. Test the interface with the computer.

12. Set the emulation mode.

13. Install the printer driver.

1.4. Setting Up and Interfacing

1-7

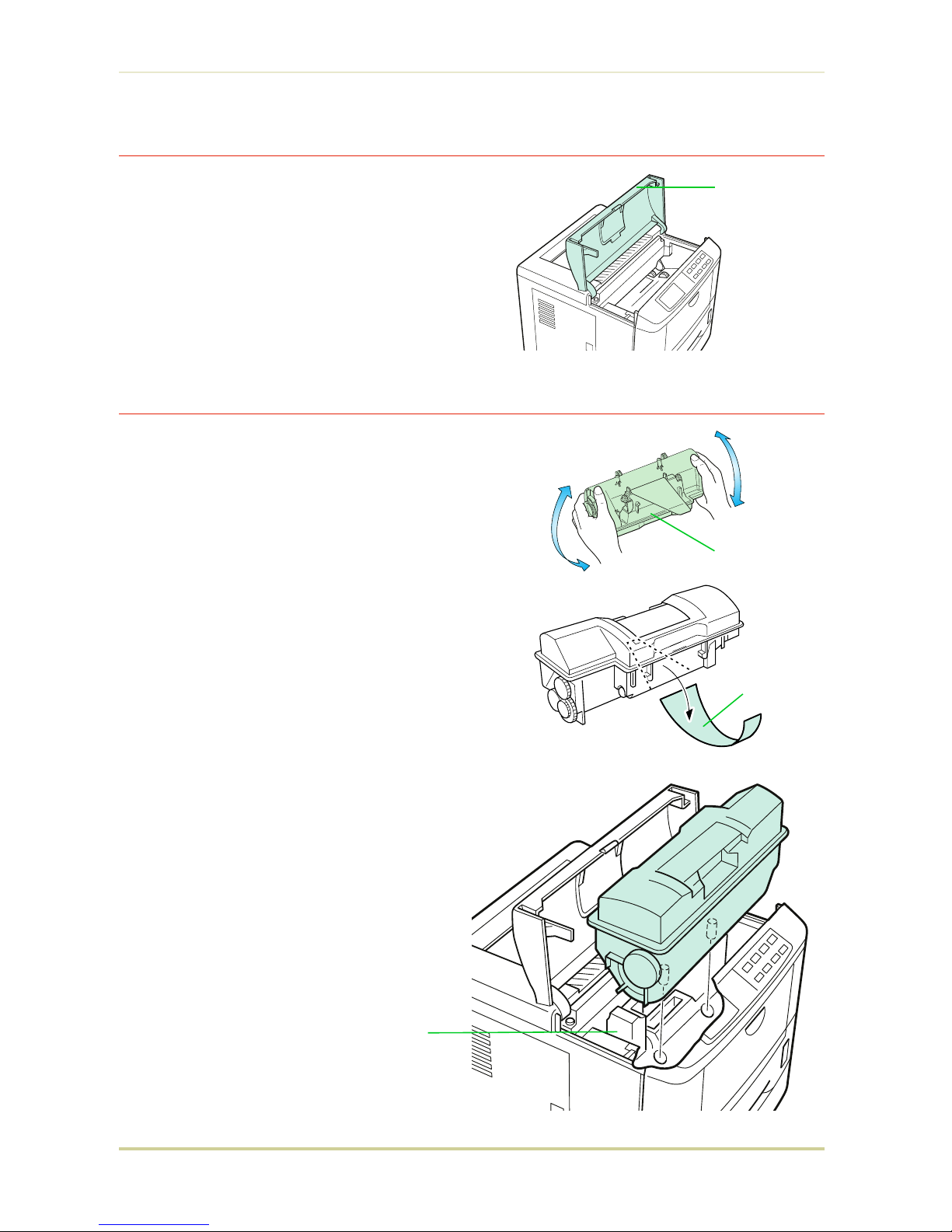

1—Open the Top Cover

1. Remove the packing tape from the printer.

2. Open the printer top cover all the way.

2—Install the Toner Container

1. Take the toner container from the toner kit.

2. With the label side down, thoroughly shake

the toner container (in the direction of the ar-

row) ten times or more to loosen and mix the

toner inside.

3. The bottom of the toner container is sealed

with a sealing strip. Peel off the seal on the

toner container and carefully pull off and dis-

pose of the sealing strip.

☛Be sure to peel the seal off the toner

container before the toner container

is fitted into the developer unit.

4. Install the toner container on the developer

as show in the diagram.

Top Cover

Toner Container

Developer Unit

Sealing strip

1.4. Setting Up and Interfacing

1-8

5. When the toner container is installed cor-

rectly on the developer, push the top of the

container unit ("PUSH HERE") until it locks in.

Make sure that the toner container

is properly locked in the printer.

3—Close the Top Cover

Close the top cover by pressing the arrowed

part in this diagram.

4—Install the Waste Toner Bottle

The waste toner bottle is in the toner kit supplied with the printer. The waste toner bottle

must be installed in the printer.

Install the waste toner bottle in the printer as follows.

1. Take the waste toner bottle from the toner

kit supplied.

Do not cap the waste toner bottle.

Top Cover

Waste Toner

Bottle

Cap

1.4. Setting Up and Interfacing

1-9

2. Open the side cover on the left side of the

printer.

3. Insert the waste toner bottle with the bottle

tilted slightly towards you as shown in the

figure.

4. Ensuring that it is correctly inserted, close the

side cover.

Waste Toner Bottle

Side Cover

1.4. Setting Up and Interfacing

1-10
