A Guide to TracVision S3

A Guide to TracVision S3 – ADDENDUM

54-0182 Addendum to Rev. A1

TracVision S3 Owner’s

Manual Addendum

(ECO #5885)

The following information applies to Revision A1 of the

TracVision S3 Owner’s Manual (KVH Part Number 54-0182).

Your TracVision S3 includes four small mounting plates for mounting

the antenna unit on a vehicle. These plates replace the large mounting

plate described in the manual.

1.3 Materials Provided with

TracVision S3

Table 1-3 has been updated to remove the mounting plate.

Component KVH Part No.

Antenna Unit (comprising): 01-0225-05†

01-0225-11††

01-0225-12†††

01-0225-18††††

Baseplate Assembly 02-1044-02*

02-1044-04**

Radome Assembly 02-0953-05

RF Cable 32-0589-30

Power Cable 32-0590-30

Antenna Data Cable 32-0630-30

PC Cable 32-0628-06

Kitpack*** 72-0101

Owner’s Manual 54-0182

IRD Ground Wire 32-0583-30

Switchplate 02-1023

† European TracVision S3 system

†† North American TracVision S3 system (defaulted to US DISH Network)

††† North American TracVision S3 system (defaulted to ExpressVu)

†††† North American TracVision S3 system (defaulted to DIRECTV)

* Baseplate assembly with single-output LNB

** Baseplate assembly with dual-output LNB

*** A complete listing of kitpack contents is provided in Section 2.2, “Mounting

the Antenna Unit.”

Table 1-3

TracVision S3 Packing List

Cables for the TracVision S3 are

stored beneath the antenna unit

during shipping.

2.1 Choosing the Best Location

Anote has been added to caution against mounting the antenna on a

curved surface.

•Be sure to mount the antenna on a horizontal

surface. When placed flat on the mounting surface,

the mounting plates should be less than 7⁄16" above

the mounting surface (see Figure 2-2). Any larger

gap will warp the baseplate and seriously damage

the antenna.

2.2 Mounting the Antenna Unit

The antenna unit mounting procedure has been changed to reflect the

different mounting plates.

1. Make sure that you have chosen a suitable

mounting location based upon the guidelines in

Section 2.1, “Choosing the Best Location.”

2. Remove the antenna unit from its shipping carton.

3. Position the antenna unit in the desired location

on the centerline of the vehicle with the antenna’s

mounting plate arrows facing the front or rear of

the vehicle. The proper orientation is illustrated in

Figure 2-3 on the following page.

Always lift the antenna unit by the

gray baseplate, never by the

radome or any portion of the

antenna assembly!

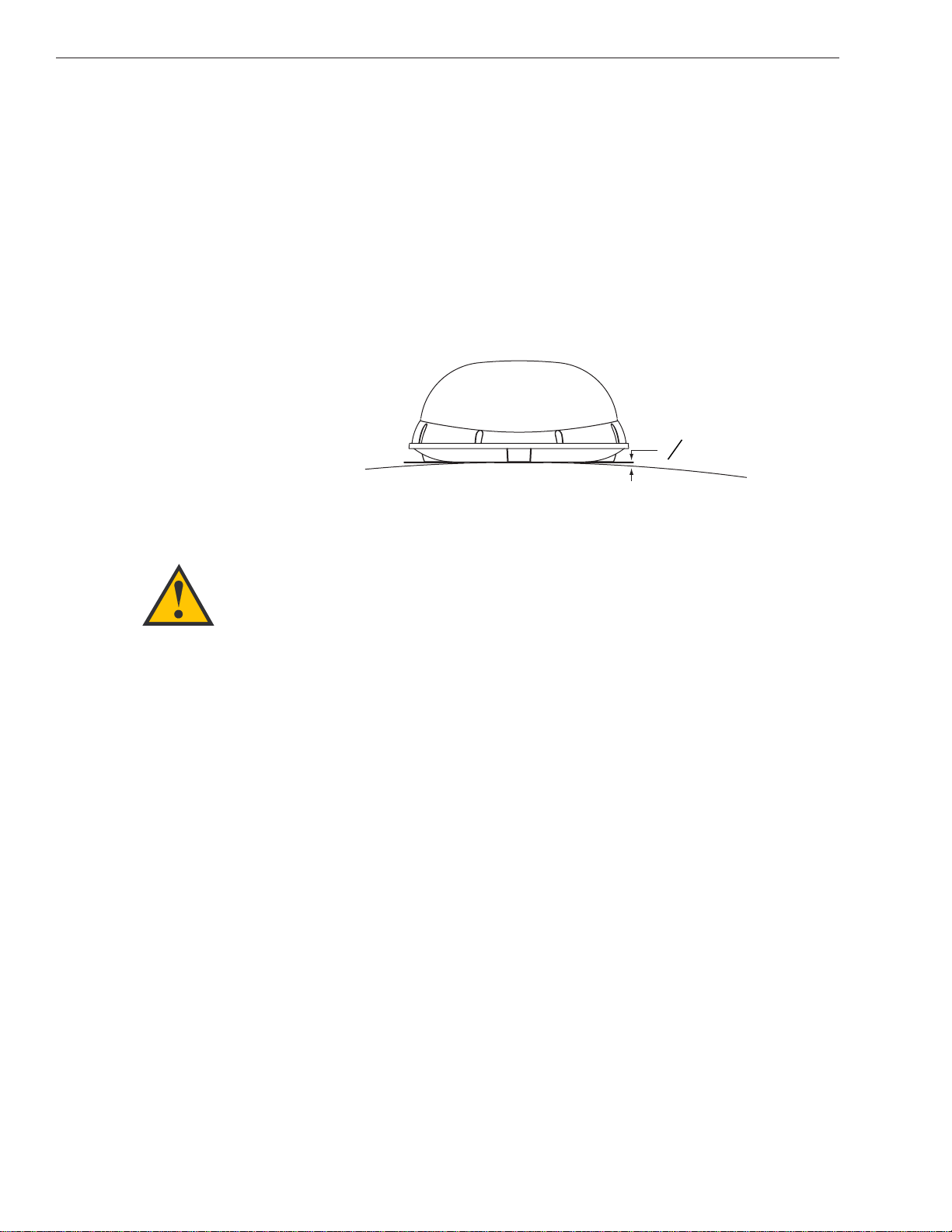

" Maximum Gap

716

Figure 2-2

Maximum Mounting Surface Slope

4. While the antenna is in place, mark a location on

the roof for the cable access hole to permit

convenient cable access to the antenna’s baseplate

connectors.

5. Using the 4 mounting plates and each set of 5

holes as templates, drill 20 3⁄16"(5 mm) holes

through the roof of the vehicle.

6. Set aside the antenna unit and clean the roof’s

surface to remove any debris.

7. Apply construction adhesive to the bottom of the

antenna’s four mounting plates. If using a liquid

construction adhesive, apply beads to the

mounting plates in a zig-zag pattern.

8. Reposition the antenna, lining up the mounting

plate holes with the holes in the roof. Attach the

mounting plates to the roof using 3⁄16" (5 mm)-

diameter rivets (or appropriate fasteners). Seal all

rivet heads and edges with silicone.

9. Remove and save the 8 pan head screws and flat

washers that secure the radome to the baseplate.

Carefully lift the radome straight up until clear of

the antenna assembly and set aside.

A Guide to TracVision S3 – ADDENDUM

54-0182 Addendum to Rev. A1

Vehicle

Centerline

Vehicle

Centerline

Front/Rear

of Vehicle

Front/Rear

of Vehicle

TopView SideView

Mounting Plate

(1 of 4)

Baseplate

Connectors

Mounting Plate

Arrows

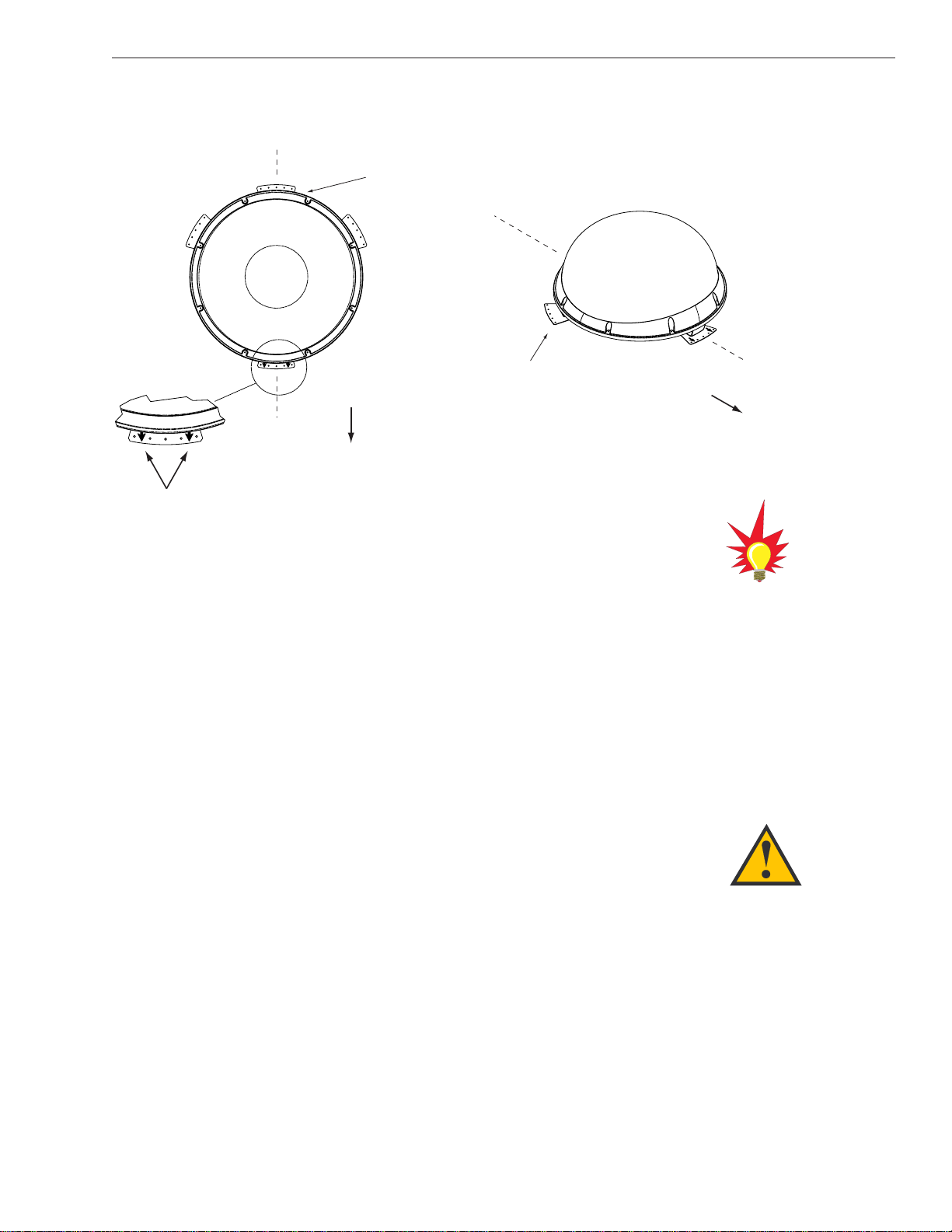

Figure 2-3

Proper Orientation of

the Antenna Unit

The mounting plate arrows may

face either forward or backward

along the centerline of the vehicle

for more convenient installation.

If the roof’s mounting surface is not

perfectly flat as KVH recommends,

make sure the baseplate does not

warp when you attach the

antenna’s mounting plates. Refer to

Section 2.1, “Choosing the Best

Location,” for further details.

10. When the antenna unit is installed with the

connectors facing the rear of the vehicle, the drain

holes are located as shown in Figure 2-4.

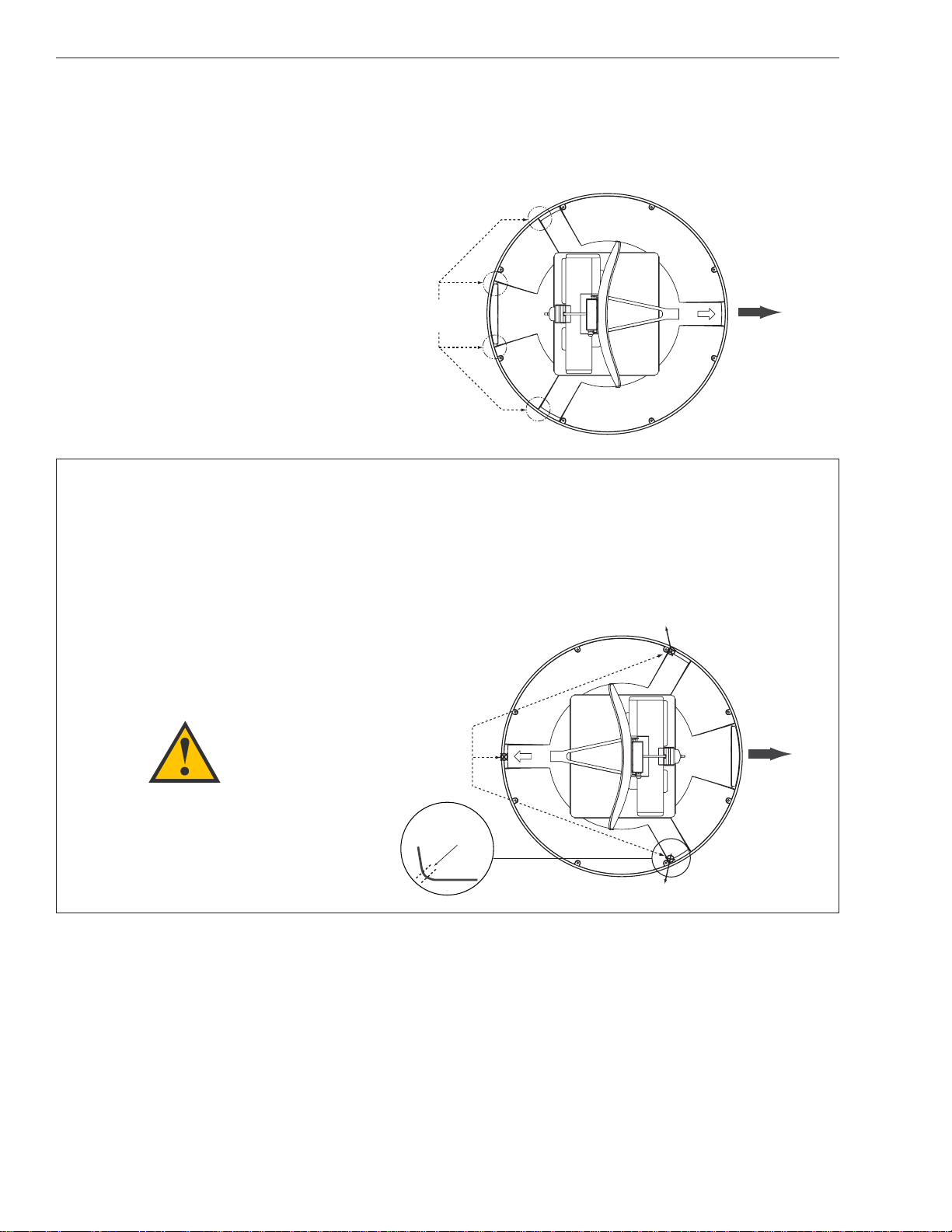

Figure 2-5

Baseplate Connectors Facing

Front of Vehicle – Recommended

Drain Hole Locations

You MUST drill out the drain holes

as indicated to ensure that any

moisture that enters the baseplate

is able to drain. Ensure that factory-

drilled holes are completely sealed.

10a.(Alternate Drain Hole Locations) If the antenna unit

is installed with the connectors facing the front of

the vehicle, drill out 3⁄16" (5 mm)-drain holes in the

rear-facing side of the baseplate as illustrated in

Figure 2-5. The existing factory-drilled drain

holes shown in Figure 2-4 must then be plugged

with silicone rubber sealant.

Figure 2-4

Baseplate Connectors Facing Rear

of Vehicle – Factory-drilled

Drain Hole Locations

Factory-drilled

Drain Hole Positions

Front of

Vehicle

Recommended

3/16" (5 mm)

Drain Hole Positions

Drain Hole Angle

(relative to baseplate)

Front of

Vehicle

Angle of Hole, relative to front

11. Cut the tie-wraps holding the antenna unit to the

forward shipping restraint (see Figure 2-6).

12. Remove the nuts and washers securing the

shipping restraints to the baseplate. The positions

of all three shipping restraints are pictured in

Figure 2-7.

13. For convenient storage, rotate the shipping

restraints 180ºand secure them to their original

mounting bolts using the nuts and washers

removed in Step 12 (see Figures 2-8 through 2-10).

All nuts and washers removed in Step 12 must

be reinstalled. These nuts and washers secure the

baseplate to the mounting plates.

A Guide to TracVision S3 – ADDENDUM

54-0182 Addendum to Rev. A1

Rotating Plate

Shipping Restraint

Rotating Plate

Shipping Restraint

Forward Shipping

Restraint for

LNB Bracket

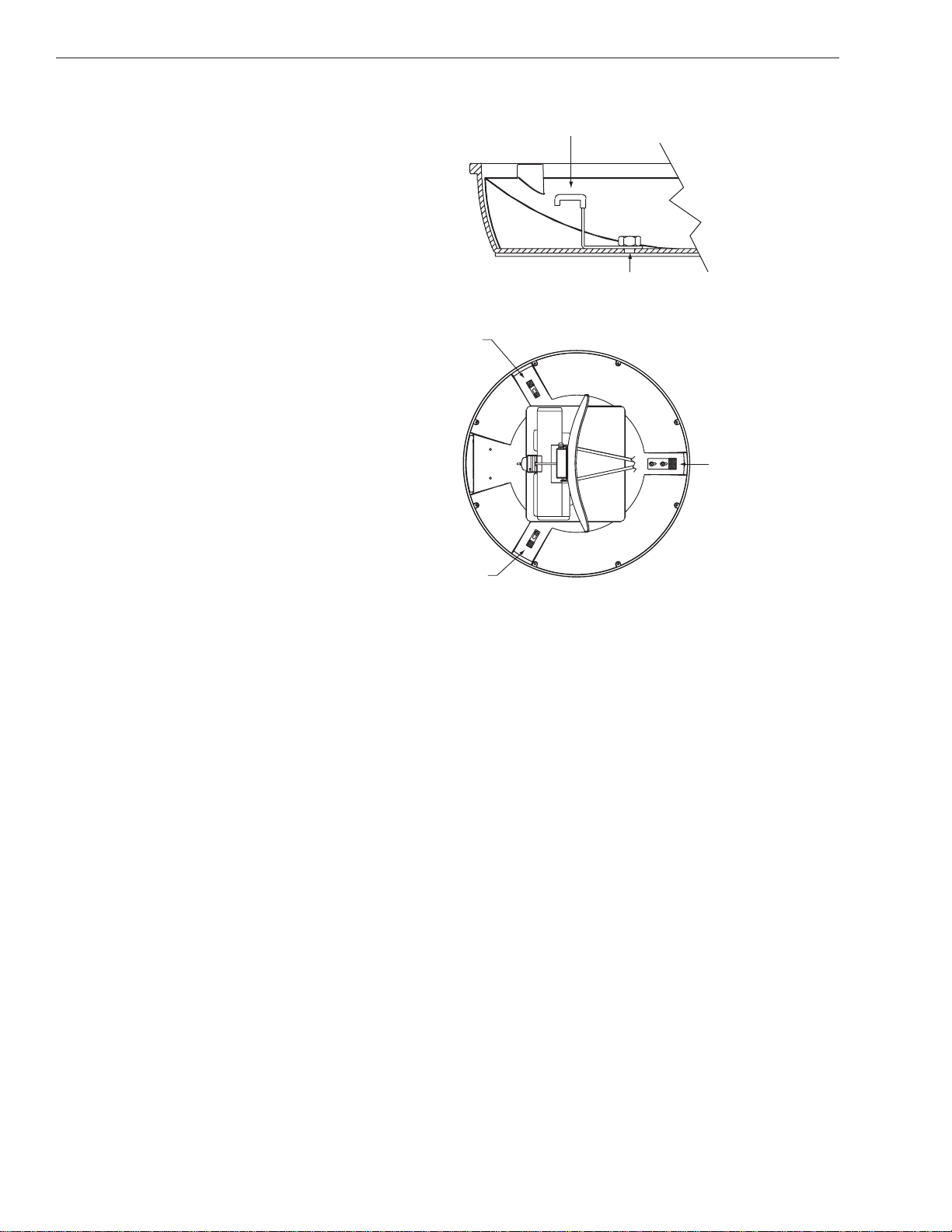

Figure 2-7

TracVision S3 Shipping Restraints

(Top View, Installed for Shipping)

Do not discard the shipping

restraints, washers, or the nuts.

They should be stowed for future

use in case the antenna unit needs

to be removed and shipped to

another location. Four 1⁄4˝ x 5⁄8˝ hex

head screws have been provided in

the kitpack for shipping as the bolts

used to hold the shipping restraints

during initial shipping are integral

parts of the mounting plates.

Forward Shipping Restraint

Installation Bolts and Washers

LNB

Figure 2-8

Forward Shipping

Restraint Storage

2 tie-wraps used

to secure LNB arm

Shipping Restraint

Nuts and Washers

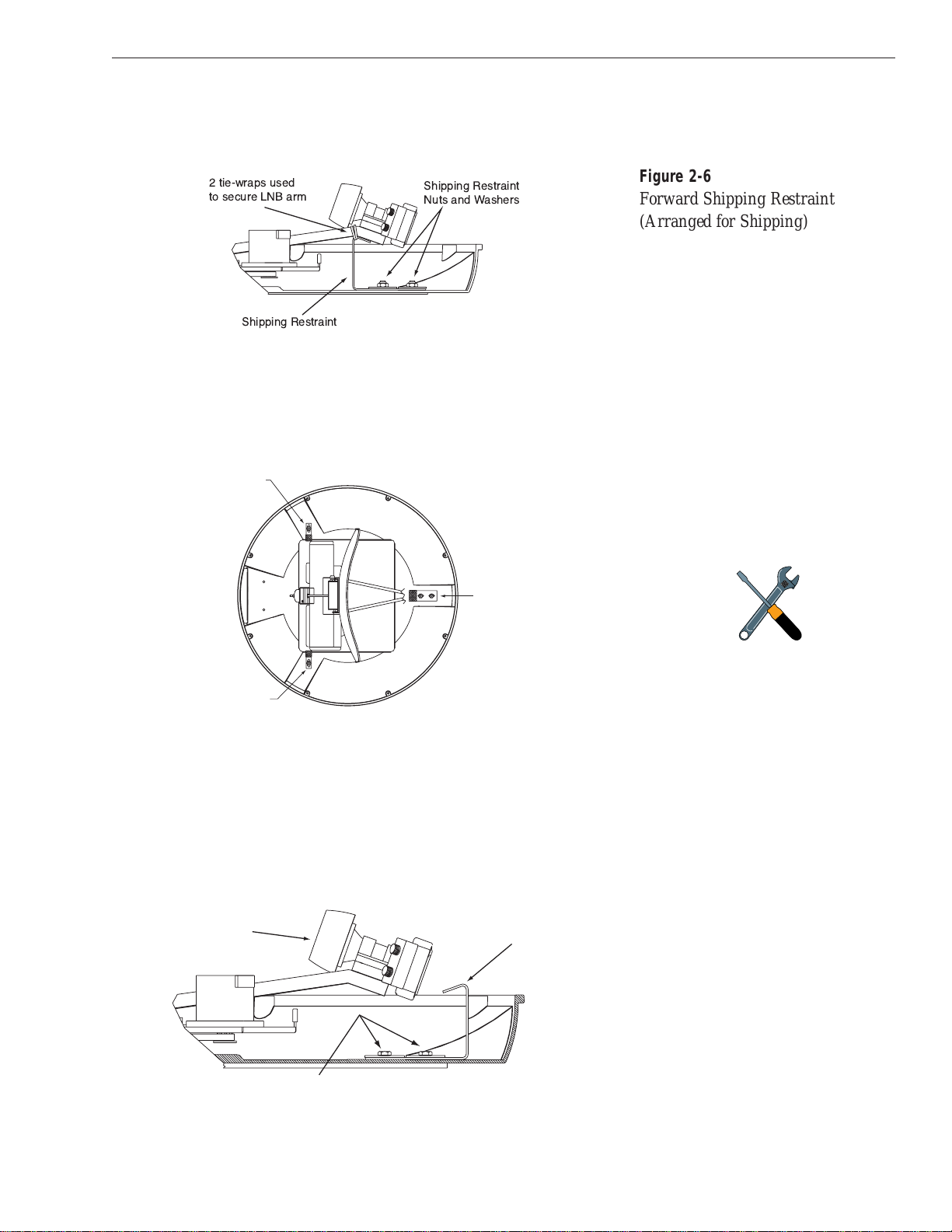

Figure 2-6

Forward Shipping Restraint

(Arranged for Shipping)

14. Drill the cable access hole (marked in Step 4) in the

vehicle’s roof.

15. Proceed to Section 2.3, “Wiring the TracVision S3

System,” to wire the TracVision S3 system. The

radome will be placed back on the baseplate using

the hardware removed in Step 9 after wiring and

initializing the system.

Figure 2-10

TracVision S3 Shipping Restraints

(Storage Position)

Forward

Shipping Restraint

Rotating Plate

Shipping Restraint

Rotating Plate

Shipping Restraint

Installation Bolt and Washer

Rotating Plate Shipping Restraint (1 of 2)

Figure 2-9

Rotating Plate Shipping

Restraint Storage

A Guide to TracVision S3 – ADDENDUM

54-0182 Addendum to Rev. A1

TracVision S3 Owner’s

Manual Addendum

(ECO #5846)

The following information applies to Revision A1 of the

TracVision S3 Owner’s Manual (KVH Part Number 54-0182).

1.2 TracVision S3 System Overview

The baseplate connectors have been changed to make installation easier.

Figure 1-1 shows the new baseplate connectors and cable routing.

11-16 Volts DC

2.5-3.5 Amps

Satellite Receiver 1

Data Cable

Coaxial

Cables

Options Purchased Separately

TV 1

TracVision Antenna

Power Cable

Vehicle

Power Switchplate

PC Maintenance

Port

Satellite Receiver 2TV 2

Laptop PC

Second TV

and receiver

option only

available with

U.S.-style,

dual output

LNB.

TV/SAT Switch

Figure 1-1

TracVision S3 System

Configuration

2.3 Wiring the TracVision S3 System

The baseplate connectors have been changed to make installation easier.

TracVision S3 Cable Ports

Figure 2-14 shows the antenna unit’s exterior baseplate cable

ports, consisting of two RF connectors (ports #1 and #4) and two

liquid-tight fittings (ports #2 and #3). Figure 2-15 shows the

interior baseplate wiring. Refer to these figures when connecting

cables to the antenna unit.

2.3.1 Wiring the Antenna Data Cable

The data cable now enters the baseplate through the second liquid-tight

fitting (cable port #3). Interior baseplate wiring is unchanged.

Antenna Data Cable-to-Baseplate Terminals Wiring Process

1. Feed the cable up to the roof and through the

second liquid-tight fitting (#3) as pictured in

Figure 2-14.

Power

(#2) Data

(#3) RF1

(#4)

RF2

(#1)

Used only with

N. American Systems

Figure 2-14

Cable Port Assignments

(Exterior of Baseplate)

RF Cable

Power

Data

Figure 2-15

Interior Baseplate Wiring

2.3.2 Wiring the Antenna Unit Power Cable

The power cable now enters the baseplate through the first liquid-tight

fitting (cable port #2). Interior baseplate wiring is unchanged.

Power Cable-to-Baseplate Terminals Wiring Process

1. Feed the cable up to the roof and through the first

liquid-tight fitting (#2) as pictured in Figure 2-14.

2.3.6 Connecting the Antenna RF Signal

Cable to the IRD

You no longer need to insert RF cables into the baseplate; they now

simply connect to the exterior baseplate connectors.

The RF signal cable is fitted with an F-type connector at only one

end and should be attached to TracVision S3 and the IRD as

follows:

1. For a single IRD installation, connect the

F-connector end of the RF signal cable to the

Antenna Unit baseplate connector labeled RF1 (see

Figure 2-14). Once the cable is securely connected,

loosen the sealing nut at the base of the RF1

connector and tighten it onto the end of the RF

cable.

2. Feed the bare end of the RF signal cable through

the cable access hole and into the vehicle.

3. Attach the provided F-connector to the end of the

RF signal cable inside the vehicle as illustrated in

Figure 2-24a-d, using an Augat Snap ‘n Seal

Crimp/Strip tool to lock the connector on the

cable.

A. Slide compression fitting onto raw cable

before beginning connector termination.

A Guide to TracVision S3 – ADDENDUM

54-0182 Addendum to Rev. A1

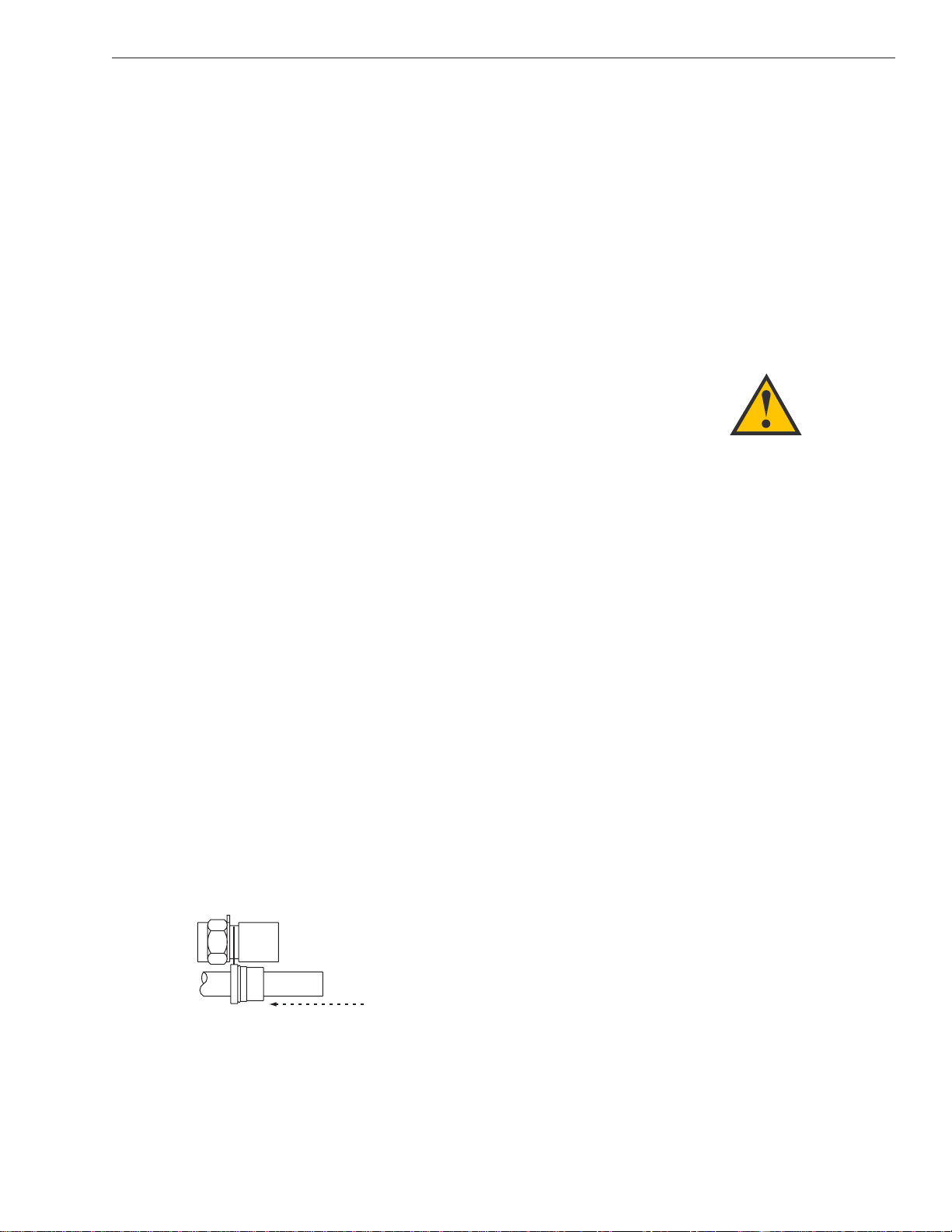

Figure 2-24a-d

Attaching the KVH-provided

F-connector to an RF Cable

When shipped from the factory, the

antenna’s RF connectors are

protected with caps. Leave the cap

installed on the RF2 connector

unless you are going to connect a

second RF cable to the

TracVision S3.

Table des matières

Autres manuels KVH Industries Système de télévision par satellite

KVH Industries

KVH Industries KVH TracVision TracVision G6 Manuel utilisateur

KVH Industries

KVH Industries KVH TracVision Guide d'installation

KVH Industries

KVH Industries KVH TracVision TracVision G6 Manuel utilisateur

KVH Industries

KVH Industries Vision C3 Manuel utilisateur

KVH Industries

KVH Industries TracVision M5 Manuel utilisateur

KVH Industries

KVH Industries TracNet H60 Manuel utilisateur

KVH Industries

KVH Industries TracVision L3 Manuel utilisateur

KVH Industries

KVH Industries KVHTRACVISION G4 Manuel utilisateur

KVH Industries

KVH Industries TracVision M7 Manuel utilisateur

KVH Industries

KVH Industries TracVision M5 Manuel utilisateur

KVH Industries

KVH Industries TracPhone/Iridium Bundle Manuel utilisateur

KVH Industries

KVH Industries TracVision TV1 Manuel utilisateur

KVH Industries

KVH Industries TracVision Cruiser Manuel utilisateur

KVH Industries

KVH Industries LF Manuel utilisateur

KVH Industries

KVH Industries TracVision M7 Manuel utilisateur

KVH Industries

KVH Industries KVH TracVision TracVision G6 Manuel utilisateur

KVH Industries

KVH Industries TracVision M5 Manuel utilisateur

KVH Industries

KVH Industries TracVision G8 Manuel utilisateur

KVH Industries

KVH Industries TracVision M9 Mode d’emploi

KVH Industries

KVH Industries TracVision R5SL Manuel utilisateur

KVH Industries

KVH Industries TracVision UHD7 Manuel utilisateur

KVH Industries

KVH Industries TRACVISION SA Manuel utilisateur

KVH Industries

KVH Industries TracVision M3 Manuel utilisateur

KVH Industries

KVH Industries TracVision HD7 Manuel utilisateur

Manuels Système de télévision par satellite populaires d'autres marques

Dish TV

Dish TV DVB-S6800PLUS Manuel utilisateur

Avermedia

Avermedia AVer3D R889 Manuel utilisateur

Kathrein

Kathrein MobiSet 2 Digital CAP 600 Manuel utilisateur

Philips

Philips DSX 5250 Manuel utilisateur

Winegard

Winegard RMFLDM4 Manuel utilisateur

DefineSat

DefineSat VM55 Manuel utilisateur

Dish Network

Dish Network 112182 Manuel utilisateur

Thrane&Thrane

Thrane&Thrane sailor 60 Manuel technique

JRC

JRC NJT8304 Series Manuel utilisateur

Bell

Bell EXPRESSVU Manuel utilisateur

Promax

Promax SATHUNTER Manuel utilisateur

SatKing

SatKing PRO MAX Manuel utilisateur

Dish Network

Dish Network Satellite Television Manuel utilisateur

Uniden

Uniden SQ530 Manuel utilisateur

Apollo Entertainment

Apollo Entertainment KiwiSat Mode d’emploi

VuQube

VuQube V20 Manuel utilisateur

VIARK

VIARK SAT 4K Manuel utilisateur

KING

KING Tailgater VQ4500 Manuel utilisateur
