USER MANUAL

MODEL:

VS-62H

6x2 HDMI Matrix Switcher

Kramer Electronics Ltd.

VS-62H –Contents
i

Contents
Introduction 1
Getting Started 1
Overview 3
Using the IR Transmitter 3
Defining the VS-62H 6x2 HDMI Matrix Switcher 5
Mounting VS-62H 7
Connecting the VS-62H 6x2 HDMI Matrix Switcher 8
Connecting a Serial Controller to the VS-62H via RS-232 9
Connecting to the VS-62H via Ethernet 9
Connecting the Remote Contact-closure Switches 11
Wiring the RJ 45 Connectors 12
Principles of Operation 13
Automatic Signal Detection 13
Input Switching Modes 13
EDID Operation 14
Step-in Functionality 14
Operating the VS-62H 6x2 HDMI Matrix Switcher 15
Switching an Input to an Output 15
Acquiring an EDID from an Output 15
Muting and Unmuting the Outputs 16
Locking and Unlocking the Front Panel Buttons 16
Generating a Test Pattern 17
Configuring and Maintaining the VS-62H 18
Setting the DIP-switches 18
Resetting the VS-62H to Factory Default Settings 18
Upgrading the Firmware 19
Operating the VS-62H Remotely via the Web Pages 20
Browsing the VS-62H Web Pages 20
Routing Page 21
EDID Page 25
Device Setting Page 26
Firmware Upgrade Page 27
About Us Page 27
Technical Specifications 28
Default Communication Parameters 29
Default EDID 30
Protocol 3000 32
Understanding Protocol 3000 32
Protocol 3000 Commands 33
Result and Error Codes 47

Kramer Electronics Ltd.

VS-62H –Introduction

Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world

of unique, creative, and affordable solutions to the vast range of problems that confront the

video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we

have redesigned and upgraded most of our line, making the best even better!

Congratulations on purchasing your Kramer VS-62H 6x2 HDMI Matrix Switcher which is

ideal for the following typical applications:

•Conference rooms

•Education

•Hospitality

Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging materials for

possible future shipment.

•Review the contents of this user manual.

Go to www.kramerav.com/downloads/VS-62H to check for up-to-date user manuals,

application programs, and to check if firmware upgrades are available (where appropriate).

Achieving the Best Performance

•Use only good quality connection cables (we recommend Kramer high-performance,

high-resolution cables) to avoid interference, deterioration in signal quality due to poor

matching, and elevated noise levels (often associated with low quality cables).

•Do not secure the cables in tight bundles or roll the slack into tight coils.

•Avoid interference from neighboring electrical appliances that may adversely influence

signal quality.

•Position your Kramer VS-62H away from moisture, excessive sunlight and dust.

Kramer Electronics Ltd.

VS-62H –Introduction

Safety Instructions

Caution:

•This equipment is to be used only inside a building. It may only be connected to other

equipment that is installed inside a building.

•For products with relay terminals and GPI\O ports, please refer to the permitted rating

for an external connection, located next to the terminal or in the User Manual.

•There are no operator serviceable parts inside the unit.

Warning:

•Use only the power cord that is supplied with the unit.

•To ensure continuous risk protection, replace fuses only according to the rating

specified on the product label which located on the bottom of the unit.

Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce

the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected

and recycled. To comply with the WEEE Directive, Kramer Electronics has made

arrangements with the European Advanced Recycling Network (EARN) and will cover any

costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on

arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular

country go to our recycling pages at www.kramerav.com/support/recycling.

Kramer Electronics Ltd.

VS-62H –Overview

Overview

The VS-62H is a high quality, 6x2 matrix switcher for HDMI™signals. It reclocks and

equalizes the signals and can route any input to either or both outputs simultaneously.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

In particular, the VS-62H features:

•Up to 8.91Gbps data rate (2.97Gbps per graphics channel).

Suitable for resolutions up to UXGA and 4K x 2K

•Support for HDCP (High Definition Digital Content Protection).

•True video clock detection.

•Automatic switching modes (last connected and priority switching).

•HDMI Support –3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital

Plus, DTS−HD®, and 7.1 multi-channel audio.

•I-EDIDPro™ Kramer Intelligent EDID Processing™ –Intelligent EDID handling &

processing algorithm ensures Plug and Play operation for HDMI systems.

•Programmable step-in functionality when used in conjunction with compatible step-in

devices, such as the SID-X3N and DIP-31 (using an HDMI cable that supports HEC, the

HDMI Ethernet Channel).

•Non-volatile EDID storage.

•Kramer reKlocking™ & Equalization Technology that rebuilds the digital signal to travel

longer distances.

•Static or dynamic DHCP IP addressing.

•Embedded Web pages that provide remote configuration and operation.

•A lock button to prevent unwanted tampering with the buttons on the front panel.

•Support for Kramer Protocol 3000.

You can control the VS-62H using the front panel buttons, or remotely via:

•RS-232 serial commands transmitted by a PC, touch screen system or other serial

controller.

•The Kramer RC-IR3 infrared, remote control transmitter.

•A PC connected via a LAN to the Ethernet port on the VS-62H.

•An optional, external, remote IR receiver (see Using the IR Transmitter on page 3).

Using the IR Transmitter

You can use the RC-IR3 IR transmitter to control the machine via the built-in IR receiver on

the front panel or, instead, via an optional external IR receiver (for example, P/N C-

A35M/IRR-50). The external IR receiver can be located up to 15m away from the machine.

Kramer Electronics Ltd.

VS-62H –Overview

This distance can be extended to up to 60m when used with three extension cables (for

example, P/N C-A35M/A35F-50).

Before using the external IR receiver, be sure to arrange for your Kramer dealer to insert the

internal IR connection cable (for example, P/N: 505-70434010-S) with the 3.5mm connector

that fits into the REMOTE IR opening on the rear panel. Connect the external IR receiver to

the REMOTE IR 3.5mm connector.

Kramer Electronics Ltd.

VS-62H –Defining the VS-62H 6x2 HDMI Matrix Switcher

Defining the VS-62H 6x2 HDMI

Matrix Switcher

Figure 1 defines the front panel of the VS-62H.

Figure 1: VS-62H 6x2 HDMI Matrix Switcher Front Panel

Feature

Function

IR LED

Lights yellow when receiving an IR signal.

IR Sensor

Signal receiver for the infrared remote control transmitter.

INPUT

SELECTOR

Buttons

TO OUT 2 1~6

Press one of the six inputs to switch it to Output 2

(see Switching an Input to an Output on page 15) .

Press the currently selected input button to mute the output.

TO OUT 1 1~6

Press one of the six inputs to switch it to Output 1

Press the currently selected input button to mute the output.

MUTE Button

Press to toggle mute of both output signals (see Muting and

Unmuting the Output on page 16).

EDID Button

Press to capture the EDID (see Acquiring an EDID on page 15).

ON LED

Lights green when the device is powered on.

LOCK Button

Press and hold to lock the front panel buttons. Press and hold

again to unlock (see Locking and Unlocking the Front Panel

Buttons on page 16).

FUNCTION Button

Press to activate the test pattern generator. When the

generator is active, press one of the input buttons to select a

test pattern.

Kramer Electronics Ltd.

VS-62H –Defining the VS-62H 6x2 HDMI Matrix Switcher

Figure 2 defines the rear panel of the VS-62H.

Figure 2: VS-62H 6x2 HDMI Matrix Switcher Rear Panel

Feature

Function

REMOTE IR Opening

Connect to an external IR receiver for controlling the device

via an IR remote controller (see Using the IR

Transmitter on page 3).

Covered by a cap. The 3.5mm mini jack at the end of the internal IR connection cable fits into this opening

REMOTE

INPUT To OUT 1

6-pin Terminal Block

Connect to up to six remote, contact-closure input selection

switches for Output 1 (see Connecting the Remote Contact-

closure Switches on page 11)

INPUT To OUT 2

6-pin Terminal Block

Connect to up to six remote, contact-closure input selection

switches for Output 2

RS-232 3-pin Terminal Block

Connect to a PC/serial controller (see Connecting a Serial

Controller to the VS-62H via RS-232 on page 9)

SETUP 8-way DIP-switch

Sets the device configuration (see Setting the DIP-

switch on page 18)

PROG VIA USB Connector

Connect to a PC to upgrade the firmware (see Upgrading the

Firmware on page 19)

PROG VIA RS-232 Upgrade Switch

Depress to upgrade the firmware via the RS-232 port, release

for normal operation

ETHERNET RJ-45 Connector

Connect to a PC via a LAN (see Connecting to the VS-62H

via Ethernet on page 9)

RESET Switch

Press while power-cycling the device to reset to factory

default parameters (see Default Communication

Parameters on page 29)

5V DC Connector

Connect to the power adapter, center pin positive

INPUT 1~6 HDMI Input Connectors

Connect to up to six HDMI sources (see Connecting the

VS-62H 6x2 HDMI Matrix Switcher on page 8)

OUT 1 and OUT 2 HDMI Output

Connectors

Connect to up to two HDMI acceptors

Kramer Electronics Ltd.

VS-62H –Mounting VS-62H

Mounting VS-62H

This section provides instructions for mounting VS-62H. Before installing, verify that the

environment is within the recommended range:

•Operation temperature –0to 40C (32 to 104F).

•Storage temperature –-40to +70C (-40 to +158F).

•Humidity –10% to 90%, RHL non-condensing.

•VS-62H must be placed upright in the correct horizontal position.

Caution:

•Mount VS-62H before connecting any cables or power.

Warning:

•Ensure that the environment (e.g., maximum ambient temperature & air flow) is

compatible for the device.

•Avoid uneven mechanical loading.

•Appropriate consideration of equipment nameplate ratings should be used for avoiding

overloading of the circuits.

•Reliable earthing of rack-mounted equipment should be maintained.

To mount the VS-62H on a table or shelf

•Attach the rubber feet and place the unit on a flat surface.

•Fasten a bracket (included) on each side of the unit and attach it to

a flat surface.

For more information go to www.kramerav.com/downloads/VS-62H

Kramer Electronics Ltd.

VS-62H –Connecting the VS-62H 6x2 HDMI Matrix Switcher

Connecting the VS-62H 6x2 HDMI

Matrix Switcher

Always switch off the power to each device before connecting it to your VS-62H. After

connecting your VS-62H, connect its power and then switch on the power to each device.

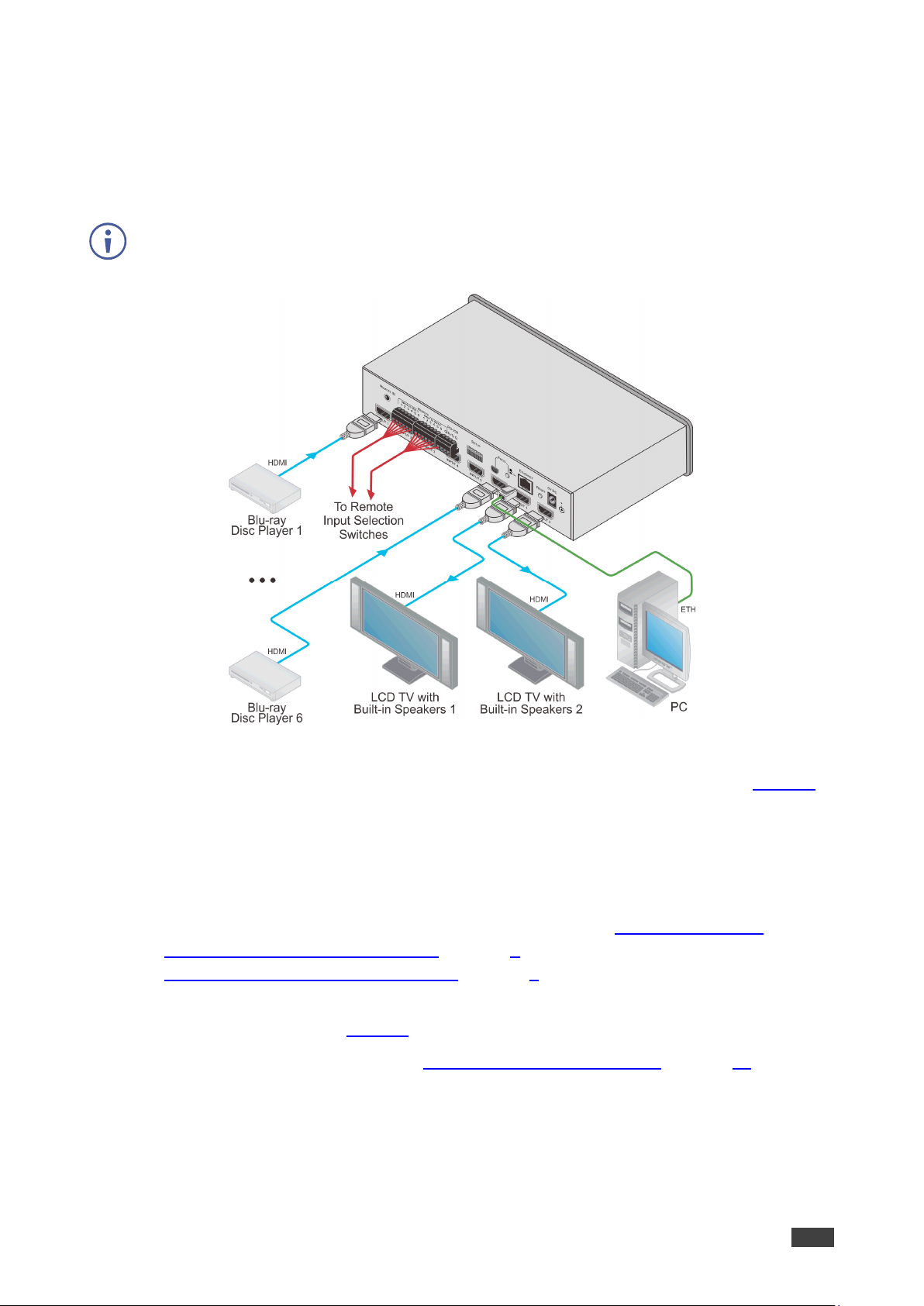

Figure 3: Connecting the VS-62H 6x2 HDMI Matrix Switcher

To connect the VS-62H 6x2 HDMI Matrix Switcher as illustrated in the example in Figure 3:

1. Connect up to six HDMI sources, (for example, Blu-ray Disc players) to the HDMI Input

connectors.

2. Connect the two OUT HDMI connectors to up to two HDMI acceptors, (for example, LCD

displays with built-in speakers).

3. If required, connect a PC/controller to the RS-232 port (see Connecting a Serial

Controller to the VS-62H via RS-232 on page 9) and/or the Ethernet port (see

Connecting to the VS-62H via Ethernet on page 9).

4. Connect the power adapter to the device and plug the power adapter into the mains

electricity (not shown in Figure 3).

5. If required, acquire the EDID (see Switching an Input to an Output on page 23).

Autres manuels pour VS-62H

Table des matières

Autres manuels Kramer Commutateur matriciel

Kramer

Kramer VS-82HDxl Manuel utilisateur

Kramer

Kramer VS-66H Manuel utilisateur

Kramer

Kramer Sierra Video 6448V5Sxl Manuel utilisateur

Kramer

Kramer VS-42HN Manuel utilisateur

Kramer

Kramer VS-88HDxl Manuel utilisateur

Kramer

Kramer VS-3232V Manuel utilisateur

Kramer

Kramer Sierra Video 1204V5 Manuel utilisateur

Kramer

Kramer MTX3-34-M Manuel utilisateur

Kramer

Kramer VS-88UT Manuel utilisateur

Kramer

Kramer VP-885 Manuel utilisateur

Kramer

Kramer VP-1608 Manuel utilisateur

Kramer

Kramer MV-4X Manuel utilisateur

Kramer

Kramer Sierra Video 1208V3 Manuel utilisateur

Kramer

Kramer VP-729 Manuel utilisateur

Kramer

Kramer VS-88HN Manuel utilisateur

Kramer

Kramer VP-211DS Manuel utilisateur

Kramer

Kramer VS-401YC Manuel utilisateur

Kramer

Kramer Sierra Video 3216SXL Manuel utilisateur

Kramer

Kramer VS-48HDCPxI Manuel utilisateur

Kramer

Kramer Sierra Video 1616V5S Manuel utilisateur

Kramer

Kramer VS-66UHD Manuel utilisateur

Kramer

Kramer VS-44DT Manuel utilisateur

Kramer

Kramer 3232HD Manuel utilisateur

Kramer

Kramer VP-8x8 Manuel utilisateur

Manuels Commutateur matriciel populaires d'autres marques

Broadcast Tools

Broadcast Tools SS 8.2 Manuel utilisateur

Altimium

Altimium MATF32 Manuel utilisateur

ALFAtron

ALFAtron ALF-MUK44N Manuel utilisateur

Monoprice

Monoprice Blackbird 15377 Manuel utilisateur

PTN

PTN FMX12 Manuel utilisateur

CYP

CYP nT15GX01 Manuel utilisateur

TESmart

TESmart HMA0402A40 Manuel utilisateur

Octava

Octava HD4XSTPMX Manuel utilisateur

Intelix

Intelix FLX-88 Mode d'emploi

Roland

Roland XS-1HD Manuel utilisateur

Atlona

Atlona AT-HDMI-22M Manuel utilisateur

Link

Link HD8X8 Manuel utilisateur

AMX

AMX AVS-OP-2020-117 Instructions et recettes

Lindy

Lindy 38042 Manuel utilisateur

Extron electronics

Extron electronics MTPX Plus Series Manuel utilisateur

Key Digital

Key Digital Champion KD-16x16CS Manuel utilisateur

Shinybow USA

Shinybow USA SB-8811 Manuel utilisateur

Optimus

Optimus Compact Manuel utilisateur
