MTX3-34-M Quick Start

P/N:

2900- 301591QS

Rev:

Scan for full manual

MTX3-34-M Quick Start Guide

This guide helps you install and use your MTX3-34-M for the first time.

Go to www.kramerav.com/downloads/MTX3-34-M to download the latest usermanualand check if firmware

upgrades are available.

Step 1: Check what’s in the box

MTX3-34-M 34x34 8K Modular Matrix

1 Set of rack ears (attached)

1 Quick start guide

1 Power cord

Step 2: Get to know your MTX3-34-M

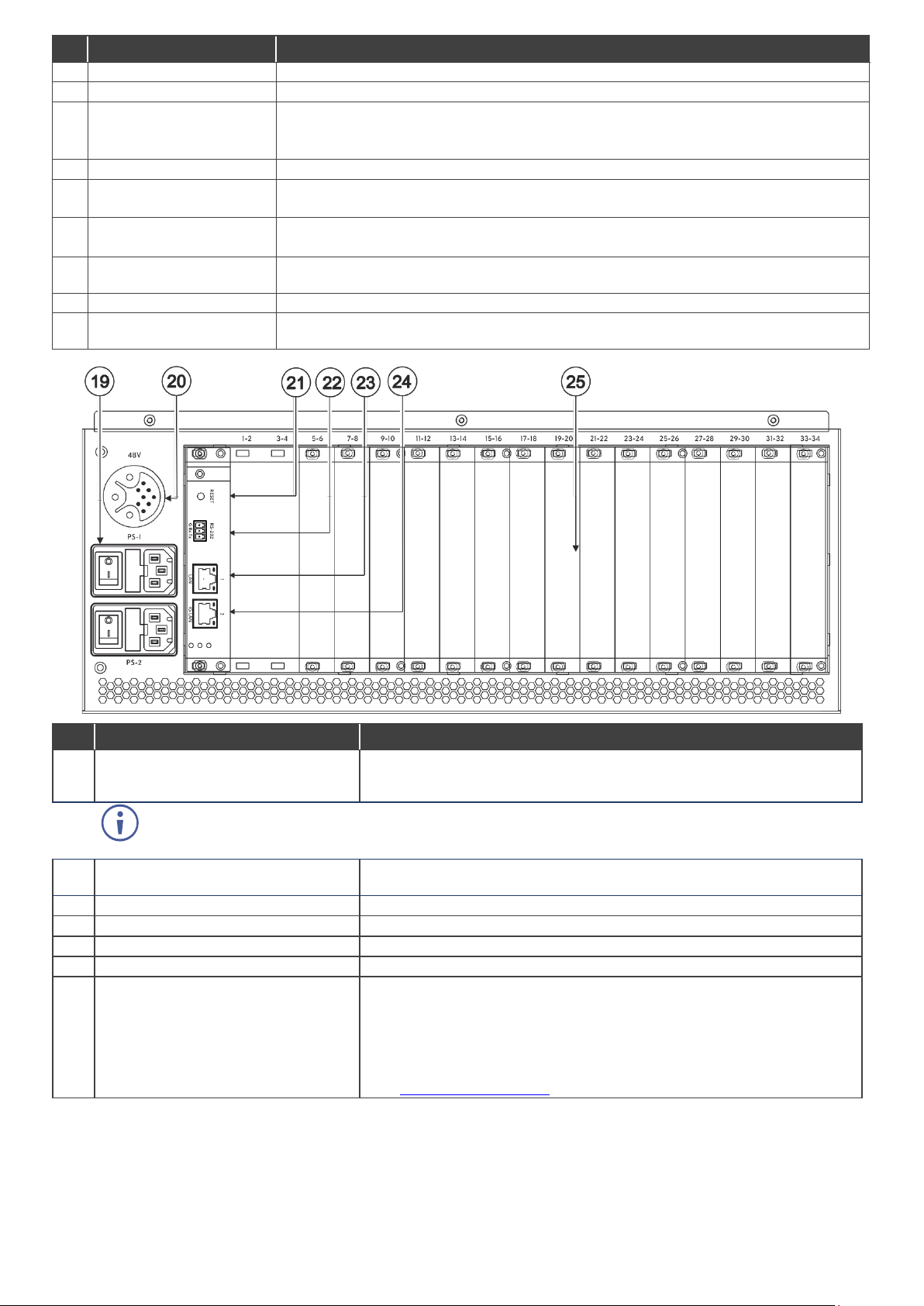

Feature

Function

Numeric

Keypad

Numbers

1 to 0

◄(Backward)

Move the LCD display left (when there is an extended display).

►(Forward)

Move the LCD display right (when there is an extended display).

Double-

Function

Selector

Buttons.

Menu Button

Functions.

Enabled and lit

after pressing the

MENU button 4

times.

ALL

Connect an input to all outputs.

STO

Store the current setup in a preset.

EDID

Assign EDID channels.

ESC

Exit the current operation.

OFF

Turn off an output.

RCL

Recall a preset.

DELAY

Set the delay between action confirmation and action execution on an output port.

ENTER

Confirm the input-output setup using a one-digit number instead of two digits. For

example, to enter input 5, you can press either 05 or 5, ENTER.

Feature

Function

TAKE Button

Confirm action.

EXIT MENU Button

Press to exit a menu or return to switching mode.

MENU Button

Press 4 times to enable the ALL, STO, EDID, ESC, OFF, RCL, DELAY and ENTER buttons.

Press again to enter the configuration menu.

When in a menu, press to cycle through the menu items.

DEFAULT SETUP Button

Press to open the reset menu on the display.

LOCK Button

Press and hold for approximately 2 sec to lock/unlock the front panel buttons.

A short press returns the LCD display to the default window.

OUTPUTS/INPUTS

LCD Display

Displays the outputs (upper row) routed to the selected inputs (lower row).

Displays user interface messages and menus.

SERVICE Mini USB

Connector

Connect to a PC to send Protocol 3000 commands.

POWER LED (MA3-PS)

Lights green when the power supply is active.

ALERT LED (MA3-PS)

Lights red when an alert status is detected. Briefly lights red immediately following a power

disruption (e.g., cable disconnection, power off, and so on).

Feature

Function

Power Supply and Switch (PS-1 and

PS-2)

Supply power to the device and have a fuse holder. Either PS-1 or PS-2 or both

must be connected to the mains and switched on to power the device.

The power LED (17) lights green.

You can connect PS-1 and/or PS-2 (when installing the optional MA3-PS instead of the blank panel,

under PS-2). If one of them fails to operate, the other can automatically power the unit.

48V DC Harness Connector

Connect to the MA3-PS-4812 (optional, not included) PoE power supply add-on

to support PoE to the relevant matrix cards.

RESET Recessed Button

Press to reboot the MTX3-34-M control card.

RS-232 3-pin Terminal Block Connector

Connect to a remote operation PC or a remote controller.

NET 1 RJ-45 Connector

Connect to a PC or controller via the Ethernet LAN (100Mb).

NET 2-1G RJ-45 Connector

Connect to a PC or controller via the Ethernet LAN (100/1000Mb).

lots for up to 17 matrix cards (15 blanks

cover 15 of the slots)

MTX3-34-M has 17 slots for insertion of matrix cards.

MTX3-34-M uses hot plugging, so cards can be inserted while the device is

operating, and the card’s ports are automatically categorized as input or output.

Use the system menus to change input/output designations and to create

flexible connections between the ports on different cards.

MTX3-34-M identifies ports by the ID numbers it allocates to each card slot:

See MTX3-34-M ID numbers below to understand how they are defined.

MTX3-34-M ID numbers

The matrix cards that are installed to the MTX3-34-M, can have input and/or output ports. Each inserted card is allocated with

2 port ID numbers. Port input/output directions are defined per ID number. The port ID numbers are written on the chassis,

next to each card-insertion slot. Ports on the upper side of the card use one ID number and ports on the lower side of the card

use the next ID number.

Matrix cards can have up to 4 input/output ports, 2 for each ID number. Ports with the same ID have the same input/output

direction.

Step 3: Install the MTX3-34-M

To rack mount the machine, attach both rack ears (by

removing the screws from each side of the machine

and replacing those screws through the rack ears) or

place the machine on a table.

•Ensure that the environment (e.g., maximum ambient

temperature & air flow) is compatible for the device.

•Avoid uneven mechanical loading.

•Make appropriate consideration of equipment nameplate

ratings to avoid overloading the circuits.

•Maintain reliable earthing of rack-mounted equipment.

Step 4: Connect the inputs and outputs

Insert the input and output cards into the card slots and then connect the inputs and the outputs.

You can insert cards into slots while the device is powered.

For optimum range and performance use the recommended Kramer cables

available at www.kramerav.com/product/MTX3-34-M.

Using third-party cables may cause damage!

Step 5: Connect the power

Connect the power cord to MTX3-34-M and plug it into the mains electricity.

Safety Instructions (See www.kramerav.com for updated safety information)

Caution:

•For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or

in the User Manual.

•There are no operator serviceable parts inside the unit.

Warning:

•Use only the power cord that is supplied with the unit.

•Disconnect the power and unplug the unit from the wall before installing.

•Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.

•To ensure continuous risk protection, replace fuses only according to the rating specified on the product label which located on the bottom of the

unit.

Step 6: Set operation parameters

To operate MTX3-34-M from the front panel, use

the numeric keypad.

When the unit is powered-on, the last matrix

setup that was used is loaded.

To retrieve another setup, use recall setup (4

presses of the Menu button) to load a stored

configuration from a preset or press Default

Setup to reset the matrix to the default setup or

factory default setup.

VOSW lists video output port IDs and VISW

shows the video input port ID connected to the

output ID above it.

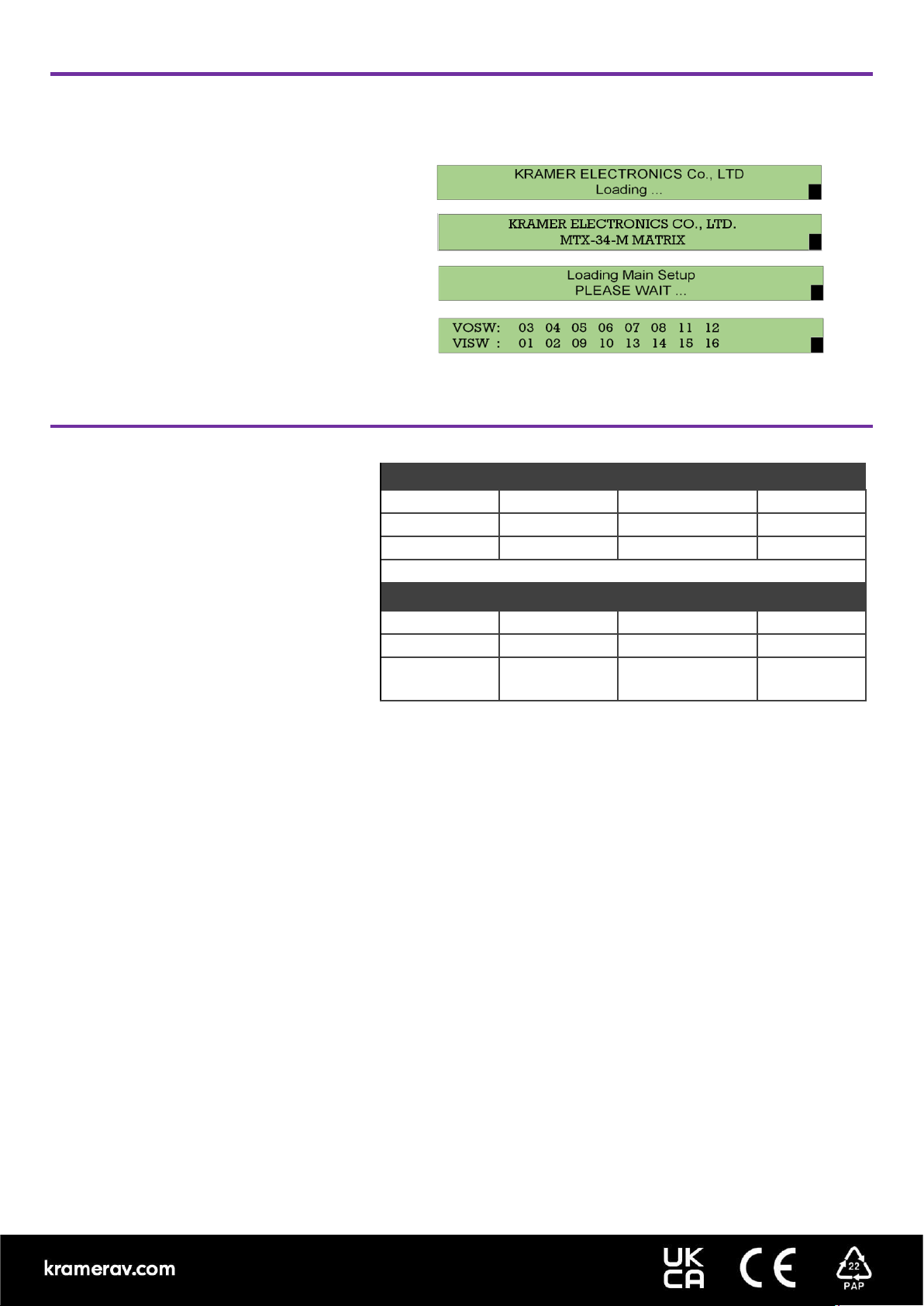

While powering up, the LCD display shows the following screens in

sequence:

Step 7: Operate the MTX3-34-M

Operate MTX3-34-M via:

•Front panel buttons.

•Embedded web pages over the Ethernet.

The first time you enter, you will be asked to

set a new password.

•Remotely, using IP or RS-232 serial

communication transmitted from a touch

screen system, PC or a serial controller.

•Protocol 3000 commands via IP

communication over the LAN.

•Protocol 3000 commands transmitted

through the mini-USB Service port.

RS-232 Control / Protocol 3000

Baud Rate:

115,200

Parity:

None

Data Bits:

Command Format:

ASCII

Stop Bits:

Example: (Switch video input 2 to output 4): #Vid 2>4<CR>

Default IP Parameters

IP Address:

192.168.1.39

UDP Port #:

50000

Subnet mask:

255.255.0.0

TCP Port #:

5000

Gateway:

192.168.0.1

Default User:

Default Password:

admin

M01@kramer

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
