Kramer VS-66HDMI Manuel utilisateur

Kramer Electronics, Ltd.

USER MANUAL







Model:

VS-66HDMI

6x6 HDMI Matrix Switcher

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 2

Overview 3

3.1

Defining EDID 3

3.2

About HDMI 3

3.3

Recommendations for Best Performance 4

3.4

Terminology Used in this User Manual 5

Your VS-66HDMI 6x6 HDMI Matrix Switcher 5

4.1

Using the IR Transmitter 8

Installing the VS-66HDMI on a Rack 9

Connecting a VS-66HDMI 6x6 HDMI Matrix Switcher 10

Operating the VS-66HDMI 6x6 HDMI Matrix Switcher 12

7.1

Switching an Input to an Output 12

7.2

Acquiring the EDID 12

7.2.1

Acquire an EDID from a Connected Output 12

7.2.2

Acquire an EDID from Several Sets of Inputs and Outputs 13

7.2.3

Acquire an EDID from Several Connected Outputs (Auto) 13

7.2.4

Acquire the Default EDID 14

7.3

Storing and Recalling a Setting 14

7.4

Controlling via RS-232 (for example, using a PC) 15

7.5

Controlling via ETHERNET 15

7.5.1

Connecting the ETHERNET Port directly to a PC (Crossover Cable) 15

7.5.2

Connecting the ETHERNET Port via a Network Hub (Straight-Through Cable) 17

Technical Specifications 17

Kramer Protocol 2000 18

Figures

Figure 1: VS-66HDMI 6x6 HDMI Matrix Switcher 6

Figure 2: Connecting a VS-66HDMI 6x6 HDMI Matrix Switcher 11

Figure 3: Connecting a PC without using a Null-modem Adapter 15

Figure 4: Local Area Connection Properties Window 16

Figure 5: Internet Protocol (TCP/IP) Properties Window 16

Tables

Table 1: Terminology Used in this User Manual 5

Table 2: VS-66HDMI 6x6 HDMI Matrix Switcher Front Panel Features 7

Table 3: Technical Specifications of the VS-66HDMI 17

Table 4: Protocol Definitions 18

Table 5: Instruction Codes for Protocol 2000 19

Introduction

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and

affordable solutions to the infinite range of problems that confront the video,

audio and presentation professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

500-plus different models now appear in 8 Groups

, which are clearly defined

by function.

Congratulations on purchasing your Kramer VS-66HDMI 6x6 HDMI Matrix

Switcher.

The VS-66HDMI is ideal for conference room presentations and advertising

applications, as well as for rental and staging.

Each package includes the following items:

VS-66HDMI 6x6 HDMI Matrix Switcher

Power cord and Null-modem adapter

Windows®-based Kramer control software

Windows®-based Ethernet Configuration Manager and Virtual Serial Port

Manager

Kramer RC-IR2 Infra-Red Remote Control Transmitter (including the

required batteries and a separate user manual

)

This user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Downloadable from our Web site at http://www.kramerelectronics.com

3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com

4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

Getting Started

KRAMER: SIMPLE CREATIVE TECHNOLOGY

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

Overview

3 Overview

The VS-66HDMI is a high quality 6x6 matrix switcher for HDMI signals.

In particular, the VS-66HDMI:

Supports up to 1.65Gbps bandwidth per graphic channel

Supports HDCP (High Definition Digital Content Protection)

Includes an OFF button to disconnect an output

Includes a PANEL LOCK button to prevent unwanted tampering with the

buttons on the front panel

Has 12 preset memory locations for quick access to common configurations

Fits into one vertical space of a standard 19” professional rack enclosure

Control the VS-66HDMI using the front panel buttons, or remotely via:

RS-232 serial commands transmitted by a touch screen system, PC, or

other serial controller

The Kramer infra-red remote control transmitter

The ETHERNET

An external remote IR receiver (optional), see section 4.1

3.1 Defining EDID

The Extended Display Identification Data (EDID

) is a data-structure,

provided by a display, to describe its capabilities to an HDMI source. The

EDID enables the VS-66HDMI to “know” what kind of monitor is connected

to the output. The EDID includes the manufacturer’s name, the product type,

the timing data supported by the display, the display size, luminance data and

(for digital displays only) the pixel mapping data. See section 7.1 for details

of how to acquire the EDID.

3.2 About HDMI

High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital

audio/video interface, widely supported in the entertainment and home cinema

industry. It delivers the highest high-definition image and sound quality. Note that

Kramer Electronics Limited is an HDMI Adopter

and an HDCP Licensee

1 Suitable for resolutions up to UXGA at 60Hz, and for all HD resolutions

2 Defined by a standard published by the Video Electronics Standards Association (VESA)

3 Ensuring an all-digital rendering of video without the losses associated with analog interfaces and their unnecessary digital-

to-analog conversions

4 See http://www.hdmi.org/about/adopters_founders.asp

5 See http://www.digital-cp.com/list/

Overview

KRAMER: SIMPLE CREATIVE TECHNOLOGY

In particular, HDMI

Provides a simple

interface between any audio/video source, such as a

set-top box, DVD player, or A/V receiver and video monitor, such as a

digital flat LCD / plasma television (DTV), over a single lengthy

cable

Supports standard, enhanced, high-definition video, and multi-channel

digital audio

on a single cable

Transmits all ATSC HDTV standards and supports 8-channel digital audio,

with bandwidth to spare to accommodate future enhancements and

requirements

Benefits consumers by providing superior, uncompressed digital video

quality via a single cable

, and user-friendly connector

Is backward-compatible with DVI (Digital Visual Interface)

Supports two-way communication between the video source (such as a

DVD player) and the digital television, enabling new functionality such as

automatic configuration and one-button play

HDMI has the capacity to support existing high-definition video formats

(720p, 1080i, and 1080p/60), standard definition formats such as NTSC or

PAL, as well as 480p and 576p.

3.3 Recommendations for Best Performance

To achieve the best performance:

Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances and position

your VS-66HDMI away from moisture, excessive sunlight and dust

1 HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

licensing LLC

2 With video and multi-channel audio combined into a single cable, the cost, complexity, and confusion of multiple cables

currently used in A/V systems is reduced

3 HDMI technology has been designed to use standard copper cable construction at up to 15m

4 HDMI supports multiple audio formats, from standard stereo to multi-channel surround-sound. HDMI has the capacity to

support Dolby 5.1 audio and high-resolution audio formats

5 HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a

simple, cost-effective manner

Your VS-66HDMI 6x6 HDMI Matrix Switcher

3.4 Terminology Used in this User Manual

Table 1 defines some terms that are used in this user manual.

Table 1: Terminology Used in this User Manual

Term Definition

802.3 The standard specification for ETHERNET that is maintained by the Institute of Electrical

and Electronics Engineers (IEEE).

Dynamic Host

Configuration

Protocol (DHCP)

Allows the network administrator to distribute IP addresses from a central point and

automatically send a new IP address when an Ethernet point is plugged into a different

network location

Gateway A network position serving as an entry to another network. On the Internet, a node or

stopping point can be either a gateway node or a host (end-point) node.

IP Address A 32-binary digit number that identifies each sender or receiver (within a network via a

particular server or workstation) of data (HTML pages or e-mails) that is sent in packets

across the Internet. Every device connected to an IP network must have a unique IP

address. This address is used to reference the specific unit.

Local Area Network

(LAN)

Computers sharing a common communications line or wireless link, which often share a

server within a defined geographic area.

Media Access

Control (MAC)

Address

A computer's unique hardware number (or address) in a LAN or other network. On an

Ethernet LAN, the (MAC) address is identical to the Ethernet address.

Transmission

Control

Protocol/Internet

Protocol (TCP/IP)

The basic communication language or protocol of the Internet that breaks the message

into appropriately sized packets for the network, and can be used as a communications

protocol in an intranet or an extranet.

4 Your VS-66HDMI 6x6 HDMI Matrix Switcher

Figure 1 and Table 2 define the front and rear panels of the VS-66HDMI.

Your VS-66HDMI 6x6 HDMI Matrix Switcher

KRAMER: SIMPLE CREATIVE TECHNOLOGY

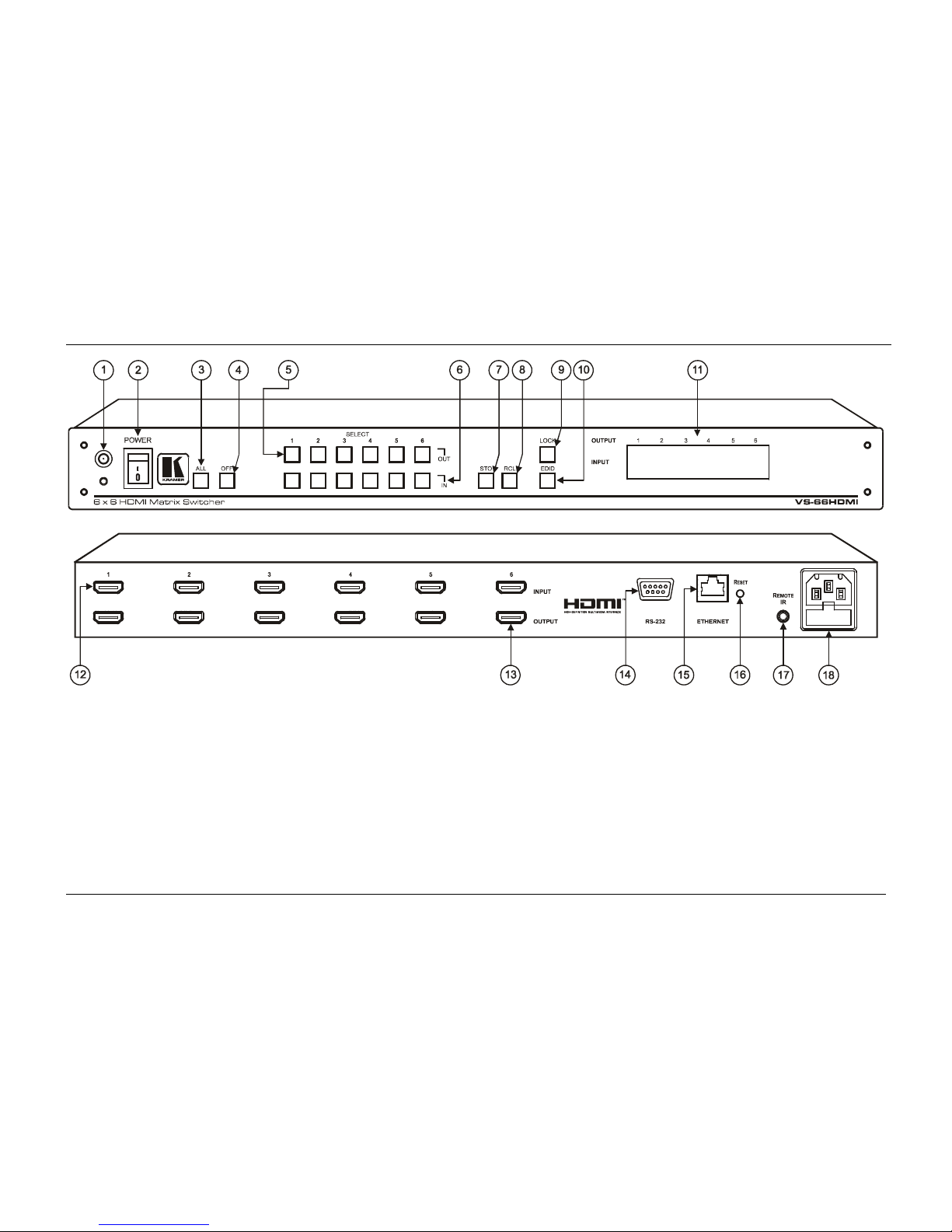

Figure 1: VS-66HDMI 6x6 HDMI Matrix Switcher

Your VS-66HDMI 6x6 HDMI Matrix Switcher

Table 2: VS-66HDMI 6x6 HDMI Matrix Switcher Front Panel Features

# Feature Function

1 IR Receiver The red LED lights when receiving signals from the Infra-red remote

control transmitter

2 POWER Switch Illuminated switch for turning the unit ON or OFF

3 ALL Button Pressing ALL before pressing an input button, connects that input to

all outputs

4 OFF Button Pressing OFF after pressing an output button disconnects that output

from the inputs. To disconnect all the outputs,

press the ALL button and

then the OFF button

5 OUT Select the output to which the input is switched (from 1 to 6). The

selected button illuminates if an acceptor is connected

SELECT

Buttons

IN Select the input to switch to the output (from 1 to 6). The selected

button illuminates if a source is connected

7 STO Button Press to store an input setting (see section 7.3)

8 RCL Button Press to recall an input setting (see section 7.3)

9 LOCK Button Press to toggle disengaging the front panel buttons and to acquire

the EDID (see section 7.1)

10 EDID Button

Press to acquire the EDID (see section 7.1)

11 OUTPUT/ INPUT

LCD Display

Displays the selected input switched to the output (marked above

each input)

12 INPUT HDMI Connectors Connect to the HDMI sources (from 1 to 6)

13 OUTPUT HDMI Connectors Connect to the HDMI acceptors (from 1 to 6)

14 RS-232 DB-9F Port Connects to the PC or other RS-232 Remote Controller

15 ETHERNET Connector Connects to the PC or other Ethernet Controller

16 RESET Button Press the ETHERNET factory reset button to reset to the factory default

definitions

IP number 192.168.1.39

Mask – 255.255.255.0

Gateway – 192.168.1.1

17 REMOTE IR Opening

Connects to an external IR receiver unit

for controlling the machine via an

IR remote controller (instead of using the front panel IR receiver)

18 Power Connector with Fuse

AC connector enabling power supply to the unit

1 For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs

2 Are also used for storing machine setups (see section 7.3)

3 Illuminates when configuring the EDID

4 First turn the VS-66HDMI OFF and then turn it ON again while pressing the RESET button. The unit will power up and

load its memory with the factory default definitions

5 Covered by a cap. The 3.5mm connector at the end of the internal IR connection cable fits through this opening

6 Optional. Can be used instead of the front panel (built-in) IR receiver to remotely control the machine (only if the internal

IR connection cable has been installed)

Your VS-66HDMI 6x6 HDMI Matrix Switcher

KRAMER: SIMPLE CREATIVE TECHNOLOGY

4.1 Using the IR Transmitter

You can use the RC-IR2 IR transmitter to control the machine via the built-in

IR receiver on the front panel or, instead, via an optional external IR

receiver

. The external IR receiver can be located up to 15 meters away from

the machine. This distance can be extended to up to 60 meters when used

with three extension cables

Before using the external IR receiver, be sure to arrange for your Kramer

dealer to insert the internal IR connection cable

with the 3.5mm connector

that fits into the REMOTE IR opening on the rear panel.

Connect the external IRreceiver to the REMOTE IR 3.5mm connector.

1 Model: C-A35M/IRR-50

2 Model: C-A35M/A35F-50

3 P/N: 505-70434010-S

Table des matières

Autres manuels Kramer Commutateur matriciel

Kramer

Kramer VS-808TP Manuel utilisateur

Kramer

Kramer VP-1608 Manuel utilisateur

Kramer

Kramer VS-3232D Manuel utilisateur

Kramer

Kramer VS-3232A Manuel utilisateur

Kramer

Kramer VP-720DS Manuel utilisateur

Kramer

Kramer VP-88 Manuel utilisateur

Kramer

Kramer VP-8x8AK Manuel utilisateur

Kramer

Kramer XL 3216V Manuel utilisateur

Kramer

Kramer Sierra Pro XL 1208V3S Manuel utilisateur

Kramer

Kramer VS-88DT Manuel utilisateur

Kramer

Kramer VS-82HDxl Manuel utilisateur

Kramer

Kramer VP-8x8TP Manuel utilisateur

Kramer

Kramer VP-719DS Manuel utilisateur

Kramer

Kramer Sierra Pro XL 1616V5S Manuel utilisateur

Kramer

Kramer Sierra Pro XL 1204V5 Manuel utilisateur

Kramer

Kramer VS-5x5 Manuel utilisateur

Kramer

Kramer XL 3216V2 Manuel utilisateur

Kramer

Kramer LASSEN XL 3232S Manuel utilisateur

Kramer

Kramer VS-6464DN-EM Manuel utilisateur

Kramer

Kramer TailorMade Manuel utilisateur

Kramer

Kramer Sierra Video 6432V5xl Manuel utilisateur

Kramer

Kramer Sierra Pro XL 1616V5 Manuel utilisateur

Kramer

Kramer 6464V5XL Manuel utilisateur

Kramer

Kramer VS-88UHD Manuel utilisateur

Manuels Commutateur matriciel populaires d'autres marques

Broadcast Tools

Broadcast Tools SS 8.2 Manuel utilisateur

Altimium

Altimium MATF32 Manuel utilisateur

ALFAtron

ALFAtron ALF-MUK44N Manuel utilisateur

Monoprice

Monoprice Blackbird 15377 Manuel utilisateur

PTN

PTN FMX12 Manuel utilisateur

CYP

CYP nT15GX01 Manuel utilisateur

TESmart

TESmart HMA0402A40 Manuel utilisateur

Octava

Octava HD4XSTPMX Manuel utilisateur

Intelix

Intelix FLX-88 Mode d'emploi

Roland

Roland XS-1HD Manuel utilisateur

Atlona

Atlona AT-HDMI-22M Manuel utilisateur

Link

Link HD8X8 Manuel utilisateur

AMX

AMX AVS-OP-2020-117 Instructions et recettes

Lindy

Lindy 38042 Manuel utilisateur

Extron electronics

Extron electronics MTPX Plus Series Manuel utilisateur

Key Digital

Key Digital Champion KD-16x16CS Manuel utilisateur

Shinybow USA

Shinybow USA SB-8811 Manuel utilisateur

Optimus

Optimus Compact Manuel utilisateur
