USER MANUAL







Model:

VP-27

Presentation Switcher

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 1

Overview 3

Your VP-27 Presentation Switcher 3

Installing the VP-27 in a Rack 7

Connecting the VP-27 Presentation Switcher 8

6.1

Connecting a PC 10

6.2

Dipswitch Settings 10

Operating the VP-27 Presentation Switcher 11

7.1

Locking the Front Panel 11

7.2

Resetting the VP-27 Presentation Switcher 12

Firmware Upgrade 12

8.1

Downloading from the Internet 12

8.2

Connecting the PC to the RS-232 Port 12

8.3

Upgrading Firmware 12

Technical Specifications 15

Table of Hex Codes for Serial Communication 16

Kramer Protocol 17

11.1

Protocol Output Definitions 17

11.2

Switching Protocols 17

11.2.1

Switching Protocols via the Front Panel Buttons 17

11.2.2

Switching Protocols via Protocol Commands 17

11.3

Kramer Protocol 3000 18

11.3.1

Protocol 3000 Syntax 18

11.3.2

Command Parts Details 18

11.4

Kramer Protocol 2000 23

Figures

Figure 1: VP-27 Presentation Switcher 4

Figure 2: Connecting the VP-27 9

Figure 3: Connecting to a PC 10

Figure 4: VP-27 Dipswitches 10

Figure 5: FlashLoader Window 13

Figure 6: Flash Upgrade Process 14

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Contents

Tables

Table 1: Front Panel VP-27 Presentation Switcher Features 5

Table 2: Rear Panel VP-27 Presentation Switcher Features 6

Table 3: Dipswitch Settings (Default Setting) 10

Table 4: Technical Specifications of the VP-27 Presentation Switcher 15

Table 5: Hex Codes for Switching via RS-232 (Protocol 2000) 16

Table 6: Hex Codes for Switching via RS-232 (Protocol 3000) 16

Table 7: Instruction Codes for Protocol 3000 19

Table 8: Protocol Definitions 23

Table 9: Instruction Codes for Protocol 2000 24

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range

of problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better! Our 1,000-plus different models

now appear in 11 groups

that are clearly defined by function.



Congratulations on purchasing your Kramer VP-27 Presentation Switcher.

This product is ideal for the following typical applications:

Presentation and conference room systems

Production studios, as well as rental and staging

The package includes the following items:

VP-27 Presentation Switcher

Windows®-based Kramer control software

Power cord

Infrared remote control transmitter (including the required batteries and a

separate user manual

) and this user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.



1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:

Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories

and Rack Adapters; GROUP 11: Sierra Products

2 Download the latest software from our Web site at http://www.kramerelectronics.com

3 We recommend that you use only the power cord that is supplied with this machine

4 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com

5 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

Overview

3 Overview

The VP-27 is a high quality presentation switcher designed for a wide variety

of presentation and multimedia applications. The VP-27 combines the

functions of a 4x1 switcher for composite video and audio, a 4x1 switcher for

s-Video and audio, and a 4x1 switcher for computer graphics video (PC/VGA)

type signals with audio.

The VP-27 is a one-box high-performance solution for installations that would

otherwise require several separate products, and is designed so that each

section is controllable independently from the other sections.

The VP-27 features:

An additional audio switching section that routes one of the pre-selected

audio inputs from the other switching sections to a separate output

24 selector switches and front panel control adjustment for master audio

output level and microphone level, mix, mute, and talk over

The ability to insert a microphone channel by switching, mixing, or talk-

over

A LOCK button to prevent tampering with the front panel

Control the VP-27 via the front panel buttons or IR remote control using the

Kramer infrared remote control transmitter (provided) or by RS-232 serial

commands transmitted by a touch screen system, PC, or other serial controller.

To achieve the best performance:

Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer VP-27 away

from moisture, excessive sunlight and dust

4 Your VP-27 Presentation Switcher

Figure 1, Table 1 and Table 2 define the VP-27.

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VP-27 Presentation Switcher

Figure 1: VP-27 Presentation Switcher

Your VP-27 Presentation Switcher

Table 1: Front Panel VP-27 Presentation Switcher Features

# Feature Function

1 IR Receiver Signals from the remote control transmitter illuminate the LED

2 POWER LED Lights when the unit is turned ON

3 VIDEO (CV) Select the composite video / audio input (from 1 to 4)

4 s-VIDEO (Y/C) Select the s-Video / audio input (from 1 to 4)

INPUT

SELECTOR

Buttons PC Select the computer graphics video / audio input (from 1 to 4)

6 Y/C Press to route the selected audio signal from the s-Video section to

the master audio outputs

7 CV Press to route the selected audio signal from the composite video

section to the master audio outputs

8 PC Press to route the selected audio signal from the computer graphics

video section to the master audio outputs

MASTER AUDIO

SELECTOR Buttons

MIC Press to route the microphone input to the master audio outputs

10 - Decrease the master audio signal level

11 MASTER

+ Increase the master audio signal level

12 + Increase the microphone audio signal level

VOLUME

Buttons MIC - Decrease the microphone audio signal level

14 MUTE Button Press to disable/enable the Master Audio output

15 TALK OVER Button Press to toggle. When on will activate talk over function

16 MIX Button Press to toggle. When on, will mix the microphone signal with the

Master Audio output

17 LOCK Button Press and hold to lock/unlock the front panel buttons



1 With the TALK OVER button pressed in, speaking into the microphone amplifies the voice of the speaker, overriding and

fading out all other audio channels. However, pressing the MIC button in the Master Audio Selector renders the Talk Over

function inactive

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VP-27 Presentation Switcher

Table 2: Rear Panel VP-27 Presentation Switcher Features

# Feature Function

18 Y/C IN 4-pin Connect to the s-Video sources

19 CV IN RCA Connect to the composite video sources

20 Y/C OUT 4-pin Connect to the s-Video acceptor

Video

Connectors

CV OUT RCA Connect to the composite video acceptor

22 PC IN 15-pin HD Connectors Connect to the VGA/UXGA video sources

23 PC OUT 15-pin HD Connector Connect to the VGA/UXGA video acceptor

24 DIP-switches DIP-switches for setup of the unit (DIP 1 and 4 are not used; DIP

2 PROG

, DIP 3 MIC DC; see section 6.2)

25 RS-232 (Tx, Rx, G) Terminal

Block Connector

Connects to the PC or the Remote Controller

26 PC AUDIO IN 3.5mm Mini Plugs Connect to the s-Video unbalanced audio sources

27 PC AUDIO OUT 3.5mm Mini

Plug Connect to the PC unbalanced stereo audio acceptor (for the PC

video)

28 MIC 6.3mm Phone Jack Connector

Connect to the microphone

29 CV AUDIO IN RCA Connectors Connect to the unbalanced audio sources

of the composite

video

30 CV AUDIO OUT RCA

Connectors (L and R) Connect to the composite video unbalanced audio acceptor (for

the composite video)

31 Y/C AUDIO IN RCA Connectors Connect to the s-Video unbalanced audio sources

32 Y/C AUDIO RCA Connectors (L

and R) Connects to the s-Video unbalanced audio acceptor (for the

s-Video)

33 MASTER OUT RCA Connectors

(L and R) Connect the master unbalanced audio channel acceptor

34 Power Connector with Fuse AC connector enabling power supply to the unit

35 POWER Switch Illuminated switch for turning the unit ON or OFF



1 Always set to OFF (for factory use)

2 From 1 to 4

Installing the VP-27 in a Rack

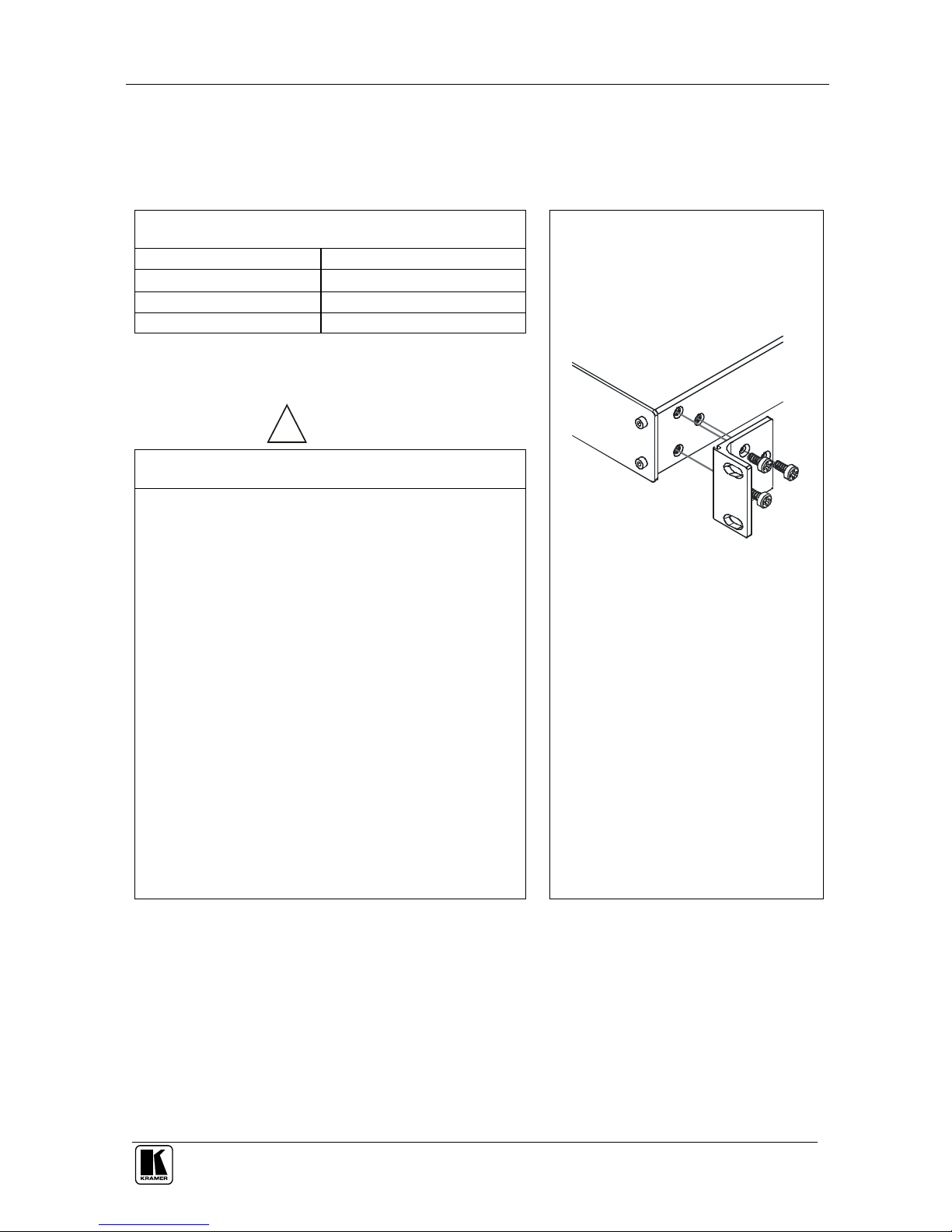

5 Installing the VP-27 in a Rack

This section describes what to do before installing in a rack and how to rack

mount.

Before Installing in a Rack How to Rack Mount

Before installing in a rack, be sure that the environment is

within the recommended range:

Operating temperature range +5°to +45°C (41°to 113°F)

Operating humidity range 10 to 90% RHL, non-condensing

Storage temperature range -20°to +70°C (-4°to 158°F)

Storage humidity range 5 to 95% RHL, non-condensing



CAUTION!!

When installing in a 19" rack, avoid hazards by taking

care that:

1. It is located within the recommended environmental

conditions, as the operating ambient temperature of a

closed or multi unit rack assembly may exceed the

room ambient temperature.

2. Once rack mounted, enough air will still flow around

the machine.

3. The machine is placed straight in the correct

horizontal position.

4. You do not overload the circuit(s). When connecting

the machine to the supply circuit, overloading the

circuits might have a detrimental effect on overcurrent

protection and supply wiring. Refer to the appropriate

nameplate ratings for information. For example, for

fuse replacement, see the value printed on the

product label.

5. The machine is earthed (grounded) in a reliable way

and is connected only to an electricity socket with

grounding. Pay particular attention to situations where

electricity is supplied indirectly (when the power cord

is not plugged directly into the socket in the wall), for

example, when using an extension cable or a power

strip, and that you use only the power cord that is

supplied with the machine.

To rack-mount a machine:

1. Attach both ear brackets to the

machine. To do so, remove the

screws from each side of the

machine (3 on each side), and

replace those screws through the

ear brackets.

2. Place the ears of the machine

against the rack rails, and insert the

proper screws (not provided)

through each of the four holes in the

rack ears.

Note that:

In some models, the front panel

may feature built-in rack ears

Detachable rack ears can be

removed for desktop use

Always mount the machine in the

rack before you attach any cables

or connect the machine to the

power

If you are using a Kramer rack

adapter kit (for a machine that is not

19"), see the Rack Adapters user

manual for installation instructions

(you can download it at:

http://www.kramerelectronics.com)

Autres manuels pour VP-27

Table des matières

Autres manuels Kramer Commutateur matriciel

Kramer

Kramer Cobra MX-88 Manuel utilisateur

Kramer

Kramer VS-88HD Manuel utilisateur

Kramer

Kramer Sierra Pro XL 1608V3S Manuel utilisateur

Kramer

Kramer VP-8x8A Manuel utilisateur

Kramer

Kramer VS-66H3 Manuel utilisateur

Kramer

Kramer XL 1608VS Manuel utilisateur

Kramer

Kramer XL 1208V2S Manuel utilisateur

Kramer

Kramer VS-88HDCPxl Manuel utilisateur

Kramer

Kramer MTX3-16-M Manuel utilisateur

Kramer

Kramer Sierra Pro XL 1208V3 Manuel utilisateur

Kramer

Kramer VS-1616D Manuel utilisateur

Kramer

Kramer MTX3-16-M Manuel utilisateur

Kramer

Kramer VS-48HN Manuel utilisateur

Kramer

Kramer VS-44HD Manuel utilisateur

Kramer

Kramer Sierra Video 3264V5Sxl Manuel utilisateur

Kramer

Kramer 88DE Manuel utilisateur

Kramer

Kramer VP-436 Manuel utilisateur

Kramer

Kramer Sierra Video 3248V5Sxl Manuel utilisateur

Kramer

Kramer Sierra Video 3264V5xl Manuel utilisateur

Kramer

Kramer XL 1616V2 Manuel utilisateur

Kramer

Kramer 84V5S Manuel utilisateur

Kramer

Kramer XL 1608V4 Manuel utilisateur

Kramer

Kramer VP-747 Manuel utilisateur

Kramer

Kramer VP-4x4xl Manuel utilisateur

Manuels Commutateur matriciel populaires d'autres marques

Broadcast Tools

Broadcast Tools SS 8.2 Manuel utilisateur

Altimium

Altimium MATF32 Manuel utilisateur

ALFAtron

ALFAtron ALF-MUK44N Manuel utilisateur

Monoprice

Monoprice Blackbird 15377 Manuel utilisateur

PTN

PTN FMX12 Manuel utilisateur

CYP

CYP nT15GX01 Manuel utilisateur

TESmart

TESmart HMA0402A40 Manuel utilisateur

Octava

Octava HD4XSTPMX Manuel utilisateur

Intelix

Intelix FLX-88 Mode d'emploi

Roland

Roland XS-1HD Manuel utilisateur

Atlona

Atlona AT-HDMI-22M Manuel utilisateur

Link

Link HD8X8 Manuel utilisateur

AMX

AMX AVS-OP-2020-117 Instructions et recettes

Lindy

Lindy 38042 Manuel utilisateur

Extron electronics

Extron electronics MTPX Plus Series Manuel utilisateur

Key Digital

Key Digital Champion KD-16x16CS Manuel utilisateur

Shinybow USA

Shinybow USA SB-8811 Manuel utilisateur

Optimus

Optimus Compact Manuel utilisateur
