Kramer Sierra Video 4832V5xl Manuel utilisateur

www.kramerelectronics.com 2008

4832V5xl 48x32

SIERRA PRO 64 XL 48 SERIES ROUTING SWITCHERS

SIERRA PRO 64 XL 4832 SERIES

48X32 RGBHV MATRIX SWITCHER

Video Features

R/G/B Video Boards

High Video Bandwidth (RGB)

500MHz (

3dB) fully loaded.

Very Low Crosstalk

80dB @ 1MHz.

Matrix Mapping™ Universal Breakaway Switching

unique and valuable benefit of Sierra Pro routing switchers.

This feature allows the switching of every level of every input

of the routing switcher independently. Switch a single level

or any combination of levels of the R, G, B, H, V, left audio

and right audio levels of any input. For example, input a

composite video signal on the R level of input one and an s

Video (Y/C) signal on the G and B levels of input one and

switch only the composite video signal on the R level, switch

only the s

Video Y and C signals on the G and B levels, or

switch all three levels together.

Room Grouping Capability

Several inputs may be grouped

and operated independently of other input groups on the

routing switchers. This allows one routing switcher to be used

for multiple “rooms”where the control system for each room

will address only the inputs and outputs assigned to that

room.

Video Follow Sync™ Switching

The H and V channels of

an RGBHV signal are switched in advance of the RGB video

channels of the signal to provide clean, glitch

free switching

between most non

synchronous sources.

Video Mute Capability.

Output Disconnect Feature.

Genlock Input

Looping sync input for vertical interval

switching.

Sync Features

H/V Sync Boards

Selectable Termination

510 or 75 Ohm (each input).

Digital Sync Channels (HV)

USP™ Sync Technology. Input

Detection 200mv. Re

shapes and re

squares sync to output

correct TTL level.

Audio Features

Sierra Yosemite Audio

2 mono frames at 3U each.

Digital Volume Control.

Bittree Wiring Assemblies Included.

Other Features

Flexible Control Options

232, RS

422, RS

485 (for

optional control panels) & IP (Ethernet).

Firmware Updates

Downloadable.

Local Control Panel (Standard)

Local front panel control

(red channel frame) with 64x64 I/O label

capable buttons, a

take button plus 6 additional buttons.

Remote Control Panels

Optional

Redundant Power Supplies

Standard (each frame) with

primary & redundant status indicators and dual AC inlets.

DESCRIPTION

The Sierra Pro 64 XL series are high bandwidth routing switchers for RGBHV, RGBS, RGB and s

Video (Y/C)

signals up to 64x64. Each 20 RU system includes 5 compact 4 RU frames, one each for the R, G, B, H & V signals.

SPECIFICATIONS

VIDEO

CONTROL

GENERAL

BANDWIDTH

500MHz (

3dB)

HORIZONTAL FREQUENCY

150KHz

VERTICAL FREQUENCY

150Hz

VIDEO GAIN

Unity

CROSSTALK

80dB @ 1MHz

SWITCHING SPEED

Deterministic

VIDEO INPUT

RGBHV, RGBS, RGBsB, RsGsBs. Generates composite sync from any video input.

LEVEL

0.05 to 5.0V p

p, 4.0 normal

HUMIDITY

10% to 90% non condensing

IMPEDANCE

75 or 510 Ohm, Switchable

RETURN LOSS

30dB @ 5MHz

CONNECTOR TYPE

BNC

VIDEO OUTPUT

RGBHV, RGBS, RGBsB, RsGsBs.

VIDEO LEVEL

AGC to TTL: 4V

5V p

p, unterminated

IMPEDANCE

75 Ohm

RETURN

30dB @ 5MHz

CONNECTOR TYPE

BNC

POLARITY

Positive or negative (polarity insensitive)

SERIAL

3 general purpose 9

D, each switcheable RS

232 or RS

422 at 9600, 38,400 or 115,200 baud

PROTOCOLS

SVS host, simple Kramer & select others

ETHERNET

10/100 Base

T, full duplex on a RJ

45 connector

PROTOCOLS

ARP, ICMP, TCP/IP, Telnet & HTTP

WEB SERVER

For full configuration and control

LOCAL CONTROL PANEL

Standard (Red Channel Frame)

REMOTE CONTROL PANELS

Suports full line of programmable, XY & single bus remote control panels

LEGASY SVS PRODUCT CONTROL

D expansion port, up to 8 additional signal levals

GPI / GPO

5 Inputs / 5 Outputs

RACK UNIT

4 RU per signal (20 RU for RGBHV)

DIMENSIONS (INCHES)

19 (W) x 7 (H) x 20 3/8 (D). Dimensions do not inlcude front panel hardware or rear cabling

POWER

90V AC

240V AC 50/60Hz (<150 Watts) auto detecting

REDUNDANT POWER SUPPLIES

Standard. Dual AC inlets per frame

STORAGE TEMPERATURE

40 to +15 degrees Fahrenheit

WARRANTY

7 Years

INVESTMENT PTOTECTION

Trade

In & trade

Up Program

CUSTOMER SERVICE

24 hours a day, 7 days a week

Autres manuels Kramer Commutateur matriciel

Kramer

Kramer VS-162V Manuel utilisateur

Kramer

Kramer VS-88UT Manuel utilisateur

Kramer

Kramer VS-48HN Manuel utilisateur

Kramer

Kramer VP-2x2 Manuel utilisateur

Kramer

Kramer Sierra Pro XL 1608V3 Manuel utilisateur

Kramer

Kramer VS-44H2 Manuel utilisateur

Kramer

Kramer VS-48HDCPxl Manuel utilisateur

Kramer

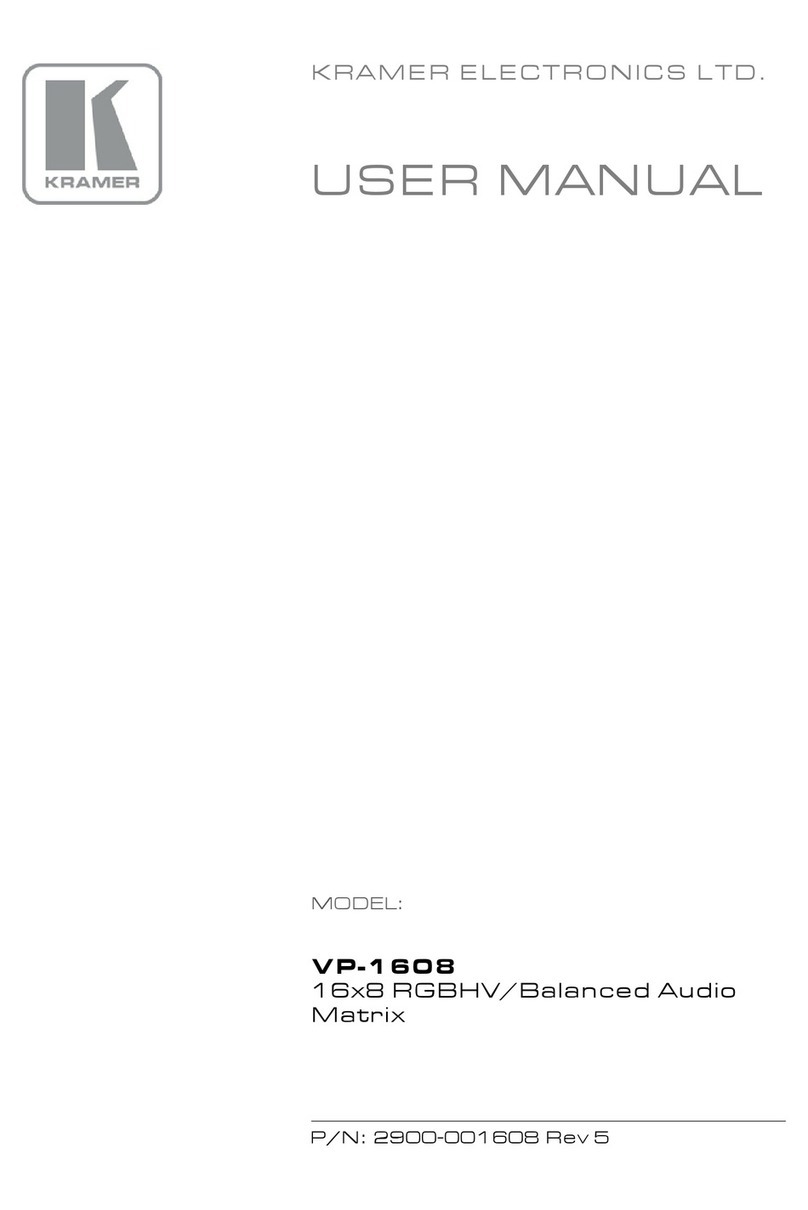

Kramer VP-1608 Manuel utilisateur
