Kramer VP-1608 Manuel utilisateur

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VP-1608

16x8 RGBHV/Balanced Audio

Matrix

P/N: 2900-001608 Rev 5

VP-1608 – Contents i

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

3Overview 3

3.1 Defining the VP-1608 16x8 RGBHV/Balanced Audio Matrix 3

4Installing in a Rack 8

5Connecting a Single VP-1608 9

5.1 Connecting a Balanced/Unbalanced Stereo Audio Input/Output 11

5.2 Connecting to the VP-1608 via RS-232 11

5.3 Connecting a PC or Controller to the RS-485 Port 11

5.4 Setting the MACHINE # DIP-Switches 12

5.5 Setting the DELAY DIP-Switches 13

6Connecting Multiple VP-1608 Units 14

6.1 Connecting via a PC or Serial Controller 14

6.2 Connecting via an RS-485 Controller 15

7Operating Your VP-1608 16x8 RGBHV/Balanced Audio Matrix 17

7.1 Using the Audio-Follow-Video or Breakaway Option 17

7.2 Switching OUT-IN Combinations 18

7.3 Confirming Settings 19

7.4 Storing/Recalling Input/Output Configurations 20

7.5 Adjusting the Audio Gain Control 22

7.6 Locking and Unlocking the Front Panel 22

7.7 Resetting the VP-1608 16x8 RGBHV/Balanced Audio Matrix 22

7.8 Displaying Unit Characteristics 23

8Flash Memory Upgrade 24

8.1 Downloading from the Internet 24

8.2 Connecting the PC to the RS-232 Port 24

8.3 Upgrading the Firmware 25

9Technical Specifications 30

10 Table of Hex Codes for Serial Communication 31

11 Hex Tables for Audio Input/Output Gain Control 33

11.1 Hex Tables for Audio Input Gain Control 33

11.2 Hex Tables for Audio Output Gain Control 35

12 Kramer Protocol 2000 37

ii VP-1608 - Contents

Figures

Figure 1: VP-1608 16x8 RGBHV/Balanced Audio Matrix Front Panel 4

Figure 2: VP-1608 16x8 RGBHV/Balanced Audio Matrix Rear Panel 6

Figure 3: VP-1608 Underside Flash Program Switches 7

Figure 4: Connecting the VP-1608 10

Figure 5: Balanced Stereo Audio Connection 11

Figure 6: Unbalanced Stereo Audio Input Connection 11

Figure 7: Unbalanced Stereo Audio Output Connection 11

Figure 8: Control Configuration via RS-232 and RS-485 15

Figure 9: DIP-Switch Setup on a Single Machine 17

Figure 10: VP-1608 Unit Characteristics 23

Figure 11: VP-1608 Underside Flash Program Switches Set for Upgrade 25

Figure 12: Splash Screen 25

Figure 13: Atmel – Flip Window 26

Figure 14: Device Selection Window 26

Figure 15: Device Selection Window 27

Figure 16: Loading the Hex 27

Figure 17: RS-232 Window 28

Figure 18: Atmel – Flip Window (Connected) 28

Figure 19: Atmel – Flip Window (Operation Completed) 29

VP-1608 - Introduction 1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix

Switchers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters;

GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors;

GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and

GROUP 11: Sierra Products.

Congratulations on purchasing your Kramer VP-1608 16x8 RGBHV/Balanced

Audio Matrix, which is ideal for the following typical applications:

• Any professional system requiring outstanding value in a 16x8 matrix

• Production and duplications facilities

2 VP-1608 - Getting Started

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

• Review the contents of this user manual

• Use Kramer high-performance, high-resolution cables

• Use only the power cord that is supplied with this machine

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs, and to check if firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

• Use only good quality connection cables to avoid interference, deterioration

in signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

• Do not secure the cables in tight bundles or roll the slack into tight coils

• Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

• Position your Kramer VP-1608 away from moisture, excessive sunlight and

dust

VP-1608 - Overview 3

3 Overview

The VP-1608 16x8 RGBHV/Balanced Audio Matrix is a true matrix switcher,

routing any input to any or all outputs. The VP-1608 includes 16 input and 8 output

selector buttons.

The unit features:

• A bandwidth of 400MHz (fully loaded) for RGB signals

• A unique vertical and horizontal sync-pulse solution

• Audio-follow-video or audio breakaway option (to switch audio independently

from video)

• 15 preset memory locations for quick access to common configurations

• A “TAKE” button for precise switch control, letting you place multiple switches

in a queue, and then activate them, with one touch of this button or a single

serial command

• A delayed switching mode (ranging from 0 to 3.5sec in increments of

0.5sec), for clean transitions when switching between non-genlocked

sources

Control the VP-1608 using the front panel buttons, or remotely via:

• RS-485 or RS-232 serial commands—that also support audio gain

adjustments for each input and output—transmitted by a touch screen

system, PC, or other serial controller

• The Kramer RC-IR3 Infrared Remote Control Transmitter

The VP-1608 is dependable, rugged and fits into three vertical spaces (3U) of a

standard 19" rack.

3.1 Defining the VP-1608 16x8 RGBHV/Balanced Audio

Matrix

Figure 1 and Figure 2 define the front and rear panels of the VP-1608. Figure 3

defines the switches on the underside.

4 VP-1608 - Overview

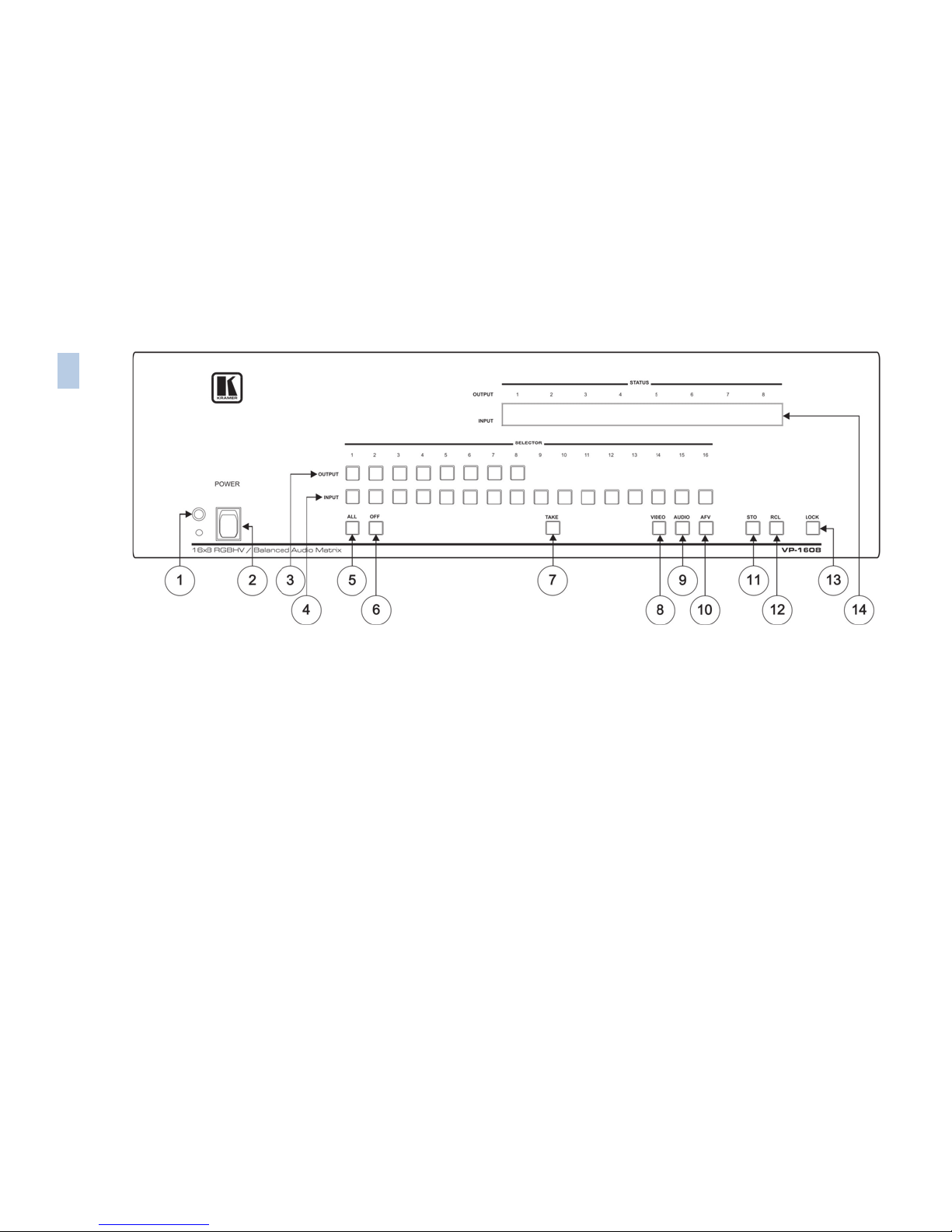

Figure 1: VP-1608 16x8 RGBHV/Balanced Audio Matrix Front Panel

4 VP-1608 – Overview

VP-1608 - Overview 5

VP-1608 – Overview 5

# Feature Function

1 IR Receiver The LED is illuminated when receiving signals from the Kramer Infra-red remote control transmitter

2 POWER Switch Illuminated switch supplying power to the unit

3 OUTPUT SELECTOR

Buttons

Select the output to which the input is switched (from 1 to 8)

4 INPUT SELECTOR Buttons Select the input to switch to the output (from 1 to 16)

Use the INPUT SELECTOR buttons to store/recall the input/output configurations (refer to Section 7.4)

5 ALL Button Pressing ALL followed by an INPUT button, connects that input to all outputs

For example, press ALL and then INPUT button # 2 to connect input # 2 to all the outputs

6 OFF Button Pressing OFF after pressing an OUTPUT button disconnects that output from the inputs. To disconnect

all the outputs, press the ALL button and then the OFF button

7 TAKE Button Pressing TAKE toggles the mode between the CONFIRM mode and the AT ONCE mode (user

confirmation per action is unnecessary)

8 VIDEO Button When pressed actions relate to video

9 AUDIO Button When pressed actions relate to audio

10 AFV Button When pressed audio channels follow the video channels. The button is illuminated when the AFV mode

is selected

11 STO Button Pressing STO (STORE) followed by an input button stores the current setup

12 RCL Button Pressing the RCL (RECALL) button and the corresponding input button recalls a setup

After pressing the button, the stored status flashes. Pressing a different input button lets you view (only

view, nothing is implemented at this stage) another setup. After making your choice, pressing the RCL

button again implements the new status

13 LOCK Button Pressing the LOCK button for more than 2 seconds, engages/disengages the front panel switches

14 INPUT STATUS 7-segment

Display

Displays the selected input switched to the output (marked above each input)

Also displays the number included in the product name and the firmware version number, as Section 7.8

describes

6 VP-1608 - Overview

Figure 2: VP-1608 16x8 RGBHV/Balanced Audio Matrix Rear Panel

# Feature Function

15 RS-232 9-pin D-sub (F) Connector Connects to the PC or other Serial Controller

16 Setup DIP-switches DIPS 1, 2, and 3 for setup of the Machine #; DIP 4 for RS-485 termination

17 RS-485 Connector RS-485 port on detachable terminal block

18 DELAY DIP-switches DIP-switches for setup of the delay time ranging from 0sec to 3.5sec (in

increments of 0.5sec)

19 Power Connector with Fuse AC connector enabling power supply to the unit

Video Outputs

V (Vertical Sync) OUTPUT BNC Connectors

Connect to the RGBHV video acceptors (1 to 8)

For RGBS applications, one of the sync channels (H or V) may be used for the S

channel

21 H (Horizontal Sync) OUTPUT BNC Connectors

22 B OUTPUT BNC Connectors

23 G OUTPUT BNC Connectors

24 R OUTPUT BNC Connectors

6 VP-1608 – Overview
