Kramer VS-88HCB Manuel utilisateur

Kramer Electronics, Ltd.

USER MANUAL

Model:

VS-88HCB

8x8 Component /Video / Audio Matrix Switcher

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 1

Overview 3

Your VS-88HCB 3

4.1

Using the IR Transmitter 8

Installing in a Rack 9

Connecting the VS-88HCB 10

6.1

Connecting the Balanced/Unbalanced Stereo Audio Input/Output 12

6.2

Controlling via RS-232 (for example, using a PC) 13

6.3

Controlling via RS-485 14

6.4

Controlling the VS-88HCB via the Ethernet Port 15

6.4.1

Connecting the ETHERNET Port directly to a PC (Crossover Cable) 15

6.4.2

Connecting via a Straight-Through Cable 16

6.4.3

Configuring the Ethernet Port 16

6.5

Setting the VS-88HCB Dipswitches 17

6.5.1

Setting the SELF ADDRESS Dipswitches 18

6.5.2

Setting the Reply Dipswitch 18

6.5.3

Setting the RS-232/RS-485 Dipswitch 18

Operating Your VS-88HCB 19

7.1

Displaying the Unit Characteristics 19

7.2

Selecting and Connecting an Output and/or Input 19

7.3

Choosing the Audio-Follow-Video or Breakaway Option 20

7.3.1

Setting the Audio-Follow-Video Option 20

7.3.2

Setting the Breakaway Option 20

7.4

Confirming Settings 20

7.4.1

Toggling between the At Once and Confirm Modes 21

7.4.2

Confirming a Switching Action 21

7.5

Storing/Recalling Input/Output Configurations 22

7.5.1

Storing an Input/Output Configuration 22

7.5.2

Recalling an Input/Output Configuration 22

7.5.3

Deleting an Input/Output Configuration 22

7.6

Resetting the Machine 22

Controlling Several VS-88HCB Units 23

8.1

Control Configuration via RS-232 and RS-485 23

8.2

Control Configuration via RS-485 25

8.3

Control Configuration via the ETHERNET Port 26

Technical Specifications 27



Table of Hex Codes for the Master VS-88HCB 28

Communication Protocol 2000 29

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Contents

Figures

Figure 1: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Front Panel 4

Figure 2: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Rear Panel 6

Figure 3: Connecting the VS-88HCB 8x8 Component / Video / Audio Matrix Switcher 11

Figure 4: Connecting the Balanced Stereo Audio Input/Output 12

Figure 5: Connecting the Unbalanced Stereo Audio Output 12

Figure 6: Connecting an Unbalanced Source to the Balanced Input 12

Figure 7: Connecting a PC without using a Null-modem Adapter 13

Figure 8: Controlling via RS-485 (for example, using an RC-3000) 14

Figure 9: Local Area Connection Properties Window 15

Figure 10: Internet Protocol (TCP/IP) Properties Window 16

Figure 11: VS-88HCB Dipswitches 17

Figure 12: Control Configuration via RS-232 and RS-485 24

Figure 13: Control Configuration via RS-485 26

Tables

Table 1: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Front Panel Features 5

Table 2: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Rear Panel Features 7

Table 3: Dipswitch Settings 17

Table 4: MACHINE # Dipswitch Settings 18

Table 5: Technical Specifications of the VS-88HCB 27

Table 6: Hex Codes for Switching the Master VS-88HCB 28

Table 7: Protocol Definitions 29

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront the video, audio, presentation, and

broadcasting professional on a daily basis. In recent years, we have redesigned

and upgraded most of our line, making the best even better! Our 1,000-plus

different models now appear in 11 groups

that are clearly defined by

function.

Congratulations on purchasing your Kramer VS-88HCB 8x8 Component /

Video / Audio Matrix Switcher, which is ideal for presentation and production

applications. The package includes the following items:

VS-88HCB 8x8 Component /Video / Audio Matrix Switcher

Power cord and Null-modem adapter

Windows®-based Ethernet Configuration Manager and Virtual Serial Port

Manager

Windows®-based Kramer control software

and this user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

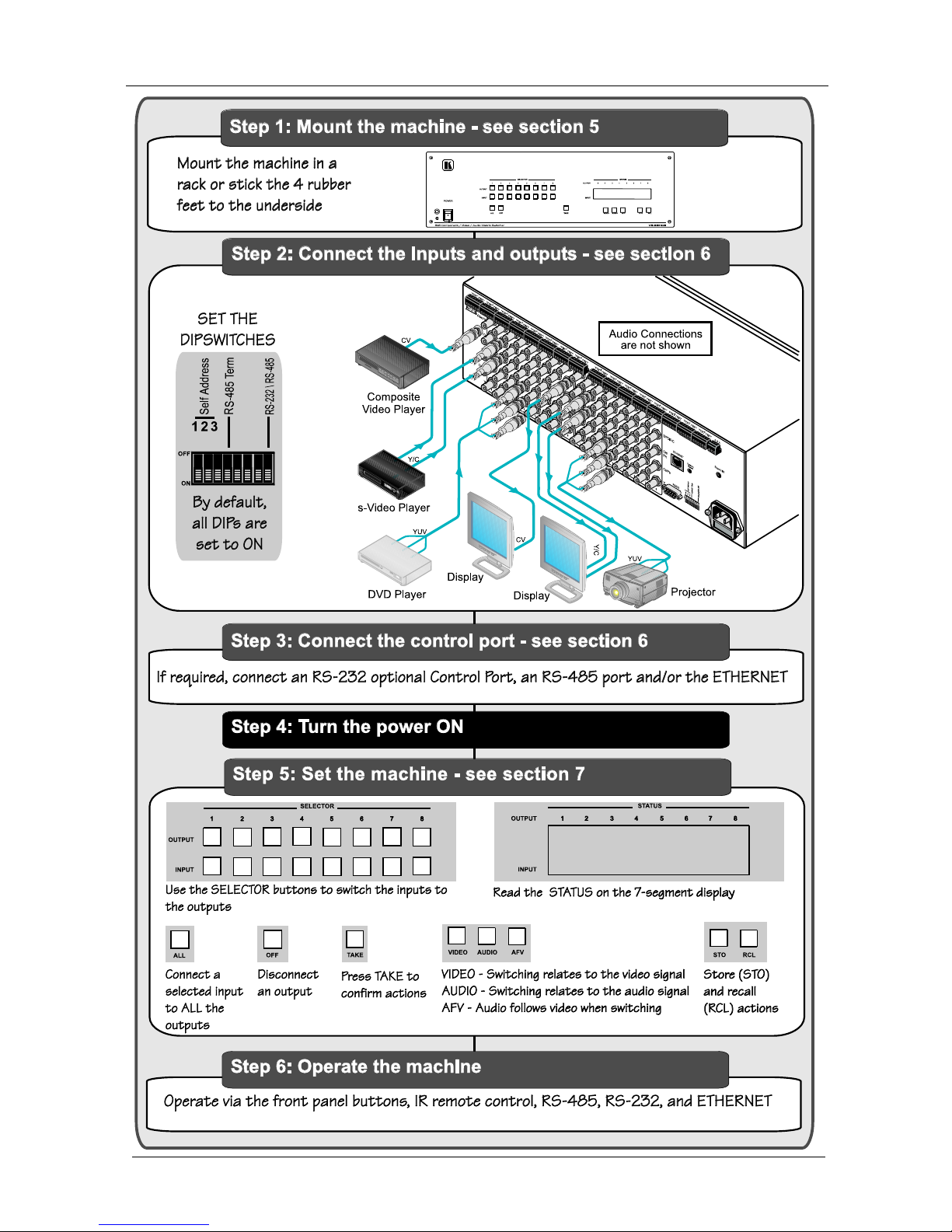

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:

Format/Standards Converters; GROUP 5: Twisted-Pair Solutions; GROUP 6: Specialty AV Products; GROUP 7: Scan

Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and

Rack Adapters; GROUP 11: Sierra Products

2 Downloadable from our Web site at http://www.kramerelectronics.com

3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com

4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Overview

3 Overview

The high performance VS-88HCB is a universal matrix switcher for composite

video, s-Video, component video (Y, Cb/Pb, and Cr/Pr), balanced stereo audio

and S/PDIF digital audio signals. It can route any or all inputs to any or all outputs

simultaneously. The VS-88HCB 8x8 Component /Video / Audio Matrix

Switcher features:

High Bandwidth - 300MHz (-3dB) fully loaded

HDTV compatibility

Control via the front panel, RS-232 (K-Router™ Windows®-based

software is included), RS-485, Ethernet, IR Remote RC-IR2 (included)

and external Remote IR receiver (optional), see section 4.1

A Take button to execute multiple switches all at once

Memory locations that can be used to store multiple switches as presets to

be recalled and executed when needed

Audio (analog) breakaway switching, for switching audio independently

from video

The VS-88HCB is housed in a 19” 3U rack mountable enclosure.

In addition, the VS-88HCB:

Can be used for mixed video applications such as CV, Y/C and YUV

simultaneously

Includes an ETHERNET connection that supports easy dial-up and Internet

system remote control (requiring only a dedicated IP address

and a modem in

the remote location) whether it is a stand-alone PC or a LAN

system

To achieve the best performance:

Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise-

levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances and position your

Kramer VS-88HCB away from moisture, excessive sunlight and dust

4 Your VS-88HCB

Figure 1 and Table 1 define the front and rear panels of the VS-88HCB.

1 IP Address is a 32-binary digit number that identifies each sender or receiver (within a network via a particular server or

workstation) of data (HTML pages or e-mails) that is sent in packets across the Internet. Every device connected to an IP

network must have a unique IP address. This address is used to reference the specific unit

2 LAN is Local Area Network

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VS-88HCB

Figure 1: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Front Panel

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Your VS-88HCB

Table 1: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Front Panel Features

#Feature Function

1IR Receiver The red LED is illuminated when receiving signals from the Kramer

Infrared remote control transmitter

2POWER switch Illuminated switch for turning the unit ON or OFF

3OUTPUT SELECTOR

Buttons Select the output to which the input is switched (from 1 to 8)

4INPUT SELECTOR

Buttons Select the input to switch to the output (from 1 to 8)

5 TAKE Press to toggle between the Confirm mode1and the At Once mode (user

confirmation per action is unnecessary), or press to confirm action

6INPUT STATUS display Displays the selected input switched to the output (marked above each input)

7RCL Button Press the RCL button followed by an INPUT button2to recall a setup from the

non-volatile memory

8 STO Button Press the STO button followed by an INPUT button2to store the current

settings

9AFV Button When pressed3, actions relate to the video and audio channels. The audio

channels follow the video channels

10 AUDIO Button When pressed3, actions relate to audio

11 VIDEO Button When pressed3, actions relate to video

12 OFF Button An OFF-OUTPUT combination disconnects that output from the inputs; an

OFF-ALL combination disconnects all the outputs

13 ALL Button Press ALL followed by an INPUT button to connect that input to all the outputs

1 When in the Confirm mode, the TAKE button blinks

2 In this case the INPUT button corresponds to the setup address number

3 The button illuminates

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VS-88HCB

Figure 2: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Rear Panel

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Your VS-88HCB

Table 2: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Rear Panel Features

#Feature Function

14 AUDIO INPUTS Terminal

Block Connectors Connect to the balanced stereo audio sources (from 1 to 8)

15 AUDIO OUTPUTS Terminal

Block Connectors Connect to the balanced stereo audio acceptors (from 1 to 8)

16 Ethernet Connector Connects to the PC or other Serial Controller through computer networking

17 RS-485 Port Pin G is for the Ground connection1; pins B (-) and A (+) are for RS-485

18 REMOTE IR 3.5mm Mini

Jack

Connect to an external IR receiver unit for controlling the machine via an IR

remote controller (instead of using the front panel IR receiver)2

19 Power Connector with Fuse AC connector, enabling power supply to the unit

20 Factory Reset Button Press to reset to factory default definitions3:

IP number 192.168.1.39

Mask – 255.255.255.0

Gateway – 192.168.1.1

21 Dipswitches Dipswitches for setup of the unit (1, 2 and 3 are for setting the machine

number; 4 is for RS-485 bus termination; 5 is for Reply; 8 is for RS-485 PC

communication)

22 RS-232 9-pin D-sub Port Connect to the PC or the remote controller

23 Video/Y

S/PDIF/

Connect to the composite video (Video/Y) and digital audio (S/PDIF/C)

acceptors, or to the s-Video (Video/Y and S/PDIF/C) acceptors

OUT BNC

Connectors

(from 1 to 8)

Connect to the component video (Y, C

, C

) acceptors

24 Video/Y

S/PDIF/C

Connect to the composite video (Video/Y) and digital audio (S/PDIF/C)

sources or to the s-Video (Video/Y and S/PDIF/C) sources

INPUT BNC

Connectors

(from 1 to 8)

Connect to the component video (Y, C

, C

) sources

1 The ground connection is sometimes connected to the shield of the RS-485 cable. In most applications, the ground is not

connected

2 Can be used instead of the front panel (built-in) IR receiver to remotely control the machine

3 Turn the machine OFF, then turn the machine ON while pressing the FACTORY RESET button. The unit powers up and

loads its memory with the factory default definitions

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Table des matières

Autres manuels Kramer Commutateur matriciel

Kramer

Kramer Sierra Video 1204V3S Manuel utilisateur

Kramer

Kramer 3216HDS Manuel utilisateur

Kramer

Kramer VS-42HDMI Manuel utilisateur

Kramer

Kramer Sierra Video 6432V5Sxl Manuel utilisateur

Kramer

Kramer XL 3232VS Manuel utilisateur

Kramer

Kramer VS-88H Manuel utilisateur

Kramer

Kramer XL 1204V2S Manuel utilisateur

Kramer

Kramer VS-88DTP Manuel utilisateur

Kramer

Kramer VS-42HN Manuel utilisateur

Kramer

Kramer VS-6EIII Manuel utilisateur

Kramer

Kramer VP-727XL Manuel utilisateur

Kramer

Kramer XL 1616V2 Manuel utilisateur

Kramer

Kramer VS-1616SDI Manuel utilisateur

Kramer

Kramer 3216HDEE Manuel utilisateur

Kramer

Kramer MTX3-16-M Manuel utilisateur

Kramer

Kramer LASSEN XL 3232S Manuel utilisateur

Kramer

Kramer VP-8x8AK Manuel utilisateur

Kramer

Kramer XL 1208V4 Manuel utilisateur

Kramer

Kramer VP-2x2 Manuel utilisateur

Kramer

Kramer XL 1616V2S Manuel utilisateur

Kramer

Kramer Sierra Video 1208V5 Manuel utilisateur

Kramer

Kramer VS-88HN Manuel utilisateur

Kramer

Kramer VP-26 Manuel utilisateur

Kramer

Kramer Sierra Pro XL 1208V5S Manuel utilisateur

Manuels Commutateur matriciel populaires d'autres marques

Broadcast Tools

Broadcast Tools SS 8.2 Manuel utilisateur

Altimium

Altimium MATF32 Manuel utilisateur

ALFAtron

ALFAtron ALF-MUK44N Manuel utilisateur

Monoprice

Monoprice Blackbird 15377 Manuel utilisateur

PTN

PTN FMX12 Manuel utilisateur

CYP

CYP nT15GX01 Manuel utilisateur

TESmart

TESmart HMA0402A40 Manuel utilisateur

Octava

Octava HD4XSTPMX Manuel utilisateur

Intelix

Intelix FLX-88 Mode d'emploi

Roland

Roland XS-1HD Manuel utilisateur

Atlona

Atlona AT-HDMI-22M Manuel utilisateur

Link

Link HD8X8 Manuel utilisateur

AMX

AMX AVS-OP-2020-117 Instructions et recettes

Lindy

Lindy 38042 Manuel utilisateur

Extron electronics

Extron electronics MTPX Plus Series Manuel utilisateur

Key Digital

Key Digital Champion KD-16x16CS Manuel utilisateur

Shinybow USA

Shinybow USA SB-8811 Manuel utilisateur

Optimus

Optimus Compact Manuel utilisateur
