Overview

Congratulations on purchasing your Kramer VS-44UHDA.

VS-44UHDA is a high-quality 4x4 UHD Matrix Switcher for HDMI signals up to 4K@60Hz

4:2:0 and embedded/de-embedded analog audio. It reclocks and equalizes the signals and

can route any one of four HDMI, HDCP-compliant sources (selectable) to any or all outputs

simultaneously. The VS-44UHDA offers unmatched audio flexibility where any embedded

digital or analog audio input can be routed to any embedded digital or analog audio output in

addition to 4 ARC sources to produce an equivalent 12x12 audio matrix.

The VS-44UHDA provides exceptional quality, advanced and user-friendly operation, and

flexible control.

Exceptional Quality

•Max. data rate – 8.91Gbps data rate (2.97Gbps per graphics channel).

•Max. resolution – Up to 4K@60Hz UHD (4:2:0).

•Step-in over HDMI technology.

•HDMI, HDCP and DVI Compliance.

•HDMI support – Deep color, 3D, ARC, up to 7.1 uncompressed audio channels.

•Kramer reKlocking™ and equalization technology – rebuilds the digital signal to travel

longer distances.

Advanced and User-friendly Operation

•Fast switching.

•Audio level and balance support.

Kramer Electronics Ltd.

VS-44UHDA - Introduction

•Embedded pattern generator (480p) – With selectable patterns.

•Selectable HDCP per input.

•Memory locations – 8 presets for quick access to common configurations.

•Advanced EDID management per input.

•Active source and acceptor detection.

•Easy front-panel operation.

•Selectable switching speed.

•Lock button to prevent tampering.

•Kramer protocol 3000 support.

•Firmware upgrade via mini USB, Ethernet or the RS-232 port.

•Control Options – RS-232 serial commands transmitted by a PC, touch screen system or

other serial controller, Ethernet port via LAN.

•7-segment display, indicating the video and audio status and other functions.

•Audio breakaway and AFV (audio-follow-video) operation support.

•Efficient power-saving features.

•Includes non-volatile memory that retains the last settings, after switching the power off

and then on again.

Flexible Connectivity

•Supports up to four analog audio inputs, four digital audio inputs and 4 ARC inputs.

•4x4 switching for HDMI signals, 12x12 switching for audio signals.

•ARC from HDMI outputs and analog audio inputs to HDMI inputs 1 to 4.

•Supports Step-in function.

•Housed in a 19” 1U rack mountable enclosure, with rack ears included, and is fed from a

100-240 VAC universal switching power supply.

Typical Applications

The VS-44UHDA is ideal for the following typical applications:

•Presentation and multimedia applications.

•Systems that require automatic HDMI routing.

Controlling your VS-44UHDA

Control your VS-44UHDA directly via the front panel push buttons, or:

•By RS-232 serial commands transmitted by a touch screen system, PC, or other serial

controller.

•Via the Ethernet using built-in user-friendly Web pages.

Kramer Electronics Ltd.

VS-44UHDA - Defining the VS-44UHDA 4x4 UHD Matrix Switcher

Defining the VS-44UHDA 4x4 UHD

Matrix Switcher

This section defines the VS-44UHDA.

Figure 1: VS-44UHDA 4x4 UHD Matrix Switcher Front Panel

Feature

Function

The behavior of the front panel buttons and the 7-segment display changes along with the operation

modes. For further details see Operating VS-44UHDA via Front Panel Buttons on page 12.

IN (PATTERN)

SELECTOR Buttons

Press to select the input (1 to 4) to switch after selecting an output (also

used for storing machine setups in the STO-RCL modes and for selecting a

pattern in the Pattern mode).

OUT (MUTE) SELECTOR

Buttons

Press to select an output (1 to 4) to which the input is routed. Also used for

storing machine presets.

MUTE/PATTERN Button

Press to view the current pattern status and select the output/s to which a

pattern is routed.

Press to mute audio or video on a selected output when

D-AUDIO/A-AUDIO, and/or VIDEO buttons are pressed (lit).

ALL Button

Press to perform an action on all outputs (for example setting Mute mode,

Pattern mode and so on).

For switching, press ALL and then a specific INPUT button to route the

selected input to all outputs. For example, press ALL and then IN 2 to route

input 2 to all the outputs.

STO and RCL Buttons

Press STO to store the current switching setting to a preset button.

Press RCL to recall the switching setting from a preset button.

A-AUDIO Button

Press to enable analog audio routing. When pressed together with VIDEO,

the analog audio is routed together with the video signal.

D-AUDIO Button Press to enable digital audio routing. When pressed together with VIDEO,

the digital audio is routed together with the video signal.

VIDEO Button Press to select video inputs. When pressed together with

D-AUDIO/A-AUDIO, video is switched together with audio.

LOCK Button

Press and hold (for about 3 seconds) to toggle locking/releasing of the front

panel buttons.

Press to save the following setups: HDCP (On/Off), ARC, Fast Switch and

Switch mode.

EDID Button

Press to capture the EDID.

OUTPUT/INPUT

7-segment LED Display

Displays the selected inputs switched to the outputs (marked above each

input).

Kramer Electronics Ltd.

VS-44UHDA - Defining the VS-44UHDA 4x4 UHD Matrix Switcher

Figure 2: VS-44UHDA 4x4 UHD Matrix Switcher Rear Panel

# Feature Function

AUDIO IN on 3.5 Mini Jack

Connectors

Connect to unbalanced stereo analog audio sources (from 1 to 4).

INPUT HDMI Connector

Connect to the HDMI source (from 1 to 4).

AUDIO OUTPUT on 5-pin

Terminal Block Connectors

Connect to balanced stereo analog audio acceptor (see pinout below),

from 1 to 4.

OUTPUT HDMI Connectors

Connect to HDMI acceptors (from 1 to 4).

PROG Mini USB Port Use for firmware upgrade or communication (connecting to a PC or a

serial controller).

SETUP DIP-Switches

N/A

5V/2A USB Port

Use to charge a device.

Reset Button

Press and hold while powering the device to reset IP settings to factory

default values.

ETHERNET RJ-45 Port Connect to your LAN.

OPTIONAL Terminal Block

Connectors

N/A

RS-232 3-pin Terminal

Block Connectors

Connect to a PC or a serial controller.

Mains Power Connector

Connect to the mains power.

Mains Power Fuse Fuse for protecting the device.

Mains Power Switch

Switch for turning the device on or off.

Kramer Electronics Ltd.

VS-44UHDA - Installing in a Rack

Installing in a Rack

This section provides instructions for rack mounting the VS-44UHDA. Before installing in a

rack, verify that the environment is within the recommended range:

•Operation temperature – 0°to 40°C (32 to 104°F).

•Storage temperature – -40°to +70°C (-40 to +158°F).

•Humidity – 10% to 90%, RHL non-condensing.

When installing on a 19" rack, avoid hazards by taking care that:

•It is located within recommended environmental conditions. Operating ambient

temperature of a closed or multi-unit rack assembly may exceed ambient room

temperature.

•Once rack mounted, there is enough air still flow around the VS-44UHDA.

•The VS-44UHDA is placed upright in the correct horizontal position.

•You do not overload the circuit(s). When connecting the VS-44UHDA to the supply

circuit, overloading the circuits may have a detrimental effect on overcurrent protection

and supply wiring. Refer to the appropriate nameplate ratings for information. For

example, for fuse replacement, see the value printed on the product label.

•The VS-44UHDA

is earthed (grounded) and connected only to an electricity socket with

grounding. Pay particular attention when electricity is supplied indirectly (for example,

when the power cord is not plugged directly into the wall socket but to an extension

cable or power strip). Use only the supplied power cord.

To rack-mount the VS-44UHDA:

1. Attach both ear brackets to the VS-44UHDA:

Remove the screws from each side of the

VS-44UHDA (3 on each side), and replace them

through the ear brackets.

2. Place the ears of the VS-44UHDA against the rack

rails and insert the appropriate screws (not provided)

through each of the four holes in the rack ears.

Some models, may feature built-in rack ears:

•Detachable rack ears can be removed for desktop use.

•Always mount the VS-44UHDA in the rack before connecting any cables or power.

•If you are using a Kramer rack adapter kit (for a machine that is not 19"), see the Rack

Adapters user manual for installation instructions available from our Web site

www.kramerav.com/downloads/VS-44UHDA.

Kramer Electronics Ltd.

VS-44UHDA - Connecting the VS-44UHDA

Connecting the VS-44UHDA

Always switch off the power to each device before connecting it to your VS-44UHDA. After

connecting your VS-44UHDA, connect its power and then switch on the power to each

device.

Although this connecting example shows only several inputs and outputs that are

connected, you can connect all the inputs and outputs simultaneously.

To connect the VS-44UHDA as illustrated in the example in Figure 3, do the following:

1. Connect up to four video sources to the inputs (from INPUT 1 to INPUT 4). For example,

connect:

•A laptop to the INPUT 1 HDMI connector.

•Blu-ray players to the INPUT 2, 3 and 4 HDMI connectors.

2. Connect up to four analog stereo audio sources (from IN 1 to IN 4). For example,

connect:

•The analog audio output of a laptop to the AUDIO IN 1 3.5mm mini jack.

•An i-Pod to the AUDIO IN 2 3.5mm jack.

3. Connect the four video HDMI outputs (from OUTPUT 1 to OUTPUT 4) to up to four

acceptors. For example, connect the:

•OUTPUT 1 HDMI connector to a projector.

•OUTPUT 2, OUTPUT 3 and OUTPUT 4 HDMI connectors each to a display.

4. Connect the four balanced analog output 5-pin terminal block connectors (from OUTPUT

1 to OUTPUT 4) to up to four audio acceptors. For example, connect OUTPUT 4 to

active speakers.

5. Connect the power cord.

We recommend that you use only the power cord that is supplied with this machine

6. If required, connect:

•The 5V/2A USB port to the USB port of another device to charge it.

•The ETHERNET port.

Kramer Electronics Ltd.

VS-44UHDA - Connecting the VS-44UHDA

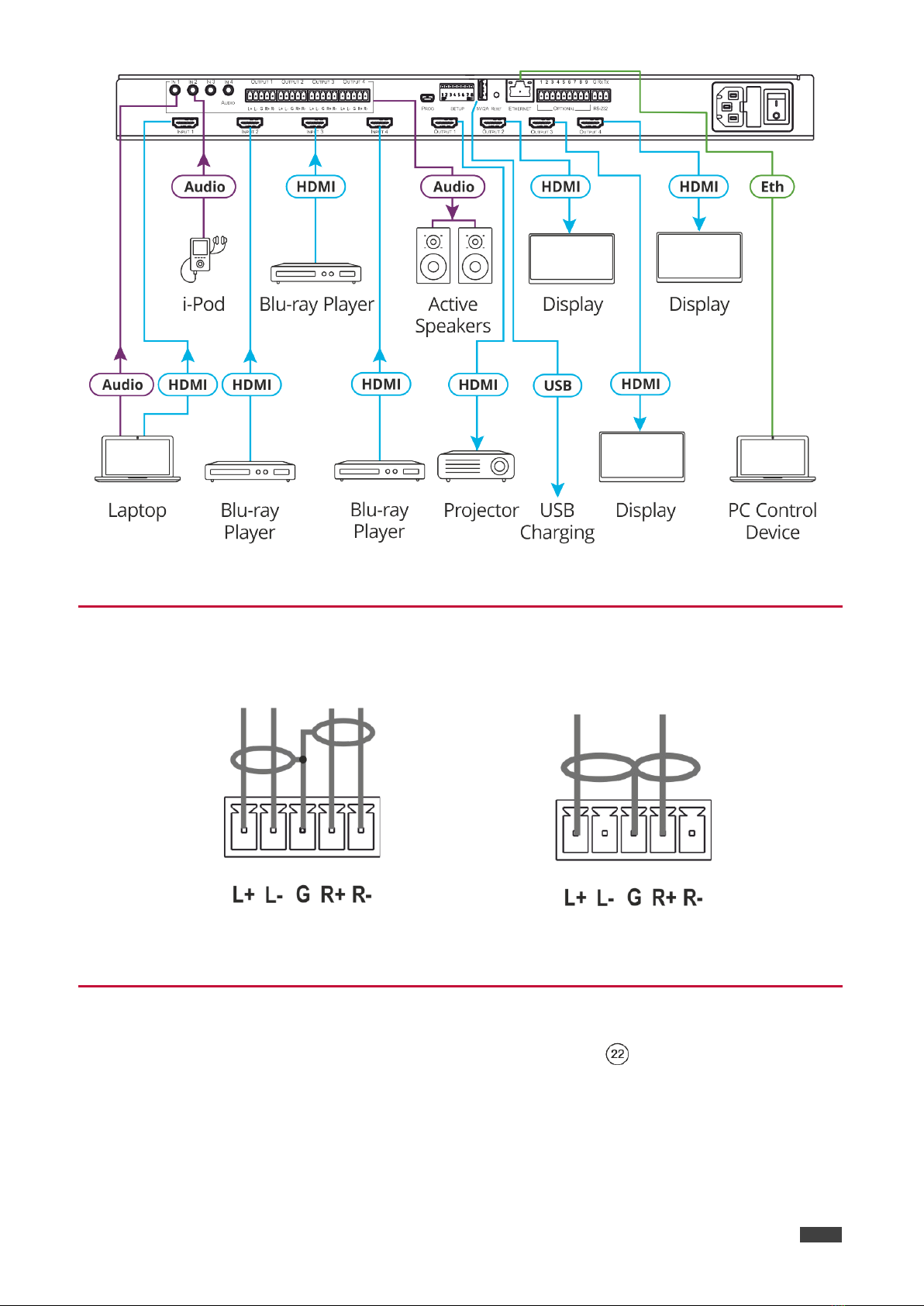

Figure 3: Connecting to the VS-44UHDA Rear Panel

Connecting Balanced/Unbalanced Stereo Audio Output

The following are the pinouts for connecting to balanced or unbalanced stereo audio sources:

Figure 4: Connecting to a Balanced

Stereo Audio Output

Figure 5: Connecting an Unbalanced Stereo

Audio Acceptor to the Balanced Output

Connecting to VS-44UHDA via RS-232

You can connect to the VS-44UHDA via an RS-232 connection using, for example, a PC.

To connect to the VS-44UHDA via RS-232:

•Connect the RS-232 rear panel port on the VS-44UHDA unit via a

9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5 need to be

connected) to the RS-232 9-pin D-sub port on your PC.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Kramer Commutateur matriciel

Kramer

Kramer VS-44H2 Manuel utilisateur

Kramer

Kramer Sierra Video 1616V5 Manuel utilisateur

Kramer

Kramer VS-84HN Manuel utilisateur

Kramer

Kramer Sierra Pro XL 1616V5 Manuel utilisateur

Kramer

Kramer Sierra Video 1204V5S Manuel utilisateur

Kramer

Kramer 3216HDEE Manuel utilisateur

Kramer

Kramer VS-808TP Manuel utilisateur

Kramer

Kramer VP-720DS Manuel utilisateur

Kramer

Kramer XL 1208V Manuel utilisateur

Kramer

Kramer VP-436 Manuel utilisateur

Kramer

Kramer 1616DEE Manuel utilisateur

Kramer

Kramer VS-1602xl Manuel utilisateur

Kramer

Kramer Sierra Video 3264V5xl Manuel utilisateur

Kramer

Kramer Sierra Video 6432V5Sxl Manuel utilisateur

Kramer

Kramer XL 1616V4 Manuel utilisateur

Kramer

Kramer VP-12x8 Manuel utilisateur

Kramer

Kramer VS-44HN Manuel utilisateur

Kramer

Kramer VS-88DT Manuel utilisateur

Kramer

Kramer VS-211H Manuel utilisateur

Kramer

Kramer VP-27 Manuel utilisateur

Kramer

Kramer VS-1616D Manuel utilisateur

Kramer

Kramer Sierra Video 1208V3S Manuel utilisateur

Kramer

Kramer VS-42H2 Manuel utilisateur

Kramer

Kramer XL 1608V Manuel utilisateur

Manuels Commutateur matriciel populaires d'autres marques

Broadcast Tools

Broadcast Tools SS 8.2 Manuel utilisateur

Altimium

Altimium MATF32 Manuel utilisateur

ALFAtron

ALFAtron ALF-MUK44N Manuel utilisateur

Monoprice

Monoprice Blackbird 15377 Manuel utilisateur

PTN

PTN FMX12 Manuel utilisateur

CYP

CYP nT15GX01 Manuel utilisateur

TESmart

TESmart HMA0402A40 Manuel utilisateur

Octava

Octava HD4XSTPMX Manuel utilisateur

Intelix

Intelix FLX-88 Mode d'emploi

Roland

Roland XS-1HD Manuel utilisateur

Atlona

Atlona AT-HDMI-22M Manuel utilisateur

Link

Link HD8X8 Manuel utilisateur

AMX

AMX AVS-OP-2020-117 Instructions et recettes

Lindy

Lindy 38042 Manuel utilisateur

Extron electronics

Extron electronics MTPX Plus Series Manuel utilisateur

Key Digital

Key Digital Champion KD-16x16CS Manuel utilisateur

Shinybow USA

Shinybow USA SB-8811 Manuel utilisateur

Optimus

Optimus Compact Manuel utilisateur
