Kramer VS-48HDxl Manuel utilisateur

Kramer Electronics, Ltd.

USER MANUAL







Model:

VS-48HDxl

3G HD/SD SDI 4x8 Matrix Switcher

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 1

Overview 3

Your VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher 4

4.1

Using the IR Transmitter 8

Installing the VS-48HDxl in a Rack 9

Connecting the VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher 10

6.1

Connecting the VS-48HDxl in the Dual-Link Mode 12

6.2

Working Mode Setting 13

6.3

Dipswitch Settings 14

6.3.1

Setting the Setup Dipswitches 14

6.4

Controlling via RS-232 (for example, using a PC) 15

6.5

Controlling via the RS-485 Port 16

6.6

Factory Reset 16

6.7

Switching Genlocked Video Signals 17

6.8

Controlling via ETHERNET 17

6.8.1

Connecting the ETHERNET Port directly to a PC (Crossover Cable) 17

6.8.2

Connecting the ETHERNET Port via a Network Hub (Straight-Through Cable) 19

6.8.3

Configuring the Ethernet Port 19

6.9

Controlling via the REMOTE Connector 19

Operating the VS-48HDxl 20

7.1

Switching OUT-IN Combinations 20

7.1.1

Switch OUT-IN Combinations 20

7.1.2

Switch OUT-IN Combinations in the Dual-Link Mode 21

7.2

Confirming Settings 21

7.2.1

Toggling between the AT ONCE and CONFIRM Modes 22

7.2.2

Confirming a Switching Action 22

7.3

Storing/Recalling Input/Output Configurations 22

7.3.1

Storing an Input/Output Configuration 22

7.3.2

Recalling an Input/Output Configuration 23

7.4

Locking the Front Panel 23

Technical Specifications 24

Table of Hex Codes for Serial Communication 24

Kramer Protocol 2000 25

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Contents

Figures

Figure 1: VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher 5

Figure 2: Connecting the VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher 11

Figure 3: Connecting the Dual-Link VS-48HDxl 3G HD/SD-SDI 4x8 Matrix Switcher 13

Figure 4: VS-48HDxl SETUP Dipswitches 14

Figure 5: Connecting a PC without using a Null-modem Adapter 15

Figure 6: Controlling via RS-485 (for example, using an RC-3000) 16

Figure 7: Local Area Connection Properties Window 18

Figure 8: Internet Protocol (TCP/IP) Properties Window 18

Figure 9: Using the Remote Connector 19

Tables

Table 1: Front Panel VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher 6

Table 2: Rear Panel VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher 7

Table 3: Machine # Dipswitch Settings 14

Table 4: Technical Specifications of the VS-48HDxl 24

Table 5: VS-48HDxl Hex Codes for Switching via RS-232/RS-485 24

Table 6: Protocol Definitions 25

Table 7: Instruction Codes for Protocol 2000 26

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront the video, audio, presentation, and

broadcasting professional on a daily basis. In recent years, we have redesigned

and upgraded most of our line, making the best even better! Our 1,000-plus

different models now appear in 11 groups

that are clearly defined by

function.

Congratulations on purchasing your Kramer VS-48HDxl 3G HD/SD SDI 4x8

Matrix Switcher. This product is ideal for:

Broadcasting and production studios

Presentation applications

The package includes the following items:

VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher

Power cord

Null-modem adapter and infrared remote control transmitter

This user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Use Kramer high-performance high-resolution cables

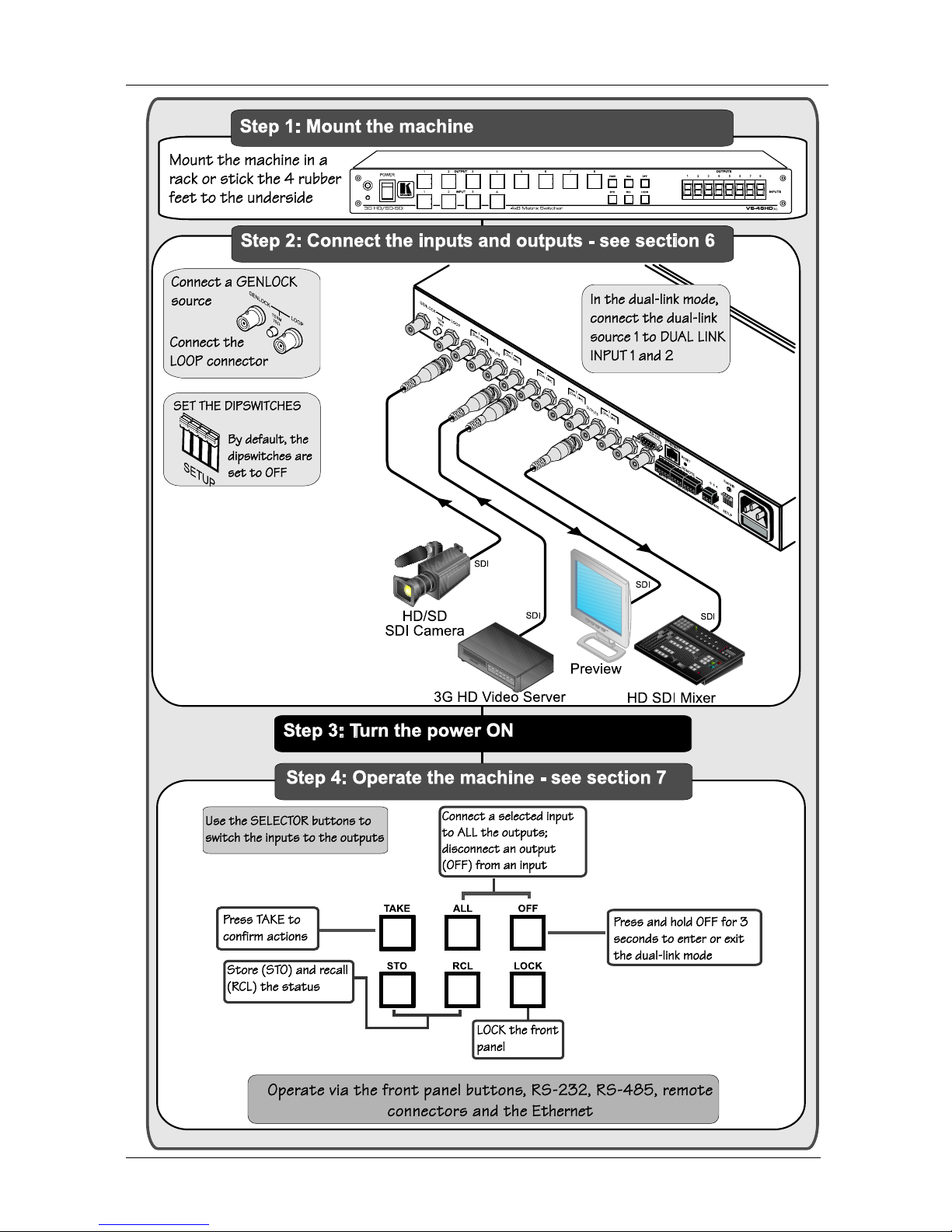

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;

GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;

GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products

2 We recommend that you use only the power cord supplied with this device

3 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com

4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Overview

3 Overview

The Kramer VS-48HDxl can be used as a high-performance 4x8 matrix

switcher or as a dual-link 2x4 switcher, which lets you simultaneously route

any of the inputs to any or all of the outputs for all SDI video signals, using

BNC connectors.

In particular, the VS-48HDxl features:

Cable equalization up to 350m for SD

signals, 140m for 1.5GHz HD

signals, and 120m for 3GHz HD signals

Operation of up to 2.97Gbps – enabling it to be used for standard

definition, high definition and the new 3G high definition serial digital

video signals (SD/HD-SDI)

SMPTE 259M, 292M and 424M and 372M (for dual-link HD-SDI

signals) compliance and support for data rates of 270Mbps, 1483.5Mbps,

1485Mbps and 2970Mbps

Reclocking and equalization on each input, storing and recalling setups,

and a TAKE button for the execution of multiple switches all at once

Selector buttons that automatically light up in different colors—green,

when the VS-48HDxl detects a ‘standard definition’ signal, or blue, when

it detects a ‘high definition’ signal

The ability to switch genlocked video signals according to timing of the

GENLOCK reference input. Switching according to the Bi-level or Tri-

level Genlock input according to SMPTE RP-168

The VS-48HDxl is housed in a 19" 1U rack-mountable enclosure, and is fed

from a 100-240 VAC universal switching power supply. The unit can be

controlled via the front panel buttons or via:

An infrared remote control transmitter

An infrared remote extension cable transmitter

Remotely, by RS-232 or RS-485 serial commands transmitted by a PC,

touch screen system, or other serial controller

The ETHERNET

Remote contact closure for forced operation

1 Standard Definition (SD) means an NTSC or PAL compatible video format, consisting of 480 (for NTSC) or 576 (for PAL)

lines of interlaced video

2 High Definition (HD) means a video format, consisting of 720 active lines of progressive video or 1080 lines of progressive

or interlaced video

3 The sources must be genlocked to the GENLOCK input in order to switch cleanly

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher

To achieve the best performance:

Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer VS-48HDxl

from moisture, excessive sunlight and dust

4 Your VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher

Figure 1, Table 1, and Table 2 define the VS-48HDxl 3G HD/SD SDI 4x8

Matrix Switcher.

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Your VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher

Figure 1: VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher

Table 1: Front Panel VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher

#Feature Function

1 IR Receiver The red LED is illuminated when receiving signals from the Infrared

remote control transmitter

2POWER Switch Illuminated switch for turning the unit ON or OFF

3OUTPUT (DUAL LINK)

Selector Buttons

Select the output to which the input is switched (from 1 to 8)

In the dual-link mode, select the output DUAL LINK 1 to DUAL LINK 4

to which the input is switched

4 INPUT (DUAL LINK)

Selector Buttons

Select the input to switch to the output (from 1 to 4)

In the dual-link mode, select input DUAL LINK 1 or DUAL LINK 2 to

switch to the outputs

Press IN buttons 1, 2 and 3 simultaneously to reset the machine to its

factory default values1(see section 6.6)

Use to set the resolution when switching genlocked video signals (see

section 6.7)

5 STO (STORE) Button Pressing STO followed by an INPUT / OUTPUT button stores the

current setting2

6TAKE Button Pressing TAKE toggles the mode between the CONFIRM mode3and

the AT ONCE mode (user confirmation per action is unnecessary).

When in CONFIRM mode, the TAKE button implements a pending

operation4

7ALL Button Pressing ALL followed by an INPUT button, connects that input to all

outputs5

8 RCL (RECALL) Button Pressing the RCL button and the corresponding INPUT / OUTPUT key

displays a setup from the non-volatile memory. After pressing the same

memory location the second time, the settings will take effect

9 OFF Button An OFF-OUT combination disconnects that output from the inputs; an

OFF-ALL combination disconnects all the outputs

Press and hold6to toggle between the 4xswitcher mode and the

dual-link 2x4 switcher mode

10 LOCK Button Disengages/engages the front panel buttons

11 7-segment Display Displays the selected input switched to the output (marked above each

input)

1 The 7-segment display shows 12341234, indicating that the operation mode is normal, and that the setups stored via the

INPUT/OUTPUT buttons have been erased

2 For example, press STO and then the Output button # 3 to store in Setup # 3

3 When in Confirm mode, the TAKE button illuminates

4 See section 7.2

5 For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs

6 For more than 3 seconds

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Your VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher

Table 2: Rear Panel VS-48HDxl 3G HD/SD SDI 4x8 Matrix Switcher

#Feature Function

12 GENLOCK BNC Connector Connect to the Genlock source

13 TERM 75



Button Press to terminate the Genlock source (75) or release for looping1

14 LOOP BNC Connector Connect to the GENLOCK connector of the next unit in the line

15 DUAL LINK INPUT BNC

Connectors

In the dual-link mode, connect the source to inputs 1 and 2 and/or inputs 3

and 4 (DUAL LINK 1 and/or DUAL LINK 2)

16 INPUT BNC Connectors Connect to the serial digital video sources (from 1 to 4)

17 DUAL LINK OUTPUT BNC

Connectors

In the dual-link mode, connect the acceptors to outputs 1 and 2 and/or

outputs 3 and 4 and/or outputs 5 and 6 and/or outputs 7 and 8 (DUAL

LINK 1 and/or DUAL LINK 2 and/or DUAL LINK 3 and/or DUAL LINK 4,

respectively)

18 OUTPUT BNC Connectors Connect to the serial digital video acceptors (from 1 to 8)

19 RS-232 9-pin D-sub Port Connects to the PC or the Remote Controller

20 RESET Button Press to reset Ethernet to factory default definitions2:

IP number 192.168.1.39

Mask – 255.255.255.0

Gateway – 192.168.1.1

21 ETHERNET RJ-45 Connector

Connects to the PC or other Serial Controller through computer networking

22 REMOTE INPUT Terminal

Block Connectors

Connect to dry contact switches3(from 1 to 4)

23 REMOTE OUTPUT

Terminal Block Connectors

Connect to dry contact switches (from 1 to 8)

24 RS-485 Detachable

Terminal Block Port

Pin G is for the Ground connection4; pins B (-) and A (+) are for RS-485

25 REMOTE IR Opening5Connects to an external IR receiver unit for controlling the machine via an

IR remote controller (instead of using the front panel IR receiver)6

26 SETUP Dipswitches Dipswitches for setup of the unit

27 Power Connector with Fuse AC connector enabling power supply to the unit

1 Push in to terminate the input. Release when the input extends to another unit

2 First disconnect the power cord and then connect it again while pressing the ETH Factory Reset button. The unit will power

up and load its memory with the factory default definitions

3 See section 6.9

4 The ground connection is sometimes connected to the shield of the RS-485 cable. In most applications, the ground is not

connected

5 Covered by a cap. The 3.5mm connector at the end of the internal IR connection cable fits through this opening

6 Optional. Can be used instead of the front panel (built-in) IR receiver to remotely control the machine (only if the internal

IR connection cable has been installed)

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Table des matières

Autres manuels Kramer Commutateur matriciel

Kramer

Kramer VS-1616DN-MD Manuel utilisateur

Kramer

Kramer XL 1608S Manuel utilisateur

Kramer

Kramer XL 1208V2S Manuel utilisateur

Kramer

Kramer Sierra Video 1204V5 Manuel utilisateur

Kramer

Kramer VP-16x18AK Manuel utilisateur

Kramer

Kramer Sierra Video 1616V3S Manuel utilisateur

Kramer

Kramer VS-1616DN-EM Manuel utilisateur

Kramer

Kramer VS-6464DN-EM Manuel utilisateur

Kramer

Kramer Sierra Video 6448V5xl Manuel utilisateur

Kramer

Kramer VS-42HC Manuel utilisateur

Kramer

Kramer VS-1602xl Manuel utilisateur

Kramer

Kramer VP-8x4AK Manuel utilisateur

Kramer

Kramer VS-88UHDA Manuel utilisateur

Kramer

Kramer 1608HDS Manuel utilisateur

Kramer

Kramer VP-725DS Manuel utilisateur

Kramer

Kramer Sierra Video 4832V5Sxl Manuel utilisateur

Kramer

Kramer VS-88UT Manuel utilisateur

Kramer

Kramer VS-1616SDI Manuel utilisateur

Kramer

Kramer VS-88A Manuel utilisateur

Kramer

Kramer VS-62H Manuel utilisateur

Kramer

Kramer VS-211H Manuel utilisateur

Kramer

Kramer VS-1616D Manuel utilisateur

Kramer

Kramer Sierra Video 3232V5S Manuel utilisateur

Kramer

Kramer 3216HDS Manuel utilisateur

Manuels Commutateur matriciel populaires d'autres marques

Broadcast Tools

Broadcast Tools SS 8.2 Manuel utilisateur

Altimium

Altimium MATF32 Manuel utilisateur

ALFAtron

ALFAtron ALF-MUK44N Manuel utilisateur

Monoprice

Monoprice Blackbird 15377 Manuel utilisateur

PTN

PTN FMX12 Manuel utilisateur

CYP

CYP nT15GX01 Manuel utilisateur

TESmart

TESmart HMA0402A40 Manuel utilisateur

Octava

Octava HD4XSTPMX Manuel utilisateur

Intelix

Intelix FLX-88 Mode d'emploi

Roland

Roland XS-1HD Manuel utilisateur

Atlona

Atlona AT-HDMI-22M Manuel utilisateur

Link

Link HD8X8 Manuel utilisateur

AMX

AMX AVS-OP-2020-117 Instructions et recettes

Lindy

Lindy 38042 Manuel utilisateur

Extron electronics

Extron electronics MTPX Plus Series Manuel utilisateur

Key Digital

Key Digital Champion KD-16x16CS Manuel utilisateur

Shinybow USA

Shinybow USA SB-8811 Manuel utilisateur

Optimus

Optimus Compact Manuel utilisateur
