INSTALLATION MANUAL

A4MG-9550-00

VI-506/IC-414 Video Interface Kit/Image Controller

I. Accessory parts

Before starting to set up, check that the following are

included.

Only the parts required to install the image controller

appear in the package contents list.

Package contents of the image controller Fiery

IC-414

*1 This power cord cannot be used in Taiwan that

utilizes 110V power.

*2 The accessories are not used when installing

the image controller.

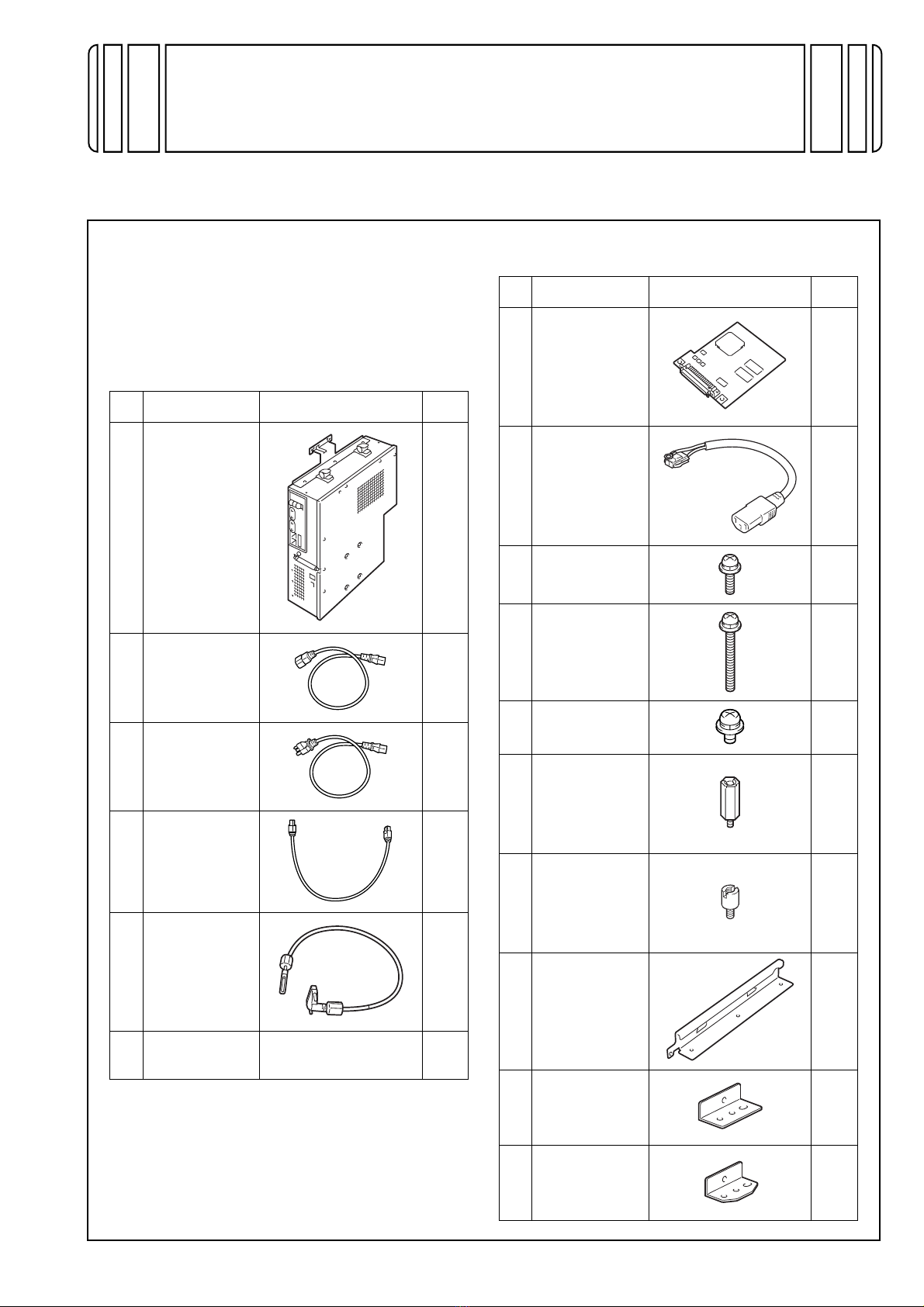

Package contents of the video interface kit

VI-506

No. Name Shape Q’ty

1. Image

controller

2. Power cord A

3. Power cord B

(for the wall

outlet)

4. Copier

LAN cable

(crossover

cable)

5. Image

transmission

cable 1

6. Other

accessories *2 --

A4MGIXC001DB

A00HIXC019HA

A00HIXE034HA

A00HIXC018HA

A4MGIXC002DB

No. Name Shape Q’ty

1. Relay circuit

board

2. Power cord

(for connection

between copier

and IC) * 1

3. Screw A

(3 × 16 mm) 3

4. Screw B

(3 × 40 mm)

5. Screw C *

(4 × 8 mm) 1

6. Shoulder

screws for

mounting the

relay circuit

board

7. Shoulder

screws

for the relay

circuit board

connector

8. Mounting

bracket (top)

9. Mounting

bracket (side) 1

10. Mounting

bracket

(bottom) 1

A4MGIXC003DA

A0YEIXC002DA

A2Y1IXC044DA

A4MGIXC062DA

4038IXC033DA

A0YEIXC005DB

A0YEIXC047DA

A4MGIXC004DA

A4MGIXC005DA

A4MGIXC006DA

Applied Machines: C554/C454/C364/C284

COLOR MFP: 55 ppm/45 ppm/36 ppm/28 ppm

Product Code: A2XK/A4FJ/A161/A4FK

E-2

* This part is not used in this installation.

Note:

• This manual provides the illustrations of the

accessory parts and machine that may be

slightly different in shape from yours. In that

case, instead of the illustrations, use the

appearance of your machine to follow the

installation procedure. This does not cause any

significant change or problem with the proce-

dure.

• If none of the later steps instruct you to use the

parts including screw and cover that you

removed following the instructions described in

this manual, discard them.

• Before installing the video interface kit and

image controller to the machine, the paper feed

cabinet PC-110, PC-210, PC-410, or the desk

DK-510 needs to be installed in advance.

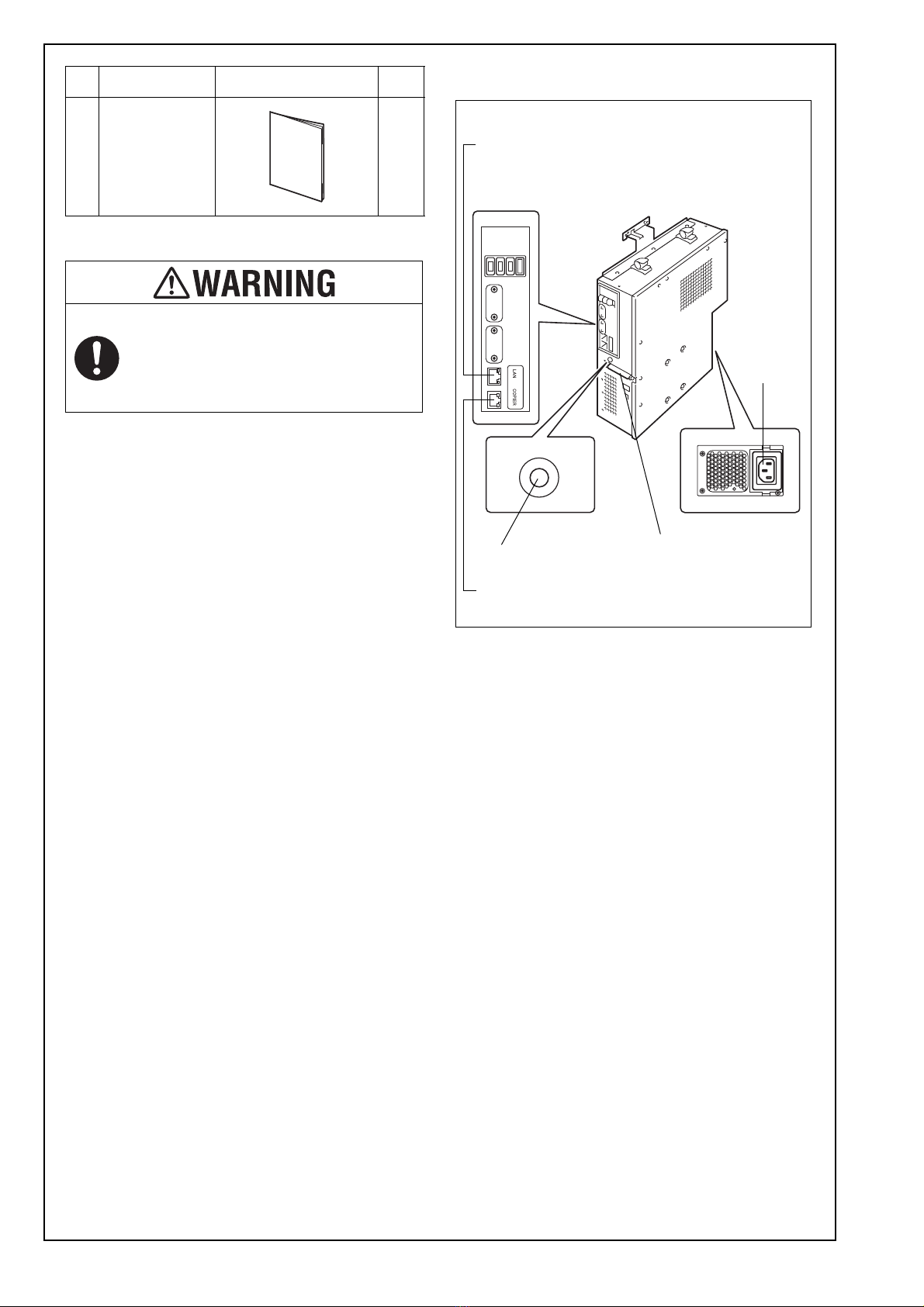

II. Part names

• Lights up when the image controller is running or

is ready to be used.

• When turned on, the image controller system

starts up.

• When turned off, the image controller system

safely shuts down.

Note:

• If the image controller malfunctions or cannot

be shut off with the softswitch, be sure to

unplug the power cord from the electrical outlet

or the machine’s power cord connector.

• Remove the seal from the connector of the

power cord.

11. Installation

manual

1 set

After unpacking, be sure to get rid of the

packaging materials and keep them out of

the reach of children.

Putting the head in the plastic bag

involves danger of suffocation.

No. Name Shape Q’ty

4980IXC019DA

Ethernet 10Base-T/100Base-TX/1000Base-T

network port (Port 1)

Copier LAN cable port (Port 2)

Softswitch LED Image transmission

connector

Power

cord

connector

A4MGIXC007DB

E-3

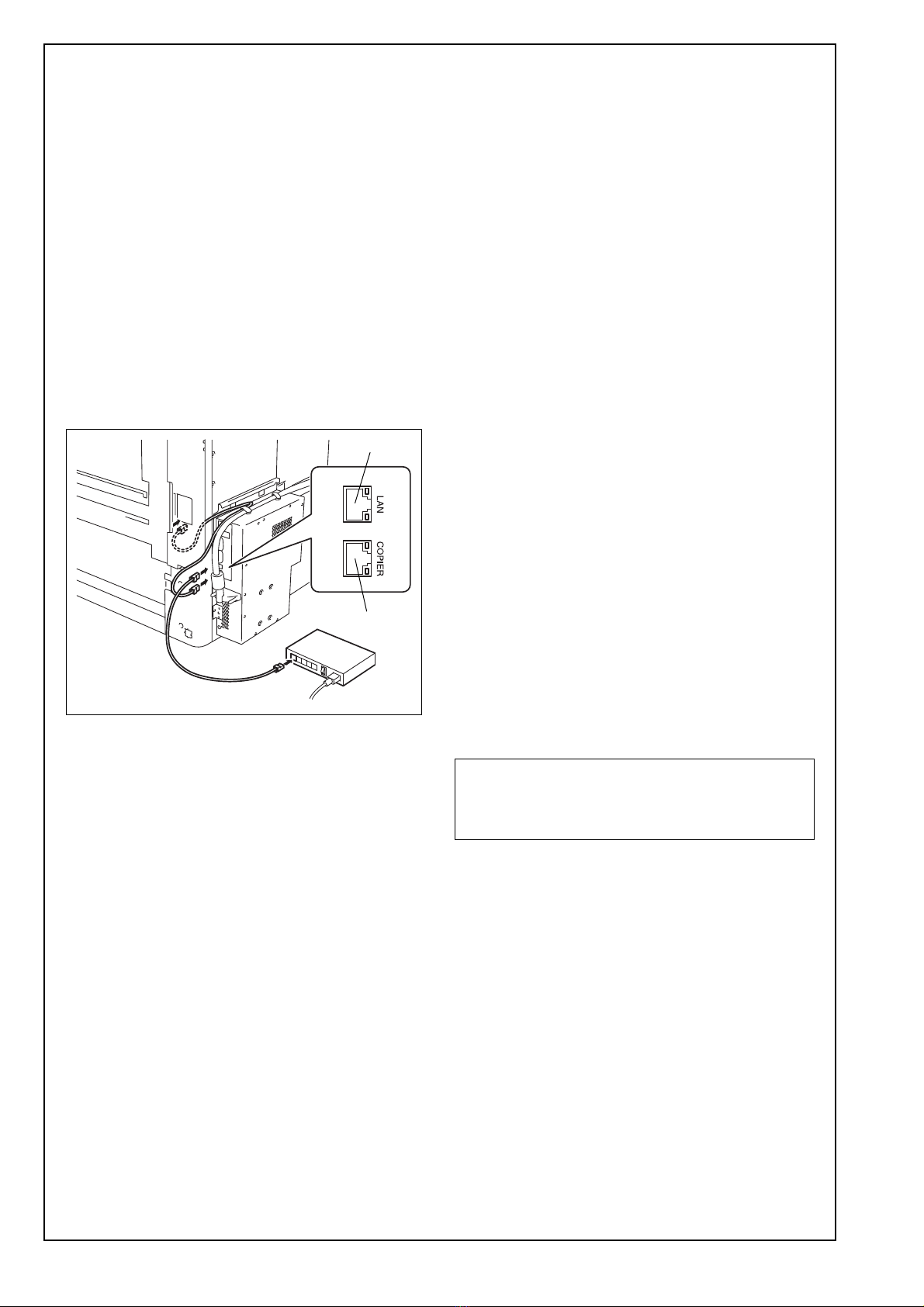

Port 1 (For the LAN)

Connect the network cable to the LAN.

Port 2 (For the COPIER)*

Use a crossover cable to connect to the LAN port of

the copier.

* This port is not used, depending on the connec-

tion method. Refer to page E-9.

III. Installation procedures

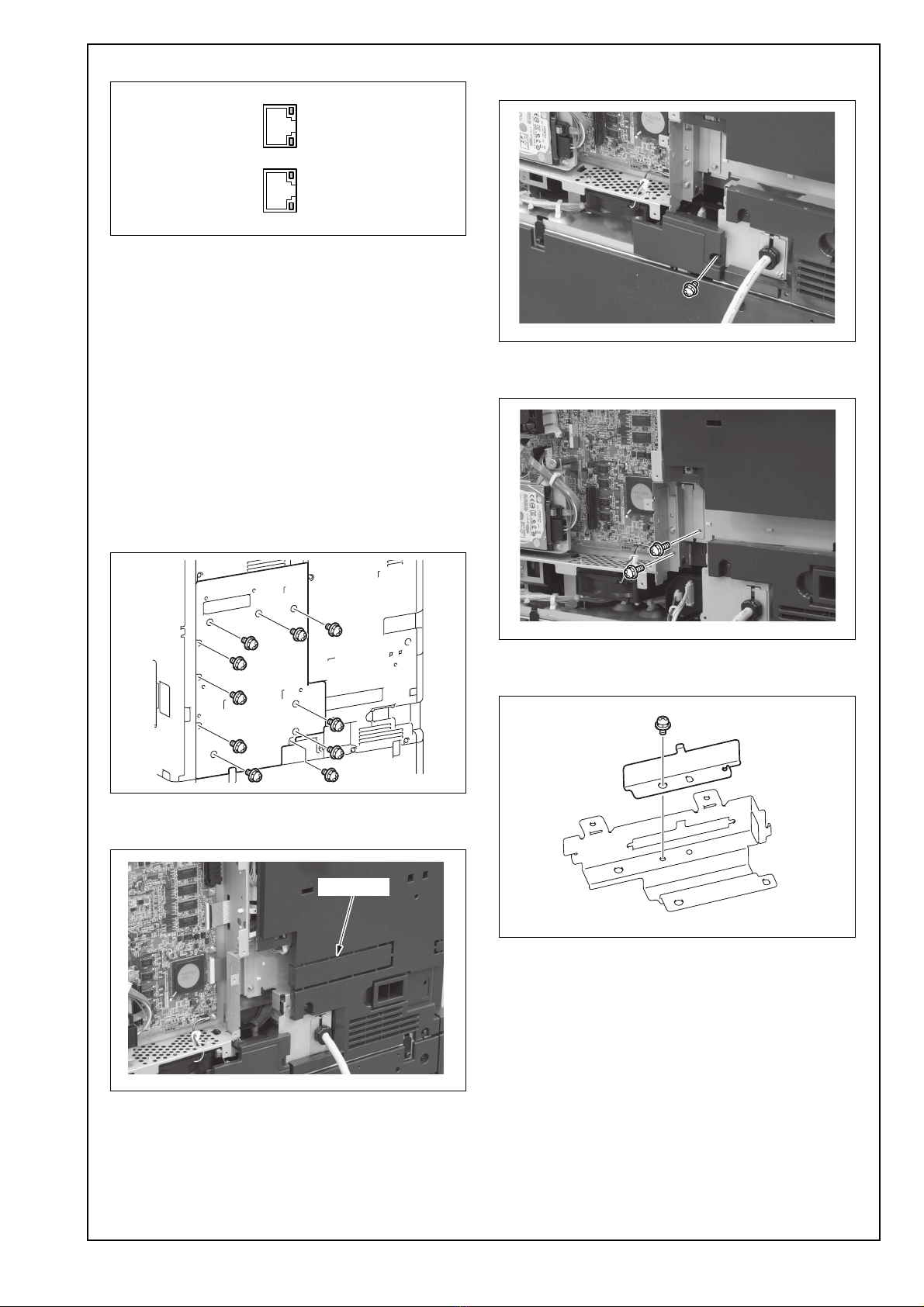

1. Turn off the copier and unplug the power cord

from the power outlet.

2. Remove the cover shown in the illustration from

the back of the copier. (Ten screws)

3. Using nippers, remove the knockout shown in the

illustration from the copier.

4. Remove the cover shown in the illustration form

the copier. (One screw)

5. Remove the plate shown in the illustration from

the copier. (Two screw)

6. Remove the plate shown in the illustration. (One

screw)

LAN COPIER

A00HIXC033HB

Port 1

Port 2

A3CEIXC006DA

A4MGIXC009DA

Knockout

A4MGIXC010DA

A4MGIXC011DB

A4MGIXC012DA

E-4

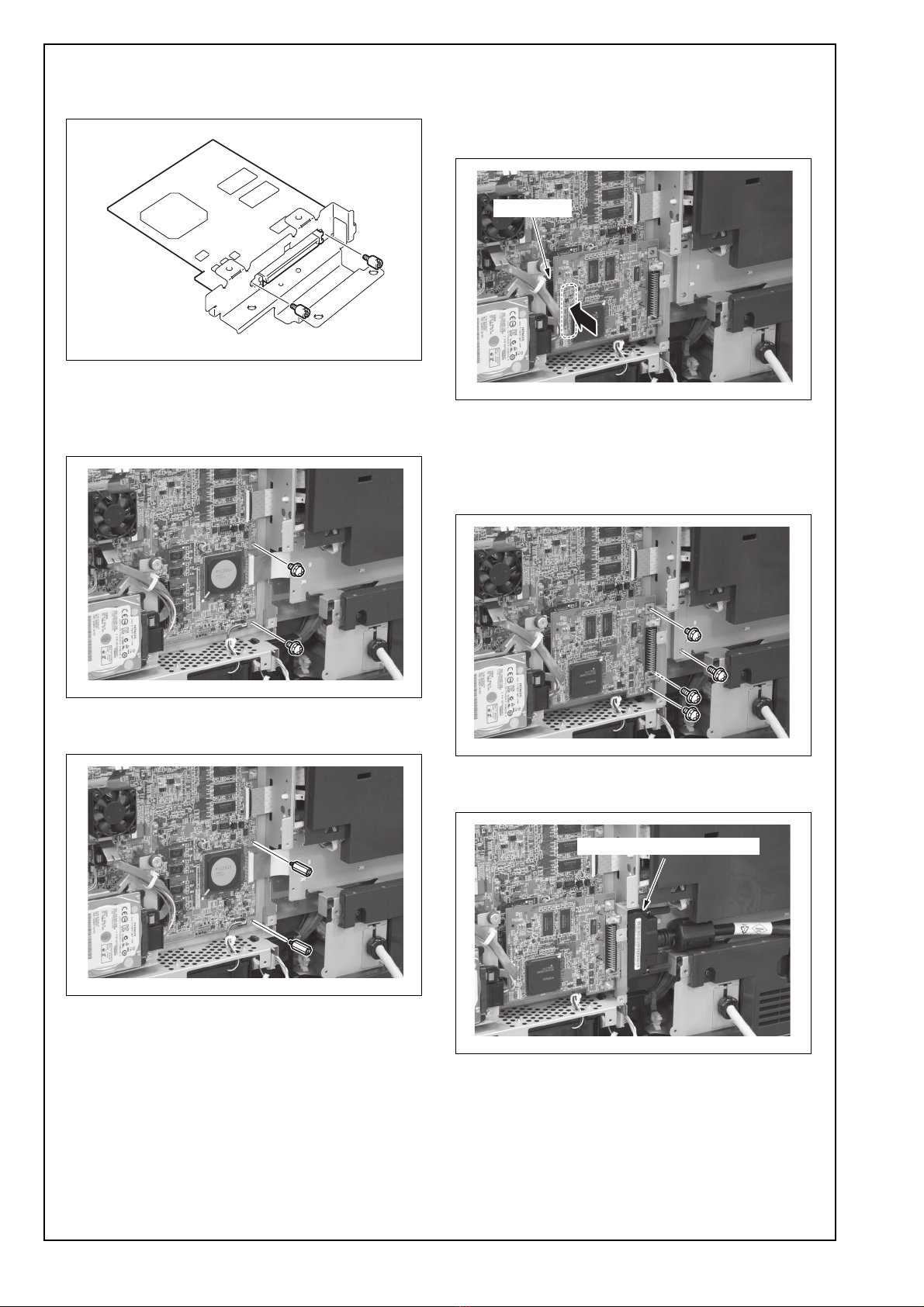

7. Attach the relay circuit board to the plate.

(Two supplied shoulder screws for the relay cir-

cuit board connector)

8. Remove two screws from the board of the copier.

Note:

The two screws removed here will be used to

install the relay circuit board.

9. Screw two supplied shoulder screws for mounting

the relay circuit board into the board of the copier.

10. Attach the relay circuit board assy to the copier

at the position shown in the illustration.

Note:

Insert the connector on the back of the relay circuit

board to the connector of the board of the copier.

11. Secure the relay circuit board assy. (Four

screws)

Note:

Use the two screws removed in step 5 and the two

screws removed in step 8.

12. Connect the supplied image transmission cable

to the copier.

13. Attach the cover removed in step 4. (One screw)

14. Install the cover removed in step 2. (Ten screws)

A4MGIXC013DA

A4MGIXC014DA

A4MGIXC015DA

A4MGIXC016DA

Connector

A4MGIXC017DB

A4MGIXC019DA

Image transmission cable

E-5

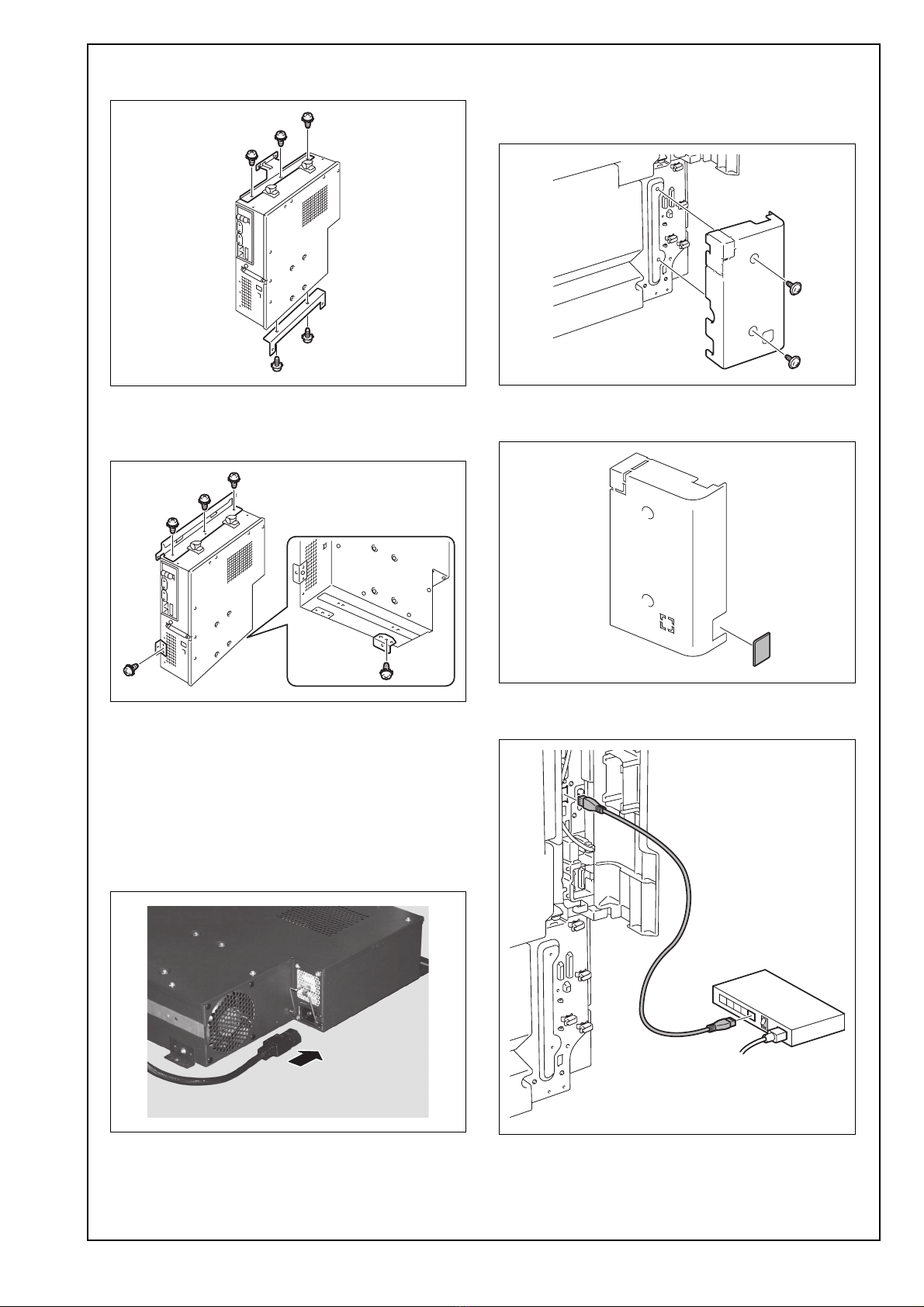

15. Remove the two mounting brackets from the

image controller. (Five screws)

16. Attach the supplied mounting brackets (top,

side, and bottom) to the image controller. (Five

screws removed in step 15)

17. Connect the supplied power cord to the image

controller power cord connector and secure the

power cord plug with the clamp.

110-127 V regions: power cord B

220-240 V regions: power cord A

Note:

• Be sure to use the supplied power cord.

• Power cord for Taiwan that utilizes 110V power

is not supplied as an accessory part.

* The following procedure is different depending on

how the image controller and the copier are con-

nected to a network. (See Page E-9.)

a: Connecting the copier and image controller

with separate LAN cables

18. Remove the rear right cover from the paper feed

cabinet or desk. (Two screws)

19. Remove the knockout from the rear right cover

removed in step 18 using nippers.

20. Use a network cable to connect the LAN port of

the copier to the hub (LAN).

A4MGIXC059DA

A4MGIXC020DA

A0YEIXC064DA

A161IXC056DA

A161IXC057DA

A4MGIXC022DA

E-6

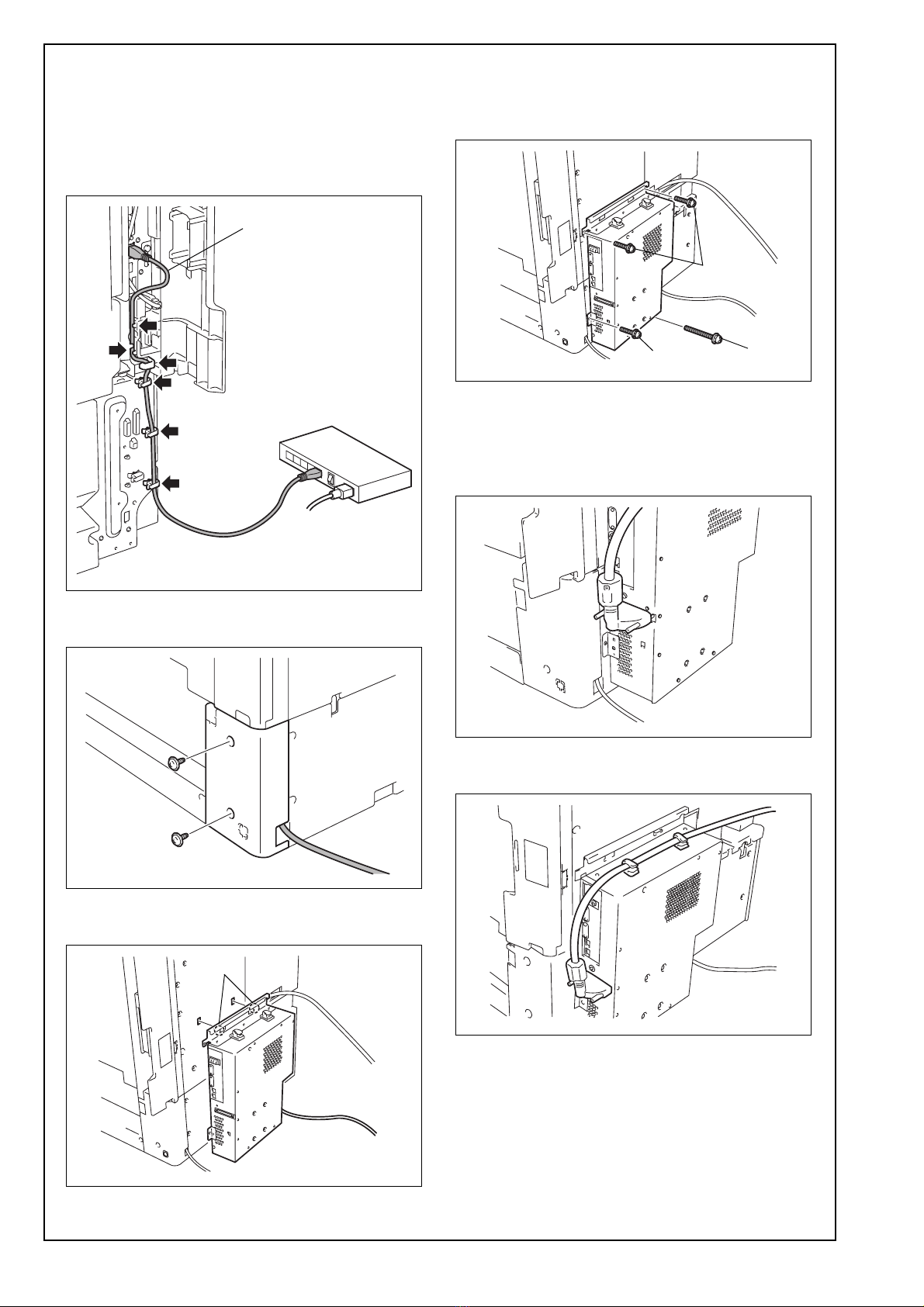

21. Route the network cable through the harness

guides and three wire saddles.

Note:

Leave an appropriate amount of slack in the por-

tion of the cable between the plug and the top har-

ness guide in a manner which does not interfere

with the opening and closing of the cover.

22. Route the cable through the notch cut in step 19

and attach the rear right cover. (Two screws)

23. Insert the two image controller tabs into the

holes on the copier cover.

24. Screw the image controller to the cover. (Three

supplied screws A and one supplied screw B)

Note:

Screw the screws at the bottom and side first.

25. Connect the image transmission cable to the

image controller.

Note:

Take care not to excessively bend the image

transmission cable.

26. Route the image transmission cable through the

two cable clamps of the image controller.

A4MGIXC023DA

Leave an appropriate

amount of slack.

A161IXC058DA

A4MGIXC024DA

Tab

A4MGIXC025DA

Screw A

Screw B

A4MGIXC071DA

A4MGIXC027DA

E-7

27. Use a network cable to connect port 1 of the

image controller to the hub (LAN).

28. <110-127 V regions>

Plug the copier and image controller power

cords into an outlet.

<220-240 V regions>

Connect the image controller power cord to the

copier. Plug the copier power cord into an outlet.

b: Connecting the copier and image controller

with the supplied copier LAN cable (cross-

over cable), and connecting the image con-

troller to a hub (LAN)

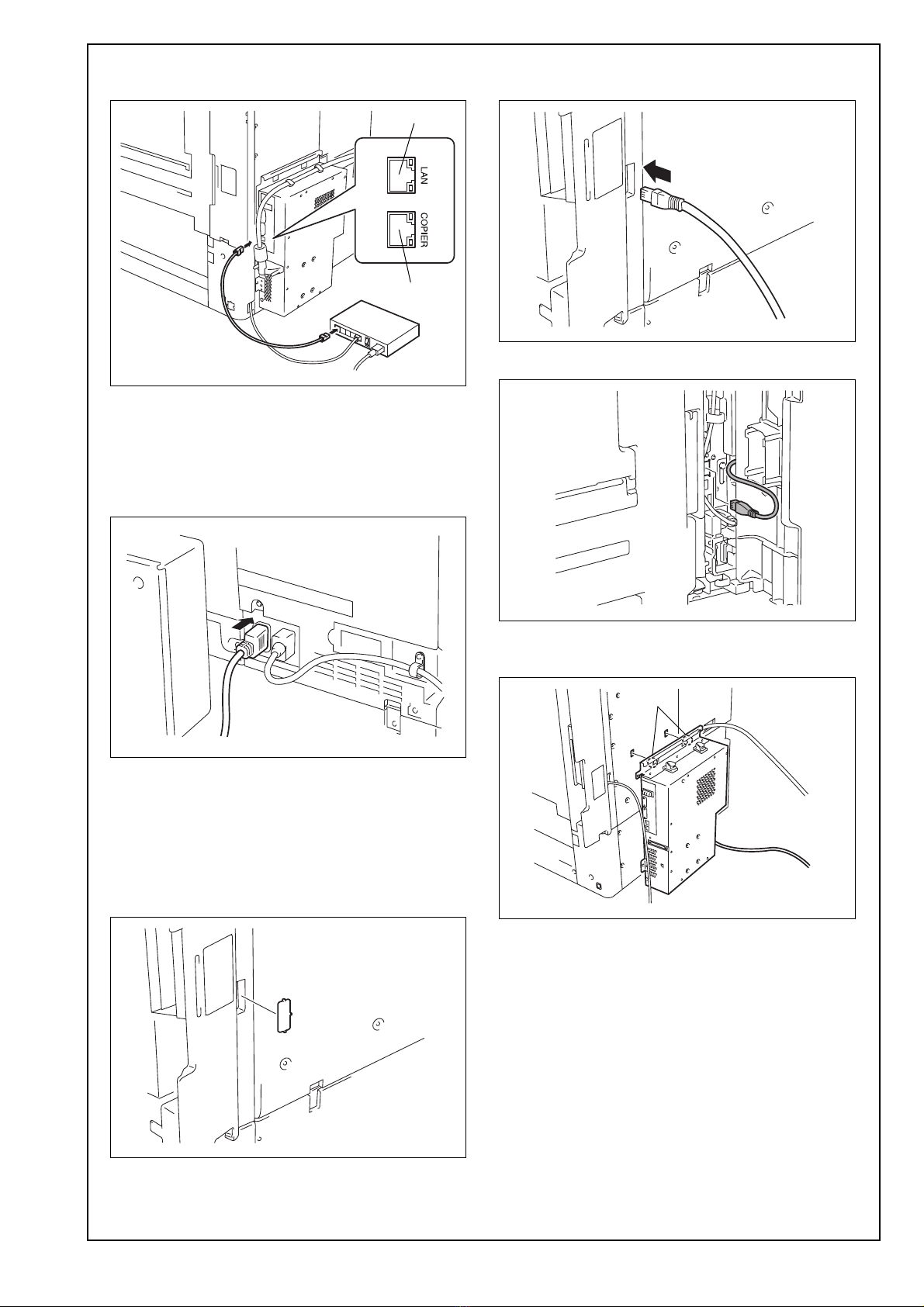

18. Using nippers, remove the knockout shown in

the illustration from the copier.

19. Route the supplied copier LAN cable (crossover

cable) through the notch made in step 18.

20. Connect the cable to the LAN port of the copier.

21. Insert the two image controller tabs into the

holes on the copier cover.

A4MGIXC028DA

Port 1

Port 2

A4MGIXE072DA

<220-240 V regions>

A4MGIXC029DA

A4MGIXC030DA

A4MGIXC031DA

A4MGIXC032DA

Tab

E-8

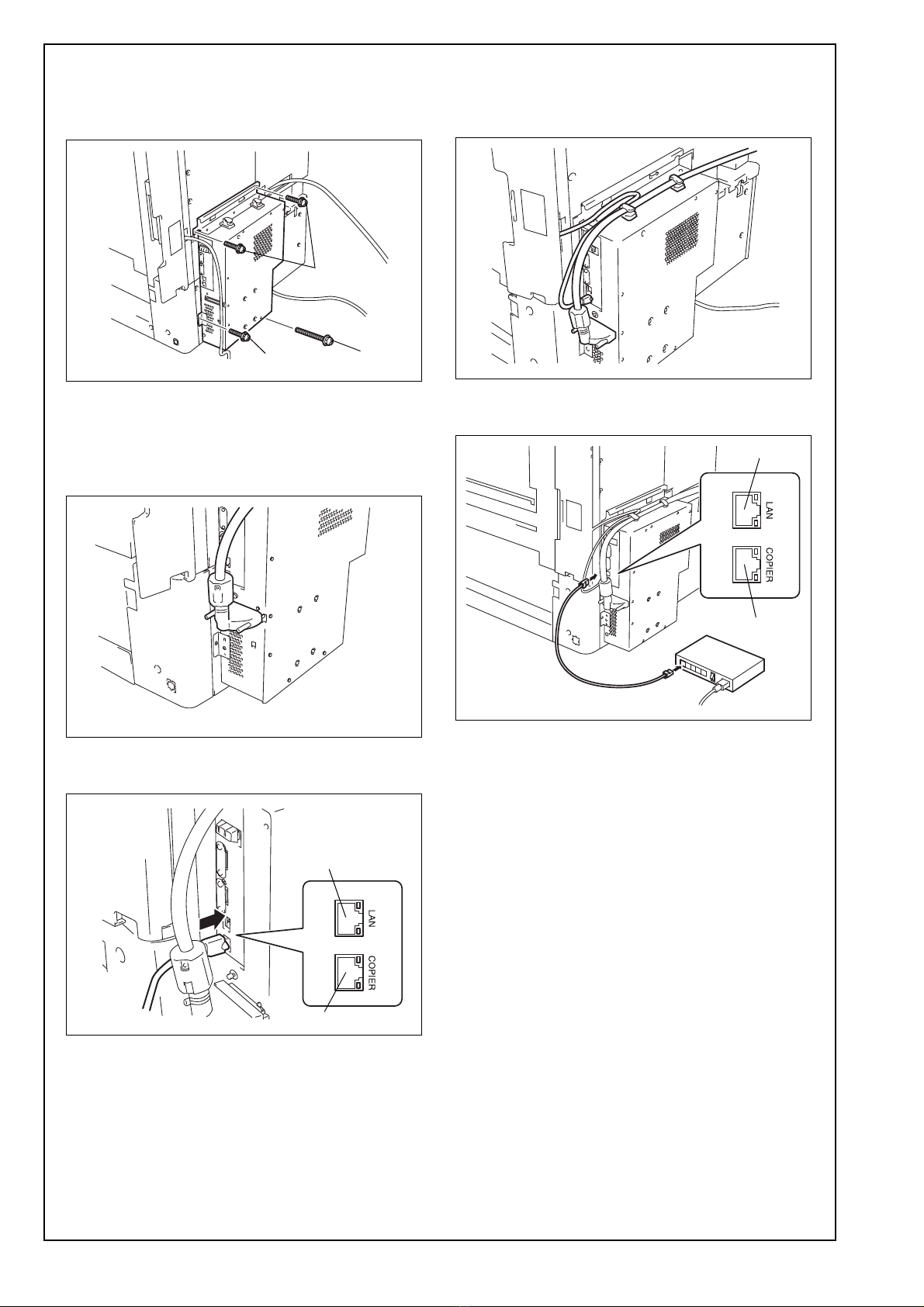

22. Screw the image controller to the cover. (Three

supplied screws A and one supplied screw B)

Note:

Screw the screws at the bottom and side first.

23. Connect the image transmission cable to the

image controller.

Note:

Take care not to excessively bend the image

transmission cable.

24. Connect the copier LAN cable to the port 2 of the

image controller.

25. Route the image transmission cable and the

copier LAN cable through the cable clamps of

the image controller. (Image transmission cable:

two places, Copier LAN cable: one place)

26. Use a network cable to connect port 1 of the

image controller to the hub (LAN).

A4MGIXC033DA

Screw A

Screw B

A4MGIXC026DA

A4MGIXC034DA

Port 1

Port 2

A4MGIXC035DA

A4MGIXC036DA

Port 1

Port 2

E-9

27. <110-127 V regions>

Plug the copier and image controller power

cords into an outlet.

<220-240 V regions>

Connect the image controller power cord to the

copier. Plug the copier power cord into an outlet.

IV. Specifying the copier settings

From the copier, specify the necessary settings for

using the image controller.

1. Turn on the copier.

2. Display the Service Mode screen.

(For details on displaying the screen, refer to the

Service Manual.)

3. Touch [System 2].

4. Touch [Image Controller Setting].

5. Touch [Controller 1].

6. Touch [END].

7. Touch [Exit].

8. Turn the copier off, then on again. (If the copier

has not been turned off, the setting changes are

not applied.)

V. Connecting the copier and image con-

troller to a network

The network functions of the copier can be used

even when the image controller is installed.

There are two ways of connecting to a network from

this copier. When connection b is used, some func-

tions are limited.

Note:

• Use a network cable (Category 5E or later rec-

ommended) to connect to a computer.

• For details of the connection method, see step

18 and subsequent steps in “III. Installation pro-

cedures.”

a: Connecting the copier and image controller

with separate LAN cables

• With this connection method, the network func-

tions of the copier are not impaired, and the

image controller functions are added.

• When this connection is made, the KM Box func-

tion is unavailable.

The KM Box function is described at the end of

this manual.

• The IP address settings for the copier and image

controller are specified separately.

• In order to use the network functions of the

copier, the network settings on the copier must be

specified according to the functions to be used.

1. Use a network cable to connect the LAN port of

the copier to the hub (LAN).

2. Use a network cable to connect port 1 of the

image controller to the hub (LAN).

Note:

Depending on the connection method, the image

controller TCP/IP settings are different. For details,

refer to 9 in “VI. Specifying basic image controller

settings (IP address)”.

A4MGIXE072DA

<220-240 V regions>

A4MGIXC037DA

Port 1

Port 2

E-10

b: Connecting the copier and image controller

with the supplied copier LAN cable (cross-

over cable), and connecting the image con-

troller to a hub (LAN)

With this connection method, the following copier

function limitations are applied.

• AppleTalk and IPX/SPX protocols

• IPv6, IPsec, browsing for file transmissions

(SMB), and replies to broadcasts

• The 1000Base-T network speed cannot be used.

These functions can be used from the image con-

troller.

The function limitations are not applied to the image

controller.

1. Use the supplied copier LAN cable (crossover

cable) to connect the LAN port of the copier to

port 2 of the image controller.

2. Use a network cable to connect port 1 of the

image controller to the hub (LAN).

Since the IP address of the copier can be set from

the image controller, it is not necessary to specify

the IP address from the copier. The IP address of

the copier appears at the end of the Configuration

Sheet for the image controller. However, the DHCP

settings must be specified from the copier in order

for the copier and image controller to communicate

internally through the crossover cable.

• Specifying the copier DHCP setting

Utility mode - “Administrator Settings” - “Network

Settings” - “TCP/IP Settings” - “IPv4 Settings” -

“Auto Input” - “DHCP Settings” - “ON”

• In order to use the network functions of the

copier, the network settings on the copier must be

specified according to the functions to be used.

Note:

• When manually specifying the IP address of the

image controller

Since the IP address of the copier is one num-

ber higher than the IP address of the image

controller, consecutively numbered IP

addresses must be available.

(Example: Image controller: 192.168.1.10;

Copier: 192.168.1.11)

However, “xxx.xxx.xxx.255” cannot be specified

for the IP address of the image controller if it is

set manually.

• When using DHCP to specify the IP address of

the image controller

Use the IP address assigned by the DHCP

server for the IP address of the image controller

and copier

• Depending on the connection method, the

image controller TCP/IP settings are different.

For details, refer to step 9 in “VI. Specifying

basic image controller settings (IP address)”.

A4MGIXC038DA

Port 1

Port 2

With this connection method, be careful of the tim-

ing for turning on the image controller and the

copier. For details on the timing, refer to the end of

this manual.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Konica Minolta Accessoires pour imprimantes

Konica Minolta

Konica Minolta Pi3505e Manuel utilisateur

Konica Minolta

Konica Minolta Color Care IQ-501 Manuel utilisateur

Konica Minolta

Konica Minolta bizhub 361 Manuel utilisateur

Konica Minolta

Konica Minolta KIP Color 80 Manuel utilisateur

Konica Minolta

Konica Minolta Color Care IQ-501 Manuel utilisateur

Konica Minolta

Konica Minolta PI-505 Manuel utilisateur

Konica Minolta

Konica Minolta Di1611 Manuel utilisateur

Konica Minolta

Konica Minolta DF-704 Manuel utilisateur

Konica Minolta

Konica Minolta FS-110 Manuel utilisateur

Konica Minolta

Konica Minolta FS-505 Manuel utilisateur

Konica Minolta

Konica Minolta MK-735 Manuel utilisateur

Konica Minolta

Konica Minolta PC-410 Manuel utilisateur

Konica Minolta

Konica Minolta bizhub C220 Series Manuel utilisateur

Konica Minolta

Konica Minolta AU-201S Manuel utilisateur

Konica Minolta

Konica Minolta Image Controller IC-402 Manuel utilisateur

Konica Minolta

Konica Minolta PC-101 Manuel utilisateur

Konica Minolta

Konica Minolta HT-509 Manuel utilisateur

Konica Minolta

Konica Minolta EK-608 Manuel utilisateur

Konica Minolta

Konica Minolta Magicolor 5550 Instructions d'utilisation et d'entretien

Konica Minolta

Konica Minolta FS-503 Manuel utilisateur

Konica Minolta

Konica Minolta FS-532 Manuel utilisateur

Konica Minolta

Konica Minolta AFR-12 Guide de configuration

Konica Minolta

Konica Minolta RU-513 Manuel utilisateur

Konica Minolta

Konica Minolta Image Controller IC-205 Manuel utilisateur

Manuels Accessoires pour imprimantes populaires d'autres marques

Star Micronics

Star Micronics TSP800 Series Manuel utilisateur

REA

REA JET HR pro 2K Manuel utilisateur

HP Laserjet,Color Laserjet 4si Manuel utilisateur

oliser

oliser MS 45 Manuel utilisateur

Roland

Roland DU2-64 Instructions et recettes

Xerox

Xerox EFI EXP6000 Manuel utilisateur

Canon

Canon Finisher-T1 Manuel utilisateur

Sharp

Sharp FO-1MK Manuel utilisateur

Labelmate

Labelmate PM-300 Manuel utilisateur

Epson

Epson T6248 Manuel d'utilisation

Epson

Epson OT-BZ20 Manuel utilisateur

Canon

Canon TonerRobot EP-27 Manuel utilisateur

Ricoh

Ricoh LCIT RT5100 Guide de démarrage rapide

GBC

GBC 16 Series Manuel utilisateur

Canon

Canon INNER 2-WAY TRAY-E1 Manuel d'utilisation et d'entretien

Develop

Develop SD-509 Manuel utilisateur

Kyocera

Kyocera KM-6230 Manuel

Triumph Adler

Triumph Adler DF-710 Manuel
