Konica Minolta PC-410 Manuel utilisateur

E-1

PC-410 Paper Feed Cabinet

INSTALLATION MANUAL

A2XM-9557-00

Applied Machines: C554e/C454e/C364e/C284e/C224e/C554/C454/C364/C284/C224/C368/C308/554e/454e/364e/

284e/224e

COLOR MFP: 55 ppm/45 ppm/36 ppm/30 ppm/28 ppm/22 ppm

MFP: 55 ppm/45 ppm/36 ppm/28 ppm/22 ppm

Product Code: A5AY/A5C0/A5C1/A5C2/A5C4/A2XK/A4FJ/A161/A4FK/A4FM/A7PU/A7PY/A61D/A61E/A61F/A61G/

A61H

Caution:

Lifting the machine in an awkward position or

transporting it in a poorly balanced position could

result in personal injury. When transporting the

machine, assign an adequate number of persons

to the job and ensure that each person can take a

good position of not being excessively loaded

(mass: approx. 23 kg (50-11/16 lb)).

1. Accessory parts

Note:

This manual provides the illustrations of the acces-

sory parts and machine that may be slightly differ-

ent in shape from yours. In that case, instead of

the illustrations, use the appearance of your

machine to follow the installation procedure. This

does not cause any significant change or problem

with the procedure.

Caution:

When removing the paper feed cabinet from its

shipping carton, do not hold the reinforcement

bracket (as a personal injury or a deformed frame

could result).

No. Name Shape Q’ty

1. Leg assy

2. Fixing

bracket A 3

3. Fixing

bracket B 1

4. Screw

5. Installation

manual 1

set

Keep this bag away from babies and

children. Do not use in cribs, beds,

carriages, or playpens.

The thin film may cling to nose and

mouth and prevent breathing. This bag is

not a toy.

Reinforcement bracket

E-2

2. Installation procedures

(1) Turn OFF the power switch and unplug the

power cord from the power outlet.

(2) Remove the protective tape from the paper feed

cabinet.

Note:

Do not peel the tape that fixes the paper feed cab-

inet hookup harness in position until the machine

is attached to the paper feed cabinet.

(3) Slide the drawer out.

(4) Remove the shipping materials and protective

tape from the inside of the drawer.

Note:

Remove the protective tape A carefully to prevent

the part from being removed together.

(5) Slide the drawer back in.

(6) Remove the connector cover if it is attached to

the machine. (One screw)

Hookup harness

E-3

(7) Holding the transportation handles at the right

and left of the machine, place the machine onto

the paper feed cabinet. When placing the

machine, use the positioning pins in the paper

feed cabinet to align the machine correctly with

the cabinet.

Note:

• When transporting or moving the machines,

assign adequate number of persons.

• When attaching the machine, as the reference,

fit the machine with the corner A and B of the

paper feed cabinet.

(8) Peel the tape that fixes the paper feed cabinet

hookup harness in position.

(9) Connect the two connectors of the paper feed

cabinet hookup harness to the machine.

(10) Secure the paper feed cabinet to the machine

by the two fixing brackets A.

(Two supplied screws)

(11) Reinstall the connector cover which has been

removed in step (6). (One screw)

When holding the transportation handles,

be careful not to catch your fingers in the

machine.

Use the fixing brackets to secure the unit

to the machine.

Failure to do so and an unlikely event of

leakage could result in an electrical

shock.

E-4

(12) Slide out the drawer from the paper feed cabi-

net.

(13) Slide out the second drawer from the paper

feed cabinet.

(14) Secure the paper feed cabinet to the machine

by the fixing bracket A (left) and the fixing

bracket B (right).

Fixing bracket A: one supplied screw

Fixing bracket B: two supplied screws

Note:

The fixing bracket B can be placed upside down.

(15) Slide the drawers back in.

(16) Move the machine and paper feed cabinet to

the installation site. Then, adjust the two adjust-

ers at the front to let the paper feed cabinet sit

on the floor.

(17) Attach the four stabilizers (supplied leg assies)

as shown in the illustration.

Note:

• If you proceed to install the Large Capacity Unit

LU-302/LU-301/LU-204 after this installation,

do not attach the stabilizer to the left and right

side of the machine.

• If you proceed to install the Finisher FS-535/

FS-534SD/FS-534 after this installation, do not

attach the stabilizer to the left side of the

machine.

To reduce the risk of injury due to

unstable equipment, set stabilizers

before use.

E-5

• When removing the stabilizer to move the

machine or for other reasons, pull it out while

pushing the lever shown in the illustration.

(1) Slide the drawer out.

(2) Align the edges of the paper stack and place the

stack into the drawer.

Note:

• Make sure that the top level of the paper stack

does not exceed the ▼(MAX) paper level indi-

cator.

• Correct any curl in the paper before loading.

(3) Align the edges of the paper stack and place the

stack into the drawer.

Note:

Make sure that the top level of the paper stack

does not exceed the ▼(MAX) paper level indica-

tor.

(4) Slide the drawer back in.

Lever

E-6

3. Configuration procedures

(1) Plug the power cord into the power outlet and

turn ON the power switch.

(2) Display the Service Mode screen (For details of

how to display the Service Mode screen, see the

Service Manual).

(3) Touch “System 2.”

(4) Touch “LCT Paper Size Setting.”

(5) Select the size of paper that was loaded in the

paper feed cabinet.

(6) Touch “END.”

4. Adjustment procedures

(1) Touch “Machine.”

(2) Touch “Printer Area.”

(3) Touch “Printer Image Centering Side 1.”

(4) Touch “3rd.” and then press the Start key.

A test print will be produced.

Note:

• If you proceed to install the Finisher FS-535/

FS-534SD/FS-534 after this installation, move

to the section, <If you install Finisher FS-535/

FS-534SD/FS-534 after this installation>, on

page E-7.

• If you do not proceed to install the Finisher FS-

535/FS-534SD/FS-534 after this installation,

follow the steps below.

(5) Measure width A of the test pattern on the back-

side of the test print produced and check to see if

it falls within the specified range.

Specifications: 3.0 mm ± 1.0 mm

• Adjusting the paper reference position

If the measured width A falls outside the speci-

fied range, enter the correction value using the

or key.

(6) Produce another test print and check to see if

width A falls within the specified range.

Note:

If the use of the or key does not allow the

measurement to fall within the specified range,

perform the following steps.

(7) Slide the drawer out.

(8) Loosen the six screws of the drawer (Left: tow

screws, Right: four screws) shown in the illustra-

tion.

(9) Move the front cover assy while looking at the

tick marks on the scales placed near the screws.

• If the width A is greater than the specifications:

Move the front cover assy to the ➀direction.

• If the width A is smaller than the specifications:

Move the front cover assy to the ➁direction.

(10) Tighten the six screws which have been loos-

ened in step (8).

(11) Produce another test print and check to see if

width A falls within the specified range.

Note:

• Make the adjustment until width A falls within

the specified range.

• Proceed to <Centering (Duplex 2nd side)>

Paper exit

direction

Screws

Scale Scale

➁

➀

E-7

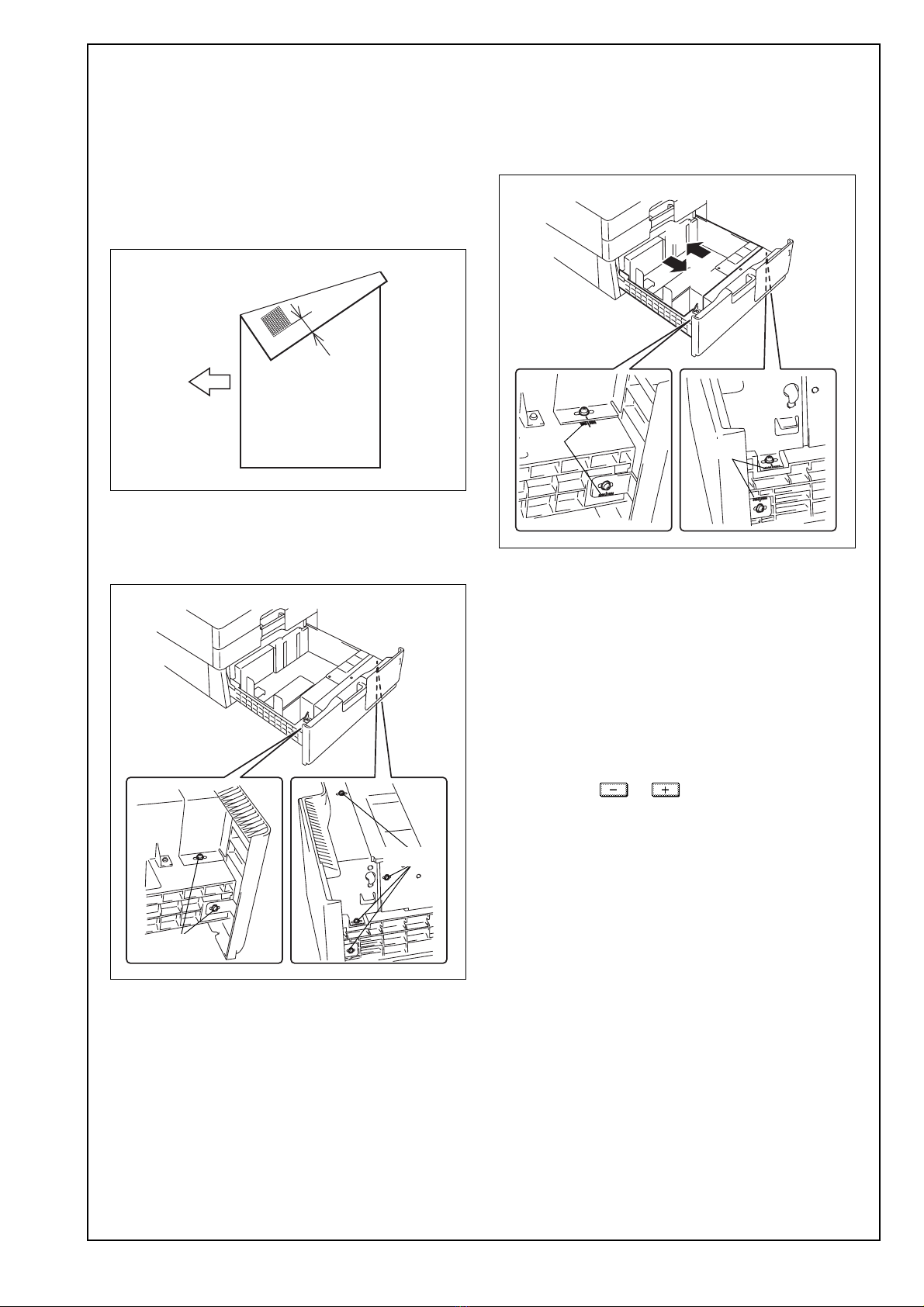

<If you install Finisher FS-535/FS-534SD/FS-534

after this installation>

(5) Measure width A of the test pattern on the back-

side of the test print produced and check to see if

it falls within the specified range.

Specifications: 3.0 mm ± 1.0 mm

• Adjusting paper reference position

(Coarse adjustment)

Make this adjustment if the measured width A

falls greatly outside the specified range.

(6) Slide the drawer out from the paper feed cabinet.

(7) Loosen the six screws of the drawer (Left: tow

screws, Right: four screws) shown in the illustra-

tion.

(8) Move the front cover assy while looking at the

tick marks on the scales placed near the screws.

• If the width A is greater than the specifications:

Move the front cover assy to the ➀direction.

• If the width A is smaller than the specifications:

Move the front cover assy to the ➁direction.

(9) Tighten the six screws which have been loos-

ened in step (7).

(10) Produce another test print and check to see if

width A falls within the specified range.

Note:

Make the adjustment until width A falls within the

specified range.

• Adjusting paper reference position (Fine adjust-

ment)

If the measured width A falls slightly outside the

specified range, enter the correction value

using the or key.

(11) Produce another test print and check to see if

width A falls within the specified range.

Note:

Make the adjustment until width A falls within the

specified range.

Paper exit

direction

Screws

➁

➀

Scale Scale

E-8

(1) Touch “Prt. Image Center. Side 2 (Dup).”

(2) Touch “3rd.” and then press the Start key.

A test print will then be produced.

(3) Measure width A of the test pattern on the back-

side of the test print produced and check to see if

it falls within the specified range.

Specifications: 3.0 mm ± 1.0 mm

• Adjusting the paper reference position

If the measured width A falls outside the speci-

fied range, enter the correction value using the

or key.

(4) Produce another test print and check to see if

width A falls within the specified range.

(5) Touch “END.”

(6) Touch “Exit” on the Service Mode screen.

(7) Turn OFF and ON the power switch.

Note:

When displayed the Service Mode screen, be sure

to turn off the power after exiting the Service Mode

screen and wait for 10 seconds or more before

turning on.

Paper exit

direction

Table des matières

Autres manuels Konica Minolta Accessoires pour imprimantes

Konica Minolta

Konica Minolta FS-503 Manuel utilisateur

Konica Minolta

Konica Minolta VI-506 Manuel utilisateur

Konica Minolta

Konica Minolta HT-502 Manuel utilisateur

Konica Minolta

Konica Minolta FS-505 Manuel utilisateur

Konica Minolta

Konica Minolta bizhub C650 Series Manuel utilisateur

Konica Minolta

Konica Minolta DB-209 Comment utiliser

Konica Minolta

Konica Minolta bizhub C220 Series Manuel utilisateur

Konica Minolta

Konica Minolta HD-524 Manuel utilisateur

Konica Minolta

Konica Minolta PC-101 Manuel utilisateur

Konica Minolta

Konica Minolta Color Care IQ-501 Manuel utilisateur

Konica Minolta

Konica Minolta LU-302 Manuel utilisateur

Konica Minolta

Konica Minolta IT-101 Comment utiliser

Konica Minolta

Konica Minolta MK-735 Manuel utilisateur

Konica Minolta

Konica Minolta PI-506 Manuel utilisateur

Konica Minolta

Konica Minolta AFR-12 Guide de configuration

Konica Minolta

Konica Minolta PK-517 Manuel utilisateur

Konica Minolta

Konica Minolta Image Controller IC-205 Manuel utilisateur

Konica Minolta

Konica Minolta Image Controller IC-402 Manuel utilisateur

Konica Minolta

Konica Minolta Di1611 Manuel utilisateur

Konica Minolta

Konica Minolta Color Care IQ-501 Manuel utilisateur

Konica Minolta

Konica Minolta bizhub 361 Manuel utilisateur

Konica Minolta

Konica Minolta HT-509 Manuel utilisateur

Konica Minolta

Konica Minolta AU-201S Manuel utilisateur

Konica Minolta

Konica Minolta PI-505 Manuel utilisateur

Manuels Accessoires pour imprimantes populaires d'autres marques

Star Micronics

Star Micronics TSP800 Series Manuel utilisateur

REA

REA JET HR pro 2K Manuel utilisateur

HP Laserjet,Color Laserjet 4si Manuel utilisateur

oliser

oliser MS 45 Manuel utilisateur

Roland

Roland DU2-64 Instructions et recettes

Xerox

Xerox EFI EXP6000 Manuel utilisateur

Canon

Canon Finisher-T1 Manuel utilisateur

Sharp

Sharp FO-1MK Manuel utilisateur

Labelmate

Labelmate PM-300 Manuel utilisateur

Epson

Epson T6248 Manuel d'utilisation

Epson

Epson OT-BZ20 Manuel utilisateur

Canon

Canon TonerRobot EP-27 Manuel utilisateur

Ricoh

Ricoh LCIT RT5100 Guide de démarrage rapide

GBC

GBC 16 Series Manuel utilisateur

Canon

Canon INNER 2-WAY TRAY-E1 Manuel d'utilisation et d'entretien

Develop

Develop SD-509 Manuel utilisateur

Kyocera

Kyocera KM-6230 Manuel

Triumph Adler

Triumph Adler DF-710 Manuel
