WT-513 Working Table
INSTALLATION MANUAL
A8HC-9581-00
Applied Machines: PRO958/958/808/758
MFP: 95 ppm/80 ppm/75 ppm
Product Code: A796/A8KN/A795
1. Accessory parts
No. Name Shape Q’ty
1. Working table
1
2. Mounting plate
1
3. Bracket A
1
4. Bracket B
1
5. Bracket C
1
6. Bracket D
1
7. Cover A
1
8. Cover B
1
9. Cover C
1
10. Cover D
1
11. Cover E
1
12. Cover F
1
13. Cover G
1
14. Cover H
1
15. Cover I
1
No. Name Shape Q’ty
E-2
*1 The cable is used when installing the Local
Interface Kit EK-611.
*2 The hook-and-loop fasteners are used when
installing the keyboard.
*3 This part is not used in this installation.
Note:
• If none of the later steps instruct you to use the
parts including screw and cover that you
removed following the instructions described in
this manual, discard them.
• This manual provides the illustrations of the
accessory parts and machine that may be
slightly different in shape from yours. In that
case, instead of the illustrations, use the
appearance of your machine to follow the
installation procedure. This does not cause any
significant change or problem with the proce-
dure.
16. Cable *1
1
17. Shoulder screw
3
18. Screw A
(4 x 16 mm) 3
19. Screw B
(3 x 16 mm) 1
20. Screw C
(3 x 8 mm) 21
21. Screw D
(Black)
(3 x 8 mm)
10
22. Screw E
(4 x 10 mm) 2
23. Screw F
(3 x 8 mm) 2
24. Collar
2
25. Screw cap
1
26. Hook-and-loop
fastener *2 4
set
27. Label *3
(W-NET label)
1
28. Installation
manual
1
set
No. Name Shape Q’ty
Keep this bag away from babies and
children. Do not use in cribs, beds,
carriages, or playpens.
The thin film may cling to nose and
mouth and prevent breathing. This bag is
not a toy.
E-3

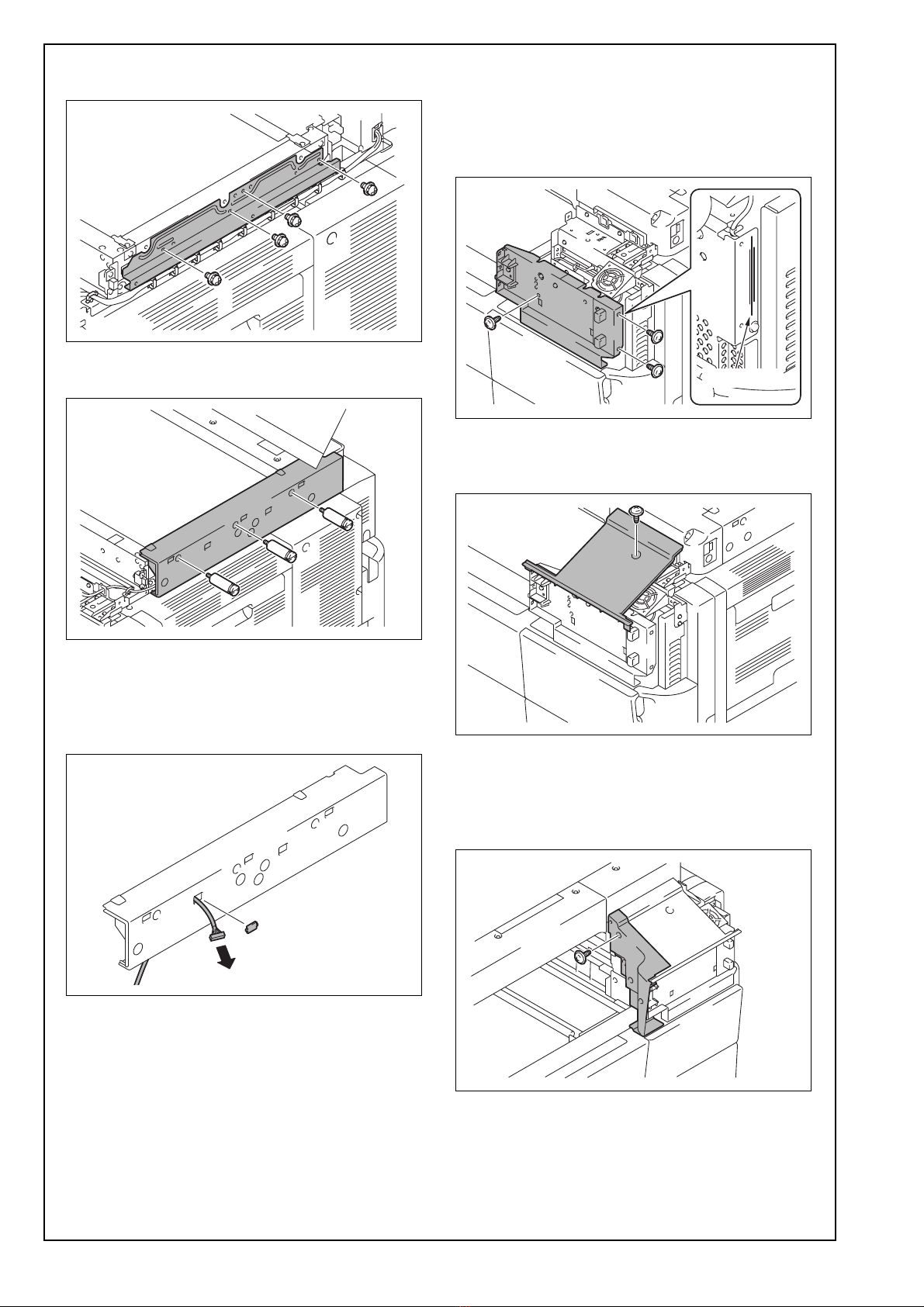

2. Installation procedures
<Installing the working table>
(1) Turn OFF the power switch and unplug the
power cord from the power outlet.
(2) Remove the working table and all other accesso-
ries from the shipping carton and remove the
protective tape and protective materials.
(3) Remove the control panel left cover.
(Three screws)
(4) Remove the control panel right cover.
(Two screws)
(5) Remove the control panel front cover.
Note:
Pull the left side of the cover toward you and slide
it to the right to remove it.
(6) Remove the connector of the control panel front
cover.
Note:
Discard the removed cover.
(7) Remove the cover shown in the illustration.
(One screws)
Note:
Discard the removed screw and cover.
(8) Remove the right front cover. (Three screws)
Note:
Before removing the cover, be sure to check and
remember the location where the cover is installed
referring to the guide lines on the plate of the main
body.
Guide lines
E-4
(9) Remove the panel connector from the control
panel.
a) Unhook the tab and remove the top cover.
b) Remove the panel connector.
c) Remove the cable tie from the control panel,
and remove the cable from the harness guide.
(10) Remove the control panel upper cover.
(One screw)
Note:
Discard the removed cover.
(11) Remove the control panel hinge cover.
(One screw)
Tab
Cable tie
E-5
(12) Remove the control panel from the machine.
(Six screws)
Note:
Place the control panel unit with the touch panel
facing downward on a soft cloth with care not to
get any scratches.
(13) Remove the reinforcing plate of the hinge part.
(Four screws)
Note:
Discard the removed screws and reinforcing plate.
(14) Unhook the tab for the cover of the hinge part,
and remove the cover.
(15) Remove the screw.
(16) Depress the hinge as shown in the illustration,
and remove the hinge from the control panel
unit. (Two screws)
Note:
Discard the removed screws and hinge.
Tab
E-6
(17) Remove the scanner front right cover.
(Two screws)
(18) Remove the three caps.
(19) Remove the scanner rear cover.
(Three screws)
(20) Remove the six caps from the upper left rear
cover.
(21) Remove the upper left rear cover.
(Seven screws)
(22) Remove the upper rear right cover. (Two
screws)
Note:
Discard the removed screws and cover.
(23) Remove the scanner right cover.
(Three screws)
Note:
Discard the removed screws.
E-7
(24) Remove the control panel cable from the edge
cover and the wire saddle.
(25) Remove the control panel cable from the edge
cover and 10 wire saddles.
(26) Open the upper rear right door and disconnect
the panel connector.
(27) Remove the control panel cable from the three
edge covers, then pull out the cable.
(28)
<When installing the Local Interface Kit EK-611>
a) Refer to the installation manual for the Local
Interface Kit EK-611 to install the Local Inter-
face Kit EK-611.
Note:
• Connect the supplied cable to the connector
shown in the illustration. For how to connect the
cable to the control panel, refer to the following
procedures of this manual.
• Connect the white connector to the local inter-
face board unit.
b) Route the supplied cable as shown in the illus-
tration.
Wire saddle
Edge cover
Wire saddle
Edge cover
Edge cover
E-8
(29) Install the supplied mounting plate.
(Four supplied screws C)
(30) Reinstall the scanner right cover.
(Three supplied shoulder screws)
Note:
When installing the Local Interface Kit EK-611,
remove the knockout shown in the illustration from
the scanner right cover and run the cable thorough
the hole on the cover.
(31) To install the covers and other parts removed in
steps (17) to (21), reverse the removal proce-
dure.
(32) Reinstall the right front cover removed in the
step (8). (Three screws removed in step (8))
Note:
Attach the cover to the same places from which
the cover was removed in step (8) referring to the
guide lines on the plate of the main body
(33) Attach the supplied cover A to the main body at
the position shown in the illustration.
(One screw removed in step (10))
(34) Tighten one screw for the control panel left
cover.
(One of the three screws removed in step (3))
Note:
Tighten only the screw shown in the illustration.
Guide lines
E-9
(35) Attach the supplied cover B.
Note:
Insert the tabs on the right side into the holes on
the main body, and press the left side.
(36) Tighten the remaining screws for the control
panel left cover.
(Two of the three screws removed in step (3))
Note:
Tighten the two screws shown in the illustration.
(37) Attach the control panel right cover to the main
body. (Two screws removed in step (4))
(38) Remove the cap. (Three places)
(39) Insert the three shoulder screws attached in the
step (30) into the three holes of the working
table, then put the working table on.
Note:
When installing the Local Interface Kit EK-611, run
the cable thorough the hole on the working table
as shown in the illustration.
E-10
(40) Fix the working table. (Three supplied screws A
and one supplied screw B)
(41) Connect the control panel cable to the main
body.
Note:
Plug in the straight connector of the control panel
cable.
(42) Route the control panel cable as shown in the
illustration.
(Eight wire saddles and two edge covers)
(43)
<Only when installing the Local Interface Kit EK-
611>
Route the cable for the local interface kit as
shown in the illustration.
(44) Attach the supplied bracket A.
(Four supplied screws C)
(45) Pass the cable through the four wire saddles
and one edge cover.
Screw A Screw B
