Konica Minolta AD-509 Manuel utilisateur

AD-509

Automatic Duplex Unit

INSTALLATION MANUAL

Applied Machines: 225i/205i; 236/226/206; 235/215/195

MFP: 23 ppm/22 ppm/21 ppm/20 ppm/19 ppm

Product Code: ACN2/ACN3; A8A5/A8A6; A3PE/A3R2

E-12019. 7 Printed in China A3PG-9950-03

1CA0835001

1. Pre-installation check items

■ General checks

• Refer to “Pre-installation check items” described

in the installation manual of the main body.

• Be sure to turn OFF the main power switch of

the main body and unplug the power cord before

starting the installation.

• Do not turn the power ON before the instruction.

■ Notice about this option

● Tools/jigs required for installation

• Stubby driver

■ Notice about description contents of the

manual

• This manual provides the illustrations of the ac-

cessory parts and machine that may be slightly

different in shape from yours.

In that case, instead of the illustrations, use the

appearance of your machine to follow the instal-

lation procedure. This does not cause any signif-

icant change or problem with the procedure.

• If none of the later steps instruct you to use the

parts including screw and cover that you re-

moved following the instructions described in this

manual, discard them.

2. Accessory parts

No. Name Shape Q’ty

1. Automatic du-

plex unit

2. Transport guide 1

No. Name Shape Q’ty

3. Cooling fan as-

sembly

4. Metal plate 2

5. Wire saddle 1

6. Screw A (3 x 8

mm)

7. Screw B (3 x 8

mm)

8. Installation

manual

1 set

WARNING

Keep this bag away from babies and chil-

dren. Do not use in cribs, beds, carriages,

or playpens.

The thin film may cling to nose and mouth

and prevent breathing. This bag is not a

toy.

E-2

3. Installation procedures

(1) Turn OFF the main power switch and unplug

the power cord from the power outlet.

(2) Remove the indicated cover from the rear right

side of the main body. (Two screws)

(3) Remove the indicated cover from the right door

of the main body. (Two screws)

(4) Perform the following procedure.

a) Remove the indicated cover from the lower

right side of the main body. (Two screws)

a) Remove the covers (left and right). (Three

screws)

b) Disconnect the connector.

Connector

E-3

c) Remove the four screws.

d) Open the multi bypass tray and the right door

of the main body.

e) Remove the multi bypass tray.

Note:

Be sure not to deform the film.

Film

(5) Remove the indicated cover from the cover re-

moved in step (4). (One screw)

Note:

• If you remove the multi bypass tray in step (4),

remove the indicated cover from the multi by-

pass tray.

• Be sure not to deform the film.

Cover

E-4

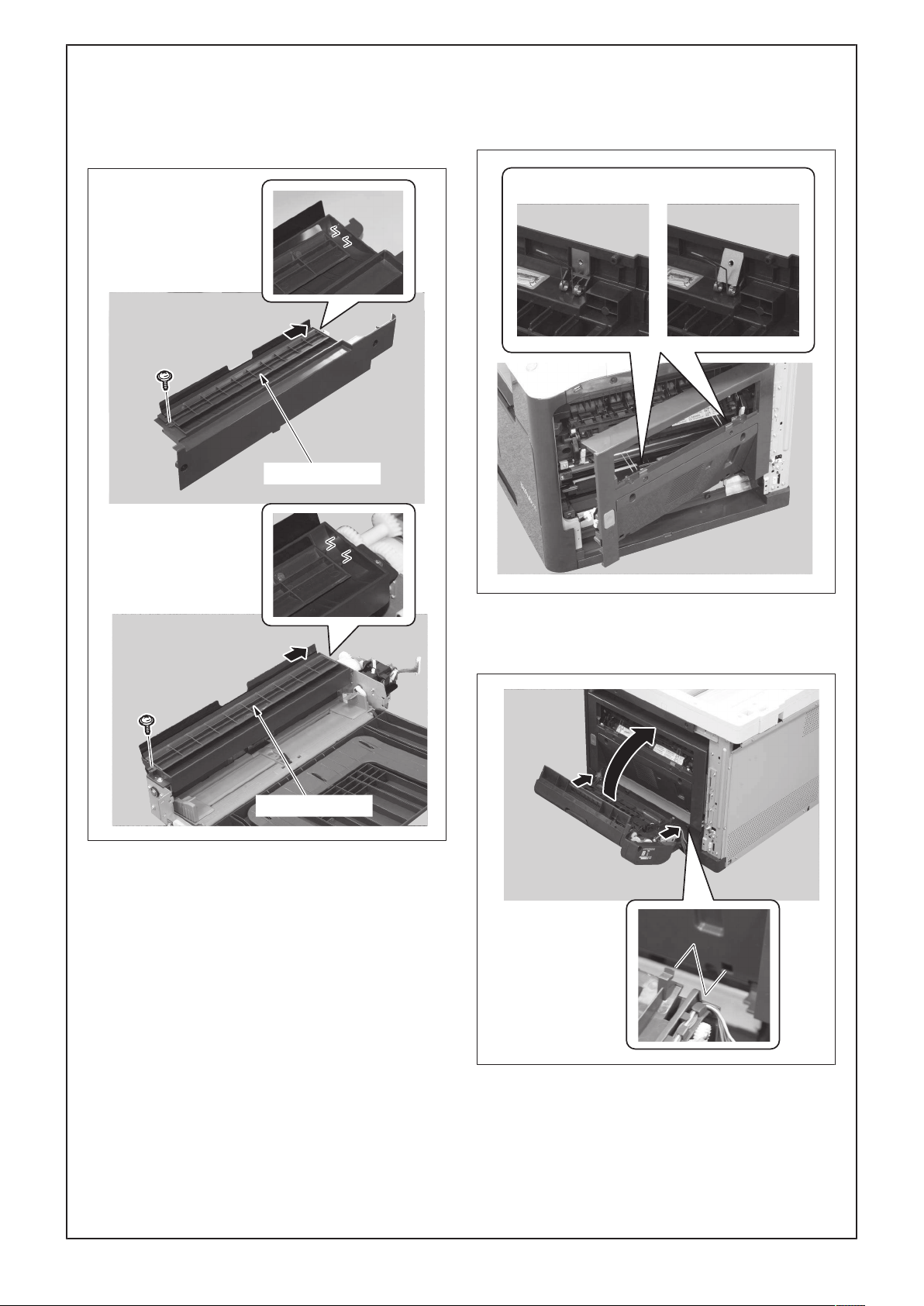

(6) Attach the supplied transport guide. (One sup-

plied screw A)

Note:

If you remove the multi bypass tray in step (4), at-

tach the transport guide to the multi bypass tray.

Transport guide

(7) Open the right door when it is closed.

(8) Attach the two supplied metal plates.

Note:

Make sure that the metal plates are in an upright

position.

< OK > < NG >

(9) Close the right door.

(10) Position the automatic duplex unit onto the

right door.

E-5

(11) Tighten the two fixing screws of the automatic

duplex unit.

Note:

• Tighten the screw on the reference side (indi-

cated by the arrow) first.

• Make sure the automatic duplex unit is not

tilted.

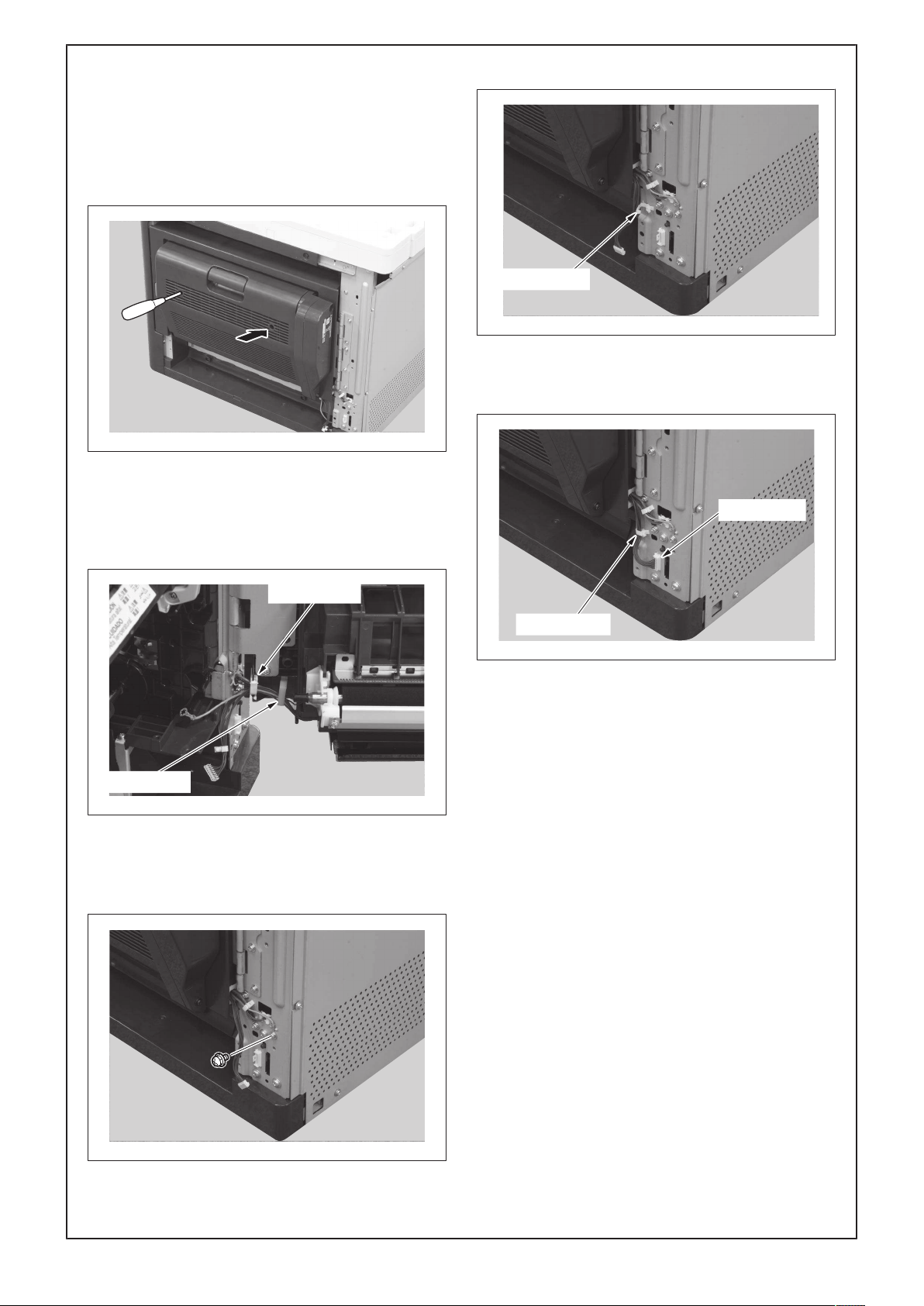

(12) Open the right door.

(13) Route the ground wire and wire harness of the

automatic duplex unit as shown in the illustra-

tion, and route them through the edge cover

and wire saddle.

Wire saddle

Edge cover

(14) Close the right door.

(15) Secure the ground wire terminal of the auto-

matic duplex unit to the main body. (One sup-

plied screw B)

(16) Attach the supplied wire saddle.

Wire saddle

(17) Plug in the connector of the automatic duplex

unit and route its cable through the wire sad-

dle.

Wire saddle

Connector

(18) Open the right door.

(19) Perform the following procedure.

a) Reattach the cover removed in step (4). (Two

screws)

Note:

When attaching the cover, be sure not to deform

the film.

<When the multi bypass tray has been removed in

step (4)>

a) Reverse a) to e) of the step (4) to reinstall the

multi bypass tray.

Note:

• When setting the multi bypass tray to the main

body, be sure not to deform the film.

• When attaching the covers (left and right) re-

moved in a), open the multi bypass tray and

attach the covers to the main body, and then

close the tray and screw the covers.

(20) Close the right door when it is open.

(21) Reattach the cover removed in step (2). (Two

screws)

E-6

(22) Remove the left cover from the main body.

(Five screws)

(23) Fit the two bosses into the holes, and attach

the supplied cooling fan assembly to the main

body. (Two supplied screws B)

Boss

(24) Connect the connector of the cooling fan as-

sembly to the main body.

Connector

(25) Reattach the left cover to the main body. (Five

screws)
