LU-302 Large Capacity Unit

INSTALLATION MANUAL

A87V-9550-00

Applied Machines: C368/C308

COLOR MFP: 36 ppm/30 ppm

Product Code: A7PU/A7PY

Caution:

Lifting the machine in an awkward position or

transporting it in a poorly balanced position could

result in personal injury. When transporting the

machine, assign an adequate number of persons

to the job and ensure that each person can take a

good position of not being excessively loaded.

(mass: approx. 18 kg (39-3/4 lb))

1. Accessory parts

Note:

• Before installing the large capacity unit the

Paper Feed Cabinet PC-410, PC-210, or PC-

110 needs to be installed in advance.

• This manual provides the illustrations of the

accessory parts and machine that may be

slightly different in shape from yours. In that

case, instead of the illustrations, use the

appearance of your machine to follow the

installation procedure. This does not cause any

significant change or problem with the proce-

dure.

• If none of the later steps instruct you to use the

parts including screw and cover that you

removed following the instructions described in

this manual, discard them.

No. Name Shape Q’ty

1. Rail

2. Mounting

bracket A

3. Mounting

bracket B

4. Mounting

bracket C

5. Screw A

(4 x 8 mm) 3

6. Screw B

(3 x 8 mm) 8

7. Installation

manual

1 set

Keep this bag away from babies and

children. Do not use in cribs, beds,

carriages, or playpens.

The thin film may cling to nose and

mouth and prevent breathing. This bag is

not a toy.

E-2

2. Installation procedures

(1) Turn OFF the power switch and unplug the

power cord from the power outlet.

(2) Remove the protective tape and protective mate-

rials and remove the protective plastic bag of the

hookup cord.

(3) Remove the sheet from the right side of the main

body.

(4) Slide out the drawer of the paper feed cabinet.

Note:

For the Paper Feed Cabinet PC-210 or PC-110,

slide out both upper and lower drawers.

(5) Remove the front right cover from the paper feed

cabinet. (Four screws)

Note:

Since connector(s) are connected to the paper

feed cabinet cover, be careful not to strongly pull

the cover when removing it.

(6) Remove the rear right cover from the paper feed

cabinet. (Two screws)

E-3

(7) Remove the lower right cover from the paper

feed cabinet. (Two screws)

(8) Remove the knockout from the front right cover

using nippers.

(9) Remove the two knockouts from the rear right

cover using nippers.

(10) Remove the two knockouts from the lower right

cover using nippers.

(11) Install the supplied mounting brackets C onto

the two places. (Two supplied screws B each)

(12) Install the supplied mounting bracket B onto the

supplied rail.

E-4

(13) Fit the tab of the mounting bracket B onto the

groove on the ceiling of the compartment as

shown in the illustration then slide the mounting

bracket B to the rear until the rail is fixed in the

main body.

Note:

After checking that the rail is secured in the correct

position, install the rail with the supplied screws.

(Four supplied screws B)

(14) Insert the mounting bracket A into the round

hole on the rail.

(15) Hold up the mounting bracket A and insert the

rail. Insert the protrusion of the mounting

bracket A into the round hole on the base of the

large capacity unit. (Two supplied screws A)

(16) Route the harness of the large capacity unit

through the hole of the rear right cover.

Groove

Tab

OK NG

E-5

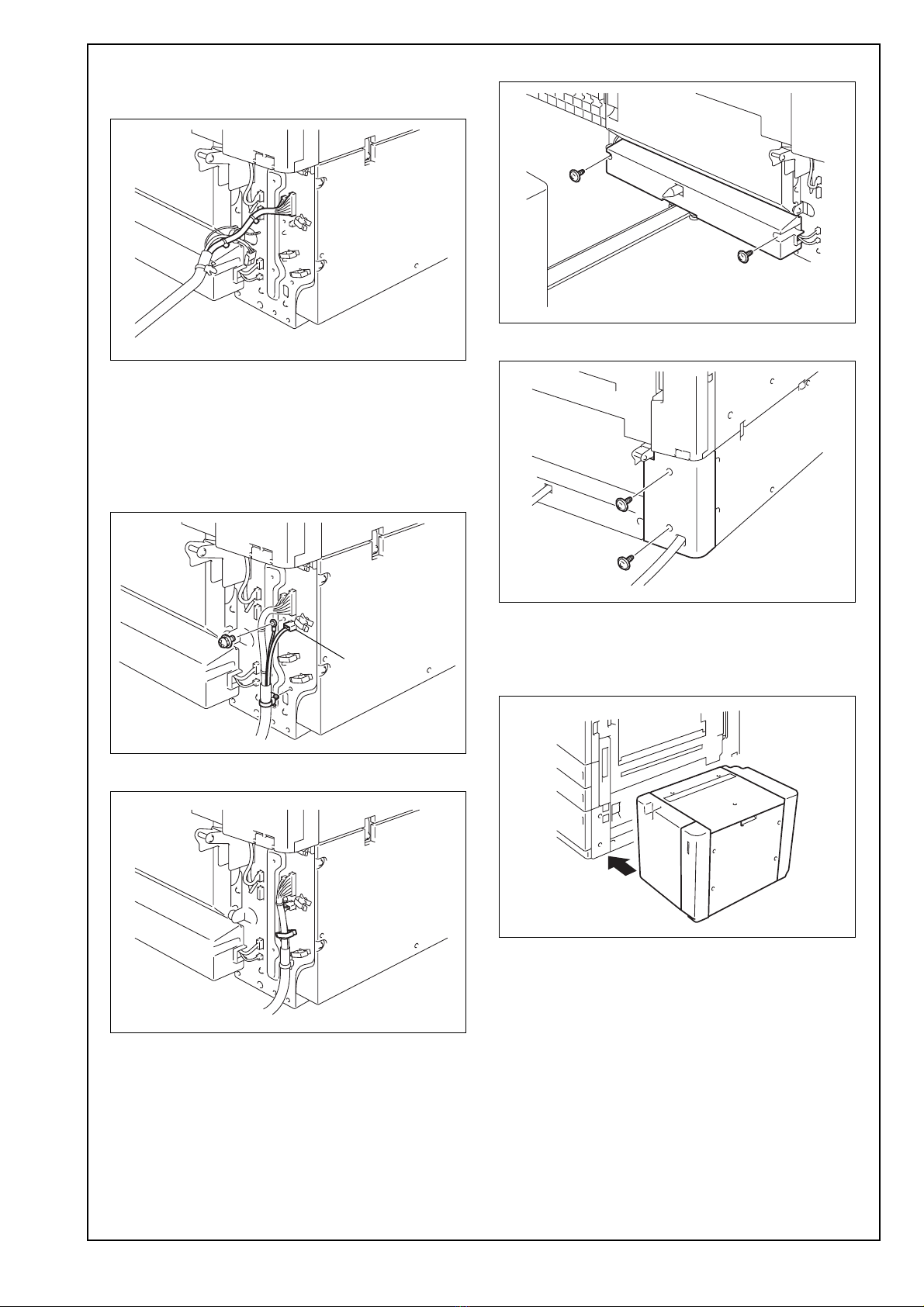

(17) Connect the two connectors of the large capac-

ity unit’s harness to the connectors of the paper

feed cabinet.

(18) Connect the connectors and connect the

ground wire with the supplied screw then insert

the cord clamp. (One supplied screw A)

Note:

Connect the connector indicated in the illustration

only when the optional Transformer kit TK-101 is

attached.

(19) Route the harness through the wire saddle.

(20) Reinstall the lower right cover. (Two screws)

(21) Reinstall the rear right cover. (Two screws)

(22) Reinstall the front right cover. (Four screws)

(23) Close the drawer(s) of the paper feed cabinet.

(24) Slide the large capacity unit towards the main

body and lock it.

Connector

E-6

(25) Check a clearance (3.0 mm ± 2.0 mm) is

ensured between the main body and the large

capacity unit.

Note:

• If there is no clearance between the main body

and the large capacity unit, the large capacity

unit presses against the main body. In this

case, follow step (26) and onward to adjust the

height of the large capacity unit.

• If there is an appropriate clearance between the

two units, go to page E-9 and perform <Load-

ing paper>, without making any height adjust-

ment.

(26) Remove the large capacity unit from the main

body and open the upper door of the large

capacity unit.

(27) Remove the right cover of the large capacity

unit. (Four screws)

(28) Disconnect the connector and remove the har-

ness from the wire saddle.

(29) Loosen the screws on the right side (three

screws each for front and rear) and the left side

(two screws each for front and rear) of the large

capacity unit. Then remove the front cover.

(30) Remove the plate from the rear side of the large

capacity unit and remove the rear cover. (Two

screws)

Clearance

E-7

(31) Slide the large capacity unit towards the main

body and lock it.

(32) Remove the left and the right adjustment

roller’s lock nuts. (Two lock nuts each for front

and rear)

(33) Turn the left side adjustment roller’s screws

(front and rear) counterclockwise to make the

level where the adjustment rollers are fixed as

high as possible.

(34) By turning the right side adjustment roller’s

screws (front and rear) counterclockwise, the

overall length of the right adjustment roller’s

legs is shortened and therefore the right side of

the unit is lowered. Until the clearance (3.0 mm

± 2.0 mm) is ensured between the main body

and the large capacity unit, make the height

adjustment of the large capacity unit.

(35) After the height adjustment, turn the screws so

that the left side adjustment rollers (front and

rear), sit on the floor.

(36) Reinstall the left and the right adjustment

roller’s lock nuts (two lock nuts each for front

and rear).

E-8

(37) Remove the large capacity unit from the main

body.

(38) Reinstall the front and the rear covers. Tighten

screws on the right side (three screws each for

front and rear) and the left side (two screws

each for front and rear) of the large capacity

unit.

Note:

Before reinstalling the covers, position the right

adjustment rollers (front and rear) as shown in the

illustration.

(39) Reinstall the plate onto the rear side of the

large capacity unit. (Two screws)

(40) Insert the connector and insert the harness into

the wire saddle.

(41) Reinstall the right cover of the large capacity

unit and close the upper door of the large

capacity unit. (Four screws)

E-9

(1) Open the upper door of the large capacity unit

and raise the paper feed roller.

(2) Load a stack of paper and align it to the left side

of the large capacity unit.

Note:

The height of stacked paper needs to be lower

than the level where the paper aligning plate starts

to bend outward.

(3) Lower the paper feed roller and close the upper

door of the large capacity unit.

Affix the paper size label supplied with the main

body to the positions shown in the illustration.

3. Configuration procedures

(1) Plug the power cord into the power outlet and

turn ON the power switch.

(2) Display the Service Mode screen. (For details of

how to display the Service Mode screen, see the

service manual.)

(3) Touch “System 2.”

(4) Touch “LCT Paper Size Setting.”

(5) Check that the highlighted paper size is same

with the size of paper loaded in the large capac-

ity unit.

(6) Touch “END.”

E-10

4. Adjustment procedures

(1) Touch “Machine.”

(2) Touch “Printer Area.”

(3) Touch “Printer Image Centering Side 1.”

(4) Touch “LCT” and then press the Start key.

A test print will be produced.

(5) Measure width A of the test pattern on the back-

side of the test print produced and check that it

falls within the specified range.

Specifications: 3.0 mm ± 1.0 mm

• Adjusting the paper reference position

If the measured width A falls outside the speci-

fied range, enter the correction value using the

or key.

(6) Produce another test print and check to see if

width A falls within the specified range.

Note:

If the use of the or key does not allow the

measurement to fall within the specified range,

perform the following steps.

(7) Open the upper door of the large capacity unit.

Loosen the adjustment screws (four screws) and

make an adjustment by moving the paper guide

side plates to the left or right.

Note:

During adjustment, in order to keep the same dis-

tance between the paper guide side plates, place

a sheet of paper between the paper guide side

plates with 1.0 mm apart from each of the plates.

• When width A is greater than the specified range

Loosen the four screws and move both paper

guide side plates to the left then retighten the

four screws that have been loosened.

• When width A is smaller than the specified range

Loosen the four screws and move both paper

guide side plates to the right then retighten the

four screws that have been loosened.

Paper exit

direction

Table des matières

Autres manuels Konica Minolta Accessoires pour imprimantes

Konica Minolta

Konica Minolta bizhub 223 Manuel utilisateur

Konica Minolta

Konica Minolta VI-506 Manuel utilisateur

Konica Minolta

Konica Minolta KIP Color 80 Manuel utilisateur

Konica Minolta

Konica Minolta HT-502 Manuel utilisateur

Konica Minolta

Konica Minolta AD-509 Manuel utilisateur

Konica Minolta

Konica Minolta FS-505 Manuel utilisateur

Konica Minolta

Konica Minolta PI-506 Manuel utilisateur

Konica Minolta

Konica Minolta magicolor 2430 DL Manuel utilisateur

Konica Minolta

Konica Minolta HD-524 Manuel utilisateur

Konica Minolta

Konica Minolta PK-517 Manuel utilisateur

Konica Minolta

Konica Minolta EK-608 Manuel utilisateur

Konica Minolta

Konica Minolta bizhub C220 Series Manuel utilisateur

Konica Minolta

Konica Minolta AFR-12 Guide de configuration

Konica Minolta

Konica Minolta DK-510 Manuel utilisateur

Konica Minolta

Konica Minolta Di1611 Manuel utilisateur

Konica Minolta

Konica Minolta PK-511 Manuel utilisateur

Konica Minolta

Konica Minolta IP-011 Comment utiliser

Konica Minolta

Konica Minolta ViZion DR+ 1417V2 Manuel d'utilisation et d'entretien

Konica Minolta

Konica Minolta WT-513 Manuel utilisateur

Konica Minolta

Konica Minolta Image Controller IC-205 Manuel utilisateur

Konica Minolta

Konica Minolta Image Controller IC-402 Manuel utilisateur

Konica Minolta

Konica Minolta MAGICOLOR 4600 Series Manuel utilisateur

Konica Minolta

Konica Minolta Color Care IQ-501 Manuel utilisateur

Konica Minolta

Konica Minolta Magicolor 5550 Instructions d'utilisation et d'entretien

Manuels Accessoires pour imprimantes populaires d'autres marques

Star Micronics

Star Micronics TSP800 Series Manuel utilisateur

REA

REA JET HR pro 2K Manuel utilisateur

HP Laserjet,Color Laserjet 4si Manuel utilisateur

oliser

oliser MS 45 Manuel utilisateur

Roland

Roland DU2-64 Instructions et recettes

Xerox

Xerox EFI EXP6000 Manuel utilisateur

Canon

Canon Finisher-T1 Manuel utilisateur

Sharp

Sharp FO-1MK Manuel utilisateur

Labelmate

Labelmate PM-300 Manuel utilisateur

Epson

Epson T6248 Manuel d'utilisation

Epson

Epson OT-BZ20 Manuel utilisateur

Canon

Canon TonerRobot EP-27 Manuel utilisateur

Ricoh

Ricoh LCIT RT5100 Guide de démarrage rapide

GBC

GBC 16 Series Manuel utilisateur

Canon

Canon INNER 2-WAY TRAY-E1 Manuel d'utilisation et d'entretien

Develop

Develop SD-509 Manuel utilisateur

Kyocera

Kyocera KM-6230 Manuel

Triumph Adler

Triumph Adler DF-710 Manuel
