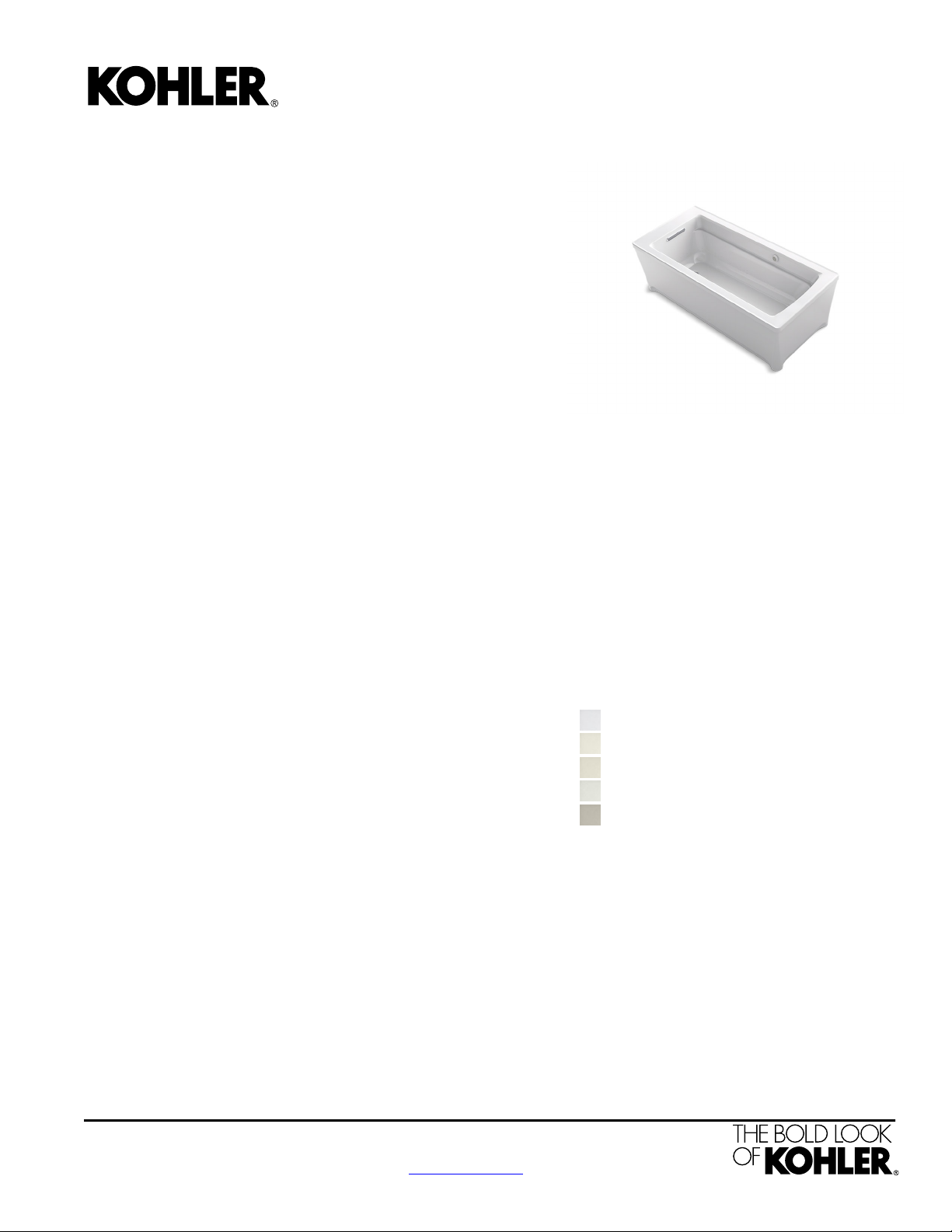

Kohler Archer K-2595-G Manuel utilisateur

Features

•Slotted overflow for maximum bathing depth.

•Integral lumbar support and armrests for comfort.

•Textured bottom surface.

•Two-piece design.

•End drain.

•67-3/4" (1568 mm) x 31-3/4" (806mm) x 22" (559 mm)

Material

•Acrylic

Hydrotherapy

•118-122 BubbleMassage™airjets.

•Variable-speed blower lets you adjust the airjet massage to 18

levels. Codes/Standards

ASME A112.19.7/CSA B45.10

•Automatic purge cycles remove residual water from air channels

after use. CSA B45.5/IAPMO Z124

UL 1795

•Lighted keypad control.

CSA C22.2 No. 218.2

Installation CARB P2

•Freestanding

KOHLER®One-Year Limited Warranty

See website for detailed warranty information.

Available Color/Finishes

Color tiles intended for reference only.

DescriptionCodeColor

White0

Biscuit96

Almond47

DuneNY

SandbarG9

USA/Canada: 1-800-4KOHLER (1-800-456-4537)

Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

3-18-2017 06:41

Archer®

68" BubbleMassage™Bath

K-2595-G

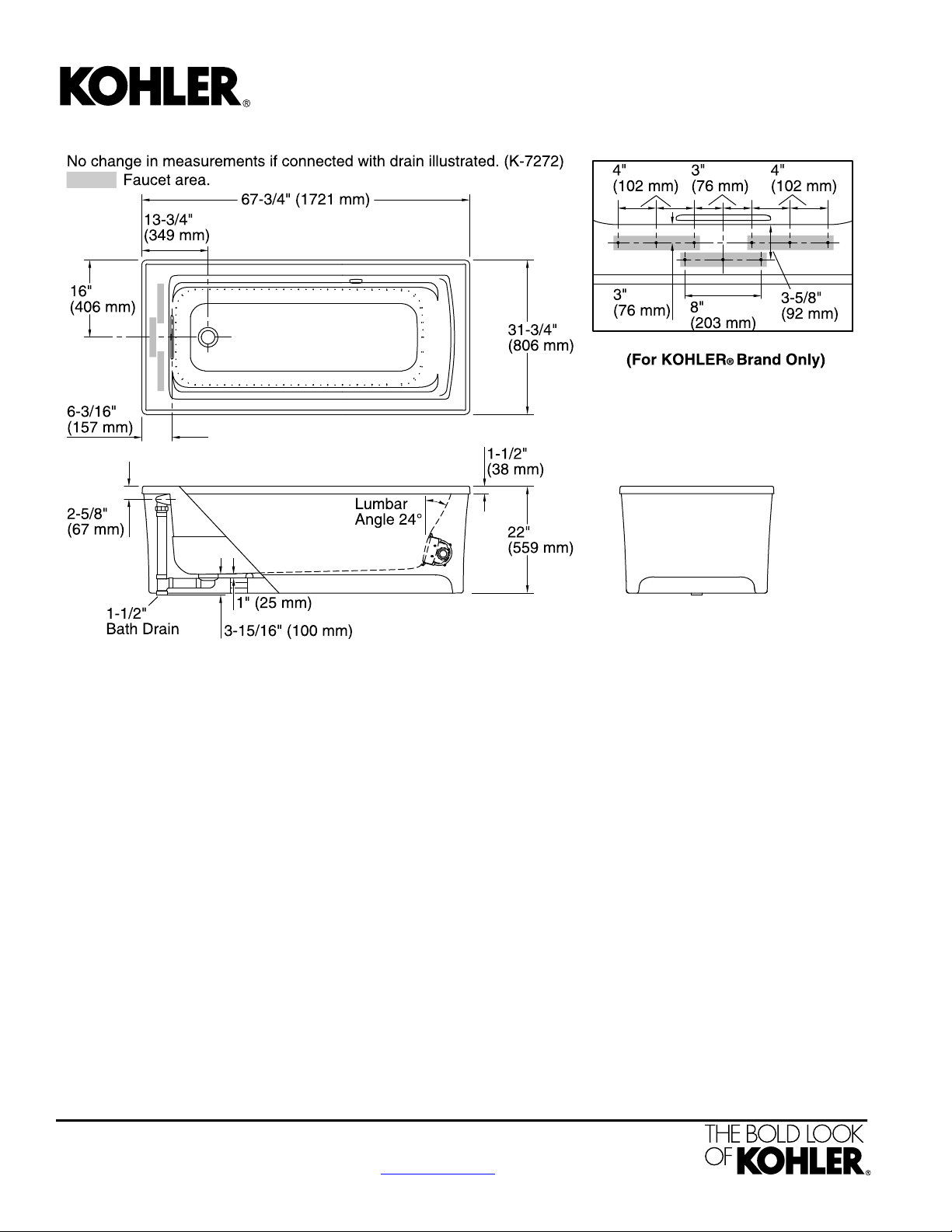

Faucet Hole Locations

Notes

Required Electrical Service Measure your actual product for rough-in details.

One dedicated circuit required, protected with Class A

Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device

(RCD).

Install this product according to the installation

instructions.

The hot water supply should be 70% of the

capacity of the bath or greater. Installations will

vary.

120 V, 15 A, 60 HzBlower:

Technical Information

All product dimensions are nominal. Measure your actual product for roughing-in

details.

FreestandingInstallation:

EndDrain location: Install this product in accordance with the

installation instructions.

51-1/16" x 19-11/16" (1297 mm x 500 mm)Basin area, bottom:

58-9/16" x 25-5/16" (1487 mm x 643 mm)Basin area, top: Locate a GFCI-protected 120 V, 15 A, grounded

electrical outlet behind the bath and within 24"

(610 mm) of the blower motor.

100 lbs (45.4 kg)Weight:

44.2 lbs/ft²(215.8 kg/m²)Minimum floor load:

15-1/16" (383 mm)Water depth: Remote blower installation kit K-1446 is available

for relocating the blower.

65 gal (246.1 L)Water capacity:

Footprint, 1265461, not required, not

included

Template: This bath is designed for freestanding installation

only.

Blower: 120 V, 10 A, 60 Hz, 300 WElectrical component

rating: NOTICE: Do not support the load weight of the

bath by the rim.

VariableBlower speed:

USA/Canada: 1-800-4KOHLER (1-800-456-4537)

Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

3-18-2017 06:41

Archer®

68" BubbleMassage™Bath

K-2595-G
