Kogan KALED27MONC Manuel utilisateur

27" Cinema Display WQHD

2560x1440 IPS LED Moni or

Quick S ar Guide

KALED27MONC

Safe y Precau ions

Read these instructions carefully for future reference.

1. Unplug the monitor before cleaning it with a slightly damp, soft cloth.

2. Wiping the screen with a dry cloth is recommended, only once the screen has been

turned off.

3. Do not use cleaning alcohol or ammonia-based li uids.

4. This monitor is designed with ventilation holes on the back of the cabinet. Do not cover

them or block them.

5. Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat, as

well as in rooms lacking in ade uate ventilation.

6. Do not insert any objects or spray li uids into the vents.

7. Please do not position the monitor in unsafe locations. If the monitor falls, it may be

damaged and may hurt nearby people.

8. Unplug the monitor if it is not going to be in use for an extended period of time.

9. Please do not put heavy items on the monitor or on its cord.

10. Do not open the monitor back panel, as the monitor contains high voltage current, even

when not plugged into a power source.

Wha 's In The Box

•Monitor

•Dual link DVI-D cable

•Power cord

•Power adapter

•Warranty card

•Quick Start Guide

•Audio Cable

Fea ures

•1.07B colours

•Smart image screen settings – OSD with simple layout

•Smart control interfaces for easy settings

•Auto function: when no settings are select, will auto-adjust for optimal results.

All manuals and user guides at all-guides.com

all-guides.com

Basic Se up

1. Insert the DVI cable, HDMI cable, DisplayPort cable or VGA cable into the PC output port.

We recommend using one of the digital options (HDMI or DisplayPort)

2. The monitor has a wide power voltage range; it can be used on AC100-240V~ 50/60Hz

power supplies.

3. Connect the power cable to the monitor power socket, and to the power source in the

room.

4. Turn on the power source supply.

5. To switch on the monitor, press the power control key.

Image Se ings

The right side of the monitor has five keys that will adjust

the monitor settings with aid of the OnScreen Display.

1 MENU Show main menu

2 UP Adjust the options – move up or higher/Hotkey

3 DOWN Adjust the options – move down or lower/Hotkey

4 VOL + Increase sound level/Adjust the options – move right

5 VOL - Decrease sound level/Adjust the options – move left

6 AUTO Exit main menu/when no menus – auto adjust image/display

source list

7 Power ON/OFF

Func ions

Brigh ness

Press MENU, and the main menu will appear as below

Press UP/DOWN to select BRIGHTNESS in the main menu, then press MENU to enter.

DC IN HDMI connector DVI connector VGA connector

Audio connector DisplayPort connector

All manuals and user guides at all-guides.com

•BRIGHTNESS

Press UP/DOWN to select BRIGHTNESS, then press MENU to confirm, then press VOL+/VOL- to adjust.

•CONTRAST

Press UP/DOWN to select CONTRAST, then press MENU to confirm, then press VOL+/VOL- to adjust.

•ECO

Press UP/DOWN to select ECO, then press MENU to confirm. Then press VOL+/VOL- to select from the choices.

(Standard, Text, Movie, Game).

•DCR

Press UP/DOWN to select DCR, then press MENU to confirm. Then press VOL+/VOL- button to select ON

or OFF.


Press MENU, and the main menu will appear as below

Press UP/DOWN to select IMAGE in the main menu, then press MENU to enter.

•H.POSITION

Press UP/DOWN to select H.POSITION, then press MENU to confirm, then press VOL+/VOL- to adjust.

•V.POSITION

Press UP/DOWN to select V.POSITION, then press MENU to confirm, then press VOL+/VOL- to adjust.

•CLOCK

Press UP/DOWN to select CLOCK, then press MENU to confirm, then press VOL+/VOL- to adjust.

•PHASE

Press UP/DOWN to select PHASE, then press MENU to confirm, then press VOL+/VOL- to adjust.

•ASPECT

Press UP/DOWN to select ASPECT, then press MENU to confirm, then press VOL+/VOL- to select between

WIDE or 4:3.

Colour Tempera ure

Press MENU, and the main menu will appear as below

Press UP/DOWN to select COLOR TEMP in the main menu, then press MENU to enter.

All manuals and user guides at all-guides.com

•COLOR TEMP

Press UP/DOWN to select COLOR TEMP, then press MENU to confirm, then press VOL+/VOL- to select.

(Normal, cool, user, warm).

•RED

Press UP/DOWN to select H.POSITION, then press MENU to confirm, then press VOL+/VOL- to adjust the value

of the primary colour red.

•GREEN

Press UP/DOWN to select H.POSITION, then press MENU to confirm, then press VOL+/VOL- to adjust the value

of the primary colour green.

•BLUE

Press UP/DOWN to select H.POSITION, then press MENU to confirm, then press VOL+/VOL- to adjust the value

of the primary colour blue.

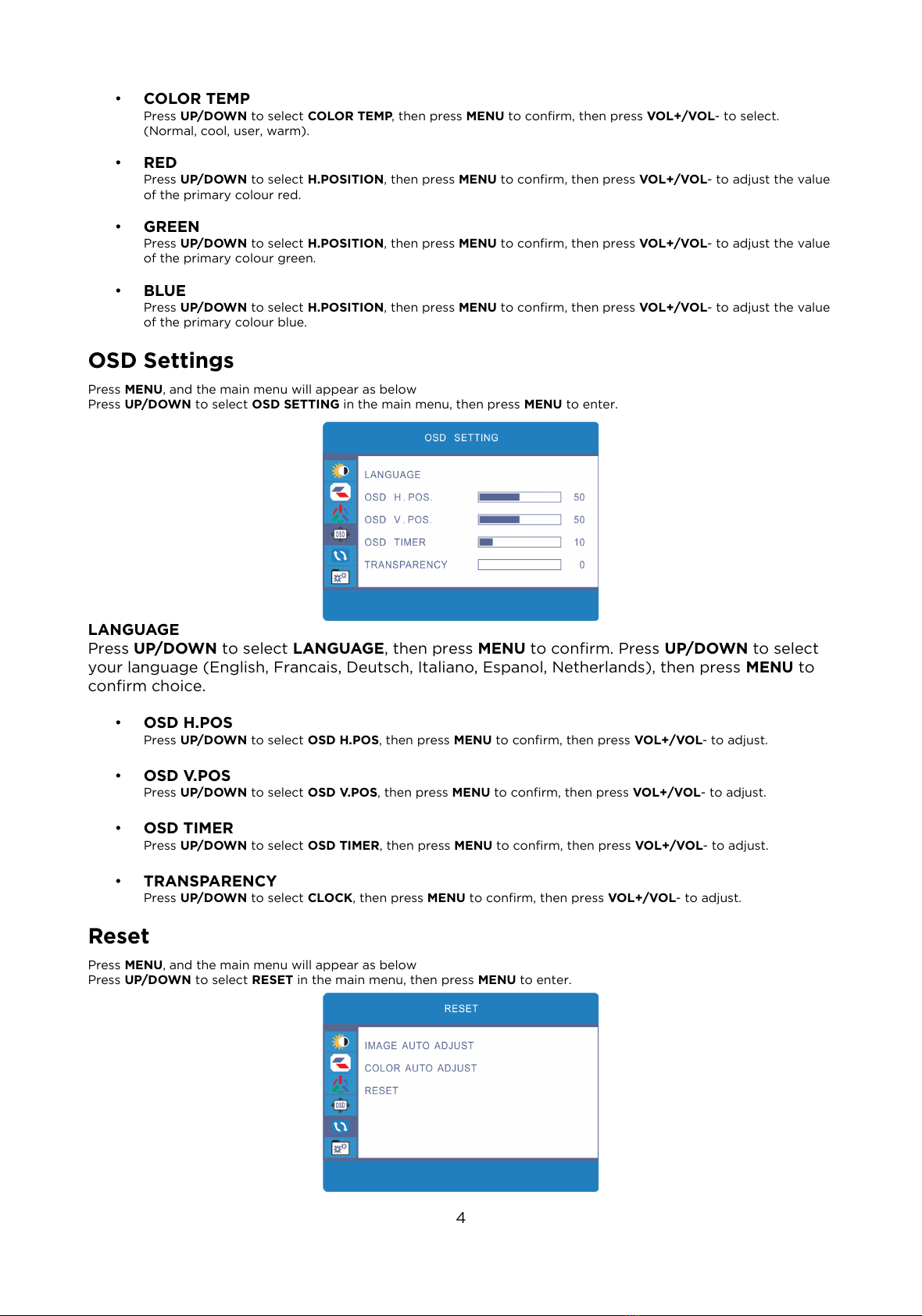

OSD Se ings

Press MENU, and the main menu will appear as below

Press UP/DOWN to select OSD SETTING in the main menu, then press MENU to enter.

LANGUAGE

Press UP/DOWN to select LANGUAGE, then press MENU to confirm. Press UP/DOWN to select

your language (English, Francais, Deutsch, Italiano, Espanol, Netherlands), then press MENU to

confirm choice.

•OSD H.POS

Press UP/DOWN to select OSD H.POS, then press MENU to confirm, then press VOL+/VOL- to adjust.

•OSD V.POS

Press UP/DOWN to select OSD V.POS, then press MENU to confirm, then press VOL+/VOL- to adjust.

•OSD TIMER

Press UP/DOWN to select OSD TIMER, then press MENU to confirm, then press VOL+/VOL- to adjust.

•TRANSPARENCY

Press UP/DOWN to select CLOCK, then press MENU to confirm, then press VOL+/VOL- to adjust.

Rese

Press MENU, and the main menu will appear as below

Press UP/DOWN to select RESET in the main menu, then press MENU to enter.

All manuals and user guides at all-guides.com

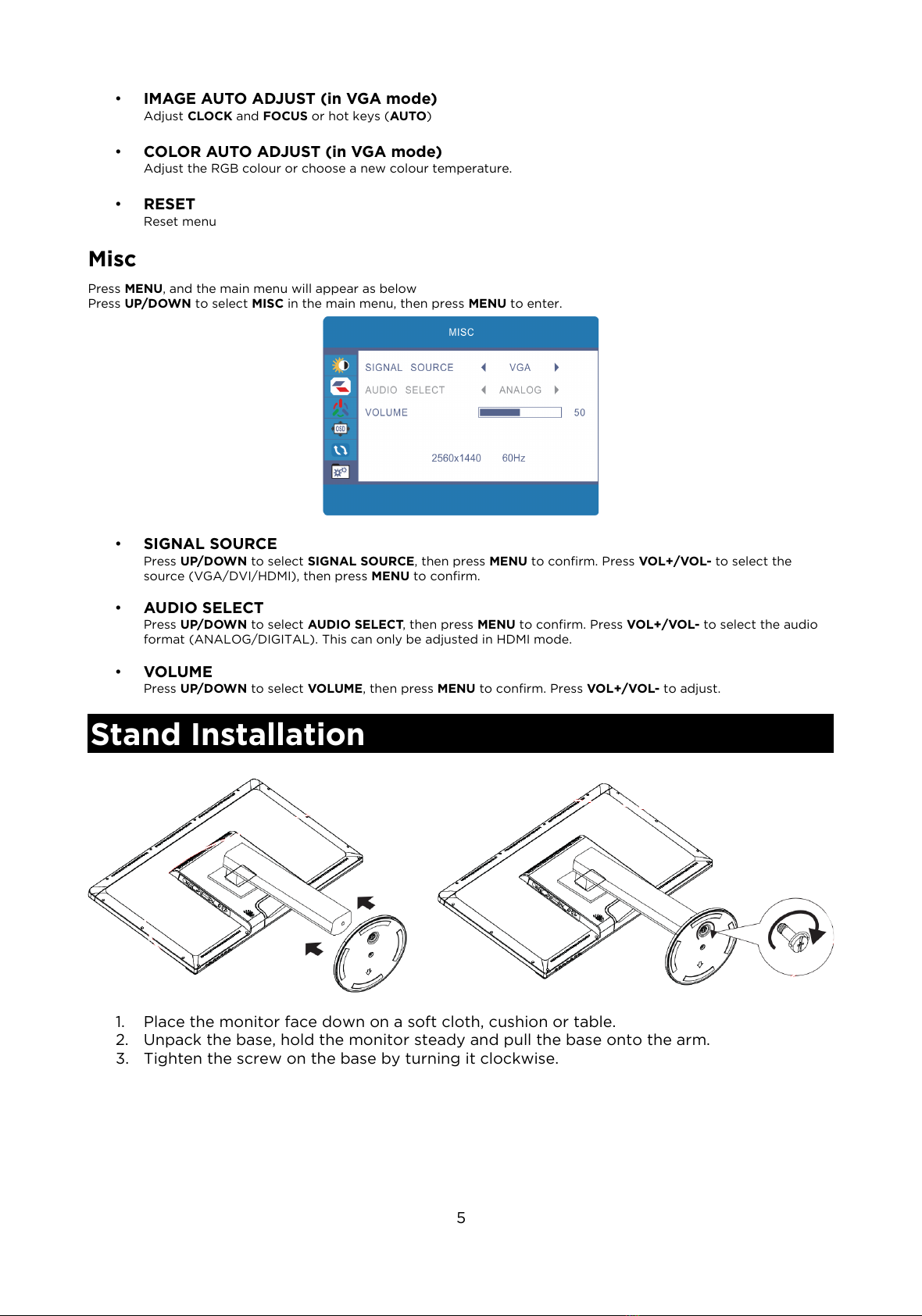

•IMAGE AUTO ADJUST (in VGA mode)

Adjust CLOCK and FOCUS or hot keys (AUTO)

•COLOR AUTO ADJUST (in VGA mode)

Adjust the RGB colour or choose a new colour temperature.

•RESET

Reset menu

Misc

Press MENU, and the main menu will appear as below

Press UP/DOWN to select MISC in the main menu, then press MENU to enter.

•SIGNAL SOURCE

Press UP/DOWN to select SIGNAL SOURCE, then press MENU to confirm. Press VOL+/VOL- to select the

source (VGA/DVI/HDMI), then press MENU to confirm.

•AUDIO SELECT

Press UP/DOWN to select AUDIO SELECT, then press MENU to confirm. Press VOL+/VOL- to select the audio

format (ANALOG/DIGITAL). This can only be adjusted in HDMI mode.

•VOLUME

Press UP/DOWN to select VOLUME, then press MENU to confirm. Press VOL+/VOL- to adjust.

S and Ins alla ion

1. Place the monitor face down on a soft cloth, cushion or table.

2. Unpack the base, hold the monitor steady and pull the base onto the arm.

3. Tighten the screw on the base by turning it clockwise.

All manuals and user guides at all-guides.com

Suppor ed Timing Modes

WARNING: Do not set your graphics card to exceed these maximum refresh rates. Doing so may

result in permanent damage to your monitor.

All manuals and user guides at all-guides.com

all-guides.com

Troubleshoo ing

No image on screen

1. Check if the power button has been switched on.

2. Verify the brightness and contrast of the monitor is within normal settings.

3. Check if the power indicator is orange. If so, then the monitor is powered but not

receiving an input signal.

4. If the source signal is a notebook or laptop, ensure that the signal has been switched to

an external screen mode.

Image is unfocused

1. Check that the source cable has been inserted properly.

Flashing screen

1. The power is insufficient to power the monitor.

2. Check to ensure there are no strong magnetic fields around the monitor such as

speakers, fluoroscent lights, fans, hair dryers etc.

3. By pressing the AUTO key, the Auto Adjust Image function will automatically apply the

optimal image settings.

Colours are incorrec

1. If red, green, blue or any other colour disappears, check to ensure that the signal cable is

connected properly.

2. Try connecting to another PC for comparison.

Produc Specifica ions

Dimension 27"

Moni or Type LED

Brigh ness 300 cd/m2

Colour 1.07B

Resolu ions 2560x1440@60Hz

Power Requiremen 100-240V ~ 50/60Hz

Power Mains Adap er DC24V 2.71A

Power Consump ion 65W

Inpu Connec or

VGA D-sub 15pin Connector

DVI-D DVI-D 24+1pin Connector

HDMI HDMI Ver 1.4 Connector

DisplayPor DisplayPort Ver 1.2A Connector

Audio Inpu 3.5mm Stereo Jack

Environmen

Operation Temp: 0°C ~ 40°C

Humidity: Less than 80%

Storage Temp: -20°C ~ 60°C

If you have any uestions, please contact the Kogan.com customer support team.

All manuals and user guides at all-guides.com
