Kodak Pocket Pico Projector Manuel utilisateur

KODAK Pocket Wireless Pico Projector

User Manual

2.1"H | 2.1"W | 2.1"D (5.3 cm | 5.3 cm | 5.3 cm)

Please read all directions before using the product and retain this guide for reference.

INTRODUCTION

FEATURES

BOX CONTENTS

SAFETY PRECAUTIONS

SETUP

A. CHARGING THE PROJECTOR

B. GENERAL SETUP

C. CONNECT AN HDMI® DEVICE

D. ENABLE YOUR COMPUTER FOR EXTERNAL DISPLAYS

OPERATION

A. PLAYING A MOVIE FILE

B. PLAYING A MUSIC FILE

C. PLAYING A PICTURE FILE

D. MIRRORING THE SCREEN OF A MOBILE DEVICE

CARE AND MAINTENANCE

TROUBLESHOOTING

DISPOSAL PRECAUTIONS

SPECIFICATION

FCC COMPLIANCE STATEMENT

CUSTOMER SERVICE CONTACT INFORMATION

WARRANTY

CONTENTS

36

811

910

1011

1216

1213

1315

1516

1719

1920

2021

2224

Thank you for purchasing the KODAK Pocket Wireless Pico Projector. This User Guide is intended to

provide you with guidelines to ensure that operation of this product is safe and does not pose risk to

the user. Any use that does not conform to the guidelines described in this User Guide may void the

limited warranty.

Please read all directions before using the product and retain this guide for reference. This product is

intended for household use only.

This product is covered by a limited one-year warranty. Coverage is subject to limits and exclusions.

See warranty for details.

1. INTRODUCTION

2. FEATURES

A. Focus Wheel

Turn the focus wheel to adjust the image focus of the projector.

B. Power/Exit Button

Press and hold this button for 5 seconds to turn the projector on or o. Press this button once to

return to the previous screen.

C. Volume – / Previous Button

Decreases the volume or moves to the previous option on the menu.

D. Volume + / Next Button

Increases the volume or moves to the next option on the menu.

E. Conirm Button

Selects the highlighted option on the menu.

F. Lens

Projects the video or image iles from your input device.

NOTE: Never touch the lens using your hands or any sharp object.

G. Air Vent

When the projector is in use, air will cycle through this vent.

NOTE: Always take care that the air vents are never blocked by paper, clothing, or any other

obstruction. Blocking the vents may result in overheating of the projector.

H. MicroSD™ Card Slot

This slot allows you to insert a microSD™ card (up to 64GB), allowing you to access your iles directly

from the projector.

I. DC Input

This port allows you to connect the DC power cord to the projector.

NOTE: the power adapter may become warm or hot while in use. Never cover or attempt to touch

the adapter while it is connected to a power source.

J. Mini HDMI® Input

This port is used to connect the HDMI® (High-Deinition Multimedia Interface) connector. It is

compatible with HD DVD, Blu-ray™, and other protected content playback.

K. Audio Output

This port allows you to connect an external speaker or headphones to the projector.

L. Power Indicator Light

Reference the chart below to understand your projector’s current status:

• Always take care that the replacement battery is the correct type. Risk of explosion.

• Only use the parts provided by the manufacturer.

NOTE: the battery capacity status will be displayed on the upper right corner of the projector’s main

screen.

The icon will appear on the upper right side of the screen when the power adapter is connected or

the battery is fully charged.

The will appear on the upper right side of the screen when the battery power is low. When this

happens, you should charge the projector.

LIGHT COLOR PRJECTOR IS ON PROJECTOR IS OFF

Red Charging Charging

Blue Working —

Controller

A. Volume – Button

B. Volume + Button

C. Up/Down/Left/Right Buttons

D. OK Button

E. Menu Button

F. Exit Button

G. Rewind Button

H. Fast Forward Button

I. Previous Button

J. Next Button

K. Play/Pause Button

L. Stop Button

M. Mute Button

Main Menu

Movie

Accesses the video iles on your microSD™ card.

Music

Accesses the music iles on your microSD™ card.


Accesses the image iles on your microSD™ card.

Wi-Fi®

Allows you to connect to a mobile device via Wi-Fi®.

HDMI®

Connects the projector to an external device via the HDMI® cable.

Setup

Opens the settings menu, which includes the following options:

Language: the following languages are available

• English

• Spanish

• French

• Japanese

• Italian

• Dutch

• Portuguese

• Chinese

• German

Restore Default: restores the projector to factory settings

Power O

When this option is selected, you will be prompted “yes” or “no”. Select “yes” to power the projector o.

KODAK Pocket Wireless Pico Projector

HDMI® Cable

HDMI® Adapter

Power Cable

Power Adapter

Controller

Mini Tripod

Quick Start Guide

3. BOX CONTENTS

When Using the Projector

• Refer to this user guide and take note of all safety precautions before using your projector.

• Do not place the projector on uneven or unstable surfaces.

• Do not use the projector in any place where it may come into contact with smoke. The residue from

smoke may cause build-up on critical parts of the projector, resulting in damage or

decreased performance.

• Do not use damaged power cords, accessories, and other parts with your projector.

• Keep all parts out of the reach of children.

• Do not block or place anything near the projector’s ventilation holes. Doing so may cause internal

heat build-up that can result in degraded picture quality and damage to the projector.

• Always ensure that the operating voltage of your projector matches the voltage of your

power source.

• Do not store your projector in high temperatures, in direct sunlight, or any place where it may

become wet or damp.

• Do not handle this product with wet or damp hands.

• Do not reach for the unit if it has fallen into water. Always unplug it irst.

• Do not use this product in a place where it may fall.

• When using for the irst time, ensure that the projector is plugged into a grounded wall socket.

• Never attempt to short-circuit the battery.

• Discontinue use if leakage is found.

When Servicing or Replacing Parts

• Never attempt to disassemble this product. There are no user serviceable parts.

• Do not attempt to remove or disassemble the battery. This will increase the risk of ire or

chemical burns.

• Always take care that the replacement battery is the correct type. There is a risk of explosion.

• Only use the parts provided by the manufacturer.

4. SAFETY PRECAUTIONS

Before using your projector, check that all parts listed in the Box Contents section of this manual are

present. For best results, we recommend mounting the projector on the included tripod.

A. Connect the power cable to the power adapter.

B. Plug the power cord into an outlet or other

power source.

C. Plug the power adapter into the projector’s

DC input.

D. You may now use the projector.

E. While plugged in, the projector’s battery will

automatically charge. It is recommended that

you allow the projector to charge for at least 4

hours before using it in battery mode for the

irst time.

NOTE1: When the projector is charging, the power indicator light will glow red, regardless of whether it

is powered on or o. When the projector is on, but not charging, or is fully charged, the power indicator

light will glow blue.

NOTE2: You may charge the projector with any power adapter that uses a micro USB plug.

AC Power Cord Requirements

Ensure that the correct AC plug type is used, according to your location. If the power cord included

with your projector does not match your local power source, contact your sales dealer.

NOTE: It is recommended that your video source device uses a grounded plug. This will prevent signal

interference from voltage luctuations. When using the included power adapter, a two-pronged plug is

required.

5. SETUP

5A. CHARGE THE PROJECTOR

Australia and

Mainland China

USA, Canada,

and Taiwan

Continental

Europe UK Japan Sweden

A. Turn on the Projector

Press and hold the power button for 5

seconds to turn on the projector.

B. Adjust Screen Size

The screen size will increase or decrease as

the projector is brought closer or further from

the wall. The chart below details the

correlation between distance and screen size.

C. Adjust the Focus Wheel

Open a still image and carefully rotate the focus wheel until the image is clear.

D. Connect Speakers or Headphones

Connect your speakers or headphones to the projector’s audio output port using a 3.5mm cable.

Adjust the volume as needed.

E. Insert MicroSD™ Card

Position the microSD™ card with the chip facing up, and slide

it into the microSD™ card slot until it clicks into place.

NOTE: when the projector recognizes that a microSD™ card has

been inserted, the blue SD card icon will light up on the upper

right corner of the screen.

Your projector can be connected to a variety of external devices using the included HDMI® cable.

Compatible devices include laptops, smartphones, tablets, gaming devices, and more.

• Connect the mini HDMI® end of the cable to the projector.

• Connect the other end of the HDMI® cable to the external device.

5B. GENERAL SETUP

5C. CONNECT TO AN HDMI® DEVICE

SCREEN SIZE (INCHES) PROJECTED DISTANCE (FEET/METERS)

7 0.6 ft. / 0.18 m

38 3 ft. / 1 m

56 5 ft. / 1.5 m

100 8 ft. / 2.5 m

If your computer does not automatically recognize the projector, it means that you must irst enable

the use of external displays. Each computer is dierent and may require a dierent setup.

To set up Windows 7 for external displays, follow the instructions below.

a. Open the start menu and select the “Control Panel”.

b. Select “Appearance and Personalization”.

c. Under the “Display” section, select “Connect to an external display”.

d. Here you will be able to select your projector as an external display.

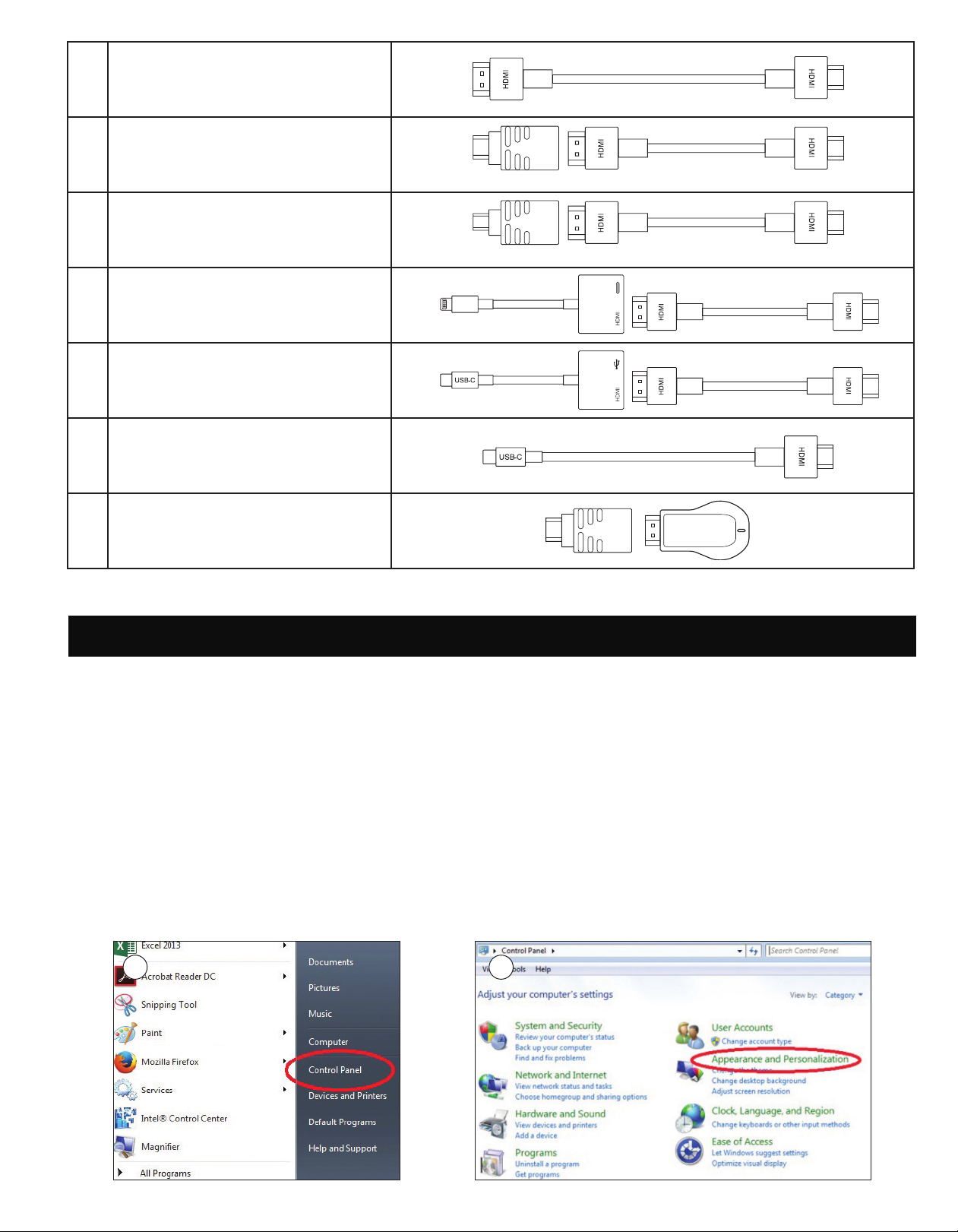

1 Devices with HDMI port

2 Devices with mini HDMI port

3 Devices with micro HDMI port

4 iOS devices with lightning port

5Devices with USBC

(USB type C) port

6Devices with USBC

(USB type C) port

7Devices with Screen

Mirroring Function

HDMI to Mini HDMI cable

Mini HDMI adapter to HDMI cable HDMI to Mini HDMI cable

Micro HDMI adapter to HDMI cable HDMI to Mini HDMI cable

Lightning digital AV adapter HDMI to Mini HDMI cable

USBC to HDMI adapter HDMI to Mini HDMI cable

USB type C to Mini HDMI cable

Mini HDMI adapter to Wireless dongle

5D. ENABLE YOUR COMPUTER FOR EXTERNAL DISPLAYS
