Kodak DP850 - Ultra Digital Projector Manuel utilisateur

Page 1

Before you start.........................................................................................2

Important information...............................................................................5

Connecting a computer to the KODAK DP850 ULTRA..........................6

Connecting a video source to the KODAK DP850 ULTRA..................10

Connecting a TV-source to the KODAK DP850 ULTRA ......................12

Using the KODAK DP850 ULTRA ..........................................................14

Using the menus.....................................................................................19

Maintenance ............................................................................................32

What do I do if (Trouble shooting).........................................................33

CONTENTS

1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 1

Thank you for choosing the

KODAK DP850 ULTRA projector

The KODAK DP850 ULTRA will display high brightness

images with vivid colors, even under normal light

conditions.

Thanks to the unique KODAK Graphical User Interface,

the KODAK DP850 ULTRA offers true plug and play

operation from remote control, which by the way also

can control your computer.

1.1 Color coding for ease of use

All connectors, plugs and buttons on the product are

colored to make the connection and use as easy and

intuitive as possible. The following colors are used:

◆Computer - gray (PC) /black (MAC)

◆TV/channel - purple

◆Video (Composite) - yellow

◆S-video - dark blue

◆Stand by - red

◆Auto setup - green

◆Audio - red/white

Contents

1 Before you start

1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 2

Contents

1.2 Accessories

Please take a few minutes to make sure that your

KODAK DP850 ULTRA contains all the necessary parts:

1.2.1 Computer accessories for

external PC/MAC

◆Computer cable Enhanced Video Connector (EVC),

male at both ends, 3 m/9.8 ft.

◆Cable for PC / MAC audio (Stereo jack, 0.3m/1 ft.)

◆PC adapter

◆RS-232 mouse cable for PC

◆PS/2 mouse cable for PC

◆MAC adapter

◆Apple Desktop Bus (ADB) mouse cable for MAC

1.2.2 Video accessories

◆Super-video cable

◆Composite video cable

◆Audio cable

1.2.3 Other cables/accessories

◆Dual soft bag

◆Power cable, 4m/12 ft.

◆Remote control including batteries

(type AAA/LR03

1.2.4 Optional cables and accessories

◆EVC cable, 10-15m

◆Ceiling mount kit

1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 3

Contents

CHAN

FOCUS

ZOOM

S-V

Batteries

Softbag

Interactive

Remote

Control

EVC cable

Super-video cable

Composite video cable

Audio cable

Stereo jack cable

PC adapter

Mac adapter

PS/2 mouse for PC

RS232 mouse for PC

ADB mouse for Macintosh

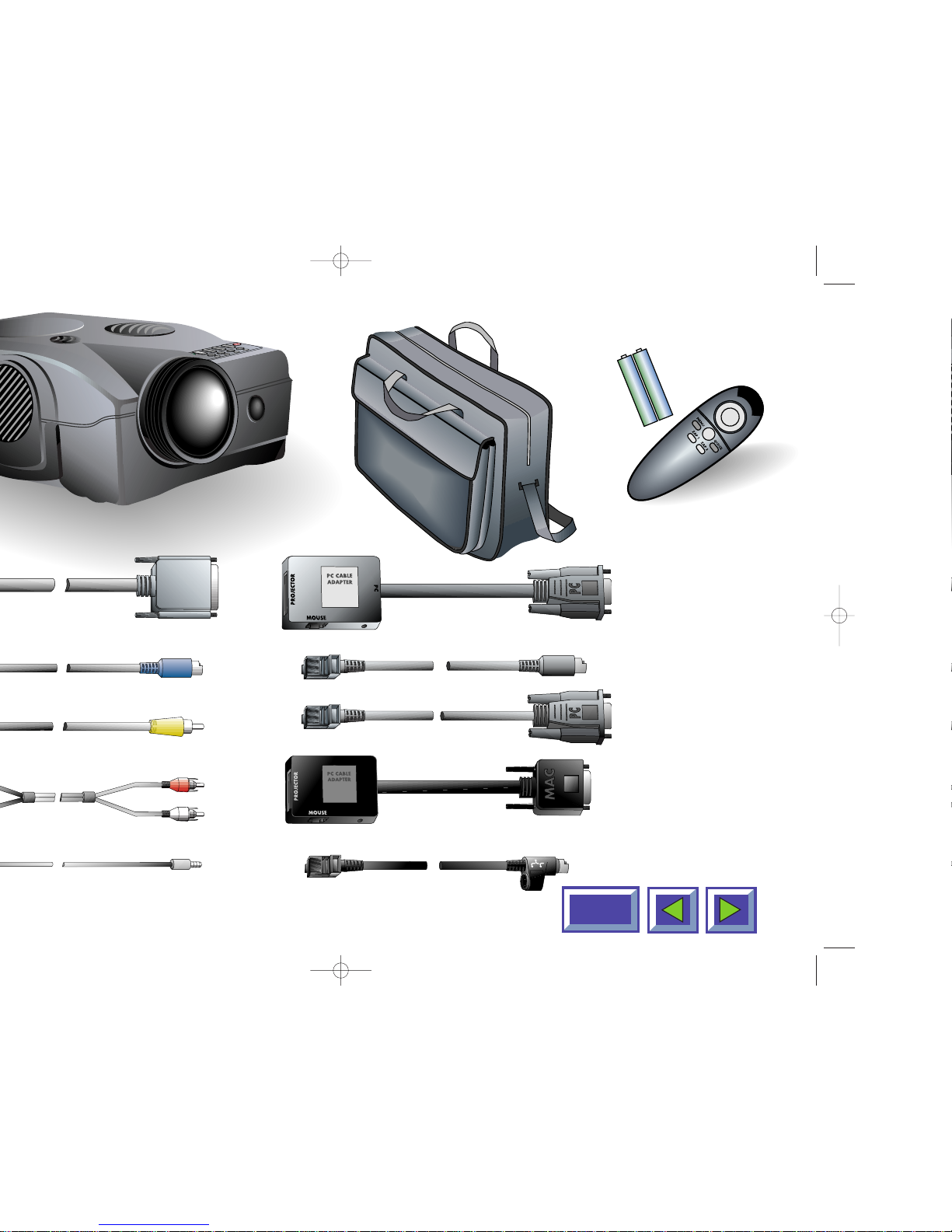

Figure 1: Product and accessories

1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 4

1.3 Insert batteries in the remote

control

Figure 2 shows the remote control with the battery

lid removed. Slide off the battery lid and insert the

batteries with the + and - poles correct. Slide the

battery lid back on again.

The warranty card or copy of invoice is your proof of

purchase. Please make sure that the warranty card is

returned in order to get the warranty service you are

entitled to.

Failure to return the warranty card may void your

warranty.

NOTE!

Please use caution when transporting the unit.

2. Important information

Contents

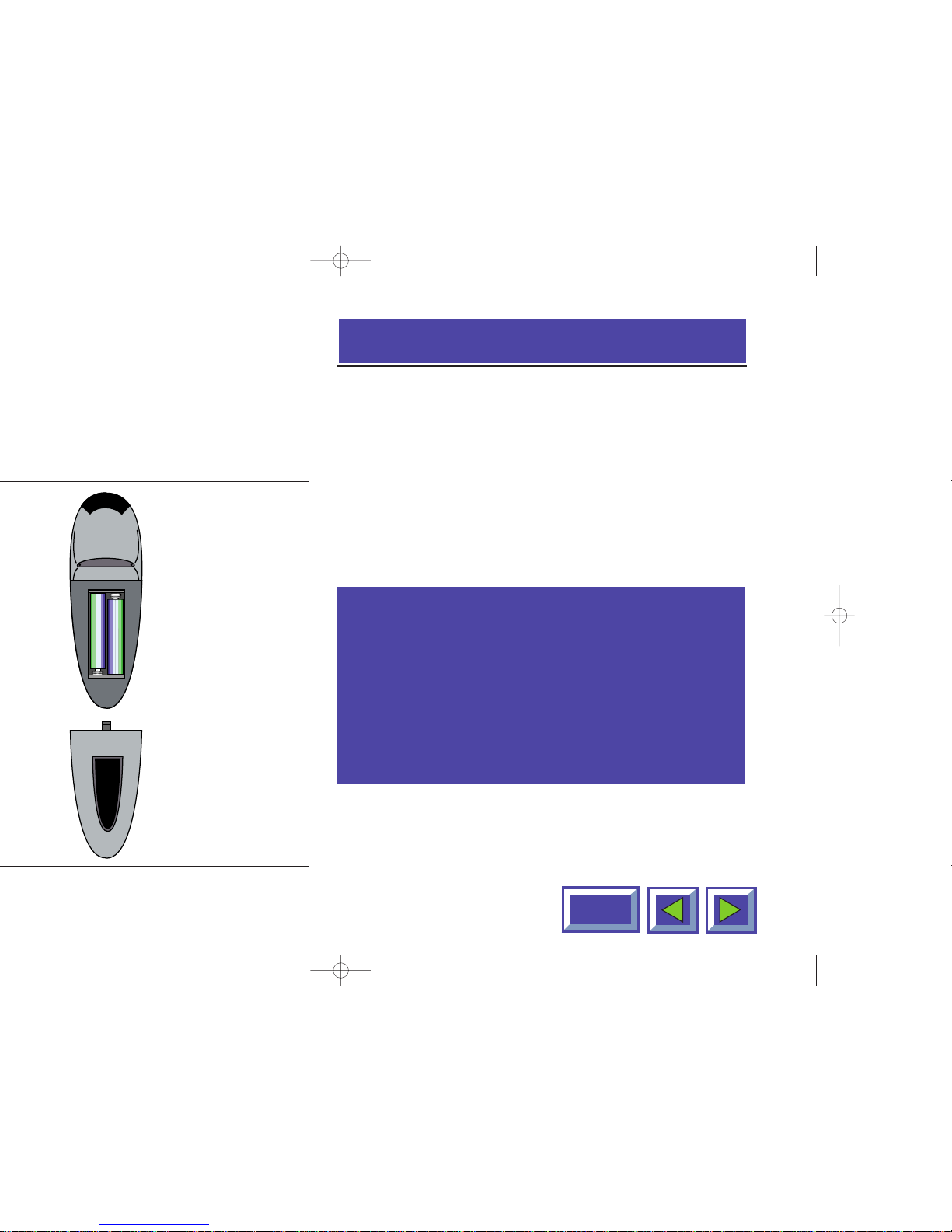

Figure 2: Inserting batteries in remote control

WARNING!

Tampering with or opening the

KODAK DP850 ULTRA can be dangerous.

For replacement of the lamp, see the instruc-

tions support with the replacement lamp.

Leave maintenance to authorized KODAK

service personnel. Please contact your local

dealer with any service or maintenance

questions you may have.

1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 5

Contents

The procedure for connecting a

computer to the KODAK DP850 ULTRA

is the same for all types of computers.

1. Make sure the computer, monitor and KODAK

DP850 ULTRA are switched off.

2. Identify the RGB out connector on the back of your

computer (where you connect a monitor to the

computer).

3. Connect the computer to the KODAK DP850

ULTRA using the EVC cable and the adapter for

the computer you are using. See figures 3 and 4.

4. If you have a desktop computer and want to display

the image on your computer monitor, connect the

cable from your monitor to the adapter.

See figure 5 and 6.

5. If you want to use the remote control to control your

computer, connect the correct mouse cable from

the computer to the adapter box. See figures 7 and

8. When your computer is connected to the KODAK

DP850 ULTRA with the EVC cable (with EVC con-

nector on the computer), the remote mouse control

will automatically function as a regular mouse on

your PC or MAC.

6. If you want to use sound with your computer,

connect the stereo jack cable to the computer audio

connection and to the PC or MAC adapter box.

7. Turn on the KODAK DP850 ULTRA and then the

computer. The computer image should now be

projected from the KODAK DP850 ULTRA and the

remote control should now work as a regular

mouse. If the computer’s image is not displayed

simultaneously on the monitor, or the mouse is not

working, see the section ‘What do I do if’.

3. Connecting a computer to the KODAK DP850 ULTRA

1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 6

Contents

Connecting to a laptop, notebook

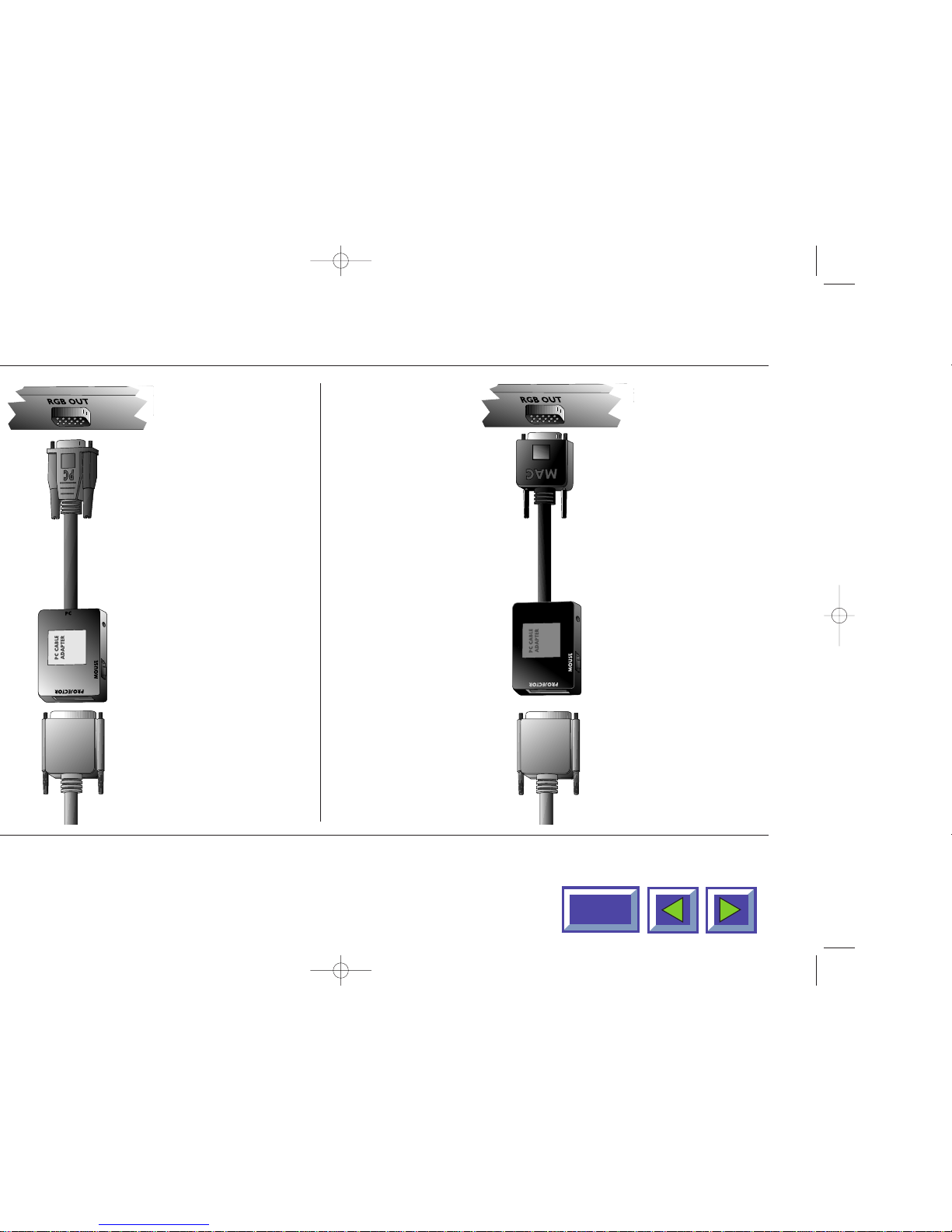

Figure 3: Connecting to a laptop, notebook

Connecting to an Apple PowerBook

Figure 4: Connecting to an Apple PowerBook

PC adapter

Back panel of

computer

EVC cable

MAC adapter

Back panel of

computer

EVC cable

1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 7

Contents

Connecting to a desktop PC

with standard RGB

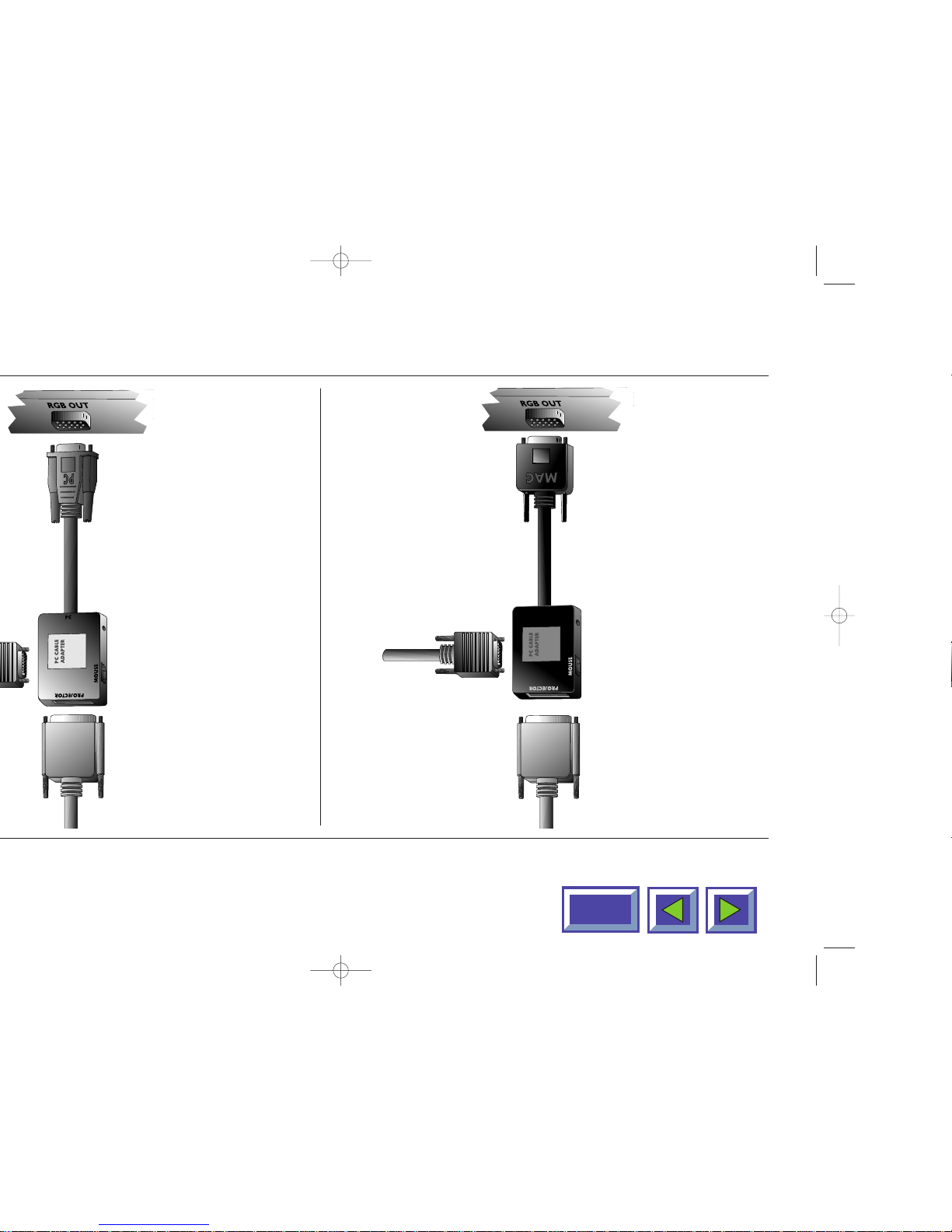

Figure 5: Connecting to a desktop PC

with standard RGB

Connecting to an Apple Macintosh

desktop computer

Figure 6: Connecting to an Apple Macintosh

desktop computer

PC adapter

PC monitor PC monitor

Back panel of

computer

EVC cable

MAC adapter

Back panel of

computer

EVC cable

1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 8

Contents

Connecting the mouse cable

and stereo jack (PC)

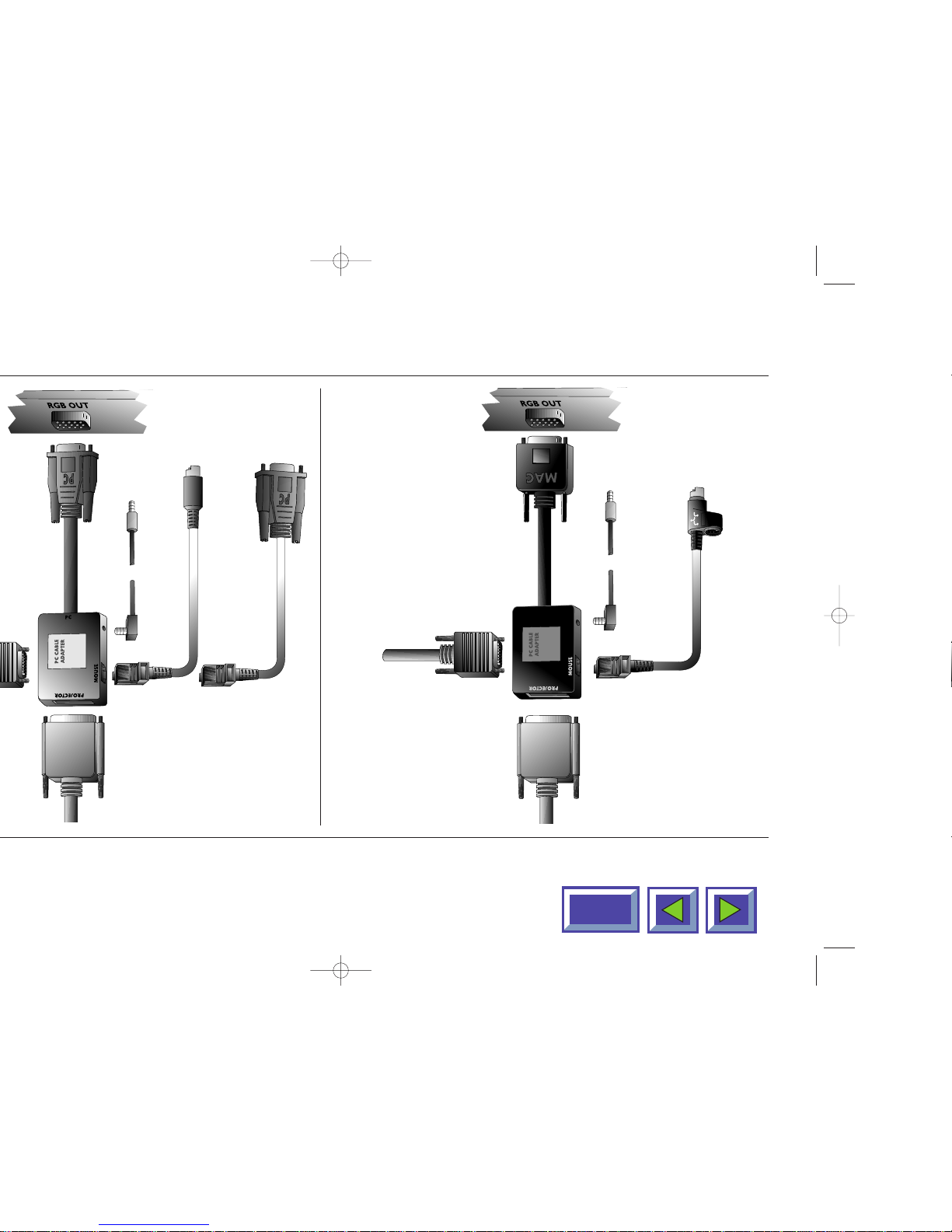

Figure 7: Connecting the mouse cable and

stereo jack (PC)

Connecting the mouse cable and

stereo jack (MAC)

Figure 8: Connecting the mouse cable and

stereo jack (MAC)

PC adapter

PC monitor PC monitor

Back panel of

computer

EVC cable

MAC adapter

Back panel of

computer

EVC cable

Stereo jack cable

PS/2 mouse for PC

RS232

mouse for PC

Stereo jack cable

ADB mouse for

Macintosh

1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 9

Contents

4. Connecting a video source to the KODAK DP850 ULTRA

The procedure for connecting a video

source to the KODAK DP850 ULTRA is

the same for S-video and Composite

video

SECAM, PAL N and PAL M modes are manually

selected by pressing the “Green Button“. If the right

format is not found the first time, press again. The

video format is stored separately for each connector.

1. Make sure that the video source and the

KODAK DP850 ULTRA are switched off.

2. Connect the video cable from the Video out

connector of the video source to the correct video

connector on the KODAK DP850 ULTRA plug panel.

3. Connect the audio cable from the Audio out

connectors of the video source to the Audio in

connectors on the KODAK DP850 ULTRA. Connect

the red plug to the red connector, and the other

plug to the white connector. Red is the right stereo

channel.

4. When all the connections are done and verified,

switch on the video source and the KODAK DP850

ULTRA.

5. The KODAK DP850 ULTRA will now automatically

display the pictures from the video source. If not,

see the section ‘What do I do if’.

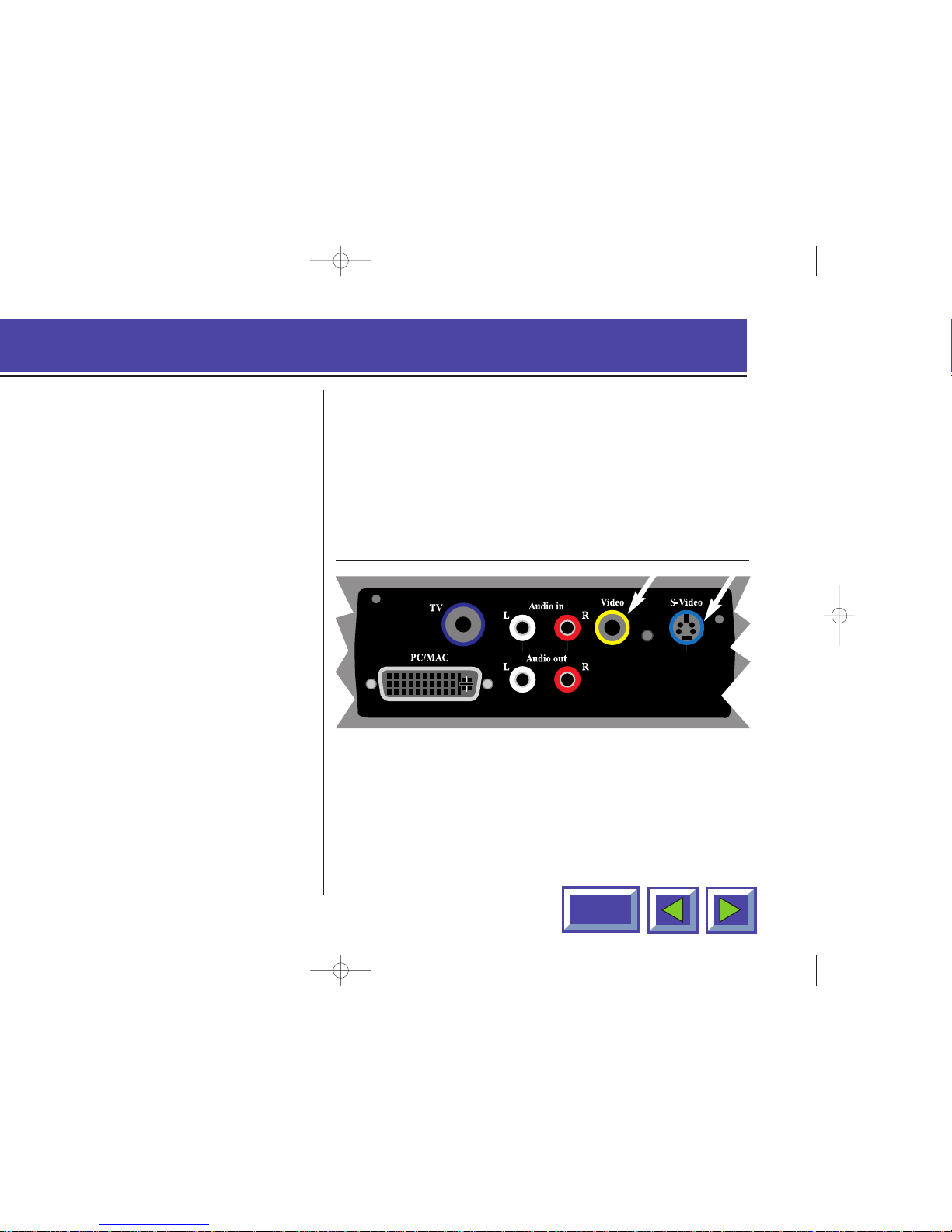

Figure 9: Connecting to video sources

1214 (ELEK). KODAK ENG 05-05-98 11:41 Side 10
