Kodak 7 Manuel utilisateur
Operator's Manual A-62032
Part No. 3C4923
KODAK
IMAGELINKTM
Printer 7
BUSINESS IMAGING SYSTEMS
A-62032 November 1996 i
The
Kodak Imagelink
Printer 7, CAT No. 887 9405, with the
Kodak Imagelink
Printer 7
Paper Supply, CAT No. 859 1943, the
Kodak Imagelink
Printer 7 Sorter, CAT No. 864 6754,
and the
Kodak Imagelink
Printer 7 Sorter Interface, CAT No. 199 7964, are in conformance
with the following standards and bear therefore a CE mark:
EN 55022 Class B/1987
EN 50082-1/1992
EN 60555-2/1987
EN 60950/1993
following the provisions of the applicable directives:
89/336/EEC and amendments
73/23/EEC and amendments.
THIS DIGITAL APPARATUS DOES NOT
EXCEED THE CLASS A LIMITS FOR RADIO
NOISE EMISSIONS FROM DIGITAL
APPARATUS AS SET OUT IN THE RADIO
INTERFERENCE REGULATIONS OF
THE CANADIAN DEPARTMENT OF
COMMUNICATIONS.
LE PRESENT APPAREIL NUMERIQUE N’EMET
PAS DE BRUITS READIOELECTRIQUES
DEPASSANT LES LIMITES APPLICABLES AUX
APPAREILS NUMERIQUES DE LE CLASSE A
PRESCRITES DANS LE REGLEMENT SUR LE
BROUILLAGE RADIOELECTRIQUE EDICTE
PAR LE MINISTERE DES COMMUNICATIONS
DU CANADA.
This equipment complies with the requirement in part 15 of FCC Rules for a class A
computing device. Operation of this equipment in a residential area may cause unacceptable
interference to radio and TV reception requiring the operator to take whatever steps may be
necessary to correct the interference.
(Canada only)
This digital apparatus does not exceed the Class A limits for radio noise emissions from
digital apparatus as set out in the interface - causing equipment standard entitled “Digital
Apparatus,” ICES - 003 of the Department of Communications.

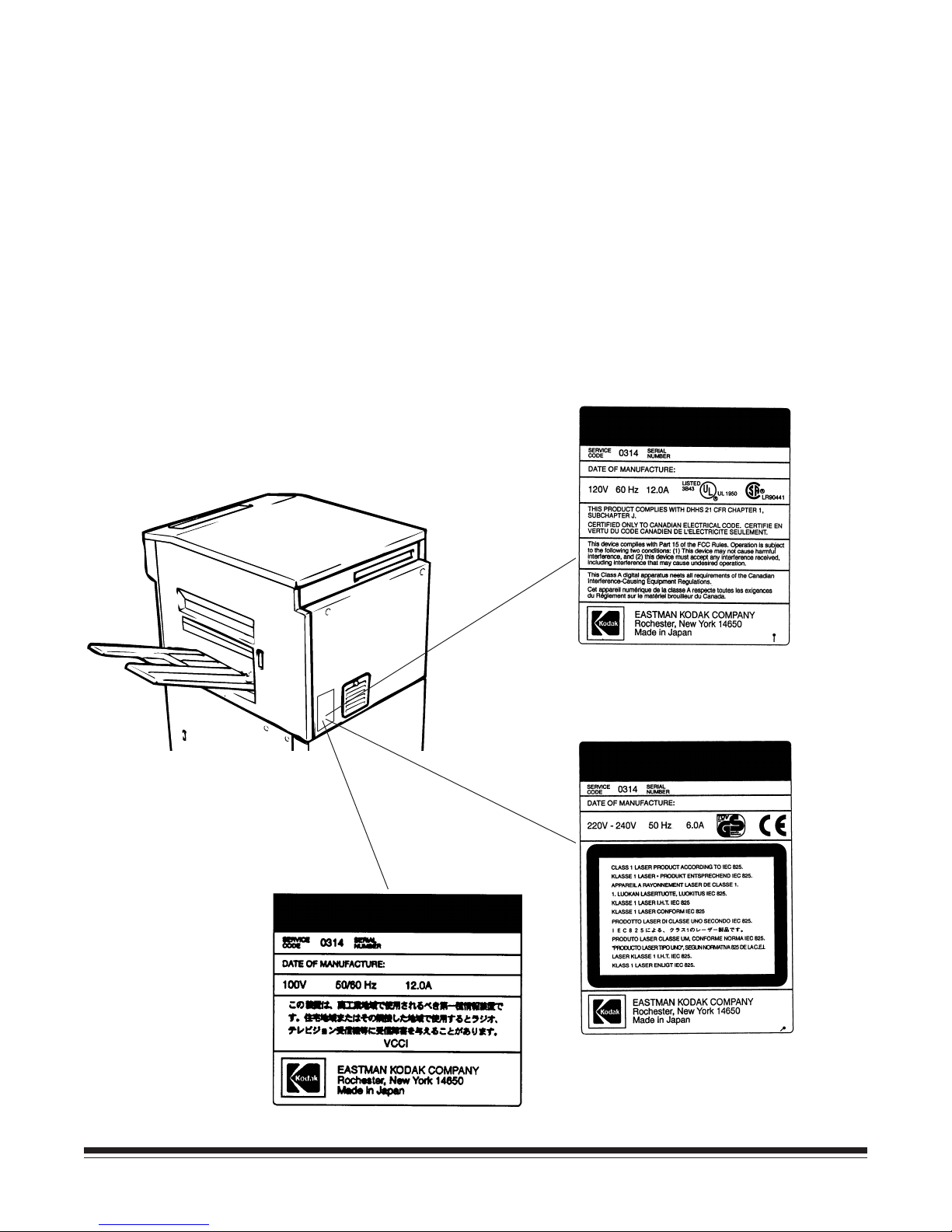

WARNING: The use of controls or adjustments or the performance of procedures other than
those specified in this publication may result in hazardous radiation exposure. This product
complies with 21 CFR, Chapter 1, Subchapter J, as indicated on the label located on the rear
cover of the printer.
ii November 1996 A-62032
Warning and safety information
Locate the printer in a well-ventilated room.
A negligible amount of ozone is generated during
normal operation of this printer. An unpleasant
odor may, however, be created in poorly ventilated
rooms during extensive printer operations. For a
comfortable, healthy, and safe operating
environment, it is recommended that the room be
well-ventilated.
A dedicated electrical socket-outlet shall be
installed near the printer and shall be easily
accessible.
KODAK
IMAGELINKTM Printer 7
KODAK
IMAGELINKTM Printer 7
KODAK
IMAGELINKTM Printer 7
A-62032 November 1996 1-1
Section 1 Overview
Introduction We are pleased that you have purchased the
Kodak Imagelink
Printer 7. We feel confident that you will find your new laser printer
more than adequate to meet your printing needs.
In order to make the best use of the printer, we recommend that
you read the information in this manual carefully and follow the
instructions contained herein. This manual, along with the
appropriate
Kodak Imagelink
Digital Workstation and Network
Node manuals, provides information on operating the printer,
setting up the printer, operator maintenance, and instructions on
how to clear a jam.
Location/Description
of parts—Front 4
3
5
1
2
1. Paper Supply Cabinet Door
2. Toner Collection Bottle
3. Printer Left Cover
4. Printer Top Cover
5. Operation Panel (See page 2-1 for detailed
drawing.)
6. Printer Front Cover
7. Power ON/OFF Switch
8. Paper Cassette (Universal Cassette)
6
7
8
1-2 November 1996 A-62032
9. Paper Supply Cabinet Right Cover
10. Paper Exit Tray
11. Printer Right Cover
12. Printer Cable Interface Socket
13. Printer Rear Cover
14. Image Transfer/Paper Separator Ozone
Filter Cover
15. Paper Supply Cabinet Rear Cover
16. Dataplate
17. Circuit Breaker
18. Power Cord Socket
19. Adjustable Feet

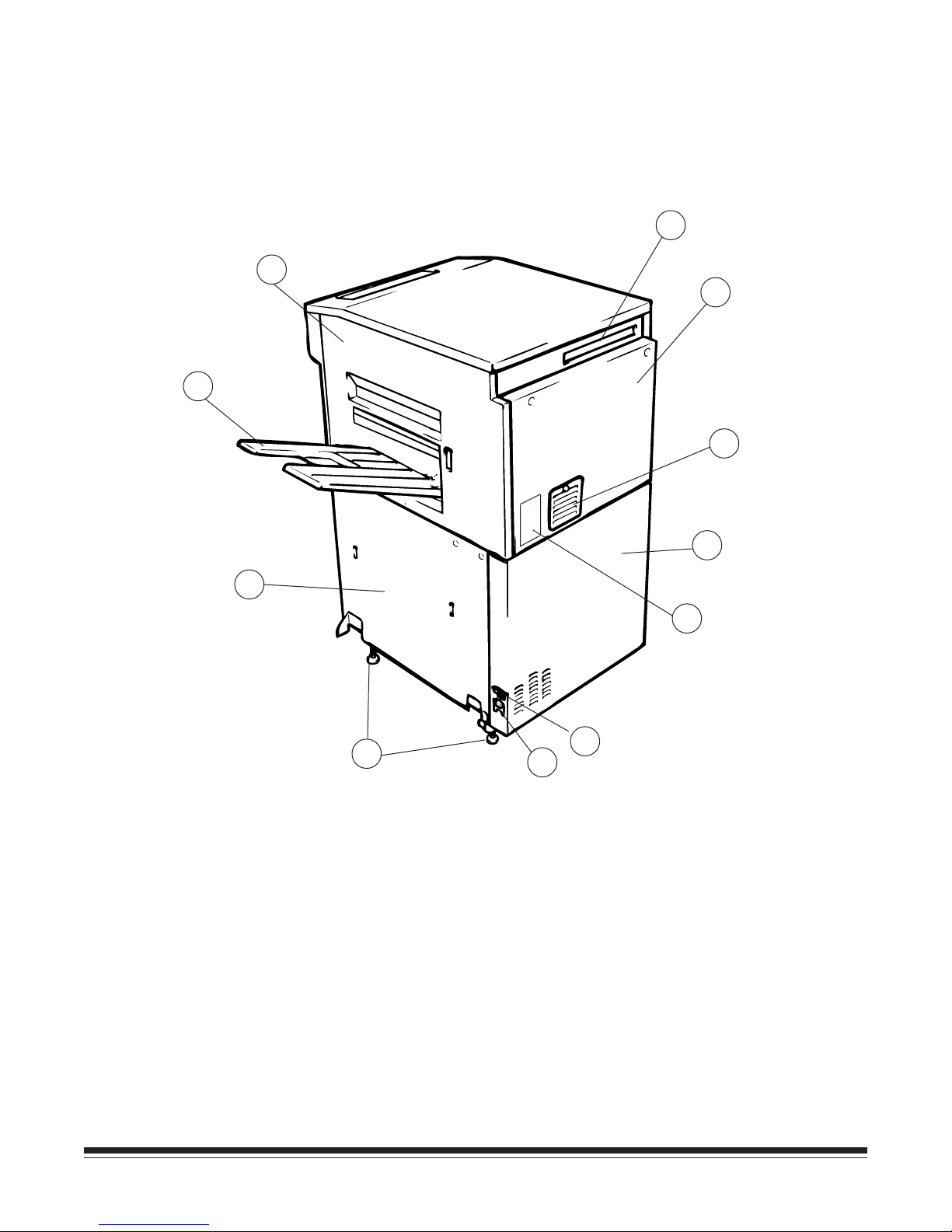

Location/Description of
parts—Back
12
14
13
15
16
9
11
19
10
18
17
A-62032 November 1996 1-3
20. Vertical Transport Roller Knob (M6)
21. Separator Roller
22. Feed Roller
23. Transport Roller Knob (M5)
24. Transport Section Release Plate (M4)
25. Synchronizing Roller Knob (M3)
26. Toner Bottle Holder
27. Toner Bottle
28. Drum Charge Ozone Filter
29. Fusing Unit
30. Mechanical Print Counter
31. Electrophotographic (EP) Unit
32. Fusing Roller Knob (M1)
33. Release Lever (M2)
34. Image Transfer/Paper Separator Charger
35. Paper Take-Up Section Release Knob
21
22
25
26 27 28
32
33
34
35
20
23
Location/Description of
parts—Inside
31
24
29
30
A-62032 November 1996 2-1
Check that the power cord has been connected to the printer and
outlet; turn the power ON/OFF switch to its right side ( side) to
turn the power on.
Section 2 Operation
Turning the printer on and
off
Printer Status
Ready
Busy
Paper Jam
Indicates
Printer able
to accept
new print
commands
Currently printing,
unable to accept
new print
commands
Clear paper jam
Printer Status
Toner Empty
Used Toner
Bottle Full
Paper Empty
Selected
Tray
Indicates
Replace with a
new Toner Bottle
Replace with a
new Used Toner
Collection Bottle
Paper cassette you
are using is empty,
refill paper.
Test Control
Test
Cancel
Functions
Press to start Test
Print function only
when the Ready
indicator is lit.
Press to cancel
Test Print
function.
Operation panel The operation panel contains the Printer Status and Error Code
displays, and the Test controls.
PAPER JAM
TONER EMPTY
USED TONER BOTTLE FULL
READY
BUSY
PAPER EMPTY
SELECTED
TRAY CHECK
TEST
CANCEL
Turn the power ON/OFF switch to its left side ( side) to turn the
power off.
Error Code Display
(2 characters appear,
see Appendix C)
2-2 November 1996 A-62032
Loading paper This laser printer supplies paper to the printer by feeding paper into
the unit automatically from one of four universal cassettes.
Universal cassette
The universal cassette can be used to feed the following paper
sizes: A3T, B4T, A4T/Y, A5T, B5T/Y, B6T, LedgerT, LegalT,
LetterT/Y, ExecutiveT/Y, InvoiceT, 7 x 8 1⁄2". (T means lengthwise
feeding and Y means crosswise feeding.) See Appendix A for more
information on paper sizes. 350 sheets of paper can be loaded in
each of the 4 universal cassettes.
NOTE: B5Y and B6T feed from upper 3 cassettes only.
1. Pull the universal cassette out as far as it will go from the
cabinet.
Metric
Inch
USA only
Swing up the lift-up plate release lever to lower the paper lift-up
plate in the cassette.
2. Change the switch position located on the rear right side in
the cassette, depending on the paper size to be used.
Switch to “Metric” when paper size is A3T, B4T, A4T/Y,
B5T/Y, A5T, or B6T.* All trays must be set to “Metric” if the
previous paper sizes are used.
Switch to “Inch” when paper size is 11 x 17" (LedgerT),
8-1/2 x 14" (LegalT), 8-1/2 x 11" (LetterT/Y), 7-1/4 x 10-1/2"
(ExecutiveT/Y), 5-1/2 x 8-1/2" (InvoiceT), or 7 x 8 1/2".*
All trays must be set to “Inch” if the previous paper sizes are
used.
*All trays must have the same size paper to use the Digital Workstation or
Network Node AUTO feature.
A-62032 November 1996 2-3
3. While holding the cassette, depress and spread the front paper
guide wider than the paper size to be used.
4. Slide the green resin plate of the right paper guide toward the
right side wider than the paper size to be used.
NOTE: Be sure to slide the resin plate and not to hold the lever
part, as that may bend it.
5. When you load the ledgerT size paper, slide the right paper
guide all the way to the right side and remove the lever by
depressing it from the both sides. And insert the edges of the
lever in the position shown in the illustration.
6. Align the stack of paper and set the paper in the cassette with
the sealed surface down. While holding the cassette, slide
and fit the front and right paper guides to the paper edges.
NOTE: Be sure to slide the resin plate to move the right paper
guide. Check that the top level of the paper does not
exceed the line marked on the rear paper guide.
2-4 November 1996 A-62032
USA only
Swing the lift-up plate release lever back into position to lift up the
paper lift plate.
To attach the paper exit tray, insert the two hooks of the paper exit
tray into the lower holes of the paper exit section.
Installing the paper exit
tray
7. Push the universal cassette back into position.
