Introduction

Thank you for purchasing the Kodak Professional 8670 PS thermal printer

(8670 printer). This printer is a thermal dye diffusion device with superior

printing speed. It contains a 133 MHz MIPS processor, has a resolution of

300 pixels per inch (ppi), and prints a three-color page in about 75

seconds. Printed images are high-contrast and long lasting. Kodak

Ektatherm XtraLife ribbon (available in three-color or black) applies a

coating that protects images from ﬁngerprints.

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Overview

Setting up the Printer

Operating the Printer

Troubleshooting

Site Speciﬁcations

Accessories

Customizing the

Printer

Network

Interface Guide

Media and Image Size

The printer can print on the following sizes and types of Kodak Ektatherm

XLS print paper and transparency material.

Refer to “Kodak thermal paper types, sizes, and image size” for

illustrations of the maximum image size for each.

Media and Image Sizes

Paper/Transparency Size Maximum

Image Size Catalog

Numbers

8.5 x 11 (216 x 279 mm) - A paper and

transparency material 8.0 x 8.93

(204 x 240 mm) 861 4364

852 6618

8.27 x 11.69 (210 x 297 mm) - A4 paper and

transparency material 8.0 x 9.6

(204 x 246 mm) 881 6514

850 3005

8.5 x 12 (216 x 307 mm) - A (long) paper and

transparency material 8 x 10

(204 x 256 mm) 868 4623

853 4059

8.27 x 12 (210 x 307 mm) - A4 (long) paper and

transparency material 8 x 10

(204 x 246 mm) 875 1596

871 7001

8.5 x 14 (216 x 358 mm) - A paper and

transparency material 8 x 12

(204 x 307 mm) 868 5699

852 9679

8.27 x 14 (210 x 358 mm) - A4 (xlong) paper and

transparency material 8 x 12

(204 x 307 mm) 807 5640

861 0651

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Overview

Setting up the Printer

Operating the Printer

Troubleshooting

Site Speciﬁcations

Accessories

Customizing the

Printer

Network

Interface Guide

9.5 x 14 (241 x 358 mm) - paper only

—Photographic grade

—Commercial grade

—Publication grade

8.5 x 12

(216 x 307 mm) 867 7759

158 1198

881 1663

Media and Image Sizes

Paper/Transparency Size Maximum

Image Size Catalog

Numbers

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Overview

Setting up the Printer

Operating the Printer

Troubleshooting

Site Speciﬁcations

Accessories

Customizing the

Printer

Network

Interface Guide

Interfaces

Standard communication ports are provided. In addition, the optional

Kodak network interface card lets you tie your printer into networks using

Ethernet cabling.

The following interfaces are provided with the printer.

•

IEEE-1284 Parallel

•

SCSI

The following Ethernet interfaces are provided by the 10/100 MB network

interface card.

Ethernet Interfaces

Interface Type Version

EtherTalk Phase II

Novell NetWare The following versions of Novell NetWare for

Clients: NetX, VLM, and MSIPX.

TCP/IP lpr

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Overview

Setting up the Printer

Operating the Printer

Troubleshooting

Site Speciﬁcations

Accessories

Customizing the

Printer

Network

Interface Guide

Printing Software

The printing software developed for the 8670 printer is based on high-

quality Kodak photographic printing methods.The color-rendering

processes that evolved are highly sophisticated. Using the drivers and the

export module allows you to access advanced printing options based on

Kodak color science.

The printing software is provided for use with the following operating

systems:

•

Windows 3.11

•

Windows 95

•

Windows NT 4.0

•

Macintosh 7.5.5 or later

Additional printer drivers are available through third party developers. For

third party products, refer to the

KODAK Third Party Digital Imaging

Solutions Catalog

on the Kodak Web site at http://www.kodak.com.

Search on solutions catalog.

An export module is provided for use with the following operating

systems:

•

Windows 95

•

Windows NT 4.0 Workstation

•

Windows NT 4.0 Server

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Overview

Setting up the Printer

Operating the Printer

Troubleshooting

Site Speciﬁcations

Accessories

Customizing the

Printer

Network

Interface Guide

•

Macintosh System 7.5.5 or later

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Overview

Setting up the Printer

Operating the Printer

Troubleshooting

Site Speciﬁcations

Accessories

Customizing the

Printer

Network

Interface Guide

Setting up the Printer

This chapter explains how to set up the printer. The steps are:

•

Finding an appropriate location for the printer

•

Unpacking the printer

•

Cleaning the printer

•

Cleaning the print head

•

Loading the ribbon

•

Loading the media

•

Connecting the cables

•

Connecting the power cord and turning the printer on

•

Checking the printer settings

•

Making a test print

The software for the printer, which enables you to take full advantage of

the printer’s capabilities, is on the CD-ROM shipped with the printer. After

you set up the printer, you should install the software you plan to use.

For information on installing the software, refer to the

Quicksetup

information card that came with your printer.

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Overview

Setting up the Printer

Operating the Printer

Troubleshooting

Site Speciﬁcations

Accessories

Customizing the

Printer

Network

Interface Guide

Finding a Location for the Printer

As you look for an appropriate location for the printer, keep the following

guidelines in mind. Refer to “Site Speciﬁcations”for requirements.

•

Allow two inches (about 5 cm) on all sides of the printer for easy

access.

•

Place the printer so that air ﬂow is not blocked.

•

Airborne dirt particles can cause image quality problems. Avoid placing

the printer in areas where ventilation ducts, open doors, or frequent

passers-by might expose the printer and media to high levels of debris.

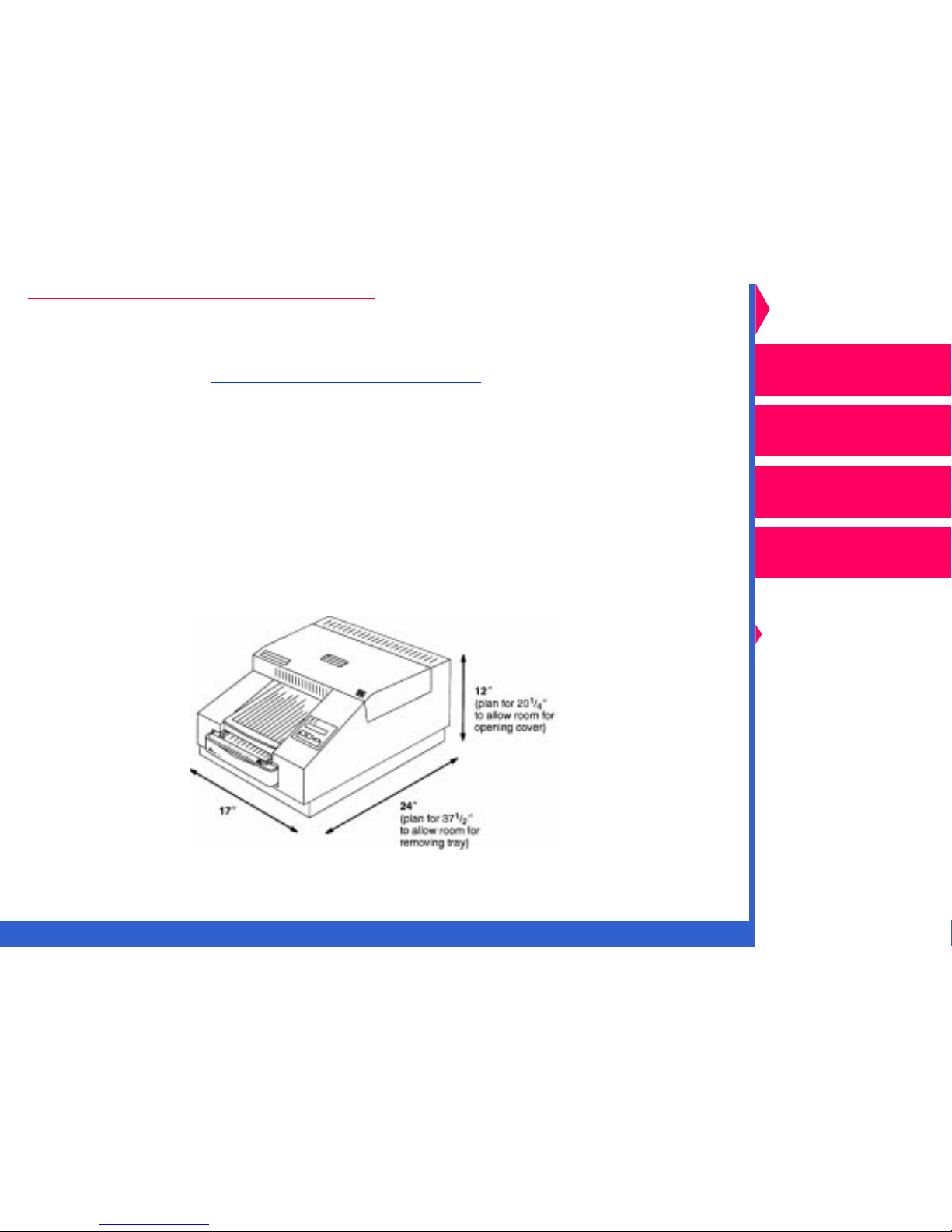

The space requirements for the printer are shown below.

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Overview

Setting up the Printer

Operating the Printer

Troubleshooting

Site Speciﬁcations

Accessories

Customizing the

Printer

Network

Interface Guide

Unpacking the Printer

The following items are included with the printer. If any are missing,

contact your dealer.

•

Paper tray

•

Power cords (3)

•

Plastic dust cover

•

Accessory kit with:

–

4 thermal head cleaning pads

–

SCSI terminator

–

Picker roller cleaning kit (includes 10 water pads)

–

Protective cover (blue)

–

CDs containing user’s guides in Spanish, French, German, and

English, in Adobe Acrobat (PDF) format. It contains Adobe

Acrobat software for accessing, viewing, and printing the guides

and the software for the printer. In addition, the CD contains

Kodak Professional ColorFlow ICC color connector software for

managing color reproduction, as well as PANTONE

®*

calibrated

pallets.

*PANTONE Inc.’s check - standard trademark for color reproduction and color reproduction

materials.

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Overview

Setting up the Printer

Operating the Printer

Troubleshooting

Site Speciﬁcations

Accessories

Customizing the

Printer

Network

Interface Guide

To unpack the printer:

Remove the printer from the shipping carton.

CAUTION: The printer is heavy. We recommend that two people lift

and carry it.

Remove the printer from the plastic bag.

Remove the shipping tape from the printer cover.

shipping tape

shipping pins
