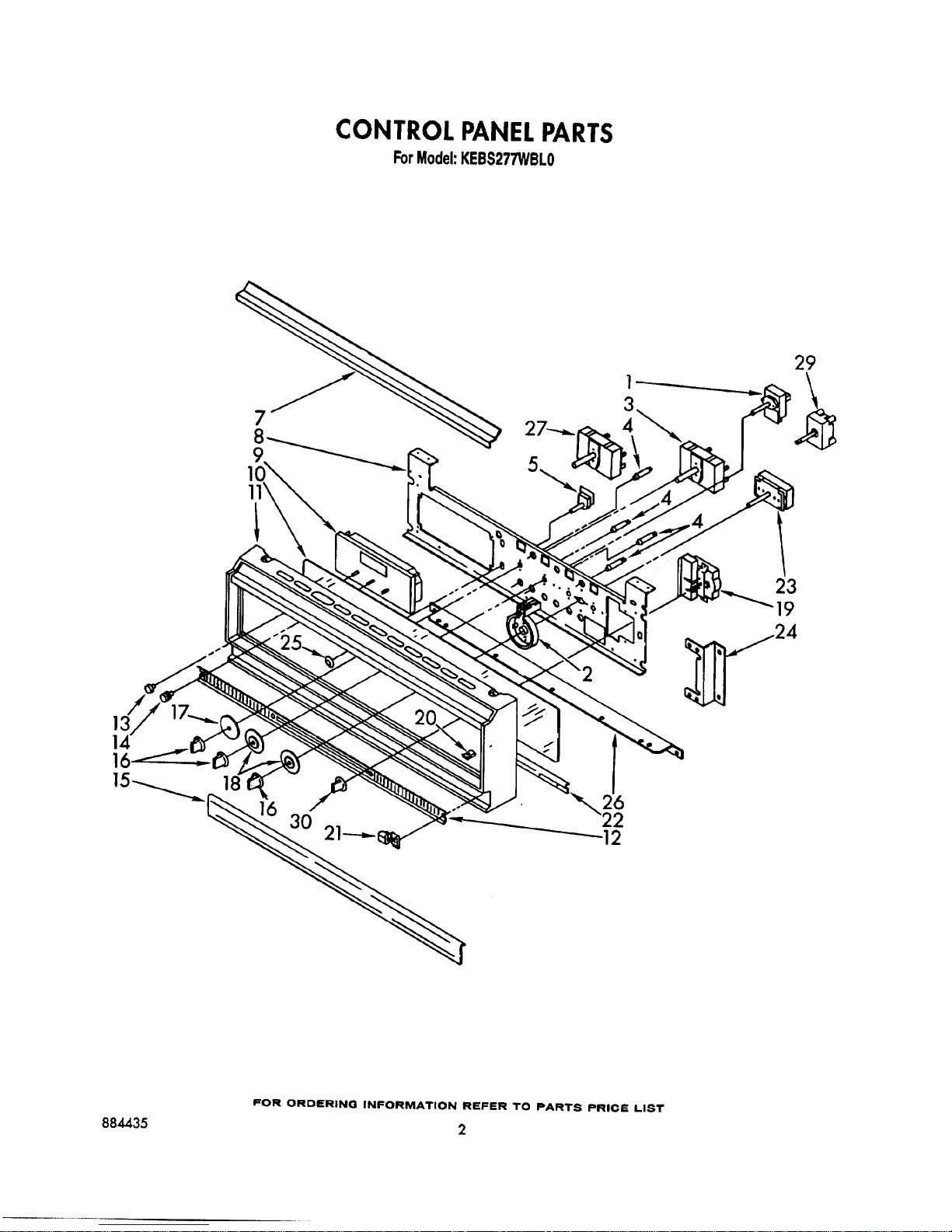

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

1 3178273 Thermostat, upper

155023 Screw (2)

2 3179778 Housing, Backlight

3 3178236 Switch, Selector

155023 Screw (2)

4 4168598 Light, Indicator

5 Switch, Oven Light

3179891 Black

3179708 Brass

6 4164360 Nut

7 Insert, Top

4173163 Black

3180130 Almond

3180131 White

8 3177804 Bracket, Control

9 4173071 Timer, Electronic

98788 Nut, Timer (4)

10 Glass, Control Panel

3177938 Black

3179714 Almond

3179713 White

11 Frame, Control Panel

3177758 Black

3178574 Almond

3178573 White

12 3179916 Insert, Vent

3179847 Screw (4)

13 Knob, Timer (2)

3177122 Black

3179705 Chrome

14 Knob, Timer

3177121 Black

3179704 Chrome

15 Door, Latch Handle

3177972 Black

3179710 Almond

3179709 White

3179847 Screw (5)

16 3178400 Knob, Control (3)

17 Disc, Selector

3178256 Lower

3178254 Upper

18 3178473 Disc, Thermostat (Self Clean) (2)

19 4173153 Meat Probe Indicator Assy.

20 4168838 Nut (3)

21 3177971 Hinge, Door (2)

3179847 Screw (2)

22 4167590 Retainer, Glass

4159456 Screw (6)

23 3178274 Thermostat, Lower

155023 Screw (2)

24 3177747 Bracket, Control Panel

3177991 Screw(2)

25 Bezel, Switch

4169372 Black

3179707 Chrome

26 3177650 Support, Frame

3177991 Screw(2)

27 3178234 Switch Selector

155023 Screw (2)

254225 Screw (2)

29 3178126 Switch, Rotory (2)

30 4163840 Knob, Meat Probe

FOLLOWING PARTS NOT ILLUSTRATED

LITERATURE PARTS

LIT884435 Repair Parts List

LIT3178200 Tech Sheet

LIT3178195 Installation Instructions

LIT3177060 Use & Care Guide

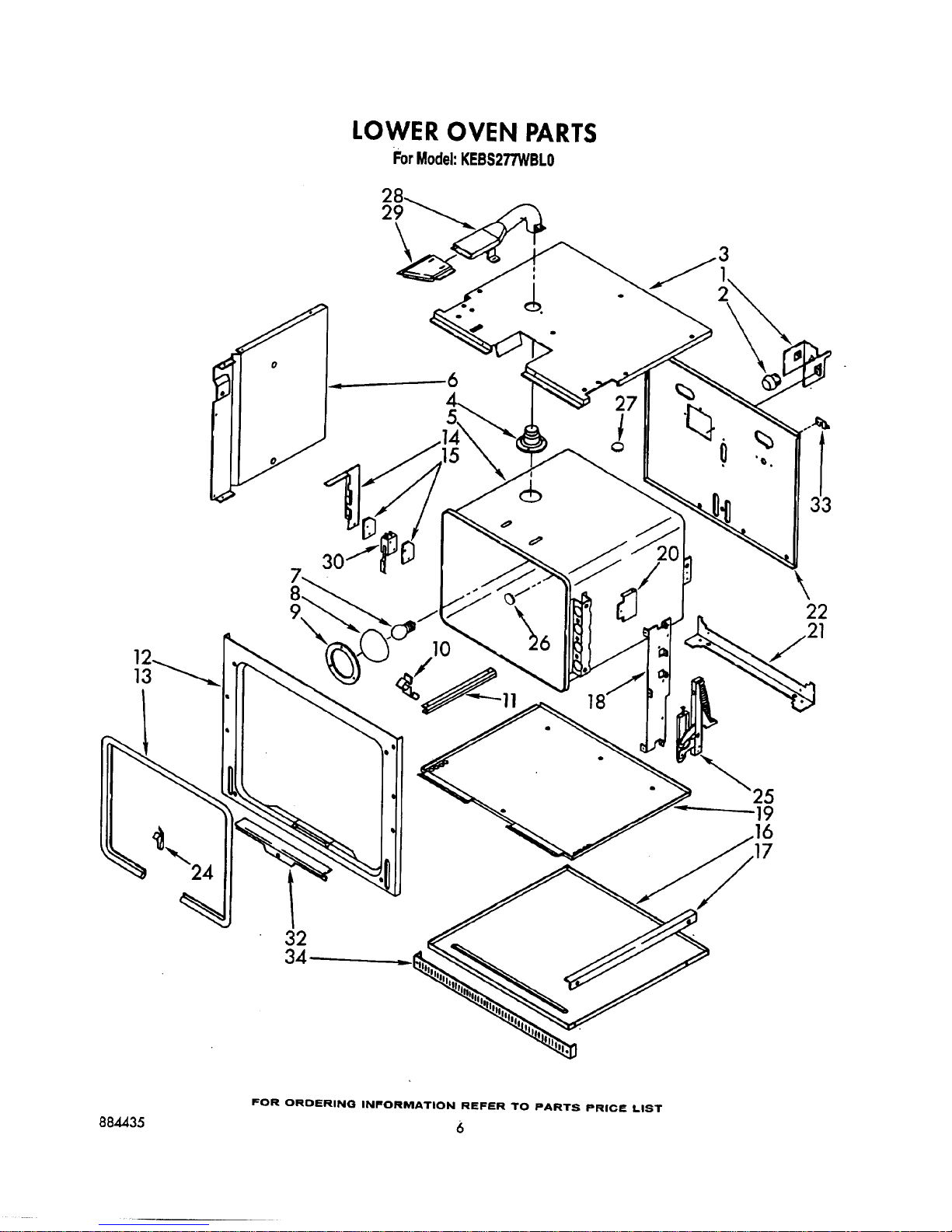

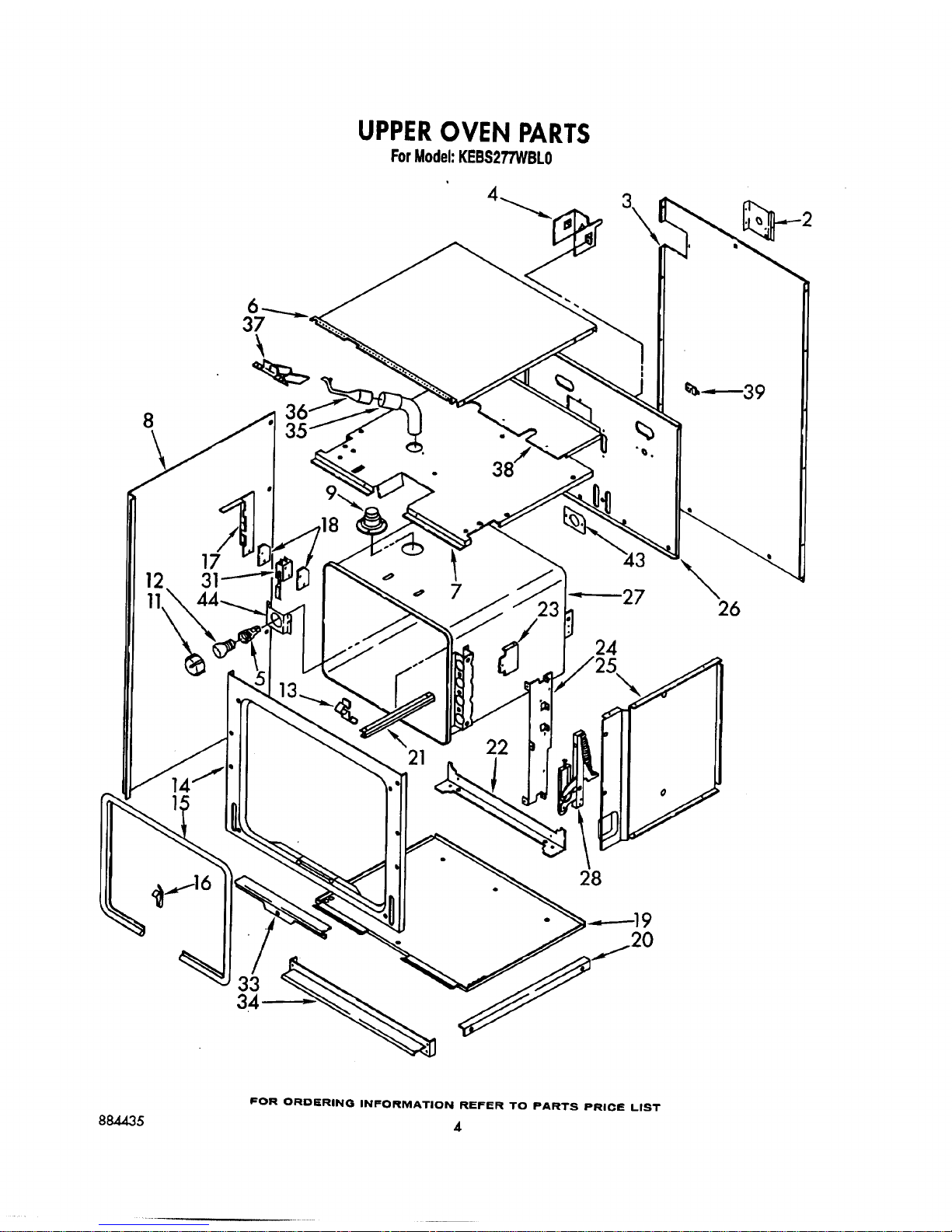

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

2 3177545 Bracket, Conduit

3 3177739 Cabinet, Back

300890 Screw (14)

4 3177446 Housing, Light

300890 Screw (2)

5 4173173 Socket, Light

300890 Screw(2)

6 3178136 Cabinet, Top

300890 Screw (5)

7 3177436 Top, Module

300890 Screw (8)

8 Side, Cabinet

3177440 Right Hand

3177438 Left Hand

300890 Screw (18)

9 4168492 Tube, Vent

3179117 Screw (3)

11 4173174 Glass, Oven Light

12 4173175 Bulb, Oven Light

13 313382 Clip, Thermostat Bulb

14 3177682 Frame, Front

15 3179813 Seal, Door

16 3179848 Clip, Oven Seal

17 3177681 Bracket, Switch

18 3177923 Insulator, Switch

19 3177621 Module, Bottom

20 3179220 Rail, Support (4)

300890 Screw (4)

21 4168217 Support, Element (2)

3179117 Screw (4)

4168674 Retainer, Element

22 3177434 Support, Oven

300890 Screw (2)

23 3178612 Shield, Radiation

300890 Screw (2)

24 3177433 Bracket, Hinge

3178000 Screw (6)

300890 Screw (2)

25 3177572 Side, Module (R.H. & L.H.)

300890 Screw (4)

26 3177556 Back, Module

300890 Screw (8)

27 3177460 Liner, Oven

28 3178298 Hinge, Door (2)

3178000 Screw (4)

31 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

33 3179587 Retainer, Seal

4159450 Screw (2)

34 Vent, Middle Trim

3177755 Black

3177753 Brushed Chrome

3180022 Screw (4)

4168863 Screw (2)

35 3179922 Vent, Tube (Upper, Female)

36 3179923 Vent, Tube (Upper, Male)

37 3178614 Shield, Vent

300890 Screw (2)

38 3178133 Extension, Shelf

3177991 Screw (8)

39 4168203 Cover, Cap Tube

4159445 Screw

43 3178040 Plate, Mounting Oven Light

4159445 Screw (2)

44 4173179 Retainer, Insulation

300890 Screw (2)

FOLLOWING PARTS NOT ILLUSTRATED

INSULATION

3177862 Insulation, Wrap

3177872 Insulation, Back

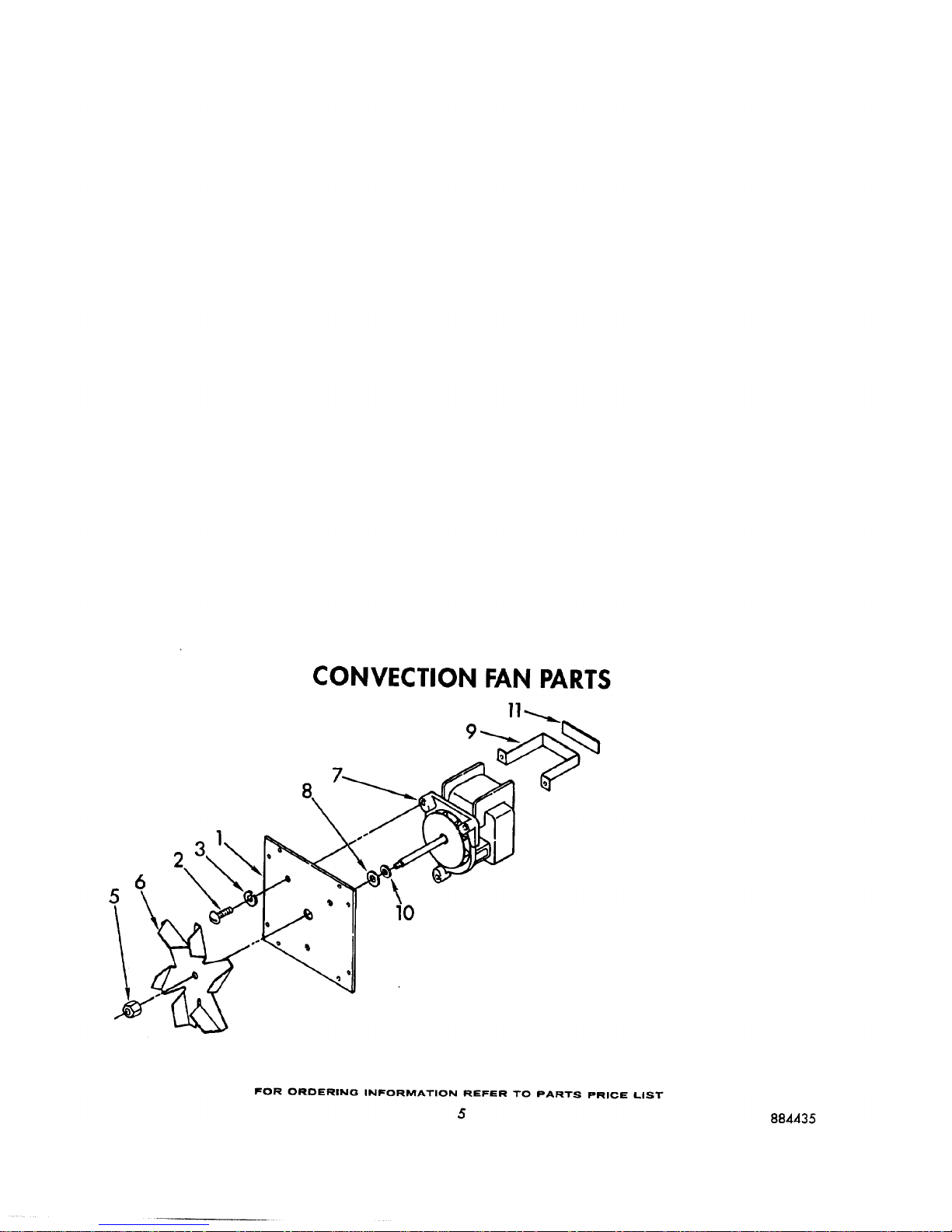

1 3178512 Mounting Plate

2 4173193 Screw (3)

3 4173194 Lockwasher (3)

5 4173237 Nut(Left Hand)

6 4173236 Fan

7 4173198 Motor

8 4173238 E-Ring

9 4173185 Bracket Guard

10 4173230 Flatwasher

11 3179790 Gasket, Foam
