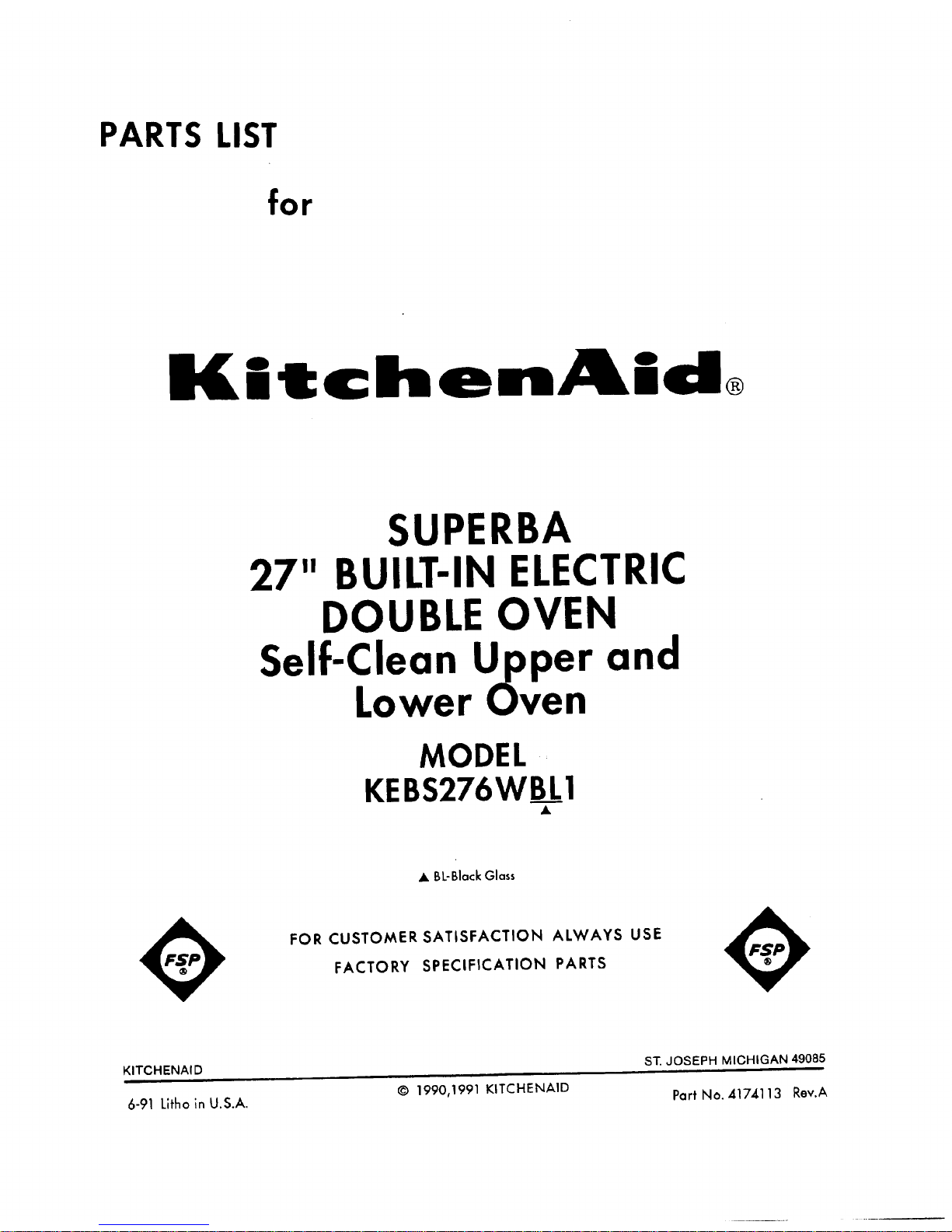

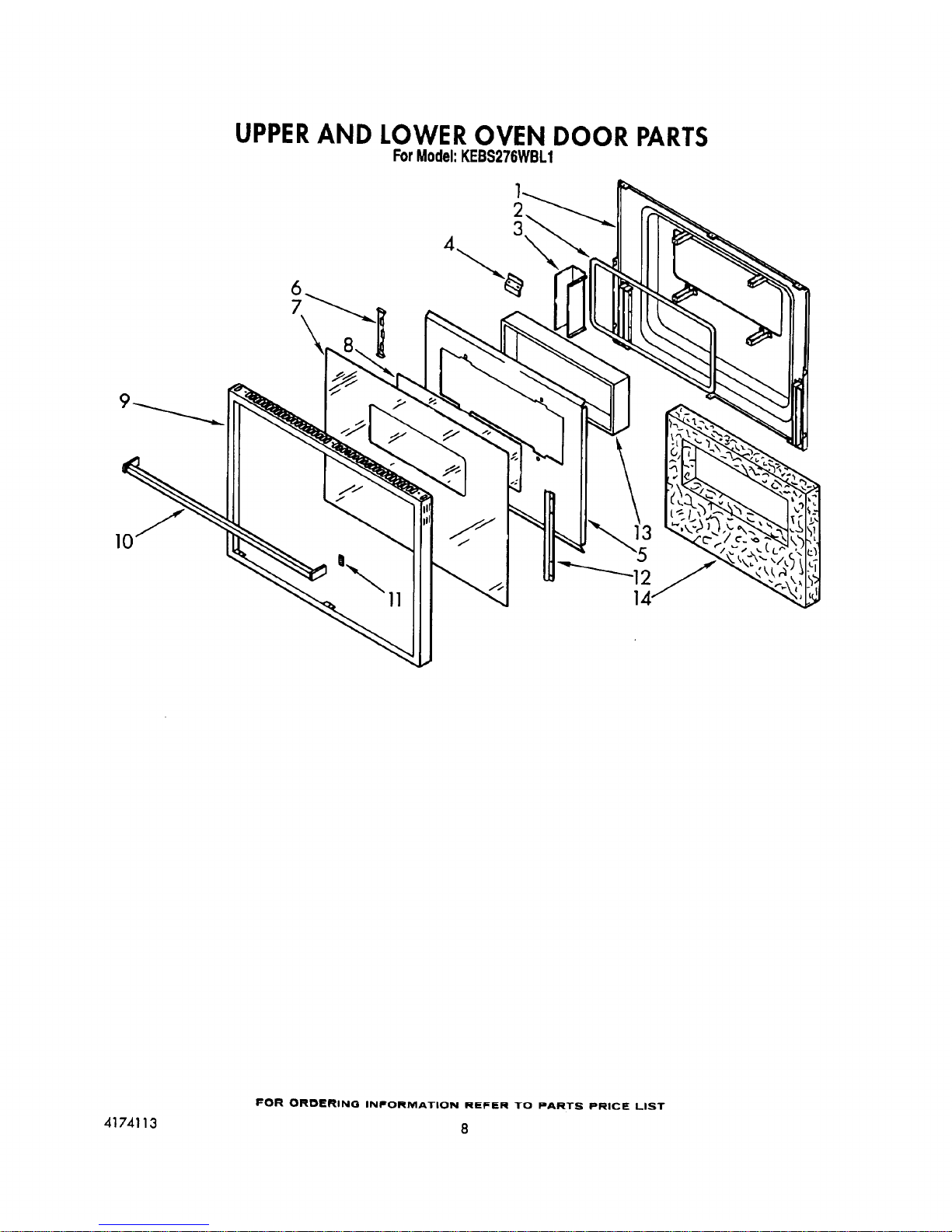

KitchenAid Superba KEBS276WBL1 Manuel utilisateur

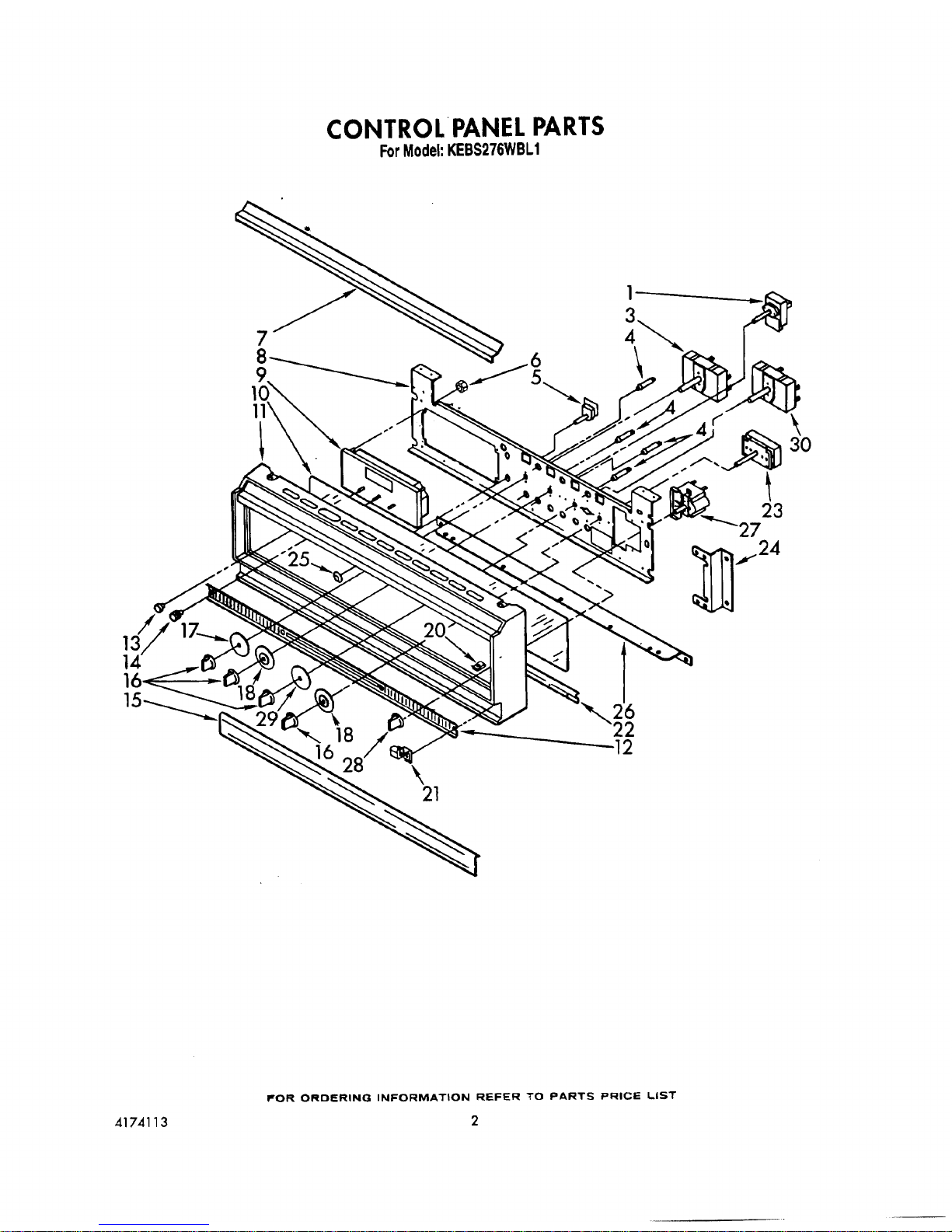

NOTE:The screws and nuts required to attach a part are listed immediately

following that part.

1 3178273 Thermostat Upper Oven

155023 Screw (2)

3 3178233 Switch, Selector Upper Oven

155023 Screw (2)

4 4168598 Light, Indicator

5 3179891 Switch, Oven Light

6 98788 Nut, Timer (4)

7 4173385 Insert, Top

8 3177804 Bracket, Control

9 4173071 Timer, Electronic

10 3177935 Glass, Control Panel

11 3177758 Frame, Control Panel

12 3179916 Insert, Vent

3179847 Screw (4)

13 3177122 Knob, Timer (2)

14 3177121 Knob, Timer

15 3177972 Door, Latch Handle

16 3178400 Knob, Control (4)

17 3178262 Disc, Selector Lower Oven

18 3178477 Disc, Thermostat Upper & Lower Oven

20 4168838 Nut (3)

21 3177971 Hinge, Door (2)

3179847 Screw (2)

22 4167590 Retainer, Glass

4159456 Screw (6)

23 3178274 Thermostat Lower Oven

155023 Screw (2)

24 3177747 Bracket, Control Panel

3177991 Screw(2)

25 4169372 Bezel, Switch

26 3177650 Support, Frame

3177991 Screw(2)

27 3180156 Indicator, Meat Probe

254225 Screw (2)

28 4163840 Knob, Meat Probe

29 3178264 Disc. Selector Upper Oven

30 3178234 Switch, Selector Lower Oven

155023 Screw (2)

LITERATURE PARTS

LIT4174113 Repair Parts List

LIT3178202 Tech Sheet

LIT3178195 Installation Instructions

LIT3177059 Use & Care Guide

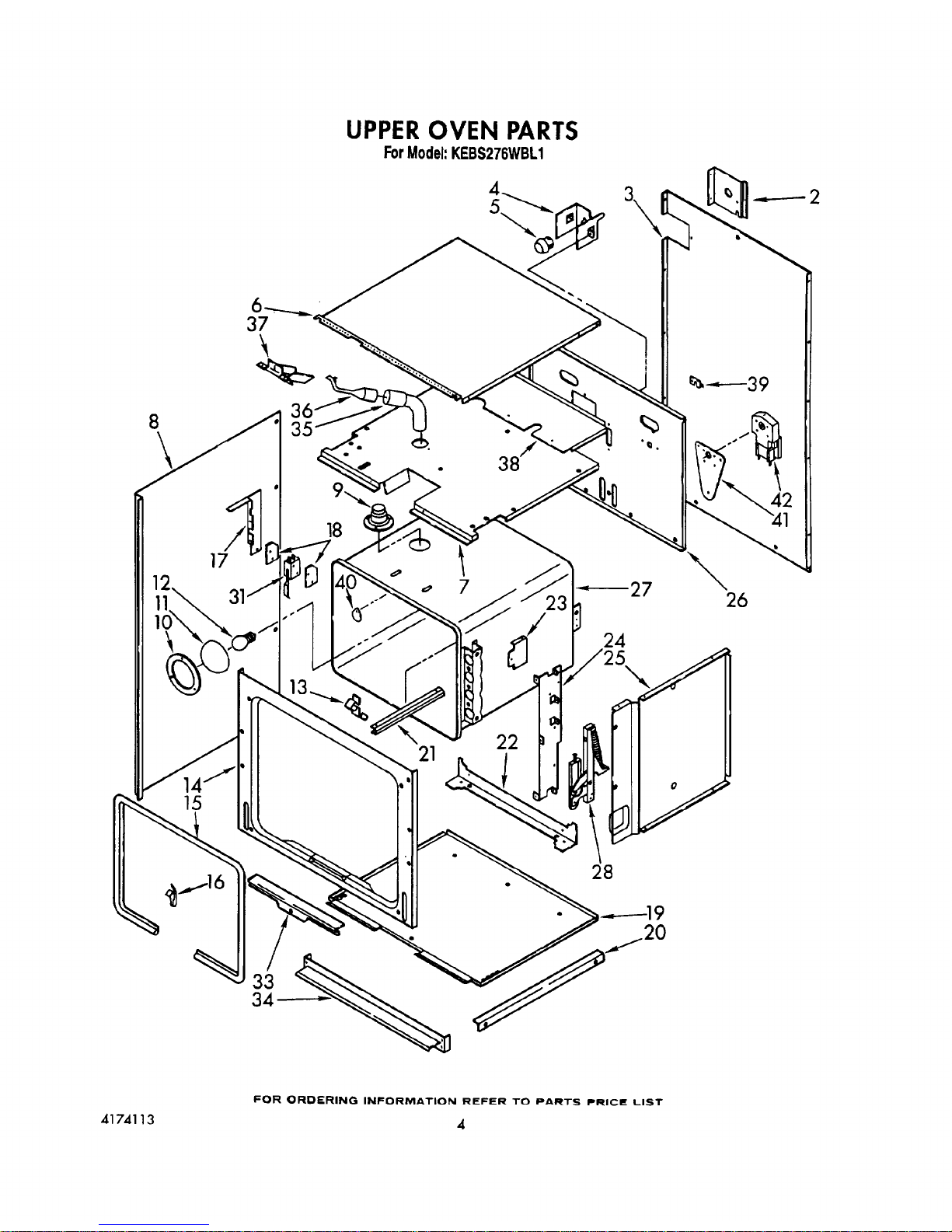

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

2 3177545 Bracket, Mounting

3 3177623 Cabinet, Back

300890 Screw (14)

4 3177446 Housing, Light

300890 Screw (2)

5 3177981 Socket, Light

300890 Screw(2)

6 3178136 Cabinet, Top

300890 Screw (5)

7 3177436 Top, Module

300890 Screw (8)

8 Side, Cabinet

3177440 Right Hand

3177438 Left Hand

300890 Screw (18)

9 4168126 Tube, Vent

3179117 Screw (3)

10 3177447 Retainer, Glass

4159445 Screw (3)

11 4166866 Glass, Oven Light

12 311255 Bulb, Oven Light

13 313382 Clip, Thermostat Bulb

14 3177682 Frame, Front

15 3179813 Seal, Door

16 3179848 Clip, Oven Seal

17 3177681 Bracket, Switch

18 3177923 Insulator, Switch

19 3177621 Bottom, Module

20 3179220 Rail, Support (2)

300890 Screw (4)

21 4168217 Support, Element (2)

3179117 Screw (4)

22 3177434 Support, Oven

300890 Screw (2)

23 3178612 Shield, Radiation

3179795 Screw (6)

300890 Screw (2)

24 3177433 Bracket, Hinge

300890 Screw (2)

25 3177572 Side, Module (R.H. & L.H.)

300890 Screw (4)

26 3177556 Back, Module

300890 Screw (8)

27 3177466 Liner, Oven

28 3178298 Hinge, Door (2)

3179795 Screw (4)

31 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

33 3179587 Retainer, Seal

4159450 Screw (2)

3179776 Screw (4)

34 3177755 Vent, Middle Trim

3180022 Screw (4)

4168863 Screw (2)

35 3179922 Vent, Tube (Upper, Female)

36 3179923 Vent, Tube (Upper, Male)

37 3178614 Shield, Vent

300890 Screw (2)

38 3178132 Extension, Shelf

3177991 Screw (8)

39 4168203 Cover, Cap Tube

4159445 Screw

40 4167518 Plate, Cover

4168874 Screw

41 4167469 Plate, Mounting Rotisserie

42 4163836 Motor, Rotisserie

4159334 Screw (3)

4159501 Washer, Lock Tooth

FOLLOWING PARTS NOT ILLUSTRATED

3177862 Insulation, Wrap

3177868 Insulation, Back

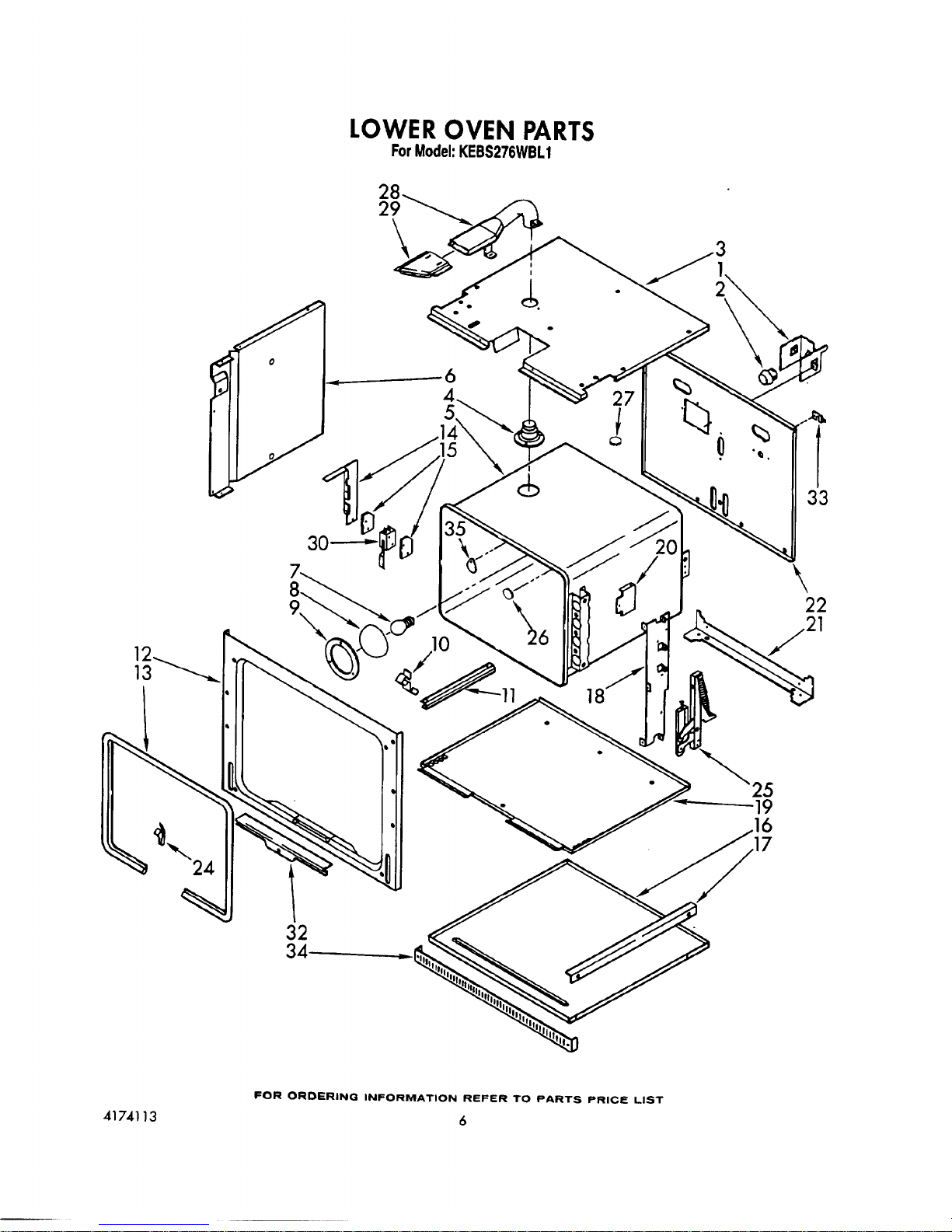

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

1 3177446 Housing, Light

300890 Screw (2)

2 3177981 Socket, Light

3 3177436 Top, Module

300890 Screw (8)

4 4168492 Tube, Vent

3179117 Screw (3)

5 3177466 Liner, Oven

6 3177572 Side, Module (R.H. & L.H.)

300890 Screw (4)

7 311255 Bulb, Oven Light

8 4166866 Glass, Oven Light

9 3177447 Retainer, Glass

4159445 Screw (3)

10 313382 Clip, Bulb (2)

11 4168217 Support, Element (2)

3179117 Screw (4)

12 3177684 Frame, Front

13 3179813 Seal, Door

14 3177681 Bracket, Switch

3177991 Screw (2)

15 3177923 Insulator, Switch

16 3177551 Bottom, Oven

17 3179220 Rail, Support (2)

300890 Screw (4)

18 3177433 Bracket Hinge (2)

300890 Screw (2)

19 3177621 Bottom, Module

20 3178612 Shield, Radiation

3179795 Screw (6)

300890 Screw (2)

21 3177434 Support, Oven

300890 Screw (2)

22 3177556 Back, Module

300890 Screw (8)

24 3179848 Clip, Seal (3)

25 3178298 Hinge, Door (2)

3179795 Screw (4)

26 3185108 Button, Plug

27 3185109 Button, Plug

28 3179945 Tube, Vent

300890 Screw (3)

29 3179944 Tube, Vent

30 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

32 3179587 Retainer, Seal

4159450 Screw (2)

3179776 Screw (4)

33 4168203 Cover, Cap Tube

4159445 Screw

34 3177787 Trim, Lower Vent

35 4167518 Plate, Cover

4168874 Screw

FOLLOWING PARTS NOT ILLUSTRATED

INSULATION

3177862 Insulation, Wrap

3177868 Insulation, Back
