OVEN PARTS

For Models: KEBC167VSS00

(Stainless)

10−08 Litho in U.S.A. (amd) (psw) Part No. W10224609 Rev. A

36" BUILT−IN

ELECTRIC OVEN

THERMAL CONVECTION

OVEN PARTS

For Models: KEBC167VSS00

(Stainless)

W10224609

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8304426 Installation

Instructions

W10162183

Use & Care Guide

Tech Sheet (Oven)

W10185214

English

W10185215

French

Easy Set Guide

4449264 English

4448687 French

Safer Cooking Tips

9762761 English

W10065852

French

2 Trim, Side

W10144983

Right

W10144984

Left

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door

6 694091 Screw

7 8301784 Top Chassis

W10145009

Deflector, Vent

9 4452158 Tube, Vent

W10169756

Lens, Light

W10009940

Assembly,

Oven Light

W10169757

Bulb, Light

W10115832

Frame, Front

15 8300142 Gasket, Door

16 4449743 Screw

17 3196176 Screw

18 4449040 Screw

19 8300184 Support, Insulation

20 4451605 Cap, Spacer

21 Rail, Side

4450579 Right

4450580 Left

22 9760888 Latch, Motorized

23 4449154 Screw

24 4452152 Bracket, Mounting

25 4455641 Side, Chassis

26 8302199 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 3400832 Screw

W10131825

Sensor

30 Bracket, Deflector

8302338 Right

8302339 Left

31 3400805 Screw

32 4449748 Screw

33 8301780 Deflector, Vent

34 4448444 Grommet,

Mounting Rail

35 9759243 Thermostat

36 8302327 Base, Chassis

37 4448933 Retainer, Gasket

38 4451747 Cover, Back

39 4449809 Screw

40 4449845 Support, Bracket

W10194389

Trim, Bottom

42 4450118 Nut

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

8300158 Insulation, Wrap

8300159 Insulation, Back

CONTROL PANEL PARTS

For Models: KEBC167VSS00

(Stainless)

W10224609

Illus. Part

No. No. DESCRIPTION

W10144976

Panel, Control

2 3400832 Screw

3 8302322 Assembly, Control

4 4449745 Screw

5 8302764 Switch, Membrane

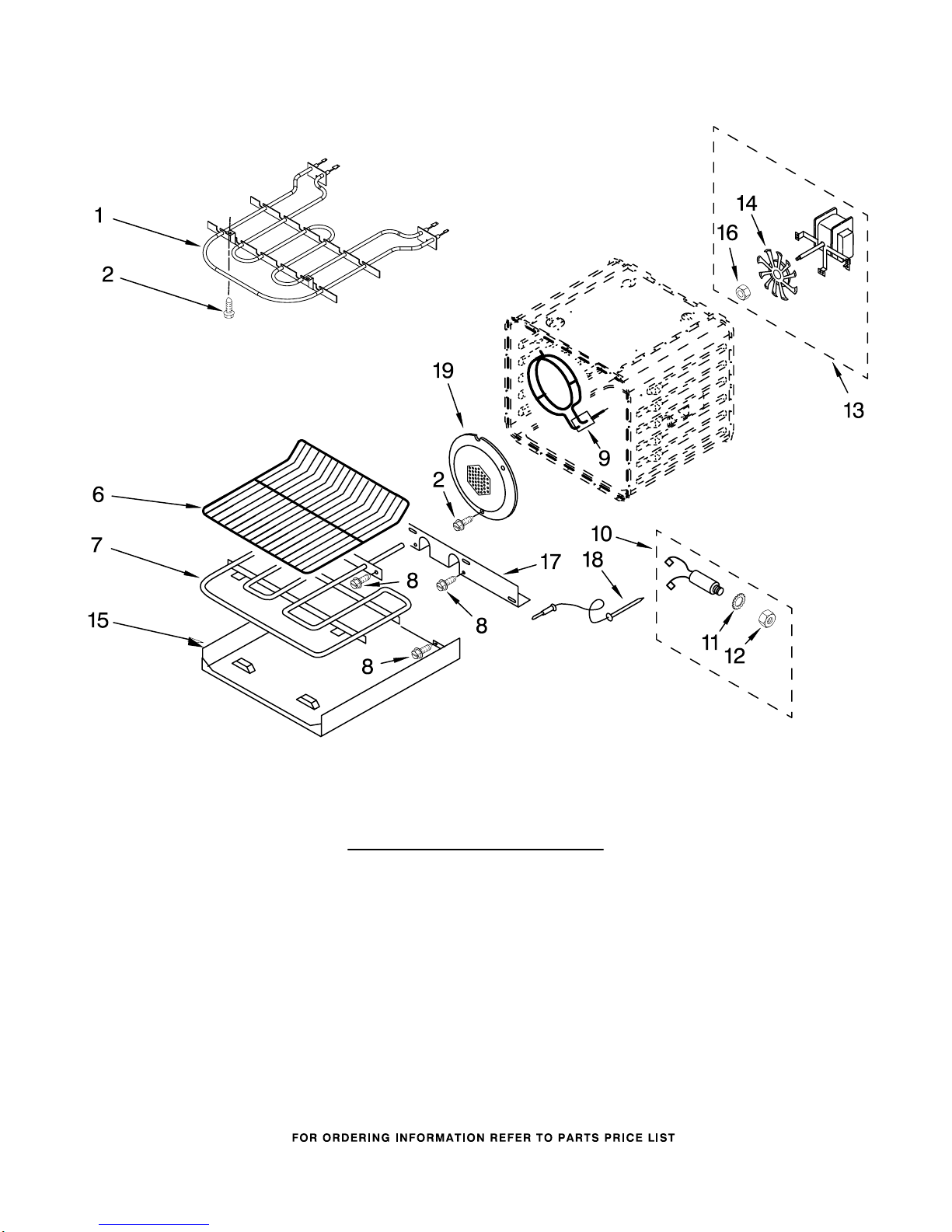

INTERNAL OVEN PARTS

For Models: KEBC167VSS00

(Stainless)

W10224609

Illus. Part

No. No. DESCRIPTION

1 9760774 Element, Broil

2 4449154 Screw

6 9759437 Rack, Oven

7 9760770 Element, Bake

8 4449809 Screw

9 9760769 Element,Convection

10 9755543 Jack, Meat Probe

11 9755547 Lock Washer

12 9755546 Nut

W10116228

Motor, Convection

W10116351

Blade, Fan

15 8300799 Tray, Bake

W10116349

Nut

17 8300800 Cover, Bake Tray

18 9755542 Probe, Meat

W10160821

Cover, Fan

OVEN DOOR PARTS

For Models: KEBC167VSS00

(Stainless)

W10224609

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8300152 Door Liner

2 Hinge, Door

9760579 Right

9760580 Left

3 4449259 Glass, Inner

4 8300797 Insulation, Door

5 4449743 Screw

6 3196184 Screw

7 4449263 Glass, Inner

8 3400832 Screw

9 4448520 Bumper, Door

10 4449809 Screw

W10194367

Assembly,

Door Glass

W10199976

Door Handle

14 Bracket, Handle

4455803 Right

4455804 Left

15 8302092 Bracket(2nd Glass)

16 8302094 Bracket(3rd Glass)

19 8301089 Shield, Heat

20 8300190 Retainer, Glass

21 8300153 Seal, Door Top

W10158497

Retainer, Clip

TOP VENTING PARTS

For Models: KEBC167VSS00

(Stainless)

W10224609

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4455178 Elbow, Vent−Top

3 8300223 Blower 60MM

4 4451758 Block, Foam

6 4451985 Suppressor

7 3400080 Screw

8 4455177 Elbow, Vent−Bottom

9 4455352 Bracket, Blower

10 9760587 Transformer,

Control

11 4449868 Block, Terminal

12 3400080 Screw

13 8301778 Vent,

Control Panel

14 Side, Control Top

4451597 Right

4451598 Left

15 8302583 Back, Control

16 8301223 Cover, Top Rear

17 4449809 Screw

18 8301222 Cover, Top Front

19 4450038 Screw

OPTIONAL PARTS

For Models: KEBC167VSS00

(Stainless)

W10224609

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

WIRING HARNESS PARTS

W10172607

Harness, Main

4450952 Conduit, Single

4448664 Clamp

98997 Clip

4449809 Screw

4450800 Screw, Ground

7103P027−60

Nut

4451761 Support, Wiring

4452400 Harness, Ground

Miscellaneous
