KitchenAid KP26M1XBR5 Manuel utilisateur
c2007 KITCHENAID
8−07 Litho in U.S.A. (skr) Part No. 8212278 Rev. B
6 QT. STAND MIXER
PROFESSIONAL 600 BOWL LIFT
MODELS:
KP26M1XMR5 (Meringue)
KP26M1XBS5 (Blue Steel)
KP26M1XCM5 (Cinnamon)
KP26M1XDP5 (Dark Pewter)
KP26M1XLC5 (Licorice)
KP26M1XMC5 (Metallic Chrome)
KP26M1XNP5 (Nickel Pearl)
KP26M1XPM5 (Pearl Metallic)
KP26M1XBP5 (Brass Pearl)
KP26M1XBR5 (Bronze Pearl)
KP26M1XCE5 (Copper Pearl)
KP26M1XRC5 (Cayenne)
KP26M1XSV5 (Silver Sage)
KP26M1XSE5 (Seashell)
KP26M1XAZ5 (Azure Blue)
KP26M1XER5 (Empire Red)
KP26M1XWG5 (Williams Sonoma Green)
KP26M1XOB5 (Onyx Black)
KP26M1XWH5 (White)
KP26M1XCV5 (Caviar)
4KP26M1XMR5 (Meringue)
4KP26M1XBS5 (Blue Steel)
4KP26M1XDP5 (Dark Pewter)
4KP26M1XLC5 (Licorice)
4KP26M1XMC5 (Metallic Chrome)
4KP26M1XNP5 (Nickel Pearl)
4KP26M1XPM5 (Pearl Metallic)
COLOR VARIATION PARTS
2
For Models: KP26M1X_ _5, 4KP26M1X_ _5
8212278
COLOR VARIATION PARTS
3
For Models: KP26M1X_ _5, 4KP26M1X_ _5
8212278

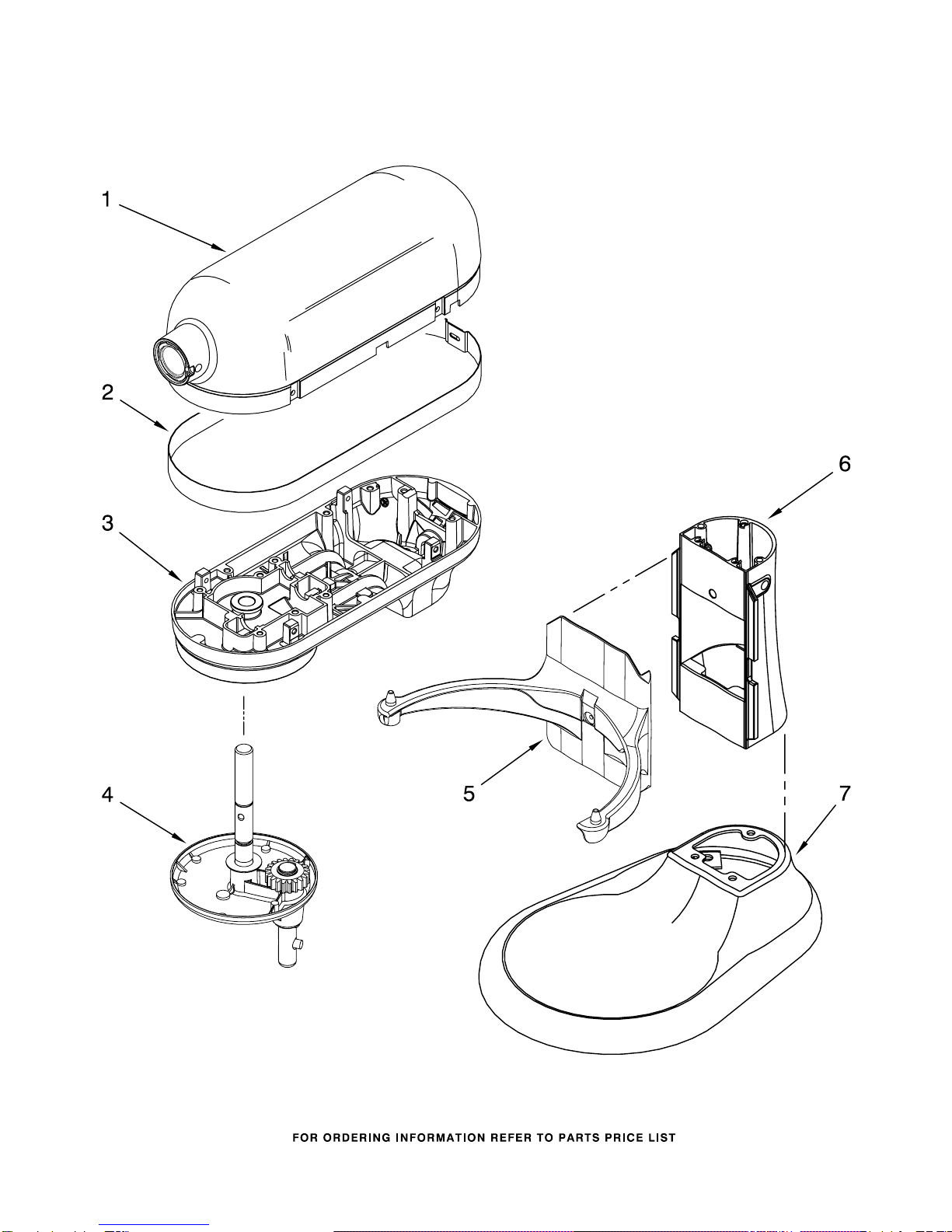

Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Colors Subject To Change.
Any Color Not Listed is
No Longer Available.
If Additional Colors Are Added,
This Page Will Be Updated.
1 Motor Housing
9708658 Meringue
9708730 Blue Steel
9708527 Cinnamon
9708711 Dark Pewter
9708677 Licorice
9703433 Metallic Chrome
9708749 Nickel Pearl
9707981 Pearl Metallic
9709131 Brass Pearl
9709173 Bronze Pearl
9709152 Copper Pearl
9709321 Cayenne
9709202 Silver Sage
9709813 Seashell
9709794 Azure Blue
9705300 Empire Red
W10114294
WS Green
9705296 Onyx Black
9703311 White
9705693 Caviar
2 Trim Band
9708371 Platinum/Frost
3 Lower Gearcase
9708665 Meringue
9708737 Blue Steel
9709073 Cinnamon
9708718 Dark Pewter
9708684 Licorice
9706306 Metallic Chrome
9708756 Nickel Pearl
9707974 Pearl Metallic
9709138 Brass Pearl
9709180 Bronze Pearl
9709159 Copper Pearl
9709328 Cayenne
9709209 Silver Sage
9709820 Seashell
9709801 Azure Blue
9706331 Empire Red
W10114301
WS Green
9706311 Onyx Black
9706047 White
9706346 Caviar
4 Planetary
9708662 Meringue
9708734 Blue Steel
9708531 Cinnamon
9708715 Dark Pewter
9708543 Licorice
9708175 Metallic Chrome
9708753 Nickel Pearl
9707977 Pearl Metallic
9709135 Brass Pearl
9709177 Bronze Pearl
9709156 Copper Pearl
9709325 Cayenne
9709206 Silver Sage
9709817 Seashell
9709798 Azure Blue
9708180 Empire Red
W10114298
WS Green
9708176 Onyx Black
9708172 White
9708183 Caviar
5 Bowl Support
and Pins
9708669 Meringue
9708741 Blue Steel
9709059 Cinnamon
9708722 Dark Pewter
9708688 Licorice
9703397 Metallic Chrome
9708760 Nickel Pearl
9707970 Pearl Metallic
9709142 Brass Pearl
9709184 Bronze Pearl
9709163 Copper Pearl
9709332 Cayenne
9709213 Silver Sage
9709824 Seashell
9709805 Azure Blue
9705360 Empire Red
W10114305
WS Green
9705356 Onyx Black
9703674 White
9705682 Caviar
6 Column
and Pins
9708672 Meringue
9708744 Blue Steel
9709062 Cinnamon
9708725 Dark Pewter
9708691 Licorice
9703349 Metallic Chrome
9708763 Nickel Pearl
9707967 Pearl Metallic
9709145 Brass Pearl
9709187 Bronze Pearl
9709166 Copper Pearl
9709335 Cayenne
9709216 Silver Sage
9709827 Seashell
9709808 Azure Blue
9705324 Empire Red
W10114308
WS Green
9705320 Onyx Black
9703673 White
9705679 Caviar
7 Base & Foot
Assembly
9708675 Meringue
9708747 Blue Steel
9709065 Cinnamon
9708728 Dark Pewter
9708694 Licorice
9703346 Metallic Chrome
9708766 Nickel Pearl
9707964 Pearl Metallic
9709148 Brass Pearl
9709190 Bronze Pearl
9709169 Copper Pearl
9709338 Cayenne
9709219 Silver Sage
9709830 Seashell
9709811 Azure Blue
9705348 Empire Red
W10114311
WS Green
9705344 Onyx Black
9703690 White
9705676 Caviar
For Models: KP26M1X_ _5, 4KP26M1X_ _5

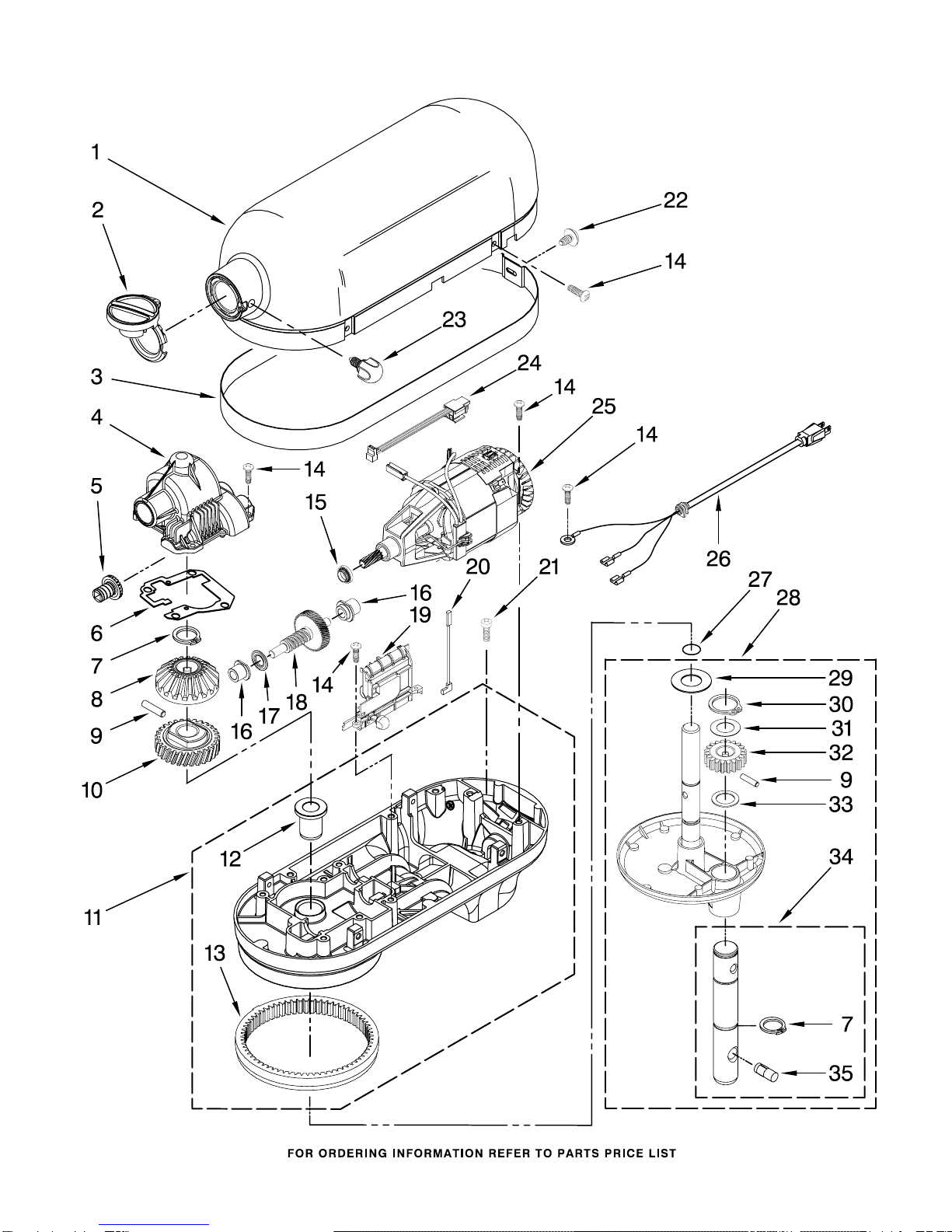

CASE, GEARING AND PLANETARY UNIT
8212278 4
CASE, GEARING AND PLANETARY UNIT
5
For Models: KP26M1X_ _5, 4KP26M1X_ _5
8212278
Illus. Part
No. No. DESCRIPTION
1 Gearcase Motor
Housing
29707983 Cap, Attachment
Hub
3Band, Trim
4 9709125 Transmission
Housing
5 9703338 Gear, Attachment
Hub Level
6 9709511 Gasket,
Transmission Cover
7 9703680 Clip, Retaining
8 9703337 Gear, Bevel
9 9707223 Pin, Retaining
10 9706529 Gear, Worm
Follower
11 Lower Gearcase
12 16897 Bearing, Lower
Center
13 9703339 Gear, Internal
14 3400814 Screw
15 9706247 Seal, Motor
Shaft
16 Bearing
9703560 Front
9703570 Rear
17 9703445 Bearing, Thrust
18 9709231 Gear, Worm
19 Control Assembly
9706648 Black Knob
9706649 Grey Knob
20 9706036 Lead, Motor to
Control
21 3400200 Screw
22 3400617 Screw
23 Thumb Screw
9709194 Black
9709196 Grey
24 9703312 Sensor, Hall
Effect
25 9707507 Motor (10 Tooth)
26 Cord, Power
9706551 White
9706552 Black
27 67500−55 "O" Ring
28 Planetary Assembly
29 9703434 Washer, Fiber
30 9703438 Clip, Retaining
31 9706090 Washer
32 9707627 Gear, Pinion
33 8533910 Washer
34 9708191 Shaft, Agitator
35 9704677 Pin, Groove
Refer To Page 3
Color Variation Parts

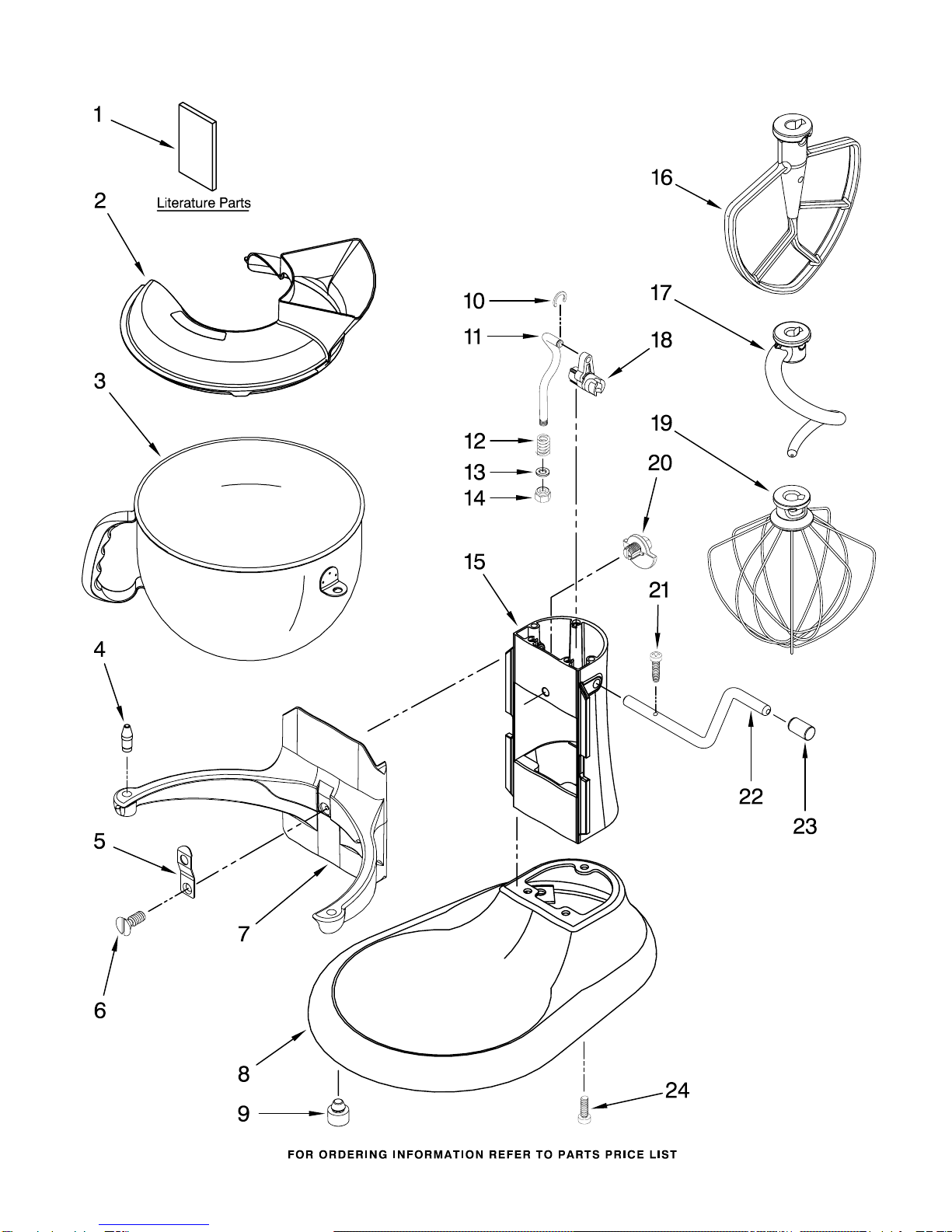

BASE AND PEDESTAL UNIT
For Models: KP26M1X_ _5, 4KP26M1X_ _5
6
8212278
BASE AND PEDESTAL UNIT
7
For Models: KP26M1X_ _5, 4KP26M1X_ _5
8212278
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
Use & Care Guide
9708307 U.S.
9708308 Canada
8212278 Repair Parts List
2 9709924 Shield, Pouring
3 9703687 Bowl, 6 Qt.
4 240185 Pin, Bowl Locating
5 9703474 Latch, Bowl Spring
6 3400018 Screw
7Bowl Support
8Base and Foot
Assembly
9 9708649 Foot, Rubber
10 9703307 Clip
11 9706787 Rod, Bowl Lift
12 9237 Spring
13 9703439 Washer
14 8533907 Nut
15 Column Assembly
16 9703485 Beater, Flat
17 9703655 Hook, Dough
18 9706885 Arm, Bowl Lift
19 9703491 Whip, Wire
20 9703426 Cam, Adjusting
21 3400863 Screw
22 9706788 Handle, Bowl Lift
23 9703698 Handle
24 3400200 Screw
Refer To Page 3
Color Variation Parts
ACCESSORY PARTS
8
For Models: KP26M1X_ _5, 4KP26M1X_ _5
8212278
Illus. Part
No. No. DESCRIPTION
4164778 Mixer Attachment
Pak (Includes Food
Grinder (FG−A),
Food Strainer
(FVSP), And
Vegetable Slicer,
(RVS−A)
(FPP−A)
4164749 Food Grinder
(FG−A)
8211924 Grain Mill
(KGMA)
4164768 Pasta Maker And
Food Grinder
(Includes SNP
Pasta Maker
Plates)
(SN/FG−A)
4164775 Fruit/Vegetable
Strainer Parts (Use
With FG−A Model
Only) (FVSP)
4164750 Rotor Slicer/Shredder
(With 4 Standard
Cones) Fine Shredder,
Coarse Shredder,
Thick Slicer, And
Thin Slicer (RVS−A)
4164824 Pasta Maker Plates
(SNP−A)
4164774 Fruit/Vegetable
Strainer And Food
Grinder (FVS/FG−A)
4162838 Food Tray (FT)
4164748 Juicer (JE)
4164747 Can Opener (CO)
4164803 Sausage Stuffer
Kit (SSA)
4160588 Grease, Planetary
9707963 Ice Cream Maker
(KICA0WH0)
