MULTIQUIP Whiteman MC94S Mode d’emploi

OPERATION AND PARTS MANUAL

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALLTIMES.

To find the latest revision of this

publication, visit our website at:

www.multiquip.com

MODELS

MC94S

MC94P

CONCRETE MIXERS

Revision #8 (03/06/09)

MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09) — PAGE 33

MC94P/S CONCRETE MIXER — SUGGESTED SPARE PARTS

MC94P/S CONCRETE MIXERS 1 TO 3 UNITS WITH

HONDA GX240K1QA2 ENGINE

Qty. ... P/N ...................... Description

1 ....... 493399 ................ V-BELT w/GAS ENGINE

1 ....... 502212 ................ V-BELT w/ELECTRIC MOTOR

1 ....... 29173-001 ........... STOP SWITCH w/GAS ENGINE

2 ....... 491010 ................ LATCH SET

1 ....... 505390 ................ EXPANSION PLUG

2 ....... 510956 ................ SPINDLE BEARING CUP

2 ....... 510955 ................ SPINDLE BEARING CONES

1 ....... EM505472 ........... SPACER, DRUM (STEEL ONLY)

2 ....... 492179 ................ BEARING PINION

2 ....... EM914288 ........... SEAL, AXLE

4 ....... EM903012 ........... BEARING CUP

4 ....... EM903113 ........... BEARING CONE

2 ....... 3469 .................... DUST CAP, AXLE

3 ....... 9807956846 ......... SPARK PLUG

3 ....... 17210ZE2505 ...... AIR FILTER

1 ....... 17620ZH7023 ...... CAP, FUEL

1 ....... 28462ZEW211 ..... ROPE

NOTE

Part numbers on this Suggested

Spare Parts List may supercede/

replace the P/N's shown in the

test pages of this manual.

PAGE 34 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)

MC94P/S CONCRETE MIXER — NAME PLATE AND DECALS

NAME PLATE AND DECALS

MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09) — PAGE 35

MC94P/S CONCRETE MIXER— NAME PLATE AND DECALS

NAME PLATE AND DECALS

NO PART NO PART NAME QTY.REMARKS

1 512910 MQ MULTIQUIP LOGO 3

2 CIPDCL160 DECAL, CRUSH WARNING 2

3 504713 DECAL, SAFETY INSTRUCTIONS 1

4 EM948630 DECAL, EMERGENCY STOP 1

5 DCL151 DECAL, TOWING INSTRUCTIONS 1

6 35137 DECAL, WARNING READ 1

7 13118 DECAL, POWDER COATED 1

8 NAMEPLATE ........................................................ 1 ......... CONTACT PARTS DEPT.

SEE DECAL ILLUSTRATIONS ON PAGE 9

PAGE 36 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)

MC94P/S — PLASTIC BARREL

PLASTIC BARREL ASSY.

MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09) — PAGE 37

MC94P/S — PLASTIC BARREL

PLASTIC BARREL ASSY.

NO PART NO PART NAME QTY.REMARK

1 514061 RING GEAR 1

2 EM969013 NUT, LOCK 3/8” NC 4

3 508492 BARREL, PLASTIC 9 CU. FT. 1

4 505390 PLUG, EXPANSION 1

5 508491 KING PIN 1

6 510955 SPINDLE BEARING CONE 2

7 510956 SPINDLE BEARING CUP 2

8 514930 SUPPORT SPIDER 1

9 511758 SHIM PLASTIC #14 AR

10 511759 SHIM PLASTIC #16 AR

11 EM963057 BOLT 3/8" NC 1-1/2" G5 4

12 492378 BOLT 3/8" NC 1-3/4" G5 16

13 507542 SUPPORT BRACKET, UPPER 4

14 492598 WASHER, FLAT 16

15 492583 NUT, HEX 3/8" NC 16

16 508497 PLASTIC BLADE, VERT. LONG 2

16A 508498 PLASTIC BLADE, VERT. SHORT 2

17 507541 SUPPORT BRACKET, LOWER 4

19 507538C SPACER MC8079 4

20 508345 BOLT, FLAT HEAD 3/8" NC X 3-1/2" G 4

21 EM926036 RING, RETENTION 2

22 514515 DRIVE PINION SHAFT 1

23 492179 BEARING, PINION SHAFT 2

24 EM963692 BOLT 1/2" NC X 1-1/2" G5 2

25 502036 HOUSING, JACKSHAFT 1

26 492584 LOCKNUT, HEX 1/2" NC 2

27 491008 CAP, GREASE FITTING 3

28 EM916001 GREASE FITTING 1/8" NPT 3

29 500246 SQUARE KEY 1/4 X 35 MM 1

30 503915 DRIVE PINION 1

31 492468 ALLEN SCREW 5/16 NC 1/2" 1

32 492491 SET SCREW 1/2" X 1" NC 1

33 07037-024 NUT, HEX LOWER 1-1/2" NF ................. 1 .............. REPLACES EM968306

34 505079 BOLT 5/8" NC X 1-1/4" NC 1

35 492586 LOCKNUT, HEX 5/8" NC 1

36 510647 YOKE 1

37 508496 BLADE, PLASTIC (SHOVEL) 2

38 500980 WASHER, FLAT 1-9/16" 1

39 505472 SPACER, BARREL 1

40 515450 STEEL BLADES .................................... 3 ............... EFFECTIVE 02/2005

PAGE 38 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)

MC94P/S — STEEL BARREL

STEEL BARREL ASSY.

MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09) — PAGE 39

MC94P/S — STEEL BARREL

STEEL BARREL ASSY.

NO PART NO PART NAME QTY.REMARK

1 505390 PLUG, EXPANSION 1

2 505469 KING PIN 1

3 510955 SPINDLE BEARING CONE 2

4 510956 SPINDLE BEARING CUP 2

5 514061 RING GEAR 1

6 EM9633057 BOLT 3/8" NC 1-1/2" G5 6

7 505473 BARREL, STEEL 9 CU. FT. 1

8 511732 SHIM 0.25 THICK AR

8 511729 SHIM .100 THICK AR

8 511730 SHIM .140 THICK AR

8 511731 SHIM .187 THICK AR

9 EM969013 NUT, LOCK 3/8” NC 6

10 490962 SNAP RING 2

11 514515 DRIVE PINION SHAFT 1

12 492179 BEARING, PINION SHAFT 2

13 EM963692 BOLT 1/2" NC X 1-1/2" G5 2

14 492584 LOCKNUT, HEX 1/2" NC 2

15 502036 HOUSING, JACKSHAFT 1

16 491008 CAP, GREASE FITTING 3

17 EM916001 GREASE FITTING 1/8" NPT 3

18 500214 SQUARE KEY 1/4" X 30 MM 1

19 503915 DRIVE PINION 1

20 492467 ALLEN SCREW 5/16 NC 3/8" 1

21 EM505472 SPACER, BARREL 1

22 492491 SET SCREW 1/2" X 1" NC 1

23 07037-024 NUT, HEX LOWER 1-1/2" NF ................... 1 ............. REPLACES EM968306

24 492406 BOLT 5/8" NC X 1-1/2" NC 1

25 492586 LOCKNUT, HEX 5/8" NC 1

26 510593 YOKE 1

PAGE 40 —MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09)

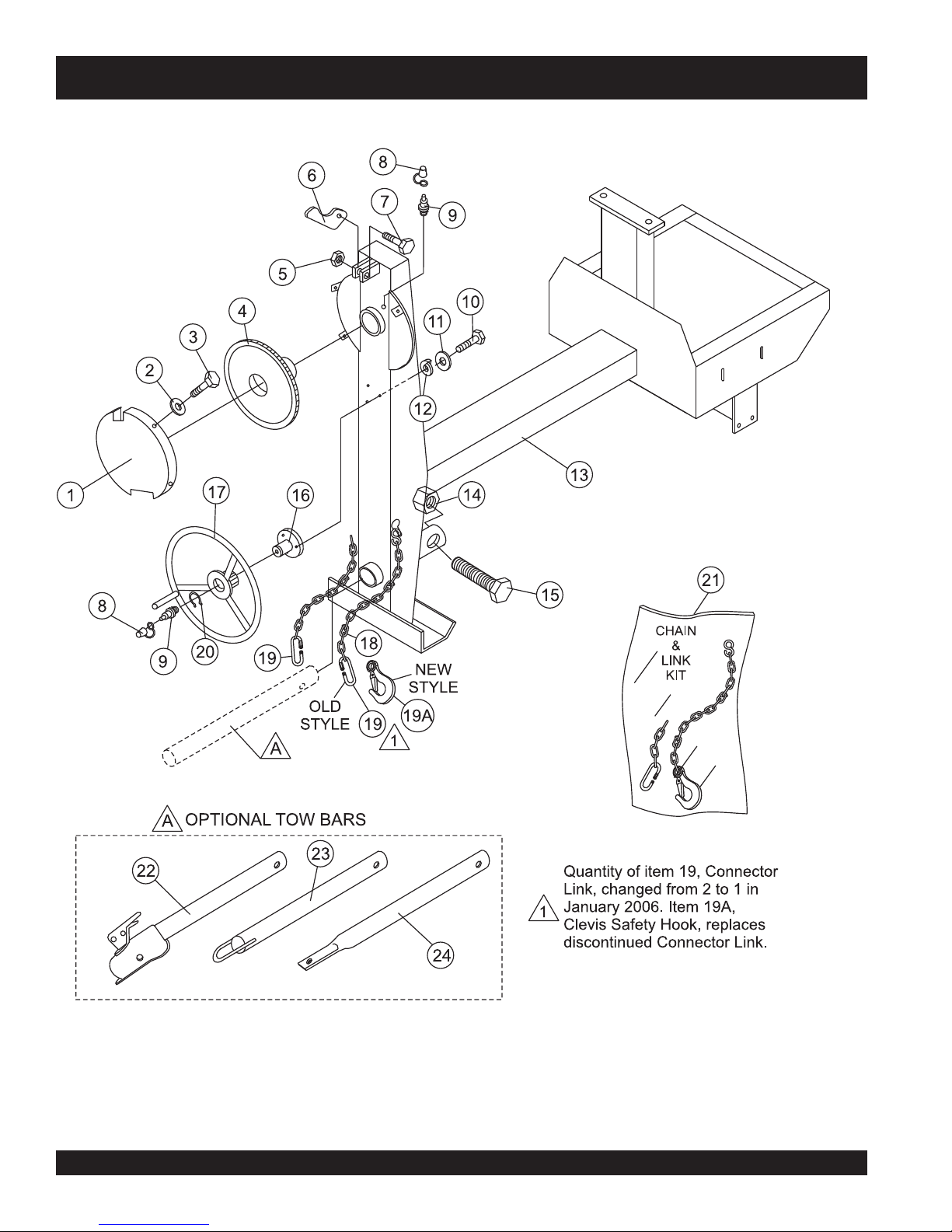

MC94P/S — MAIN FRAME ASSEMBLY

MAIN FRAME ASSY.

MC94P/S CONCRETE MIXERS — OPERATION AND PARTS MANUAL — REV. #8 (03/06/09) — PAGE 41

MC94P/S — MAIN FRAME ASSEMBLY

MAIN FRAME ASSY.

NO PART NO PART NAME QTY.REMARK

1 514245 GUARD, GEAR WHEEL 1

2 492621 WASHER, LOCK 1/4" 4

3 492278 ROUND HEAD BOLT 1/4" NC 3/8 G2" 4

4 514692 DUMP GEAR 1

5 492584 NUT, LOCK 1/2" NC 1

6 490895 DUMP LATCH 1

7 492395 BOLT 1/2" NC X 1-3/4" G5 1

8 EM916001 GREASE FITTING 1/8" NPT 2

9 491008 GREASE CAP 2

10 EM963055 BOLT 3/8" NC X 3/4" G5 3

11 3109092 WASHER, FLAT 3/8" 3

12 0166 A WASHER, LOCK 3/8" 3

13 514521 FRAME 1

14 10176 LOCK NUT 1/2 NC 1

15 EM124 BOLT 1/2"-13 X 4 G5 1

16 514723 HANDWHEEL SHAFT 1

17 501808 HANDWHEEL ............................................... 1 ............. REPLACES P/N 514002

18*SAFETY CHAIN 1

19*01004 CONNECTOR LINK ...................................... 2 ............. BEFORE JANUARY 2006

19*01004 CONNECTOR LINK ...................................... 1 ............. AFTER JANUARY 2006

19A*516581 CLEVIS SAFETY HOOK .............................. 1 ............. AFTER JANUARY 2006

20 490961 SNAP RING 1

21 13363KIT CHAIN AND LINK KIT .................................. 1 ............. INCLUDES ITEMS W/*

22 HBC-1 BALL HITCH 2-INCH .................................... 1 ............. CONTACT UNIT SALES

23 HLC-1 LOOP HITCH ................................................ 1 ............. CONTACT UNIT SALES

24 HPC-1 PIN HITCH 1-INCH ....................................... 1 ............. CONTACT UNIT SALES
