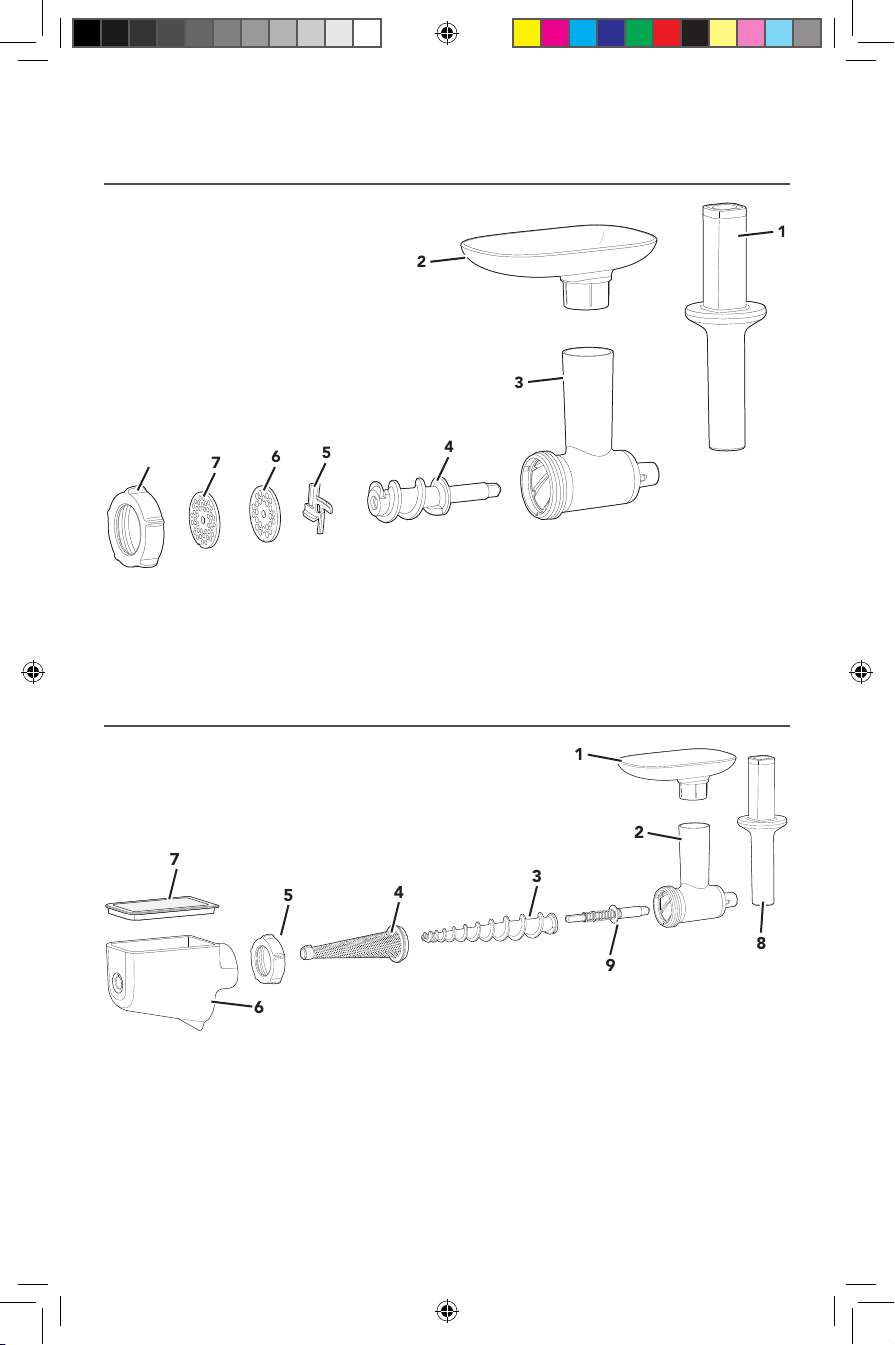

PARTS AND FEATURES

1. Food Pusher

2. Removable Tray

3. Main Housing

4. Grind Screw

5. Blade

6. Coarse (6 mm) Grinding Plate

7. Fine (4.5 mm) Grinding Plate

8. Collar

*These parts are sold separately as model 5KSMFGA.

1. Removable Tray*

2. Main Housing*

3. Long Grind Screw

4. Strainer Cone

5. Collar*

6. Strainer Shield

7. Splash Lid

8. Food Pusher*

9. Shaft Assembly

FOOD GRINDER ATTACHMENT

FRUIT/VEGETABLE STRAINER ATTACHMENT

W11373931A.indb 2 8/28/2019 8:00:48 PM

ENGLISH

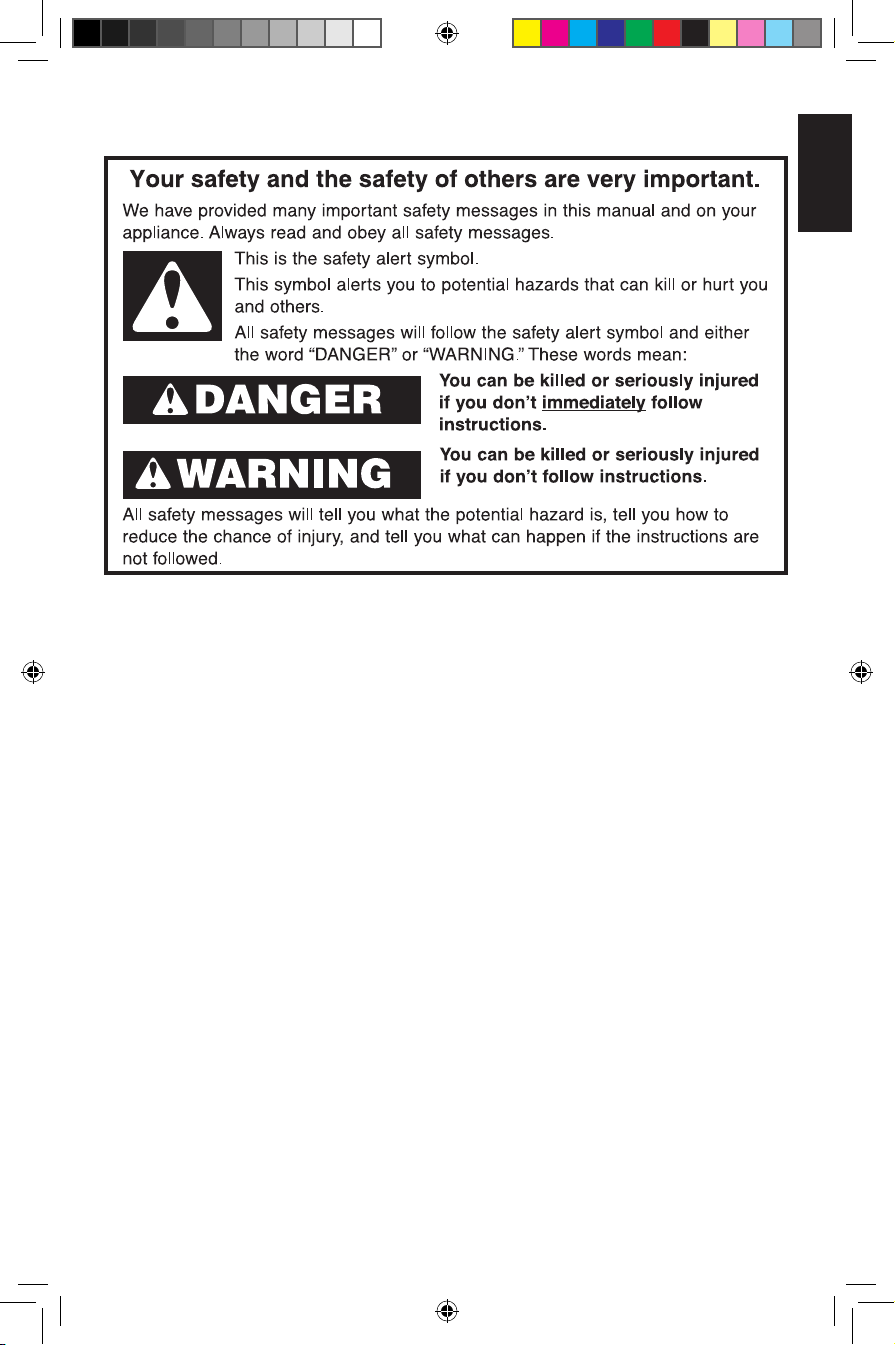

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be

followed, including the following:

1. Read all instructions. Misuse of appliance may result in personal injury.

2. To protect against risk of electrical shock, do not put Stand Mixer in water or

other liquid.

3. European Union only: Appliances can be used by persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they

have been given supervision or instruction concerning use of the appliance in a

safe way and understand the hazards involved. Children shall not play with the

appliance.

4. European Union only: This appliance shall not be used by children. Keep the

appliance and its cord out of reach of children.

5. Turn the appliance off, unplug from outlet and detach the attachment from

appliance before cleaning and when not in use. Turn the appliance off and make

sure the motor stops completely before putting on or taking off parts.

6. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

7. Children should be supervised to ensure that they do not play with the appliance.

8. Do not use the appliance outdoors.

9. Check the Main Housing for the presence of foreign objects before using.

10. Avoid contacting moving parts. Keep ngers out of discharge opening.

11. Never leave the appliance unattended while it is in operation.

PRODUCT SAFETY

W11373931A.indb 3 8/28/2019 8:00:49 PM

DISPOSAL OF PACKING MATERIAL

The packing material is 100% recyclable and is marked with the recycle symbol .

The various parts of the packing must therefore be disposed of responsibly and in

full compliance with local authority regulations governing waste disposal.

PRODUCT SAFETY

SAVE THESE INSTRUCTIONS

12. The use of attachments not recommended or sold by KitchenAid may cause re,

electric shock, or injury.

13. Never feed food by hand. Always use the Food Pusher.

14. Blades are sharp. Handle carefully.

15. Do not use ngers to scrape food away from the discharge disk or the Strainer

Cone while the appliance is operating. Cut-type injury may result.

16. Refer to the “Care and Cleaning” section for instructions on cleaning the

surfaces in contact with food.

17. Also see the Important Safeguards section included in the Stand Mixer Use and

Care guide.

18. This appliance is intended to be used in household and similar applications such

as:

- staff kitchen areas in shops, ofces and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

W11373931A.indb 4 8/28/2019 8:00:49 PM

ENGLISH

GUIDE TO GRINDING

NOTE: None of the parts and accessories of this KitchenAid Food Grinder attachment

(model 5KSMFGA) are compatible with the parts and accessories of the KitchenAid Metal

Food Grinder Attachment or previous KitchenAid Food Grinder Attachment (models

5KSMMGA, 5FGA, 5SSA, 5FVSP, 5FVSFGA, 5FPPA, 5KSMFPPA, 5GSSA, 5KSMGSSA,

5KN12AP) and vice versa.

Use these parts With these parts Suggested uses Speed

Fine (4.5 mm)

Grinding Plate Blade Cooked meats for spreads, hard cheeses

(e.g. Parmesan), bread crumbs) 4

Coarse (6 mm)

Grinding Plate Blade Raw meats for burgers and chili,

vegetables for salsas and sauces 4

GETTING STARTED

FRUIT/VEGETABLE STRAINER ATTACHMENT CHART

NOTE: None of the parts and accessories of this KitchenAid Fruit/Vegetable Strainer

attachment (model 5KSMFVSP) are compatible with the parts and accessories of the

KitchenAid Metal Food Grinder Attachment (model 5KSMMGA) or previous KitchenAid

Food Grinder Attachment (model 5FGA) and vice versa.

Use these parts With these parts Suggested uses Speed

Strainer Cone, Strainer

Shield and Splash Lid Long Grind Screw

and Collar Sauces, Chutneys, Hummus,

Jams, and Fruit Butters 4

To strain fruits and vegetables:

• Cut into pieces that will ﬁt into hopper.

• Remove tough, thick skin or rind, such as oranges.

• Remove all large pits from fruits and vegetables such as peaches.

• Remove hulls or stems, such as strawberries or grapes.

• Cook all tough or ﬁrm fruits and vegetables before straining.

NOTE: To avoid damage to the Fruit/Vegetable Strainer attachment and/or the Stand

Mixer, Labruscan or slip-skin type grapes such as Concord, Catawba, and Ontario

grapes should not be processed in the Fruit/Vegetable Strainer. Only Vinifera family

grapes such as Tokay and Thompson Seedless may be processed.

W11373931A.indb 5 8/28/2019 8:00:49 PM

ASSEMBLING THE FRUIT/VEGETABLE STRAINER ATTACHMENT

Tab

Notch

Secure the smaller spring end of the Shaft

Assembly into the Large Grind Screw.

Insert the Long Grind Screw into the Main

Housing.

Place the Strainer Cone over the Long

Grind Screw matching the notch of the

Strainer Cone with the tab on the bottom

of the Main Housing.

PRODUCT ASSEMBLY

ASSEMBLING THE FOOD GRINDER ATTACHMENT

Before ﬁrst use, clean all parts and accessories (see “Care and Cleaning” section).

Sharp Side

Insert the Grind Screw into the Main

Housing securely.

Place the Blade over the end of the Grind

Screw.

Place the desired Grinding Plate over the

Blade, matching the notch of the plate

with the tab on the bottom of the Main

Housing.

Place the Collar on the Main Housing,

turning clockwise by hand until secured but

not tightened.

Notch Tab

Insert the Collar over the Strainer Cone

and rotate clockwise to secure.

Slide the Strainer Shield over the cone and

latch on the top of ring.

Place Splash Lid on the Strainer Shield.

Collar

Notch Tab

W11373931A.indb 6 8/28/2019 8:00:51 PM

ENGLISH

PRODUCT ASSEMBLY

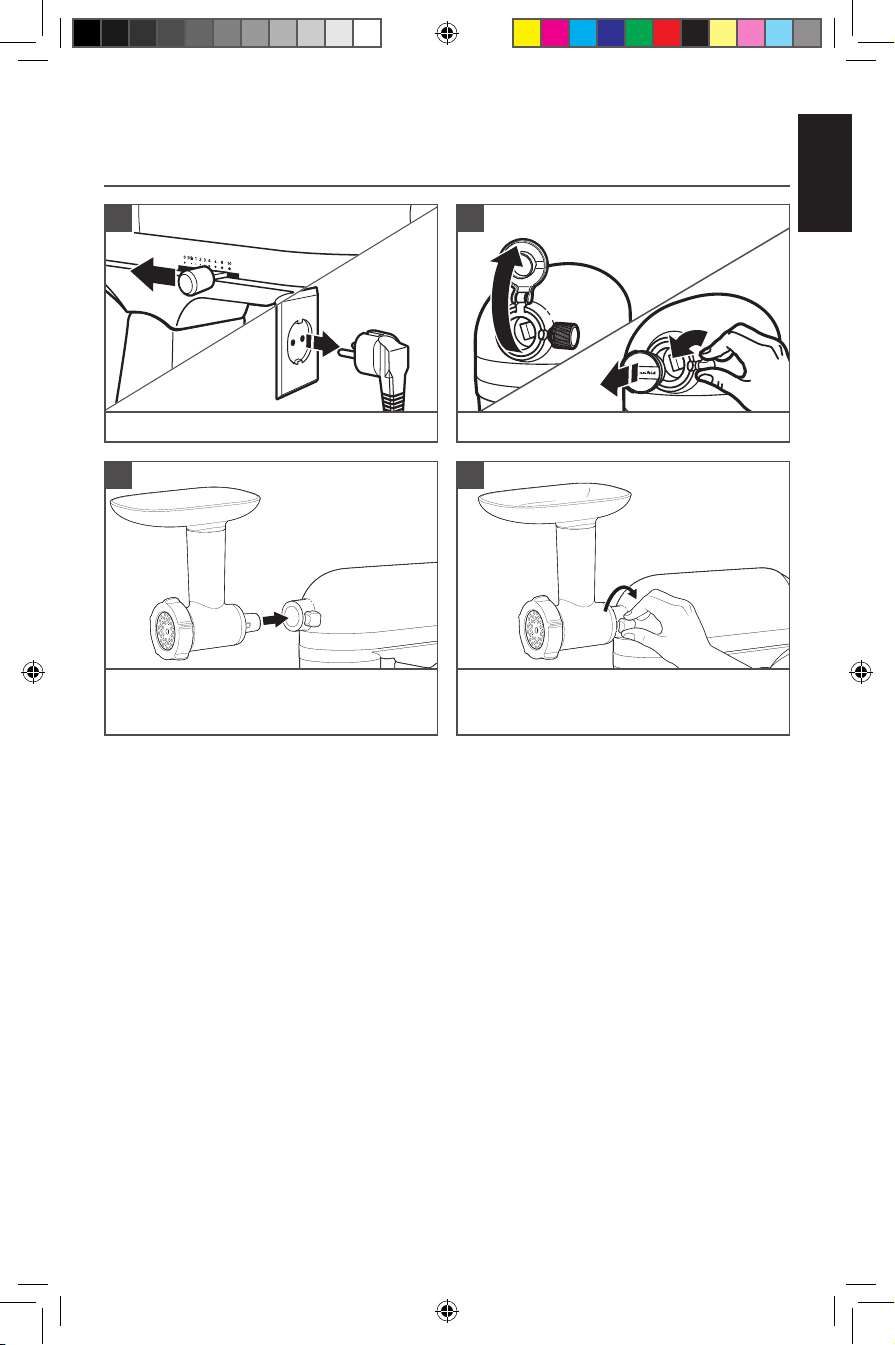

ASSEMBLING THE ATTACHMENT TO THE STAND MIXER

Turn the Stand Mixer off and unplug.

Remove the attachment hub cover.

Insert the attachment shaft Housing into

the attachment hub.

Tighten the Stand Mixer attachment hub

knob until the attachment is completely

secured to the Stand Mixer.

3 4

TIP: Place the bowl under the discharge disk or the Strainer Cone to catch ground or strained

food and place a smaller bowl under the open end to catch food waste.

W11373931A.indb 7 8/28/2019 8:00:51 PM

PRODUCT USAGE

GRINDING WITH THE FOOD GRINDER ATTACHMENT

Cut food into small strips or pieces sized to

ﬁt into the feed tube.

Turn the Stand Mixer to Speed 4 and feed

food into the feed tube using the food

pusher.

Feed Tube

WARNING

Rotating Blade Hazard

Always use food pusher.

Keep fingers out of openings.

Keep away from children.

Failure to do so can result in amputation or cuts.

USING THE FRUIT/VEGETABLE STRAINER ATTACHMENT

Cut food into pieces that will ﬁt in the

Feed Tube.

Turn the Stand Mixer to Speed 4 and feed

food into the Feed Tube using the Food

Pusher.

Feed Tube

NOTE: Liquid may appear in the hopper when processing large amounts of high-

moisture foods such as tomatoes or grapes. To drain liquid, continue to operate the

Stand Mixer. To avoid damage to the Stand Mixer, do not process additional food until

the liquid has drained from the hopper.

W11373931A.indb 8 8/28/2019 8:00:52 PM

ENGLISH

CARE AND CLEANING

Dishwasher-safe parts, top rack only:

Strainer Cone, Strainer Shield, Food

Pusher, Collar, Removable Tray, and Splash

Lid.

The following parts should be hand-

washed only, using warm, soapy water and

drying thoroughly: Main Housing, Long

Grind Screw, Grinding plate, Blade and

Shaft Assembly.

NOTE: Blades are sharp. Handle carefully.

TIP: A small bottle brush may be used to help remove pulp from the Strainer Cone.

1 2

W11373931A.indb 9 8/28/2019 8:00:52 PM

KITCHENAID and the design of the stand mixer are trademarks in the U.S. and elsewhere.

PRODUCT WARRANTY

KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR INDIRECT

DAMAGES.

CUSTOMER SERVICE

PRODUCT REGISTRATION

Length of Warranty: KitchenAid Will Pay For: KitchenAid Will Not Pay For:

Europe, Middle East

and Africa:

5KSMFVSP

5KSMFGA

Two years full

warranty from

date of purchase.

The replacement parts

and repair labour

costs to correct

defects in materials or

workmanship. Service

must be provided by an

Authorised KitchenAid

Service Centre.

A. Repairs when Stand Mixer

attachment is used for

operations other than normal

household food preparation.

B. Damage resulting from

accident, alterations,

misuse, abuse, or installation/

operation not in accordance

with local electrical codes.

In U.K. and Ireland:

For any questions, or to find the nearest Authorised KitchenAid Service Centre,

please find our contact details below.

NOTE: All service should be handled locally by an Authorised KitchenAid

Service Centre.

General hotline number:

In other countries:

For all product related questions and after sales matters, please contact your dealer

to obtain the name of the nearest Authorised KitchenAid Service/Customer Centre.

For more information, visit our website at:

www.KitchenAid.co.uk

www.KitchenAid.eu

W11373931A.indb 10 8/28/2019 8:00:52 PM

Autres manuels pour 5KSMFVSP

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels KitchenAid Accessoires pour appareils de cuisine

KitchenAid

KitchenAid 5FGA Manuel utilisateur

KitchenAid

KitchenAid KSM2APC Manuel utilisateur

KitchenAid

KitchenAid KSM5SSB Manuel utilisateur

KitchenAid

KitchenAid 5KGB Manuel utilisateur

KitchenAid

KitchenAid 5KSMSSA Manuel utilisateur

KitchenAid

KitchenAid 5KRAV Manuel utilisateur

KitchenAid

KitchenAid KSMFGA Manuel utilisateur

KitchenAid

KitchenAid 5KSMFGA Manuel utilisateur

KitchenAid

KitchenAid FVSP Manuel utilisateur

KitchenAid

KitchenAid 5KSM2FPPC Manuel utilisateur

KitchenAid

KitchenAid MK1200XS Manuel utilisateur

KitchenAid

KitchenAid 5KSMFGA Manuel utilisateur

KitchenAid

KitchenAid KSMSIA Manuel utilisateur

KitchenAid

KitchenAid Architect Series II KCMS1555SSS Manuel utilisateur

KitchenAid

KitchenAid 5KGM Manuel utilisateur

KitchenAid

KitchenAid 5KSMSCA Manuel utilisateur

KitchenAid

KitchenAid 5KST4054A Manuel utilisateur

KitchenAid

KitchenAid KSMFGA Manuel utilisateur

KitchenAid

KitchenAid KGSSA Manuel utilisateur

KitchenAid

KitchenAid KCMS1555SSS - Countertop Microwave Oven Manuel utilisateur

KitchenAid

KitchenAid KSMFGA Manuel utilisateur

KitchenAid

KitchenAid KSM2FPA Instructions d'utilisation et d'entretien

KitchenAid

KitchenAid 5KSMSFTA Manuel utilisateur

KitchenAid

KitchenAid 5KSM1JA Manuel utilisateur

Manuels Accessoires pour appareils de cuisine populaires d'autres marques

JUNO

JUNO SCC2635BR Manuel d'utilisation et d'entretien

Bosch

Bosch ErgoMixx MSM6 IN Series Manuel utilisateur

Viking

Viking VGC530 Manuel utilisateur

Maytag

Maytag AG202MG - Gas Burner Module Manuel utilisateur

Orava

Orava BN-30 Manuel utilisateur

TurboChef

TurboChef ENCORE Mode d’emploi

TurboChef

TurboChef CON-3002 Manuel de la liste des pièces

Kenwood

Kenwood KAT91.000CL Manuel utilisateur

Bosch

Bosch VeggieLove Manuel utilisateur

Miele

Miele DUU 1000-2 Manuel utilisateur

Bosch

Bosch MUZ8MX2 Manuel utilisateur

Tramontina

Tramontina 80202/005DS Guide de référence rapide

Dualit

Dualit Tamper Manuel utilisateur

Kenmore

Kenmore 22009 Manuel utilisateur

Bosch

Bosch MSMS CN Series Manuel utilisateur

Maytag

Maytag 4396395T Manuel utilisateur

eta

eta 0028 96000 Manuel utilisateur

Pro-Fondi

Pro-Fondi Pro-Fondi Manuel utilisateur
