COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP467JTL0

(Stainless Steel)

7−00 Litho in U.S.A. (RS) Part No.8185498

36" Stainless Steel

Professional Cooktop

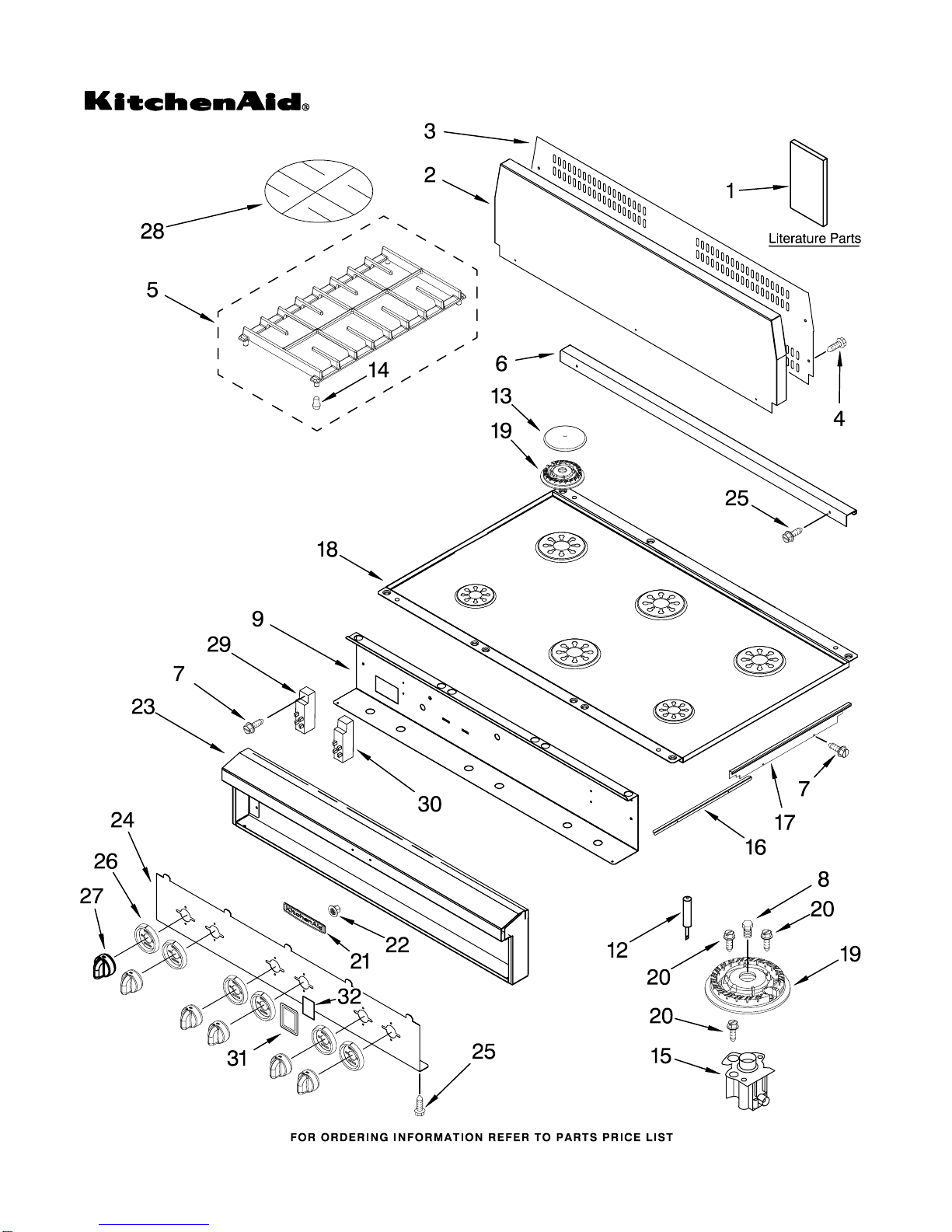

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP467JTL0

(Stainless Steel)

8185498

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT4455062

Instructions,

Island Trim

LIT8284671

Wiring Diagram

LIT8284642

Use & Care Guide

LIT8284670

Installation

Instructions

LIT8284674

Instructions,

LP Conversion

2 4454960 Backsplash

3 8284712 Support,Backsplash

4 3196537 Screw, 8−18 x 3/8

5 4454963 Grate, Burner

6 4454962 Trim, Island

7 3177991 Screw, 8−18 x 1/4

8 Orifice, Burner

3192525 Turbo (4)

3192528 Auxillary (2)

9 8284766 Support, Control

Panel

12 9754215 Ignitor, Burner

13 4455243 Cap, Burner

14 3186678 Pad, Grate (4)

15 Holder, Orifice

Includes Orifice

9754188 Turbo (4)

9754182 Auxillary (2)

16 4454974 Support Rail

R.H.& L.H.

17 Trim, Side

4454958 Right Hand

4455029 Left Hand

18 8284664 Cooktop, Black

19 Burner Head 14K

9754181 Turbo (4)

8273216 Auxillary (2)

20 3368921 Screw, 7−18 x 3/4

21 2005292 Nameplate

22 2004333 Palnut

23 4455217 Control Frame

24 8284638 Panel, Control

25 3196176 Screw, 8−18 x 1/2

26 4455192 Bezel, Knob

27 4454970 Knob, Burner

28 4455109 Plate, Simmer

29 8053421 Module, Spark

4−Burner

30 8053420 Module, Spark

2−Burner

31 8284641 Bezel, Tile

32 8284639 Spacer, Tile

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP467JTL0

(Stainless Steel)

8185498

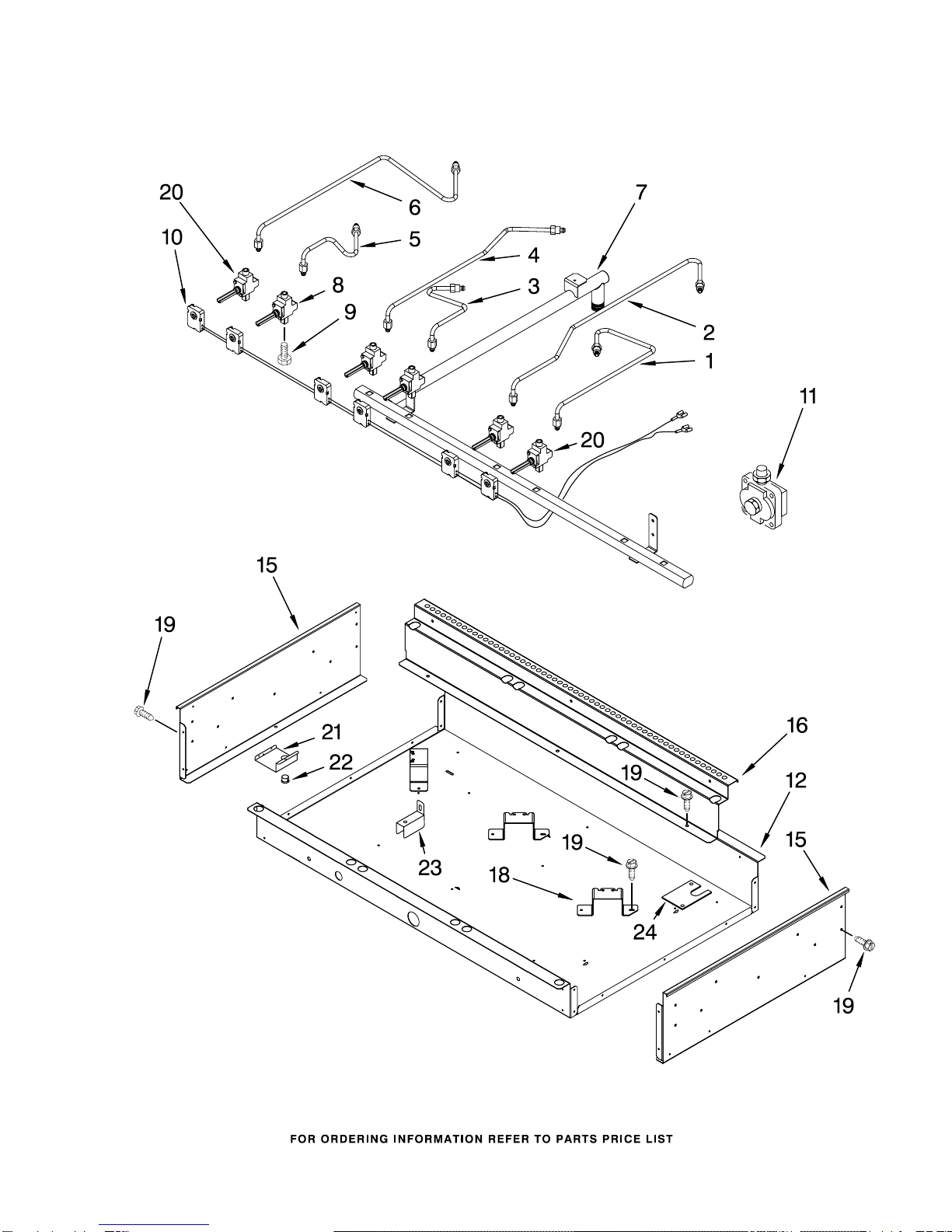

BURNER BOX, GAS VALVES, AND SWITCHES

PARTS NOT ILLUSTRATED

For Model: KGCP467JTL0

(Stainless Steel)

8185498

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4455040 Tubing, Gas

Burner − RF

2 4455041 Tubing, Gas

Burner − RR

3 4455151 Tubing, Gas

Burner − CF

4 4455152 Tubing, Gas

Burner − CR

5 4455153 Tubing, Gas

Burner − LF

6 4455154 Tubing, Gas

Burner − LR

7 4454966 Manifold

8 3192157 Valve, Burner

(Turbo)

9 307630 Bolt, Valve

10 4455155 Burner Switch &

Harness Assembly

3191387 Seal, Switch

11 4455157 Regulator,Pressure

12 8284809 Burner Box

Illus. Part

No. No. DESCRIPTION

15 Side, Burner Box

8284677 Right Hand

8284678 Left Hand

16 8284682 Support, Rear

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 3191292 Valve, Burner

Auxillary

21 8284680 Cover Shelf

22 8284722 Bushing, Cover

Shelf

23 4449845 Bracket, Support

24 4455139 Cover, Panel

WIRING HARNESS PARTS

3192231 Power Cord

1129449 Bushing

3191418 Harness, Wire

Jumper

8284772 Harness, Wire

Ignitor

Miscellaneous

8284663 L.P. Orifice Spud

Pack
