KitchenAid KECD806RBL00 Manuel utilisateur

COOKTOP PARTS

For Models: KECD806RBL00, KECD806RWW00, KECD806RSS00

(Black) (White on White) (S.Steel)

30" ELECTRIC

BUILT−IN

DOWNDRDAFT COOKTOP

12−05 Litho in U.S.A. (cre) Part No. 8186305 Rev.A

COOKTOP PARTS

For Models: KECD806RBL00, KECD806RWW00, KECD806RSS00

(Black) (White on White) (S.Steel)

8186305

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8286553 Installation

Instructions

8286427 Wiring Diagram

8286080 Use & Care Guide

3191638 Safe Cooking Tips

9759133 Safe Cooking Tips

COOKTOP PARTS

2 Cooktop, Glass &

Bracket Assembly

8286219 Black

8286220 White

8286221 S.Steel

4457298 Seal, Foam

3 3196537 Screw, 8−18 x 3/8

4 8285710 Frame, Cooktop

(S.Steel Only)

5 Element, Surface

8523698 RF 1200W

8285846 LF 900/1800/2500W

8285937 RR 1000/2000W

8523697 RF 1500W

6 Rail, Element

8285933 Right Hand

8286054 Left Hand

7 8285809 Box, Burner

8 3191387 Seal, Switch

9 8285934 Shield, Vent

3177991 Screw

10 3190656 Drip Bowl, Grease

11 4455354 Bracket, Control

Mounting

3183956 Seal, Switch

Cover

12 311865 Screw, 8−32 x 7/32

13 4456836 Switch, Speed

Control

14 Switch, Infinite

3191049 LR & RF

8286070 LF

4456027 RR

15 8285469 Seal, Switch

16 3192439 Seal, Limiter

18 Knob, Control

8286096BL

Black

8286096WH

White

8286096CM

Cashmere Metalic

19 Knob, Blower

Switch

8286097BL

Black

8286097WH

White

8286097CM

Cashmere Metalic

20 Grille, Air

8285875 Black

8285826 White

8285874 Cashmere Metalic

21 3192530 Filter, Grease

25 9759094 Spring, Locator

486754 Screw

30 3193032 Gasket, Vent

Shield

33 8286055 Light, Hot Surface

Indicator

34 3193094 Plate, Cover

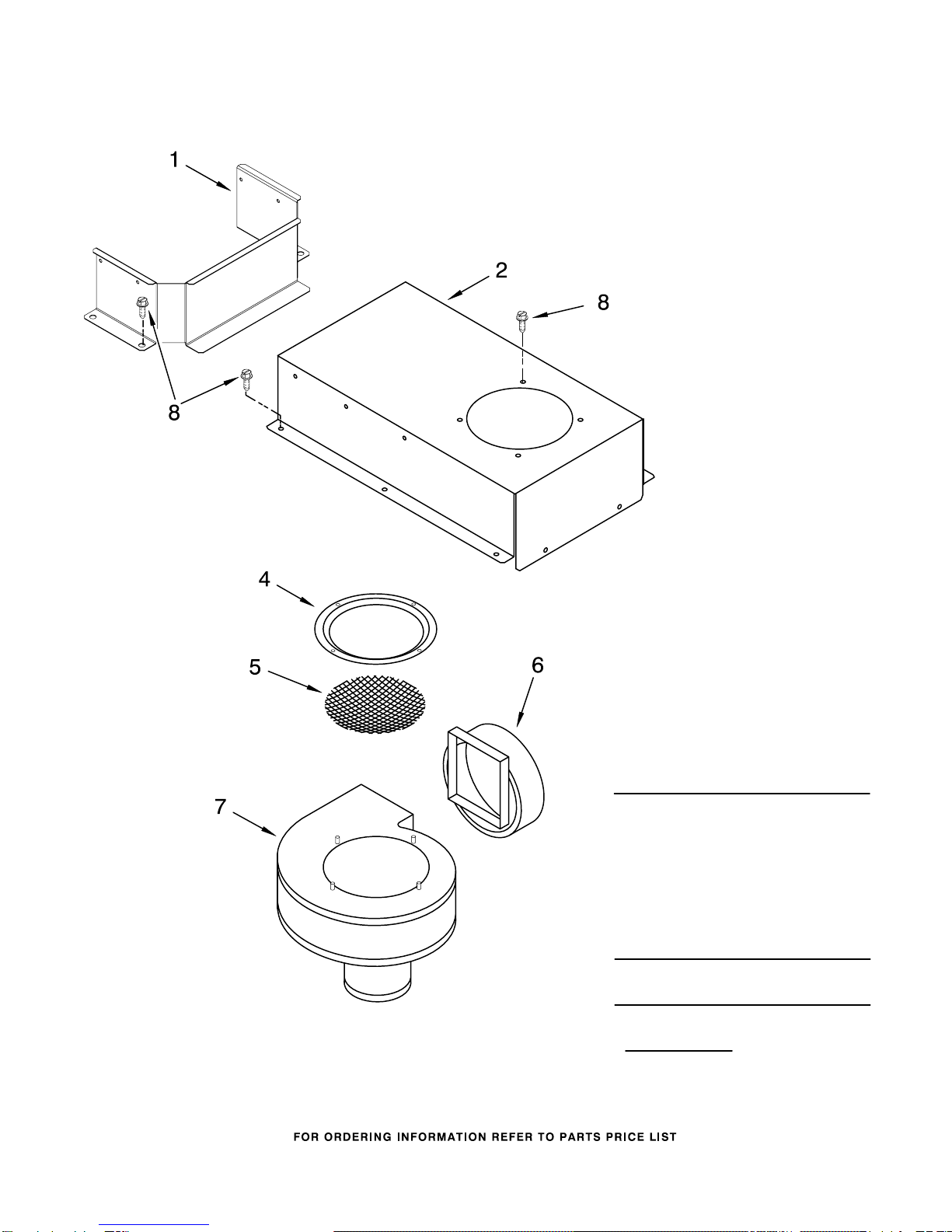

BLOWER UNIT PARTS

For Models: KECD806RBL00, KECD806RWW00, KECD806RSS00

(Black) (White on White) (S.Steel)

8186305

Illus. Part

No. No. DESCRIPTION

1 8285958 Bracket, Shield

2 3192403 Bracket, Blower

Mounting

4 9760484 Ring, Inlet

5 9760485 Screen, Inlet

6 9760483 Adapter, Vent

7 9760440 Blower Motor Asm.

(Includes Fan Asm)

8 3196537 Screw, 8−18 x 3/8

FOLLOWING PARTS

NOT ILLUSTRATED

Miscellaneous

3172515 Hardware, Mounting

4455917 Bracket, Mounting

3400093 Screw

OPTIONAL PARTS

For Models: KECD806RBL00, KECD806RWW00, KECD806RSS00

(Black) (White on White) (S.Steel)

8186305

Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242829 Wire, Red

12 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242826 Wire, White

14 Ga. 150 C

242827 Wire, Yellow

14 Ga. 150 C

242832 Wire, Yellow

14 Ga. 200 C

ACCESSORY PARTS

3191048 Cleaner, Glass

WIRING HARNESS PARTS

8286419 Harness, Wire

(Ceran Downdraft)

4456859 Harness, Wire

(Blower/Switch)

98997 Clip

9760671 Strain Relief

8286423 Conduit, Downdraft

3400015 Screw, 10−32 x 3/8
