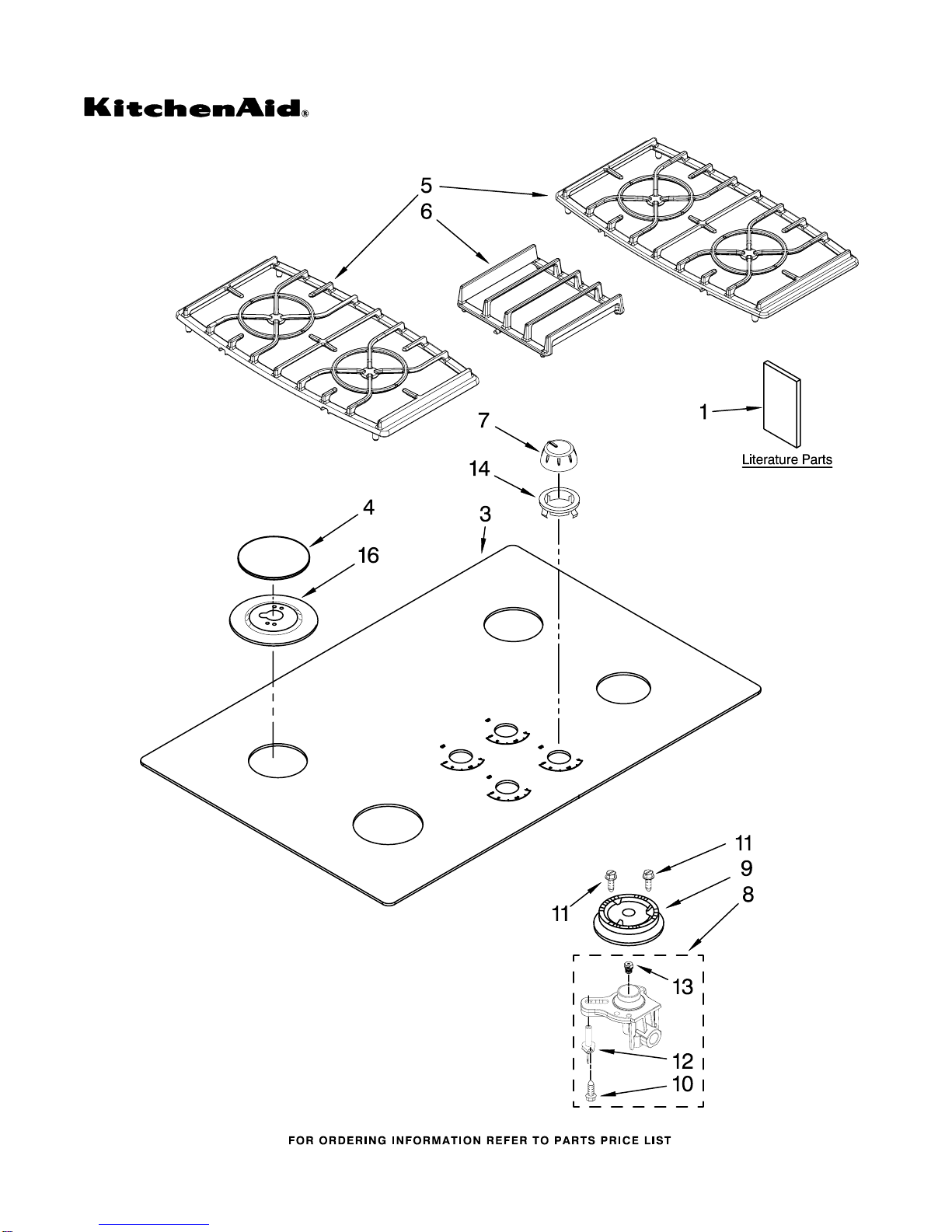

COOKTOP, BURNER AND GRATE PARTS

For Models: KGCC506RBL02, KGCC506RWW02

(Black) (White on White)

09−07 Litho in U.S.A. (amd) Part No. W10156602 Rev. A

30" GAS COOKTOP

COOKTOP, BURNER AND GRATE PARTS

For Models: KGCC506RBL02, KGCC506RWW02

(Black) (White on White)

W10156602

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10131955

Installation

Instructions

8304571 Undercounter

Installation

W10086190

Use & Care Guide

8286620 LP Gas Conversion

Instructions

Safe Cooking Tips

3191638 English

9759133 French

3 Cooktop

8286169 Black

8286171 White

4 Burner Caps

Black

8286153CB

8286154CB

8286155CB

8286156CB

White

8286153CG

8286154CG

8286155CG

8286156CG

5 Grate, Burner

8285879CB

Black

8285879CG

White

6 Grate, Center

8285880CB

Black

8285880CG

White

7 Knob, Control

8286094BL

Black

8286094WH

White

8 Holder, Orifice

W10128448

W10128450

8287052 RF

W10128445

9 Head, Burner

8286181 RR

8286184 LR

8286182 RF

8286183 LF

10 8273062 Screw

11 3368921 Screw

12 9782116 Electrode

13 Orifice

3192529 RR

3192523 LR

8286551 RF

8286474 LF

14 Grommet, Glass

3180079 Black

3180081 White

16 Bezel

Black

9753601BL

9753602BL

LR, RF

8285779BL

White

9753601CG

9753602CG

LR, RF

8285779CG

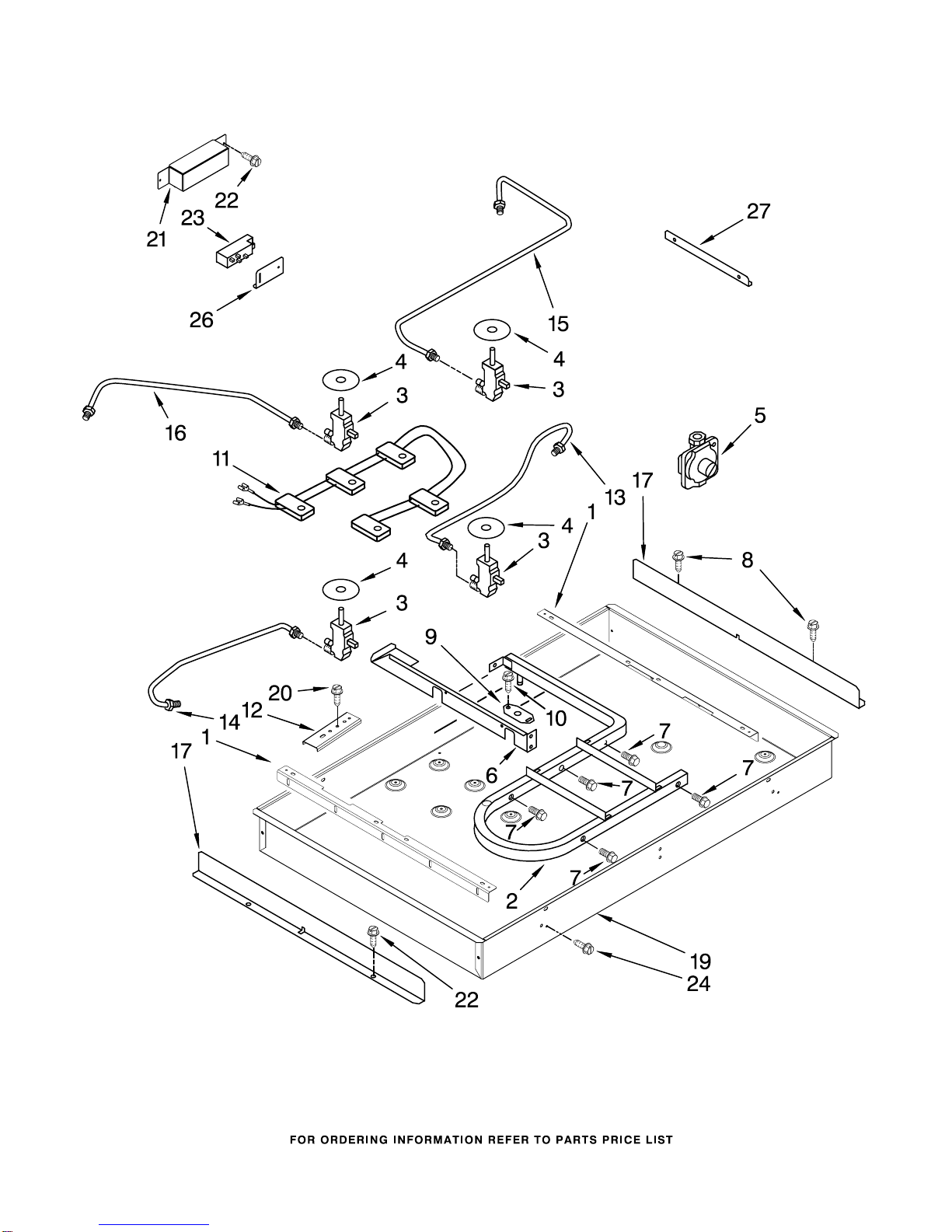

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: KGCC506RBL02, KGCC506RWW02

(Black) (White on White)

W10156602

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: KGCC506RBL02, KGCC506RWW02

(Black) (White on White)

W10156602

Illus. Part

No. No. DESCRIPTION

1 4456650 Rail, Burner

2 8286069 Pipe, Manifold

3 Valve, Gas Burner

8286559 White (2)

4456817 Black

8286560 Yellow

8286561 Orange

4 3191387 Seal, Shaft

W10131956

Regulator

Pressure

6 8285791 Rail, Center

7 8523704 Bolt, Gas Valve

8 3400843 Screw

9 3192491 Bracket, Manifold

10 3196160 Screw

11 4456905 Harness, Switches

12 4455917 Bracket, Mounting

13 8285793 Tubing, Gas

Burner (RF)

14 8285794 Tubing, Gas

Burner (LF)

15 8285792 Tubing, Gas

Burner (RR)

16 8285795 Tubing, Gas

Burner (LR)

17 3191462 Shield, Heat (2)

19 8285774 Burner Box

20 3400093 Screw

21 8285788 Shield, Heat

22 3177991 Screw

23 8522423 Spark Module

24 4449809 Screw

26 4455837 Bracket, Spark

Module

27 9759145 Bracket, Manifold

Support

OPTIONAL PARTS

For Models: KGCC506RBL02, KGCC506RWW02

(Black) (White on White)

W10156602

Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

9763116 Cord, Power

3177991 Screw

Miscellaneous

8286320 Spud Kit

WIRING HARNESS PARTS

4456626 Harness,

Ignitor 15" (2)

4456627 Harness,

Ignitor 28" (2)

8286642 Tape, Foam
