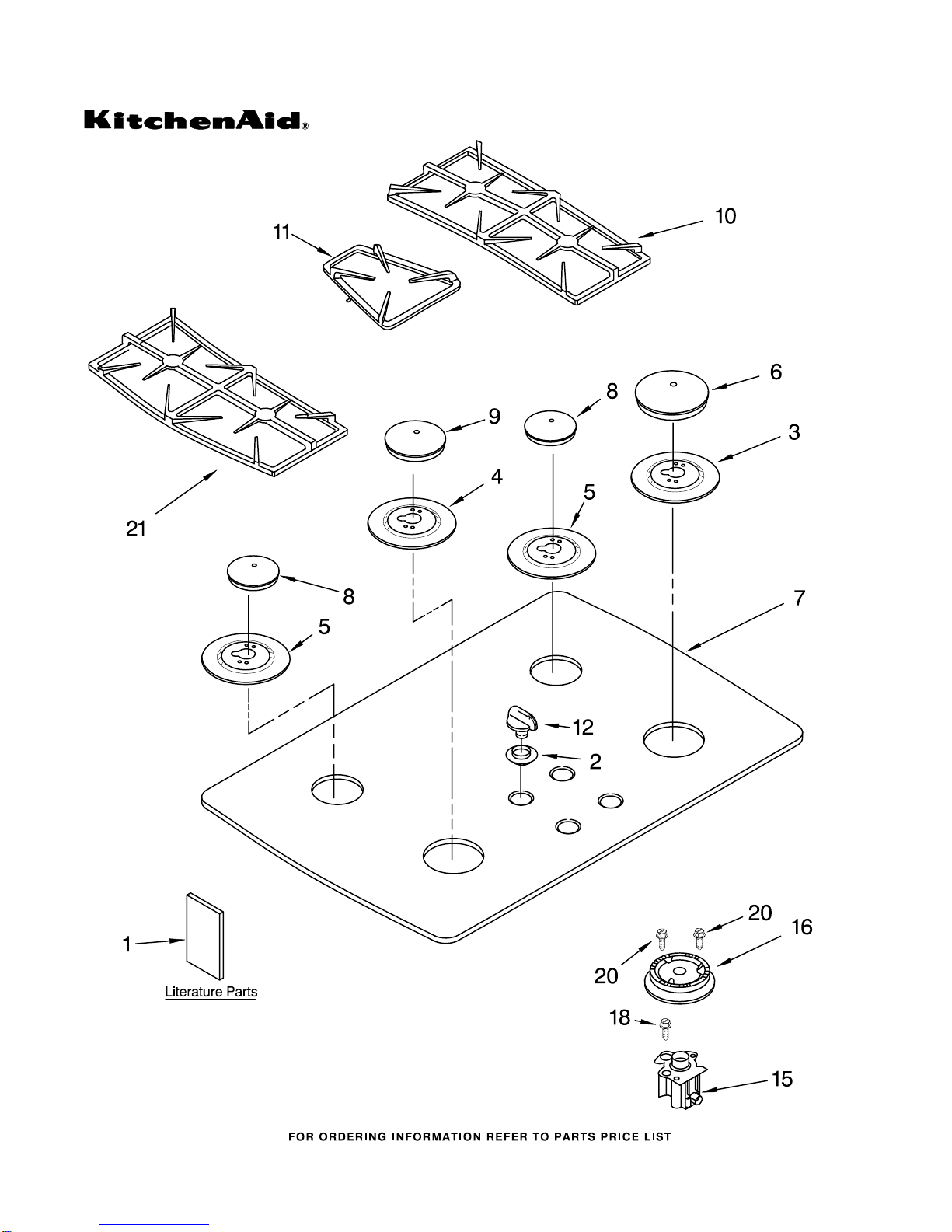

COOKTOP, BURNER AND GRATE PARTS

For Models: KGCC505HBL04, KGCC505HWH04, KGCC505HBT04

(Black) (White) (Biscuit)

6−05 Litho in U.S.A. (cre) Part No.8186273

30" GAS GLASS SURFACE COOKTOP

COOKTOP, BURNER AND GRATE PARTS

For Models: KGCC505HBL04, KGCC505HWH04, KGCC505HBT04

(Black) (White) (Biscuit)

8186273

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

4455834 Installation

Instructions

4456479 Use & Care Guide

3192098 Wiring Diagram

9759440 Conversion

Instructions

3191638 Safe Cooking Tips

9759133 Safe Cooking Tips

2 Grommet, Glass

3180081 White

3180079 Black

3191817 Biscuit

3 Bezel, Cooktop

(RF)

9753601GS

Mouse Gray

9753601GB

Black

4 Bezel, Cooktop

(LF)

9753600GS

Mouse Gray

9753600GB

Black

5 Bezel, Cooktop

(LR,RR)

9753602GS

Mouse Gray

9753602GB

Black

6 Cap, (RF)

3191729 Mouse Gray

3191728 Black

3191730 Moleskin

7 Cooktop, Glass

4455579 White

4455577 Black

4455580 Honeycomb

3191933 Seal, Foam

8 Cap, (RR)(LR)

3191735 Mouse Gray

3191734 Black

3191736 Moleskin

9 Cap, (LF)

3191738 Mouse Gray

3191737 Black

3191739 Moleskin

10 Grate, Burner RH

9759490 Mouse Gray

9759489 Black

9759491 Moleskin

11 Grate, Filler

9759493 Mouse Gray

9759492 Black

9759494 Moleskin

12 Knob, Control (4)

3191923 White

3191922 Black

3191925 Biscuit

15 Holder, Orifice

4456621 RF − 6K (Auxi)

4456623 LR−9K (Semi−Rapid)

4456621 RR − 12K (Rapid)

4456619 LF − 14K (Turbi)

16 Head, Burner

4455979 RF − 6K (Auxi)

4455981 LR−RR 12K (Rapid)

4455849 LF

18 4449809 Screw

20 3368921 Screw, 7−18 X 3/4

21 Grate, Burner LH

9759487 Mouse Gray

9759486 Black

9759488 Moleskin

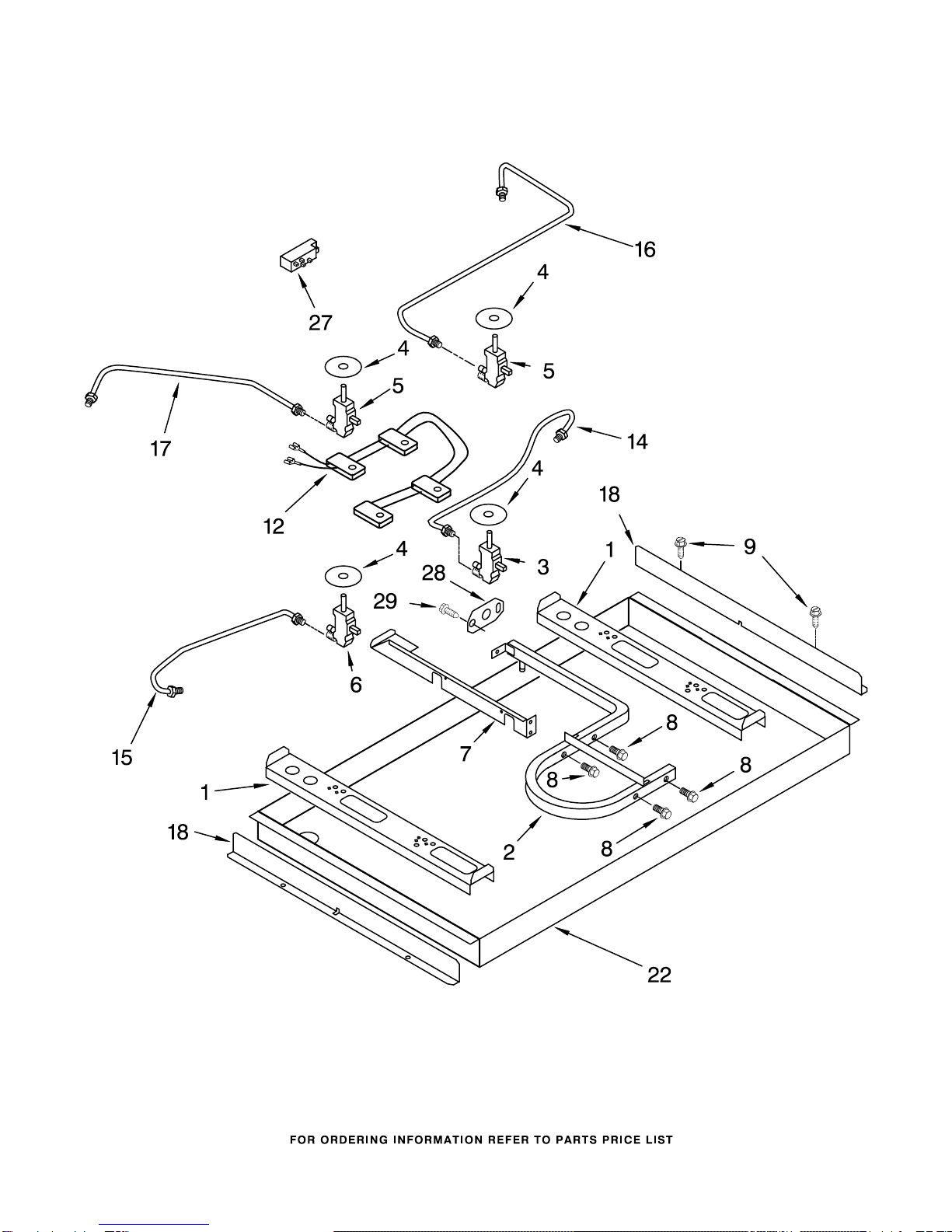

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: KGCC505HBL04, KGCC505HWH04, KGCC505HBT04

(Black) (White) (Biscuit)

8186273

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: KGCC505HBL04, KGCC505HWH04, KGCC505HBT04

(Black) (White) (Biscuit)

8186273

Illus. Part

No. No. DESCRIPTION

1 8286099 Rail, Burner

2 9759355 Pipe, Manifold

3 4456816 Valve, Gas Burner

Burner, (RF)

4 3191387 Seal, Shaft

5 4456817 Valve, Gas Burner

(RR & LR)

6 4456818 Valve, Gas

Burner (LF)

7 3192819 Rail, Center

8 3186217 Bolt, Gas Valve

9 3177991 Screw

12 4456905 Harness & Switches

14 3191324 Tubing, Gas

Burner (RF)

15 3191326 Tubing, Gas

Burner (LF)

16 3191325 Tubing, Gas

Burner (RR)

17 3191327 Tubing, Gas

Burner (LR)

18 3191462 Shield, Heat (2)

22 9759148 Burner Box

3179776 Screw

27 8522423 Module Spark

3400843 Screw

28 3192491 Bracket, Support

29 3196160 Screw, 8−18 x 1/4

OPTIONAL PARTS

Illus. Part

No. No. DESCRIPTION

For Models: KGCC505HBL04, KGCC505HWH04, KGCC505HBT04

(Black) (White) (Biscuit)

Following Parts Not Illustrated

3192231 Cord, Power

4173634 Bushing

3177991 Screw

9759145 Bracket, Mounting

3400843 Screw

4167077 Nut, Tinnerman

Miscellaneous

4455918 Hardware, Mounting

4455917 Bracket, Cooktop

Mounting

3400093 Screw

3192741 Conversion Kit

Natural Gas To L.P.

WIRING HARNESS PARTS

4456626 Harness,

Ignitor 15" (2)

4456627 Harness,

Ignitor 28" (2)

8186273
