Keysight U1701B Dual

Display Handheld

Capacitance Meter

Quick Start

Guide

2 Keysight U1701B Quick Start Guide

Contacting Keysight

www.keysight.com/find/assist

(worldwide contact information for

repair and service)

Safety and EMC Information

The Keysight U1701B is

safety-certified in compliance with

the following safety and EMC

requirements:

– IEC 61010-1:2001/EN

61010-1:2001 (2nd Edition)

– CISPR 11:2003+A1:2004

– IEC 61000-4-2:1995+

A1:1998 +A2:2000

– IEC 61000-4-3:2006

– IEC 61000-4-4:2004

– IEC 61000-4-5:2005

– IEC 61000-4-6:2003+

A1:2004+A2:2006

– IEC 61000-4-11:2004

– Canada: ICES-001:2004

– Australia/New Zealand:

AS/NZS CISPR11:2004

Safety Notices

CAUTION

A CAUTION notice denotes a

hazard. It calls attention to an

operating procedure, practice, or

the like that, if not correctly

performed or adhered to, could

result in damage to the product or

loss of important data. Do not

proceed beyond a CAUTION notice

until the indicated conditions are

fully understood and met.

WARNING

A WARNING notice denotes a

hazard. It calls attention to an

operating procedure, practice, or

the like that, if not correctly

performed or adhered to, could

result in personal injury or

death. Do not proceed beyond a

WARNING notice until the

indicated conditions are fully

understood and met.

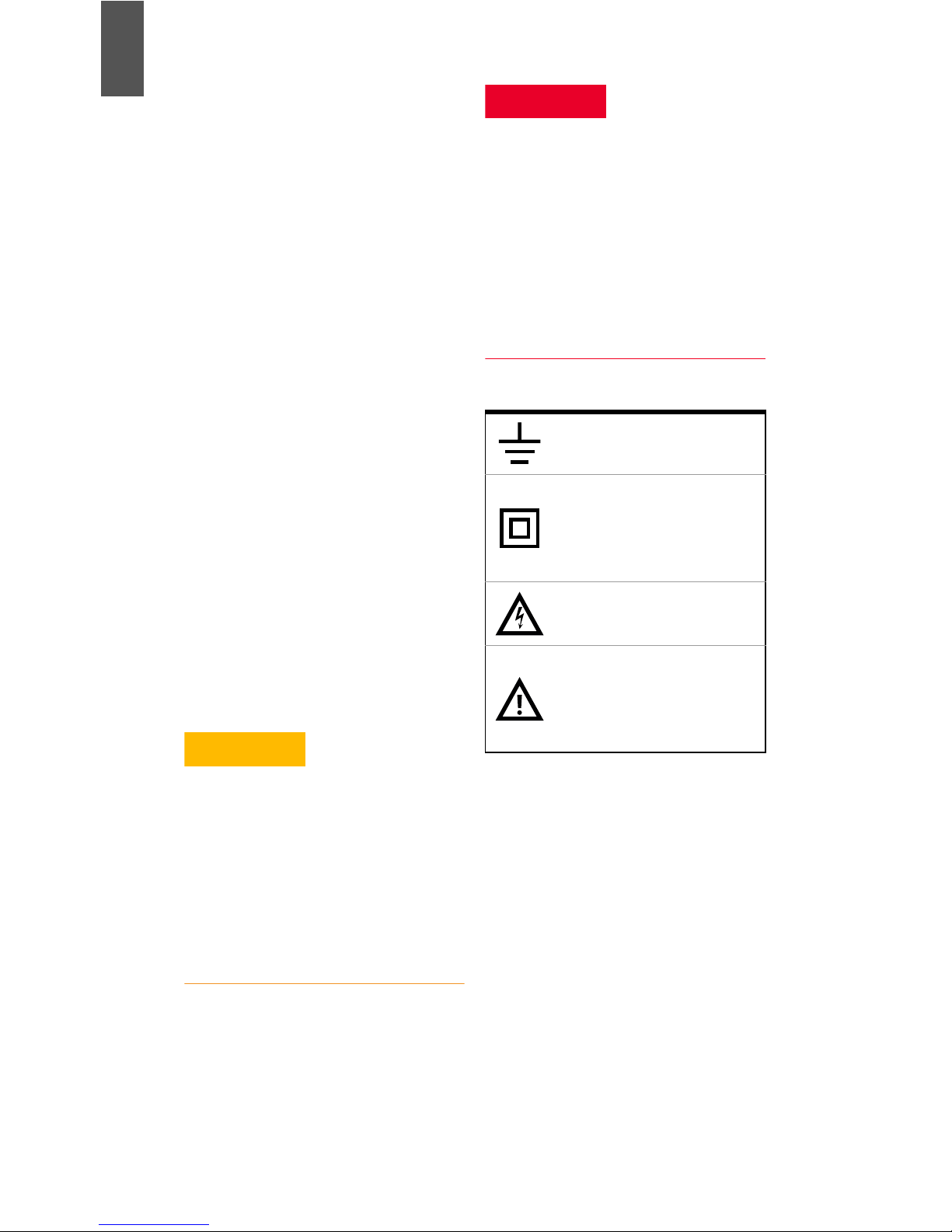

Safety symbols

Earth (ground) terminal

Equipment protected

throughout by double

insulation or reinforced

insulation

Caution, risk of electric

shock

Caution, risk of danger

(refer to this manual for

specific Warning or Caution

information)

2 Keysight U1701B Quick Start Guide

For further safety information details, refer to the

Keysight U1701B Dual Display Handheld Capacitance Meter User’s Guide.

ENGLISH

Keysight U1701B Quick Start Guide 3

ENGLISH

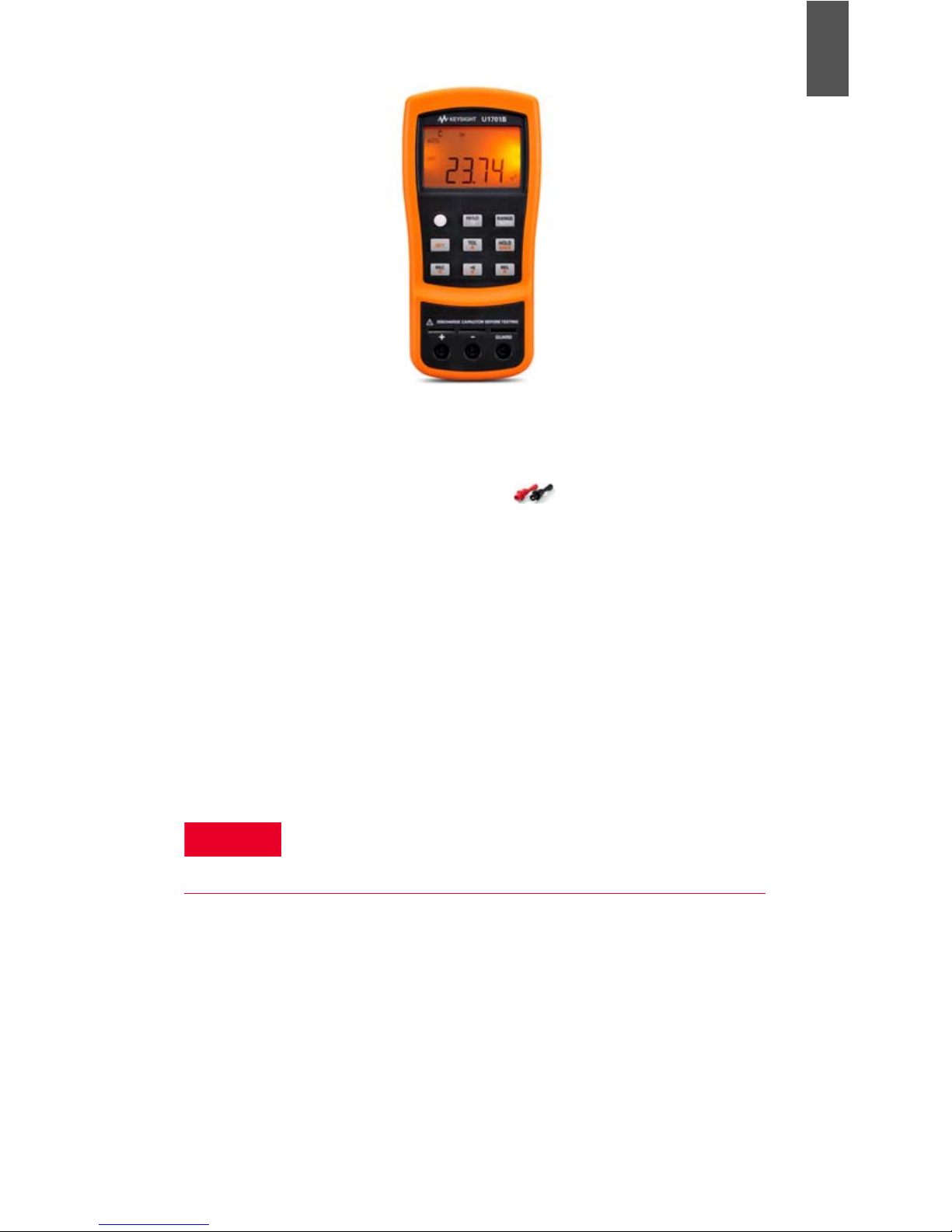

The following items are included with your

capacitance meter:

✔Alligator clip leads

✔Printed Quick Start Guide

✔9 V Alkaline battery

✔Certificate of Calibration

If anything is missing or damaged, please contact

the nearest Keysight Sales Office.

For more detailed information, please refer to the

Keysight U1701B Dual Display Handheld

Capacitance Meter User’s Guide on Keysight Web

site (www.keysight.com/find/handheld-tools).

WARNING

To avoid damage to the device, do not exceed the input

limit. Do not apply voltage to input terminals.

Discharge the capacitor before testing.

4 Keysight U1701B Quick Start Guide

ENGLISH

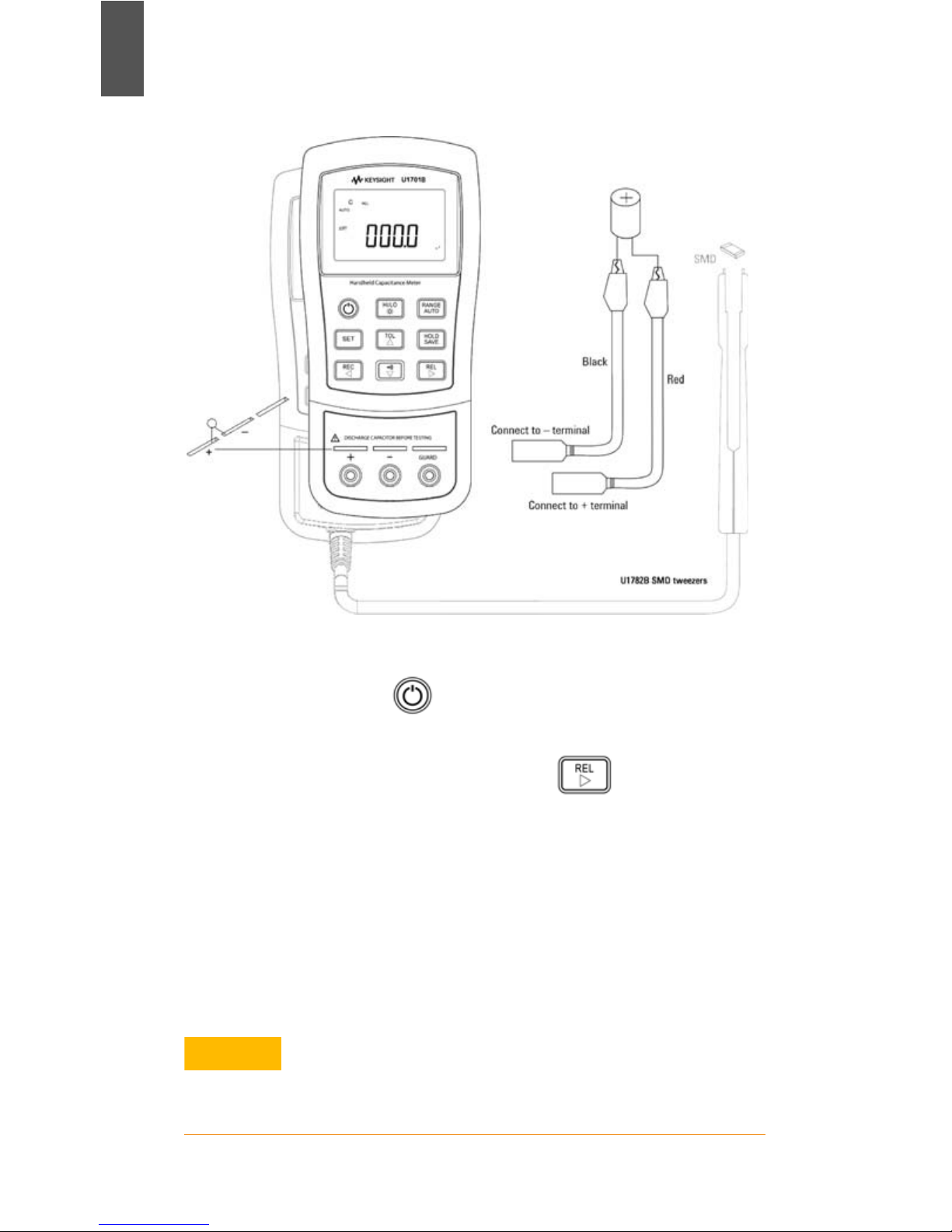

Capacitance Measurement

Procedure:

1Press to power-on the meter.

2To test for capacitance, keep an open circuit on

the test leads and press to subtract the

residual capacitance of the meter and leads.

3Insert the capacitor legs into + and – input

terminals respectively. Ensure that the polarity

of the capacitor’s leg are correct.

4Remove your hands from capacitor to allow it

to be tested.

5Read the measurement on the display.

CAUTION

To avoid possible damage to the meter or the

equipment under test, disconnect circuit power and

discharge the capacitor before measuring

capacitance.

Keysight U1701B Quick Start Guide 5

ENGLISH

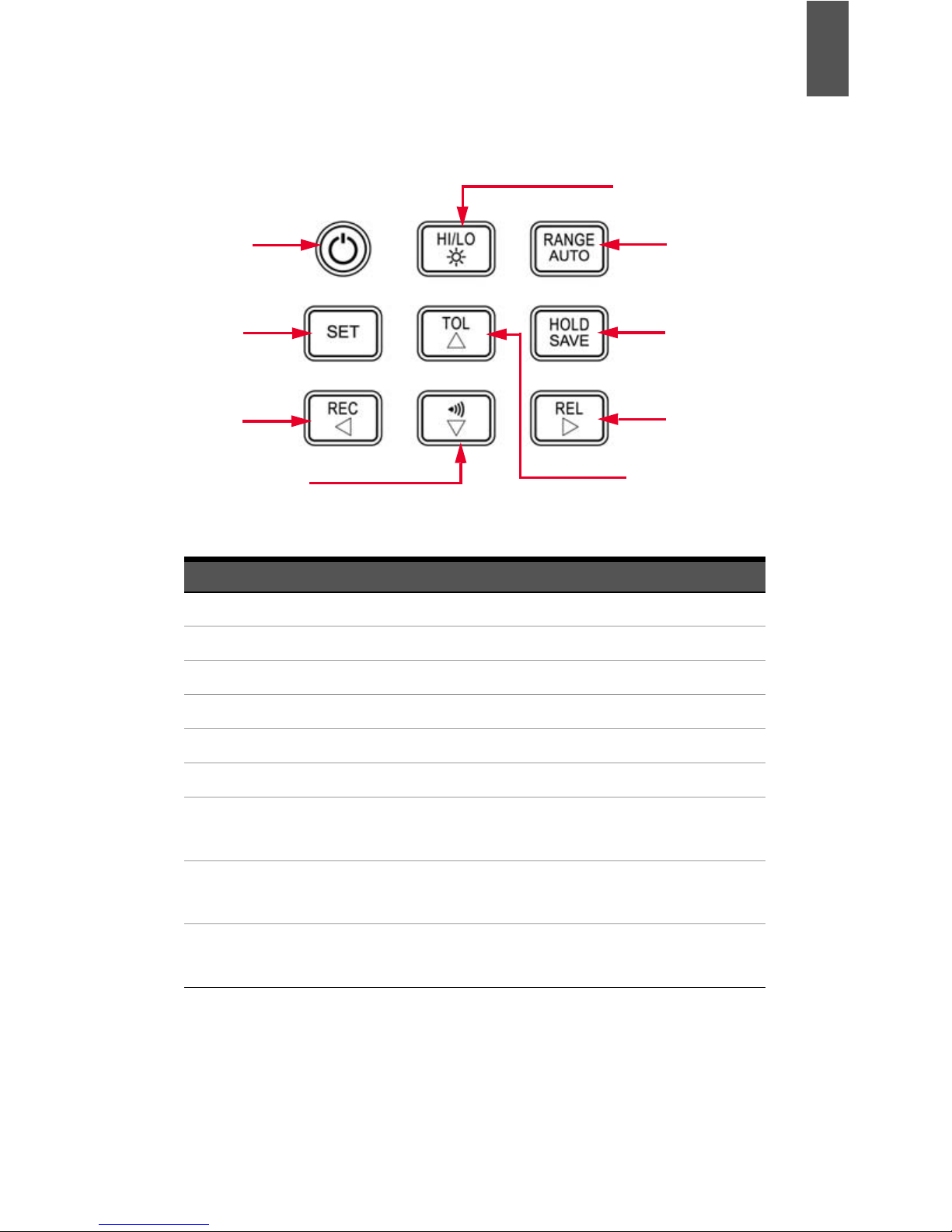

Features and Functions

No. Keys Functions

1 Power To turn ON/OFF the instrument

2 SET Set high/low limits for compare mode

3 REC Static recording mode

4Comparemode

5TOL Tolerancemode

6REL Relativemode

7HOLD

SAVE

Data hold

To store the setting value into the memory

8RANGE

AUTO

Manual range

Auto range

9HI/LO High/Lowlimits

Backlight display

6 Keysight U1701B Quick Start Guide

ENGLISH

How to Enter Setup Mode

Press and hold and power on the

instrument from OFF status.

Release when you hear a beep, the

instrument will then enter setup mode. These

parameters will be remained in the non-volatile

memory even after the instrument is turned off.

To configure the related parameters on setup

mode, ensure that the following procedures are

followed:

1Press (Left) or (Right) to select the

menu item to be set.

2Press (Up) or (Down) to change the

parameter.

3Press to select the digit to be adjusted,

the selected digit will flash.

4Press and hold for more than 1 s to

save your setting.

5Press for more than 1 s to exit setup

mode.

Keysight U1701B Quick Start Guide 7

ENGLISH

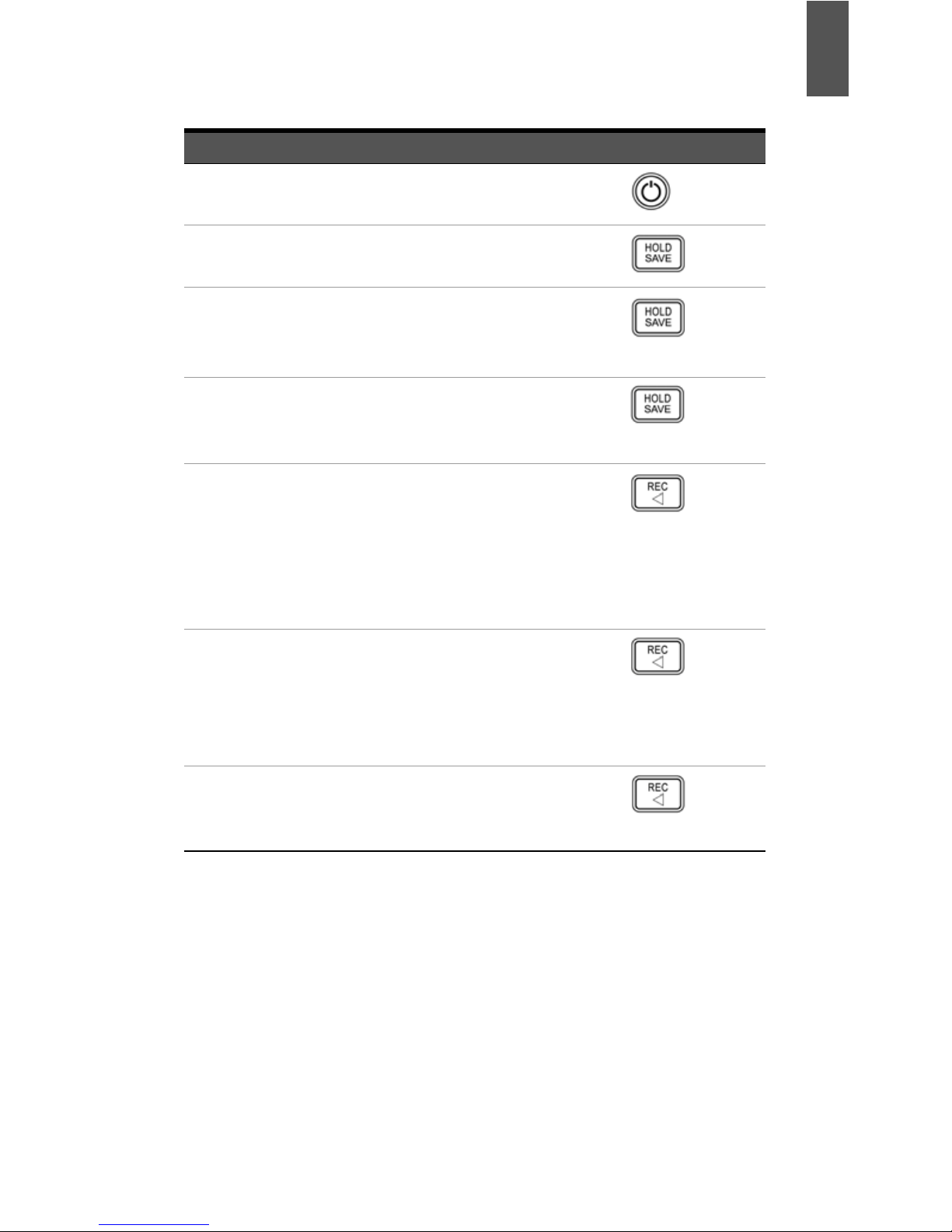

Features and Functions

Actions Steps

To power ON or OFF Press

To enable data hold function Press

To trigger holding next reading Press

momentarily

To exit data hold mode Press for more

than 1 s

To enable recording function

– The beeper will beep when a new MAX or MIN

value has been recorded.

– The static recording captures stable values and

updates the memory. It will not record values that

are overloaded, OL or below 10 count value.

Press

To cycle through maximum, minimum, average, and

present readings

–MAX, MIN, AVG or MAX AVG MIN annunciator will

be turned on respectively to indicate which value

is being displayed

Press

momentarily

To exit the recording mode Press for

more than 1 s

8 Keysight U1701B Quick Start Guide

ENGLISH

To enable relative function

– Relative function shows the difference between

the measured value and the offset reference value.

The display may show a non-zero value due to the

presence of test leads. Use the relative function to

nullify the residual.

– Relative function can operate in both auto and

manual ranging mode but the function cannot be

set when an overload value exists.

–REL annuciator will be displayed.

Press

To renew the relative value Press again

To exit relative mode Press for

more than 1 s

To select manual range and to turn off the AUTO

annunciator Press

To step up a range at a time Press again

To select auto-range

– In auto range mode, the AUTO annunciator is

displayed and the instrument will select an

appropriate range for resolution if the reading is

greater than the maximum available range. OL will

be displayed.

– The instrument will select a lower range when the

reading is less than 9% of full scale.

Press for

more than 1 s

To enable the tolerance mode and to set the display

value as a standard reference

–TOL annunciator will be displayed.

– The tolerance will be displayed on the secondary

display.

– The instrument range will be locked.

Press

To exit tolerance mode Press and

hold for more than 1 s

Actions Steps

Keysight U1701B Quick Start Guide 9

ENGLISH

To cycle through 1%, 5%, 10% and 20% tolerance

– will be indicated.

– Beeper will beep once if the test value is within the

selected tolerance. If the test value is out of the

tolerance, the beeper will beep three times.

– This mode cannot be enabled under the following

conditions:

– After setting the recording mode

– After setting the compare mode

– Display showing either OL or below 10 counts

Press

momentarily

To enable compare mode

– Measuring range will be locked

– will be displayed and the secondary display

will indicate C# #, meaning which set has been

used for compare mode. The two right digits

indicate current compare set. The # # range from

01 to 25.

– The primary display shows the present

measurement. In this state, it is ready for testing.

– If the reading is beyond the high limit, will be

indicated. will be indicated if the reading is

out of the low limit. The beeper will beep three

times and the secondary display will indicate nGo.

– If the reading is within the high and low limits, the

beeper will beep once, and the secondary display

will indicate Go. After three seconds or when the

reading is lower than 10 counts, the instrument

will return to its ready state.

– The secondary display will indicate C01 to C25

according to the comparison record that has been

selected.

Press

To save comparison set for next entry Press and

hold for more than 1 s

Actions Steps

10 Keysight U1701B Quick Start Guide

ENGLISH

To exit compare mode Press

To view the High/Low limit value to be used as

compare mode Press

momentarily

To cycle through HI limit, LO limit, and present values

on the primary display

– The secondary display showed as H # #, L # # and

C # # respectively.

– After three seconds without pressing this button

again, it will return to the present value display.

Press

To toggle HI and LO limits for adjustment Press

momentarily

To enter HI/LO limits setting mode

– The secondary display will flash H01 and the

primary display will indicate the value of HI limit.

– The following buttons will be used for this setting

mode:

– To select which digit to be adjusted

– To increase or decrease the current digit’s

value

– To select High or Low limit to be set.

– To store the setting value in the memory. The

beeper will beep twice if the selected value has

been stored. If the current setting do not meet

the rule that the high limit must be equal or

greater than the low limit, the beeper will beep

three times.

– To select next compare setting. To cycle

through L01 (or H01) to L25 (or H25), then

return to L01 (H01) setting.

Press for

more than 1 s

Press (Left) or

(Right)

Press (Up) or

(Down)

Press

Press for

more than 1 s

Press

momentarily

Actions Steps

Table des matières

Autres manuels Keysight Technologies Instrument de mesure

Keysight Technologies

Keysight Technologies LTE Manuel d'installation

Keysight Technologies

Keysight Technologies X Series Manuel utilisateur

Keysight Technologies

Keysight Technologies N9030B Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies B2980A Series Guide d'installation

Keysight Technologies

Keysight Technologies PNA-X N5241A Manuel utilisateur

Keysight Technologies

Keysight Technologies E4417A Manuel utilisateur

Keysight Technologies

Keysight Technologies PNA Series Manuel utilisateur

Keysight Technologies

Keysight Technologies 8163A/B Mode d'emploi

Keysight Technologies

Keysight Technologies UXA N9040B Manuel utilisateur

Keysight Technologies

Keysight Technologies M9485A Guide de l'utilisateur

Keysight Technologies

Keysight Technologies E5400-Pro Series Manuel utilisateur

Keysight Technologies

Keysight Technologies N2750A Manuel utilisateur

Keysight Technologies

Keysight Technologies N9030B Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies S9106AC-2IF Guide de l'utilisateur

Keysight Technologies

Keysight Technologies N9010A Series Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies M9393A Manuel utilisateur

Keysight Technologies

Keysight Technologies 85059B Manuel de service

Keysight Technologies

Keysight Technologies U5303A Guide de l'utilisateur

Keysight Technologies

Keysight Technologies M9451A Guide de l'utilisateur

Keysight Technologies

Keysight Technologies MXA Series Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies E5055A SSA-X Manuel utilisateur

Keysight Technologies

Keysight Technologies N9041B Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies N9030A Manuel d'installation et d'exploitation

Keysight Technologies

Keysight Technologies N8262A P Series Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
