Key Digital KD-HDB150 Manuel utilisateur

KD-HDB150 Operating Instructions

Page 12 of 12

The Experts in Digital Video Technology and Solutions

Key Digital

, led by digital video pioneer Mike Tsinberg,

develops and manufactures high quality, cutting-edge

technology solutions for virtually all applications where

high quality video imaging is important. Key Digital®is

at the forefront of the video industry for Home Theater

Retailers, Custom Installers, System Integrators,

Broadcasters, Manufacturers, and Consumers. We

provide total video system solutions because we

know and help drive the technology, the industry, the

business, and all the latest up-and-coming standards.

But most of all, we know exactly what you need

for your unique application – the right solution.

Rev 0 - August 2005

Web :: www.keydigital.com

Phone :: 914-667-9700 Fax :: 914-668-8666

OPERATING INSTRUCTIONS

KD-HDB150

HDMI (the High-Definition Multimedia Interface) is a convenient and popular all-digital audio/video

interface. Because HDMI is all-digital and supports high-quality HDTV video formats, long cable

runs can result in a loss of performance of the video signal. KD-HDB150 is the perfect solution to

transparently extend the lengths of HDMI cable runs, up to 150 feet (with 2 cables). Enjoy all the

advantages of crystal-clear digital connections to your display by simply inserting the adapter in the

middle of your cable run - no external power supply is required. The intelligent circuitry built into the

KD-HDB150 can even support 1080p, so you can enjoy the benefits of true HDTV.

The Experts in Digital Video Technology and Solutions

Extend the length of your HDMI cabling up to 150 feet*

HDMI Blaster

™

HDMI_Blaster_Manual_12x15 3/21/06 2:59 PM Page 12

KD-HDB150 Operating Instructions

Page 3 of 12

The Experts in Digital Video Technology and Solutions

KD-HDB150 Operating Instructions

Page 2 of 12

CAUTION:

Use Caution when removing the KD-HDB150 from

the mounting clip provided with the unit

The KD-HDB150 fits snugly in the mounting clip. Always use extreme

care when inserting the KD-HDB150 into the mounting clip, so that you

do not damage the unit or the clip. Once inserted, it is not recom-

mended that you remove the KD-HDB150 from the mounting clip. If it

becomes necessary to remove the KD-HDB150 from the mounting

clip, use a flat head screwdriver and extreme care.

CAUTION:

Always test first,

before permanently installing the KD-HDB150

Always test the picture quality, integrity of the connections, and overall

operation before permanently installing the cables and KD-HDB150 in your

system or behind walls or ceilings. It is recommended that you always use

high-quality HDMI cables, like those available from Key Digital®. Limitations

of the HDMI Sink device and/or the use of inferior cables may further

restrict the length of your cable runs.

TABLE OF CONTENTS

About the KD-HDB150...........................................................................4

Using the KD-HDB150...........................................................................5

How to Contact Key Digital®.................................................................11

HDMI_Blaster_Manual_12x15 3/21/06 2:59 PM Page 2

KD-HDB150 Operating Instructions

Page 5 of 12

The Experts in Digital Video Technology and Solutions

KD-HDB150 Operating Instructions

Page 4 of 12

About the KD-HDB150

HDMI (the High-Definition Multimedia Interface) is a convenient and popular all-digital,

plug-and-play, audio/video interface. Because HDMI is all-digital and supports high-

quality HDTV video formats, long cable runs can result in a loss of performance. KD-

HDB150 is the perfect solution to transparently extend the lengths of HDMI cable

runs, up to 150 feet (with 2 cables). Enjoy all the advantages of crystal-clear digital

connections to your display by simply inserting the adapter in the middle of your

cable run. This smart adapter draws its own power from the HDMI signal, so there is

no need to provide external power to the unit. The intelligent circuitry built into the

KD-HDB150 can even support 1080p, so you can enjoy the benefits of true HDTV.

■Allows you to go all-digital, with cutting-edge HDMI cabling

■Smart circuitry delivers the cleanest HDMI signals over the longest cable runs

■Supports all video formats, up to 1080p

■Each unit effectively doubles* the length of your HDMI cable run, up to a total of:

◆

150 feet (2 x 75 foot HDMI-HDMI cables) for 1080i/720p/480p

◆

60 feet (2 x 30 foot HDMI-HDMI cables) for 1080p

■Easy-to-install in-line design, totally transparent operation,

no external power supply required

■Convenient mounting bracket clip, provided

*Actual results may vary

Using the KD-HDB150

KD-HDB150 is simple to install and operate.

1. HDMI, and why you may need the KD-HDB150

HDMI, the High-Definition Multimedia Interface, is an all-digital, uncompressed, indus-

try-supported all-digital audio/video interface. HDMI provides a hot-plug interface

between any audio/video (A/V) source (such as a DVD player, a Set-top Box, or an

A/V receiver) and a video display, monitor, or digital television (DTV). HDMI supports

this A/V interconnection over a single cable, and is plug-and-play.

Most HDMI cables are limited to 30- or 75-foot runs and cannot be extended by

simply cascading cables. Additional circuitry is required to extend the cable lengths,

because the digital video format operates at high bit rates and must support very

high-resolution video. The KD-HDB150 lets you easily and conveniently extend the

length of these runs, simply by inserting the unit in the path and using two cables to

achieve the total length you desire.

HDMI_Blaster_Manual_12x15 3/21/06 2:59 PM Page 4

KD-HDB150 Operating Instructions

Page 7 of 12

The Experts in Digital Video Technology and Solutions

KD-HDB150 Operating Instructions

Page 6 of 12

2. Typical application for the KD-HDB150

You may find that your DVD player, Set-top Box, HD Digital Video Recorder, satellite

receiver, game console, or other source device may require a long HDMI cable run to

your display (the HDMI “Sink”). KD-HDB150 is a simple and economical way to

enable a long HDMI cable run, using up to 2 x 75-foot cables (actual results may vary).

The KD-HDB150 has an Input side and an Output side, clearly identifiable by the

directional arrows on the face of the unit. Both the Input and the Output have a

standard Type A female HDMI connector.

Generally, the KD-HDB150 allows you to increase the effective cable run length by up

to a factor of two, depending on the quality of the HDMI sink and HDMI cabling used.

Thus, if the maximum cable length you can achieve is 50 feet and still produce a

clean picture on your display without any errors or “sparkles” introduced by the cable,

then inserting the KD-HDB150 at the end of the cable and using another 50 foot

cable from the output of the KD-HDB150 to your display will result in a total cable

length of 100 feet. Actual results may vary.

CAUTION:

Always test first,

before permanently installing the KD-HDB150

Always test the picture quality, integrity of the connections, and overall

operation before permanently installing the cables and KD-HDB150 in your

system or behind walls or ceilings. It is recommended that you always use

high-quality HDMI cables, like those available from Key Digital®. Limitations

of the HDMI Sink device and/or the use of inferior cables may further

restrict the length of your cable runs.

3. Operation of the KD-HDB150

The KD-HDB150 has convenient LED's on the Input and Output sides adjacent to

each HDMI connector, to indicate the status of the unit. The KD-HDB150 receives

power from the HDMI Sink device. In some cases, operation of the unit may be

affected by the quality of the HDMI Sink and the HDMI cables.

Supports HDMI cable length extensions up to:

◆

150 feet (2 x 75 foot HDMI-HDMI cables) for 1080i/720p/480p

◆

60 feet (2 x 30 foot HDMI-HDMI cables) for 1080p

Actual results may vary depending upon the quality of the cables and the quality of

the display or HDMI Sink device.

KD-HDB150

HDMI Input

KD-HDB150

HDMI Output

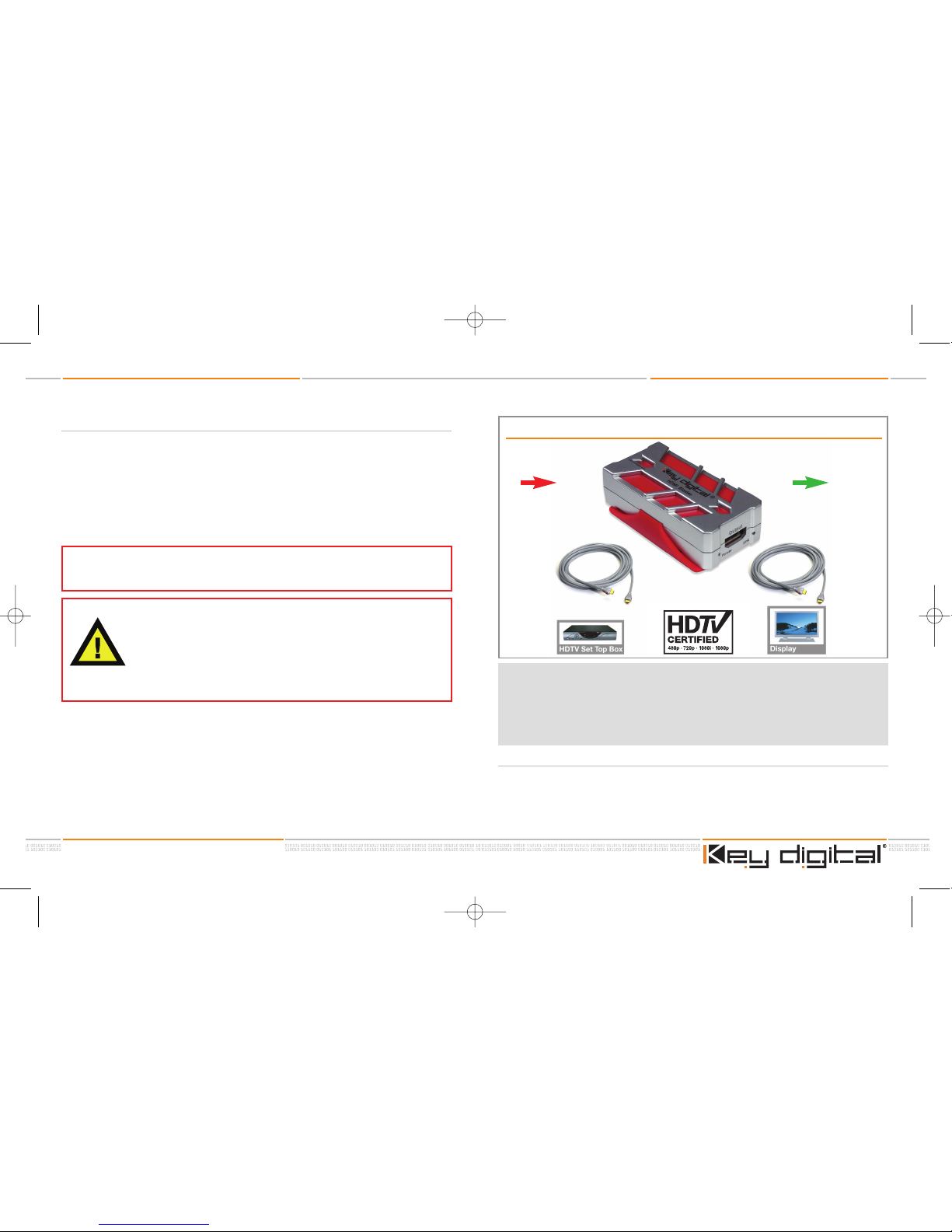

Typical Application for the Key Digital®KD-HDB150

HDMI_Blaster_Manual_12x15 3/21/06 2:59 PM Page 6

KD-HDB150 Operating Instructions

Page 9 of 12

The Experts in Digital Video Technology and Solutions

KD-HDB150 Operating Instructions

Page 8 of 12

4. DVI-D applications for the KD-HDB150

The KD-HDB150 can also be used to extend DVI-D video cable runs.

5. Cascading multiple KD-HDB150 units

Multiple KD-HDB150 can be connected between cable runs, to further extend the

overall cable run length. Actual results may vary, depending upon the quality of the

HDMI cables and the HDMI Sink device. Since the KD-HDB150 relies upon the Sink

device for power, the use of multiple KD-HDB150 units on the same cable run may

not be possible due to power limitations on the HDMI sink.

The

Blue LED’s

go ON when the KD-HDB150 is connected to an active source.

The

Red LED’s

go ON when link to the HDMI Sink or display is established.

KD-HDB150 Status LED’s

Red LED

Blue LED

CAUTION:

Always test first,

before permanently installing the KD-HDB150

Use extreme care when adapting DVI to HDMI and HDMI to DVI.

Always use an adapter at the source, test first before installing permanently

in your system, and restrict your cable lengths as follows:

■

50 foot maximum HDMI cables driven from a DVI source,

or less for 1080p video resolution

■

30-foot maximum DVI cables driven from an HDMI source.

KD-HDB150

HDMI Input

KD-HDB150

HDMI Output

DVI-D Sources

If your source does not support HDMI but has a DVI-D output, you will need a

DVI-D to HDMI Adapter at the output of your source. The Key Digital

DVI to

HDMI Adapter is the perfect choice.

DVI-D Displays

If your display does not support HDMI but has a DVI-D input, you will need an

HDMI to DVI-D Adapter at the output of the KD-HDB150. The Key Digital

HDMI to DVI Adapter is the perfect choice.

DVI-D Output

DVI-D Input

HDMI_Blaster_Manual_12x15 3/21/06 2:59 PM Page 8

KD-HDB150 Operating Instructions

Page 11 of 12

The Experts in Digital Video Technology and Solutions

KD-HDB150 Operating Instructions

Page 10 of 12

6. Mounting the KD-HDB150 unit

The KD-HDB150 is provided with a convenient mounting clip. Once you have

verified operation of the unit with your cables, and know where you would like to

mount your unit, secure the mounting clip to a convenient location. Carefully insert

the KD-HDB150 into the mounting clip, provided. The KD-HDB150 fits snugly in the

mounting clip.

CAUTION:

Use Caution when removing the KD-HDB150 from

the mounting clip provided with the unit

The KD-HDB150 fits snugly in the mounting clip. Always use extreme

care when inserting the KD-HDB150 into the mounting clip, so that you do

not damage the unit or the clip. Once inserted, it is not recommended

that you remove the KD-HDB150 from the mounting clip. If it becomes

necessary to remove the KD-HDB150 from the mounting clip, use a flat

head screwdriver and extreme care.

HOW TO CONTACT KEY DIGITAL®

Repairs and Warranty Service:

■Should your

KD-HDB150

require warranty service, please contact Key Digital

obtain a Returned Materials Authorization (RMA) number

■Please contact us at either:

■

1-914-667-9700

■email:

[email protected]

Technical Support:

■For technical questions about using our products, please contact us at either:

■

1-914-667-9700

Toll-free 1-888-258-2028

■email:

tech@keydigital.com

Customer Support

■For customer support questions about using our products,

please contact us at either:

■

1-914-667-9700

■email:

customersupport@keydigital.com

WARRANT Y

All Key Digital

products are built to high manufacturing standards and should

provide years of trouble-free operation. They are backed by a limited two-year

parts and labor warranty.

HDMI_Blaster_Manual_12x15 3/21/06 2:59 PM Page 10

Autres manuels pour KD-HDB150

Table des matières

Autres manuels Key Digital Extenseur

Key Digital

Key Digital FATCAT Series Manuel utilisateur

Key Digital

Key Digital FatCAT KD-CATHD250Lite Manuel utilisateur

Key Digital

Key Digital KD-FIX418 Manuel utilisateur

Key Digital

Key Digital KD-X444SP Manuel utilisateur

Key Digital

Key Digital KD-X444S Manuel utilisateur

Key Digital

Key Digital KD-PS22UTx Manuel utilisateur

Key Digital

Key Digital Phantom KD-HD1X1ProK Manuel utilisateur

Key Digital

Key Digital KD-X400POHK Manuel utilisateur

Key Digital

Key Digital KD-CATHD300Lite Manuel utilisateur

Key Digital

Key Digital Smart Baluns KD-BBRX Manuel utilisateur

Key Digital

Key Digital KD-EX18G Manuel utilisateur

Key Digital

Key Digital KD-X411ProK Manuel utilisateur

Key Digital

Key Digital KD-X600ProK Manuel utilisateur

Key Digital

Key Digital KD-CAT5XHDMI Manuel utilisateur

Key Digital

Key Digital KD-X444LP Manuel utilisateur

Key Digital

Key Digital KD-X422POA Manuel utilisateur

Key Digital

Key Digital KD-CAT5XCAT5 Manuel utilisateur

Key Digital

Key Digital KD-HDMIXCAT5 Manuel utilisateur

Key Digital

Key Digital KD-HDB150 Manuel utilisateur

Key Digital

Key Digital KD-XUSB2 Manuel utilisateur

Key Digital

Key Digital KD-HDFIX22 Manuel utilisateur

Key Digital

Key Digital KD-X444L Manuel utilisateur

Key Digital

Key Digital Phantom KD-HDDA1X1 Manuel utilisateur

Key Digital

Key Digital KD-X444LP Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
