Key Digital KD-HDMIXCAT5 Manuel utilisateur

521 East 3rd Street, Mount Vernon, NY 10553

Phone :: 914.667.9700 Fax :: 914.668.8666

Web :: www.keydigital.com

Rev 0 – July 2007

The KD-HDMIXCAT5 is an HDMI to CAT5 extender transmitter capable of resolutions up to

1080P and can be used with or without the supplied power adapter. This device is intended

for use with Key Digital’s KD-CAT5XHDMI (receiver) or KD-CAT5XCAT5 (CAT5 extender).

Operating Manual

HDMI CAT5 Extender

Key Digital

, led by digital video pioneer Mike Tsinberg,

develops and manufactures high quality, cutting-edge

technology solutions for virtually all applications where

high quality video imaging is important. Key Digital

is at the forefront of the video industry for Home

Theater Retailers, Custom Installers, System Integrators,

Broadcasters, Manufacturers, and Consumers. We

provide

total video system solutions because we know

and help drive the technology, the industry, the business,

and all the latest up-and-coming standards. But most

of all, we know exactly what you need for your unique

application - the right solution.

KD-HDMIXCAT5

KD-HDMIXCAT5_Manual.indd 2-3 7/17/07 4:00:59 PM

Page 4

Page 1

HDMI

KD-CAT5XHDMI

CAT5/6

Plasma

Cable Box

KD-HDMIXCAT5

Quick Set Up Guide

HDMI Input

Connect the HDMI input

source cable to HDMI Input

port on the KD-HDMIXCAT5.

Then, connect power.

Table of Contents

Installation Instructions.............................................3

Mounting the KD-HDMIXCAT5 unit....................................4

DVI Applications for the KD-HDMIXCAT5 ...............................5

Troubleshooting ..................................................5

Technical Speciﬁcations............................................6

Important Product Warnings ........................................7

Safety Instructions ................................................7

How to Contact Key Digital

.........................................8

Warranty .......................................................9

Finally, connect the CAT5 Outputs of

the KD-HDMIXCAT5 to receiving device

(KD-CAT5XHDMI, KD-CAT5XCAT5).

CAT5 Output

Please read all instructions to insure safe operation of the product.

KD-HDMIXCAT5_Manual.indd 4-1 7/17/07 4:01:04 PM

Page 2

Page 3

Installation Instructions

The KD-HDMIXCAT5 can receive power from either the HDMI connection or via the

supplied power adapter. When using the HDMI cable to deliver power to the unit,

performance is subject to the following factors:

Ability of the HDMI source to deliver the required power

Quality and length of the HDMI cable.

We recommend the use on non-shielded CAT5 cable for best performance.

1. Find a safe and convenient location for the KD-HDMIXCAT5 unit.

Before permanently securing the unit or final installation of cabling

behind walls or ceilings, test for proper operation of the unit and the

cables in your system.

2. Connections

Plug in the HDMI source cable to the “Input” port of the KD-HDMIXCAT5. If you

are not using the supplied power adapter, the “Power” LED should illuminate upon

plugging in the HDMI input cable if your HDMI source is powered on.

Connect one CAT5 cable to the “Control” output port of the KD-HDMIXCAT5 and

to the “Control” input port on the destination (KD-CAT5XHMDI, KD-CAT5XCAT5)

device.

At this point, if your HDMI source is powered on, you should see the green LED

light up on connected units. If it is not, make sure you have not crossed the

‘Control’ port cable with the ‘Data’ port cable.

Connect second CAT5 cable to the “Data” output port of the KD-HDMIXCAT5

and to the “Data” input port on the destination (KD-CAT5XHMDI, KD-CAT5XCAT5)

device.

The CAT5 outputs can feed either the KD-CAT5XHDMI (receiver) to convert back

to HDMI, or they can feed the KD-CAT5XCAT5, which is a CAT5 extender, to make

longer CAT5 runs more reliable.

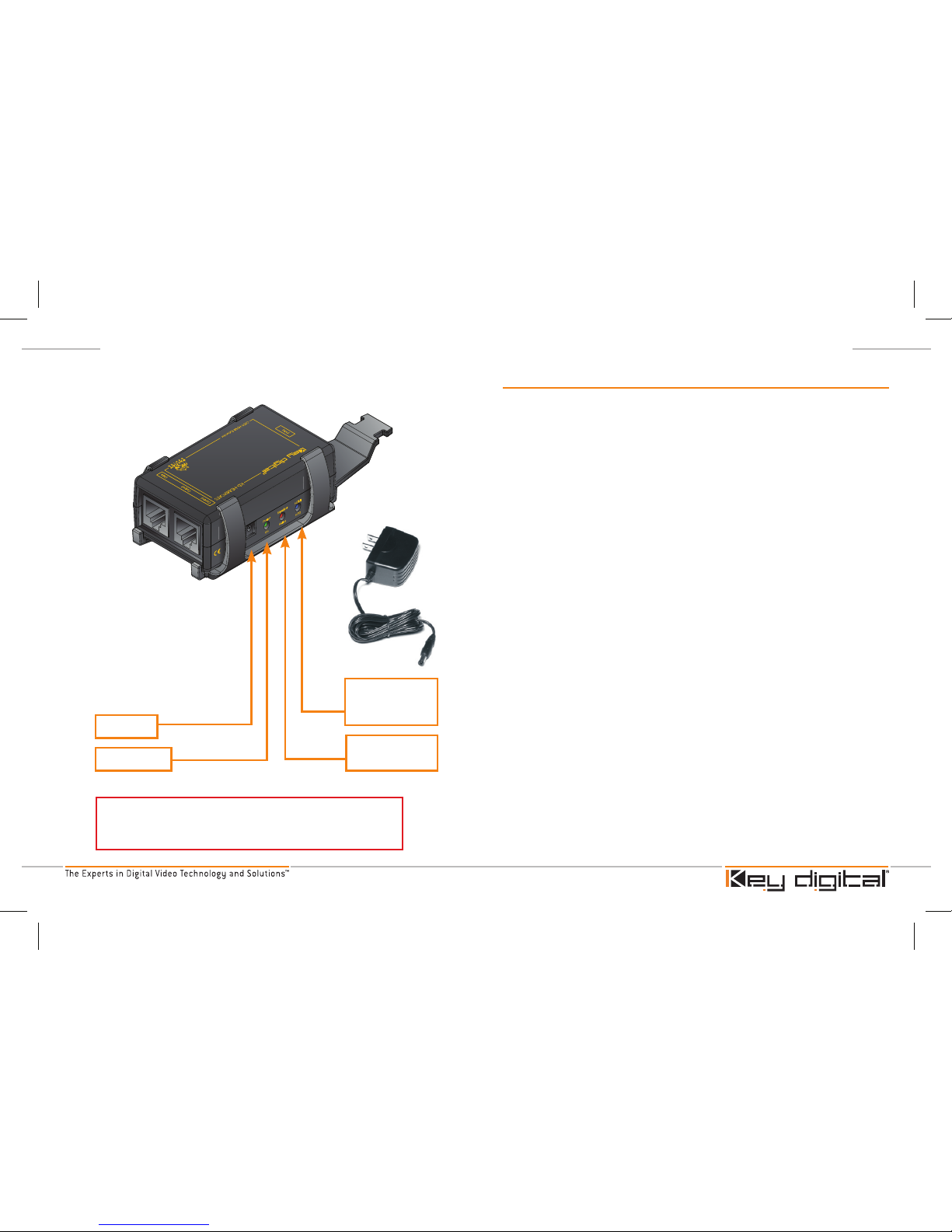

3. Power

In order to insure the best possible performance from the KD-HDMIXCAT5, we

recommend using only the original Key Digital power supply.

If you are using the supplied power adapter, plug it into the power input jack on

the side of the unit. You should see the “Power” LED illuminate. (see Fig. 1)

➔

Power Jack

Power Indicator

Stable input video

signal present

Valid Source/Sync

DVD/TV connection

indicator

KD-HDMIXCAT5

CAUTION: No other power supply adapter can be used with this unit! Using

a power supply other than the one provided by Key Digital

with the unit

VOIDS THE ENTIRE PRODUCT WARRANTY, may cause damage to the unit

and associated equipment, and is a potential safety hazard.

KD-HDMIXCAT5_Manual.indd 2-3 7/17/07 4:01:07 PM

Page 4

Page 5

Optional cable clips

Troubleshooting

Most issues with the KD-HDMIXCAT5 setup will involve resolution and distance

performance. If you experience problems (no image, video artifacts, picture dropout,

noise) here are a few things to try.

Use the shortest possible HDMI and CAT5 cables between devices.

Lower the output resolution of the image source.

Use the provided power supply for the KD-HDMIXCAT5 instead of relying on the

voltage in the HDMI cable to power the unit.

Use Key Digital HDMI cables.

Other possible problems can result from custom made CAT5 cables. CAT5 cables must

be terminated in accordance with TIA/EIA-568-A or TIA/EIA-568-B pin-pair assignments.

DVI applications for the KD-HDMIXCAT5

The KD-HDMIXCAT5 can also be used to extend DVI video cable runs.

For these applications, use DVI to HDMI (Key Digital model number KD-MFHDMI or

KD-FMHDMI) adapters.

KD-FMHDMI KD-MFHDMI

Mounting the KD-HDMIXCAT5 unit

The KD-HDMIXCAT5 is shipped with a convenient mounting clip as an installation option.

Once you have veriﬁed operation of the unit with your cables, secure the mounting clip

to a convenient location. Carefully insert the KD-HDMIXCAT5 into the mounting clip

provided.

An optional cable clip (included) enables a method for securing HDMI cables to the

mounting bracket of the KD-HDMIXCAT5

4. LEDs

When a stable signal is established between your source and destination, the

red “Equalizer Active” LED will light. If this red LED indicator is blinking or not

illuminated, try shortening HDMI cable lengths or lowering the resolution of the

video signal.

➔

KD-HDMIXCAT5_Manual.indd 4-5 7/17/07 4:01:10 PM

Page 6

Page 7

Technical Speciﬁcations

Connectors:

One HDMI input connector labeled “Input”

Two CAT5 output connectors labeled “Data” and “Control”

Standard RJ45 Jack using TIA/EIA-568-A or TIA/EIA-568-B pin/pair assignments

Power:

External AC-DC power supply included (5 Volt DC @ 1 Amp, 110-240 VAC, 50-60 Hz)

Mechanical:

No Fan Noise

Weight < 1Lb

Molded black ABS Enclosure

Molded black ABS cable clip (1)

Molded black ABS mounting clip (1)

Resolutions Supported:

All resolution up to 1080p/60Hz

Dimensions:

HxWxL = 25 mm x 50 mm x 84 mm

HxWxL = 1 in x 2 in x 2.5 in

›

➔

›

Read and follow all instructions.

Heed all warnings.

Do not use this device near water.

Clean only with dry cloth.

Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including ampliﬁers) that produce heat.

Only use attachments/accessories speciﬁed by the manufacturer.

Refer all servicing to qualiﬁed service personnel. Servicing is required when the

device has been damaged in any way including:

Damage to the power supply or power plug

Liquid spills on the device

Objects fallen into the device

Exposure to rain or moisture

➔

Connect CAT5 cables before providing power to the unit.

Test for proper operation before securing unit behind walls or

in hard to access spaces.

If installing the KD-HDMIXCAT5 into wall or mounting bracket into sheet-rock,

provide proper screw support with bolts or sheet-rock anchors.

KD-HDMIXCAT5

Important Product Warnings:

Safety Instructions.

Please be sure to follow these instructions for safe

operation of your unit.

KD-HDMIXCAT5_Manual.indd 6-7 7/17/07 4:01:13 PM

Page 8

Page 9

Warranty

All Key Digital

products are built to high manufacturing standards and should provide

years of trouble-free operation. They are backed by a limited two-year parts and labor

warranty.

How to Contact Key Digital®

Repairs and Warranty Service

To obtain a Returned Materials Authorization (RMA) number, please contact:

Phone: 1-914-667-9700

E-mail: rma@keydigital.com

Technical Support

For technical questions about using our products, please contact us at either:

Phone: 1-914-667-9700

E-mail: tech@keydigital.com

Customer Support

For customer support questions about using our products, please contact us at

either:

Phone: 1-914-667-9700

E-mail: [email protected]

Feedback

Please e-mail any comments/questions about the manual to:

E-mail: [email protected]

›

➔

›

➔

›

➔

›

➔

KD-HDMIXCAT5_Manual.indd 8-9 7/17/07 4:01:15 PM
