Kane 358 Manuel utilisateur

KANE 358

Flue Gas Analyser with direct O2 measurement

and CO sensor protection

Stock No: MAN00164 Rev: 1.00321 MARCH 2021

2KANE 358 MANUAL

CONTENTS

Page No.

KANE 358 OVERVIEW 4

INSTRUMENT FEATURES AND KEYPAD 5-8

KEYPAD BUTTONS 6

INSTRUMENT LAYOUT 7

BACK OF ANALYSER - PROBE ETC 8

BATTERIES 9

BATTERY TYPE 9

REPLACING BATTERIES 9

TIME AND DATE 9

CHARGING NIMH BATTERIES 9

BATTERY DISPOSAL 9

GENERAL SAFETY 10

FIRST TIME USE 11

GENERAL OPERATING PRINCIPLE 11-15

QUICK START 11

USER INTERFACE 11

STATUS 12

STATUS BAR 12

STATUS BAR LAYOUT 13

STATUS BAR MESSAGE AREA 13

STATUS BAR ICONS 14

STATUS BAR ICON LEVEL 14

STATUS BAR MENU OPTIONS 15

STANDARD OPTIONS 15

USING THE MENU 16

MENU ITEMS 17

MEASURING FLUE GASSES 17-18

PRINTING 18

KANE INFRARED PRINTER 18

3KANE 358 MANUAL

CO PROTECTION PUMP OPERATION 19

AUX SCREEN 19

EDITING THE AUX SCREEN 19

O2/EFF SCREEN 19

RATIO SCREEN 20

STORED MEMORY REPORTS 20

MENU OPTIONS 21

VIEWING STORED REPORTS 21

REPORT VIEW MENU OPTIONS 21

NAVIGATING STORED REPORTS 22

REPORT NAVIGATION MENU OPTIONS 22

PRESSURE & TEMPERATURE TESTING 23

TEMPERATURE & PRESSURE DISPLAY 23

VIEWING, SENDING & PRINTING 23

PRESSURE MEASUREMENT GOOD PRACTICE 24

LARGE BORE TUBING ISSUES 24

TESTS 24-27

COMMISSIONING TEST 24-25

LET-BY & TIGHTNESS TESTING 26-27

PRINTOUTS 28

SPECIFICATIONS 29-30

EU DECLARATION OF CONFORMITY 31

COLD WEATHER PRECAUTIONS 32

4KANE 358 MANUAL

KANE 358 OVERVIEW

The KANE358 combustion analyser measures:

● Carbon Monoxide (CO)

● Oxygen (O2)

● Pressure

● Temperature

Depending on your options these parameters are calculated:

● Carbon Dioxide (CO2)

● CO/CO2 ratio

● Combustion Eciency

● Losses

● Excess Air

● Dierential Pressure

● Dierential Temperature

Your KANE358 has a protective rubber cover with magnets for

“hands-free” operation and is supplied with a ue probe with integral

temperature sensor.

Your KANE358 has a low gas ow detector that switches o the

analyser’s pump if it detects water entering the analyser from an

overlled water trap.

Your KANE358 has a large 6 line display showing data & test results

based on your actions.

The display’s bottom line also highlights analyser status at all times.

Your KANE358 can print out test results using an optional infrared

printer or to KANE’s wireless printer App.

Your KANE358 stores up to 30 logs of any combination of

Combustion, AUX, Temperature & Pressure test results – including 10

Tightness Tests & 10 Commissioning tests

You can add 2 lines of 16 characters to your test results header.

5KANE 358 MANUAL

ANALYSER FEATURES AND KEYPAD

6KANE 358 MANUAL

KEYPAD BUTTONS

ICON DESCRIPTION

Save log – Long press to store data

Print report. Short press to print a report (Enters a

print destination when both wireless and irda tted)

Navigate up – Short press to scroll up

Enter button – Used to select the current option

Navigate down – Short press to scroll down

Data hold – Short press to hold current data on screen

(see status bar section)

Pump toggle – long press to toggle the pump on and

o

Function

buttons

7KANE 358 MANUAL

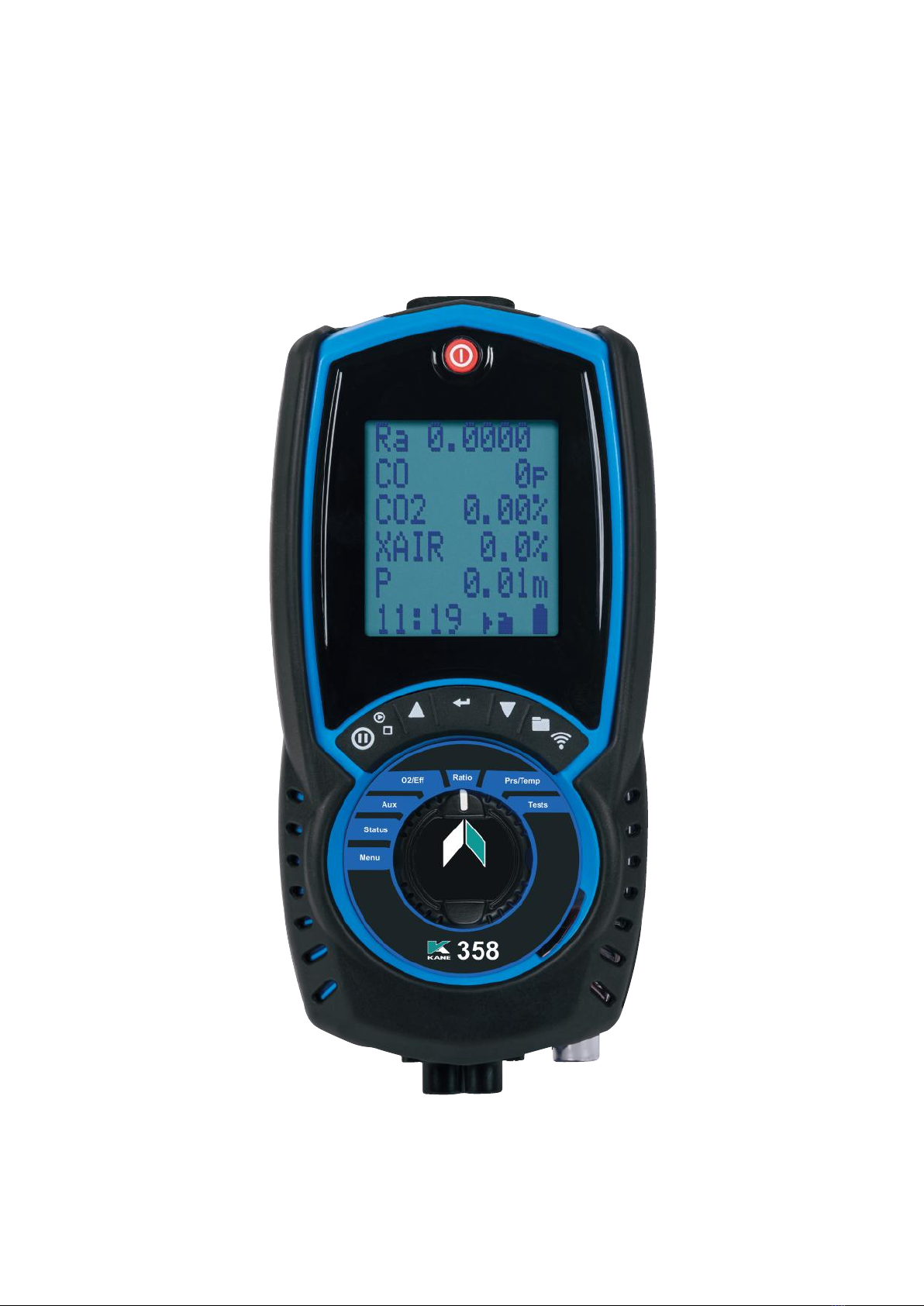

INSTRUMENT LAYOUT

Battery

charger

Watertrap drain with

red plug

Flue probe

temperature T1

Inlet temperature T2

Pressure

connection P1

Pressure

connection P2

(Differential)

Flue gas

inlet

On / Off

Function buttons

- see below

Water trap &

particle filter

Rotary switch

Red connector

– plugs into Flue

Gas Inlet

Flue Probe Temperature Plug –

plugs into T1

The narrower (+ve) pin must be

on the right hand side Flue Probe Hose

8KANE 358 MANUAL

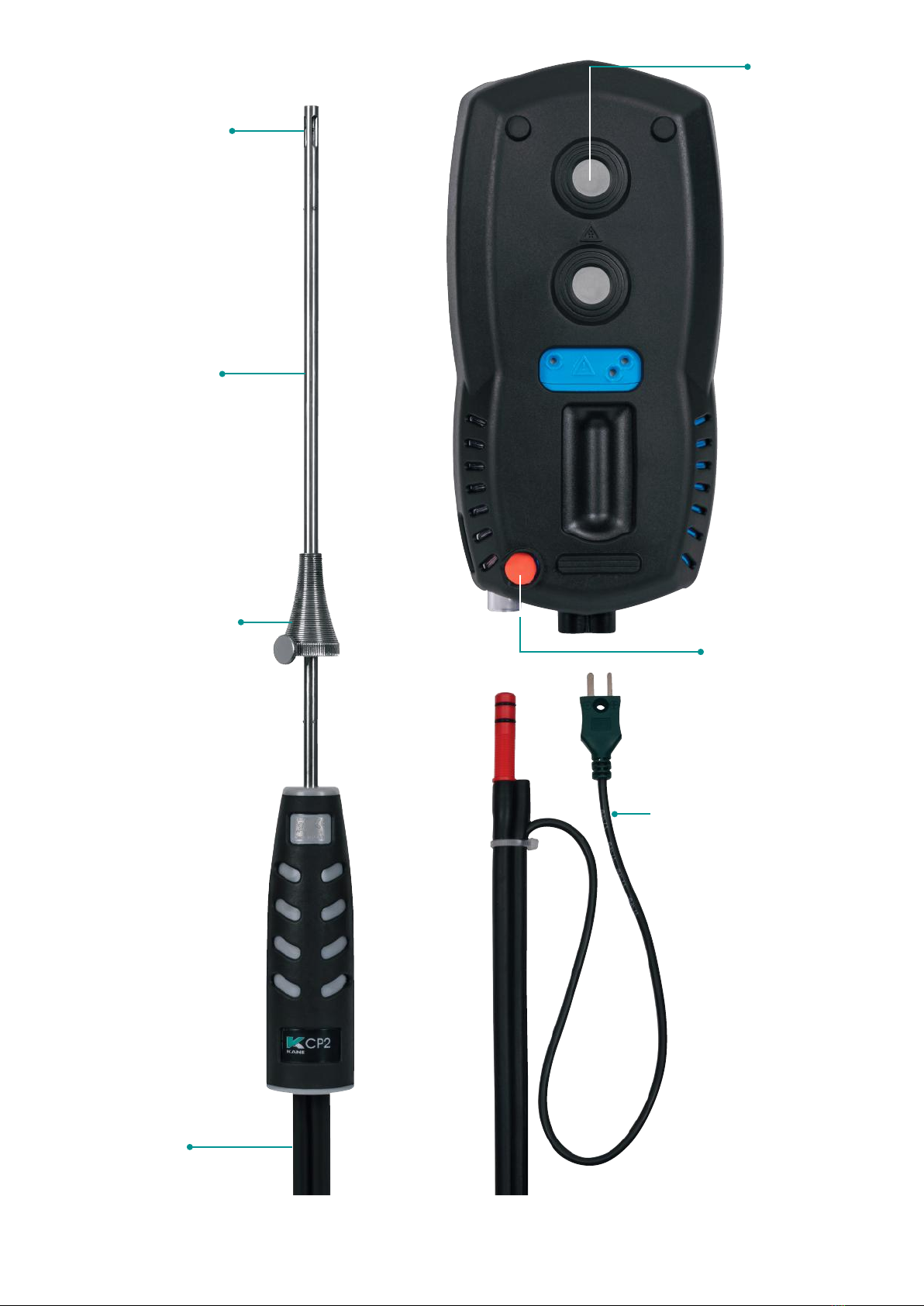

Watertrap drain

with red plug

Thermocouple

Wire

Stainless Steel

Shaft

Depth Stop Cone

Gas Path

Magnets x2

9KANE 358 MANUAL

BATTERIES

BATTERY TYPE

This analyser uses rechargeable Nickel Metal Hydride (NiMH) batteries

- Using other battery types may void your analyser’s warranty.

WARNING

Although you can use Alkaline batteries you must not charge your

analyser with Alkaline batteries tted.

Do not mix NiMH cells of dierent capacities or from dierent

manufacturers - All batteries must be identical.

REPLACING BATTERIES

Turn over your analyser & remove its protective rubber cover to nd trhe

battery compartment & t 3 NiMH “AA” rechargeable batteries ensuring

they are tted with correct battery polarity. Replace battery cover &

protective rubber cover.

TIME AND DATE

After changing batteries reset your analyser’s time & date.

CHARGING NIMH BATTERIES

Your KANE358 uses a standard Micro USB connector - For best

results turn it o then connect your charger. The charging indicator will

illuminate and turn o when the need for charge is over.

Your rst charge should be for 8 hours - Thereafter NiMH batteries can

be “topped up” at any time, even for short periods.

If your batteries discharge so that the analyser enters a low power

shutdown, 1 hour’s charge provides approx 2 hours continuous use.

BATTERY DISPOSAL

Always dispose of depleted batteries using approved disposal methods

that protect the environment.

10 KANE 358 MANUAL

GENERAL SAFETY

SAFETY WARNING

This analyser extracts combustion gases that may be toxic in relativity

low concentrations. These gases are exhausted from the bottom of the

analyser. This analyser must only be used in well-ventilated locations by

trained and competent persons after due consideration of all the

potential hazards.

Portable gas detectors users should conduct “bump” tests before

relying on units to verify atmospheres are free from hazard.

A “bump” test is a way to check an instrument works within

acceptable limits by briey exposing it to known gas mixtures to

change the output of all sensors present.

Note: This is dierent from a calibration where the instrument is also

exposed to known gas mixtures but allowed to settle to a steady gure

with readings adjusted to the stated gas concentration of the test gas.

Protection Against Electric Shock (In accordance with EN 61010-1:

2010):

This analyser is designed as Class III equipment and should only be

connected to SELV circuits. The battery charger is designated as:

● Class II equipment

● Installation category II

● Pollution degree 2

● Indoor use only

● Altitude to 2000m

● Ambient temperature 0°C-40°C

● Maximum relative humidity 80% for temperatures up to 31°C

decreasing linearly to 50%RH at 40°C

● Mains supply uctuations not to exceed 10% of the nominal voltage
