Replacing the SRX5600 Services Gateway Routing Engine

To replace the routing engine, perform the following procedures:

1. Removing the SRX5600 Services Gateway Routing Engine on page 1

2. Installing the SRX5600 Services Gateway Routing Engine on page 2

Removing the SRX5600 Services Gateway Routing Engine

CAUTION: Before you replace a Routing Engine, you must take the host subsystem

offline.

To remove the Routing Engine (see Figure 1):

1. Take the host subsystem offline as described in Taking the SRX5600 Services

Gateway Host Subsystem Offline.

2. Place an electrostatic bag or antistatic mat on a flat, stable surface.

3. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and

connect the strap to one of the ESD points on the chassis.

4. Flip the ejector handles outward to unseat the Routing Engine.

5. Grasp the Routing Engine by the ejector handles and slide it about halfway out

of the chassis.

6. Place one hand underneath the Routing Engine to support it and slide it

completely out of the chassis.

7. Place the Routing Engine on the antistatic mat.

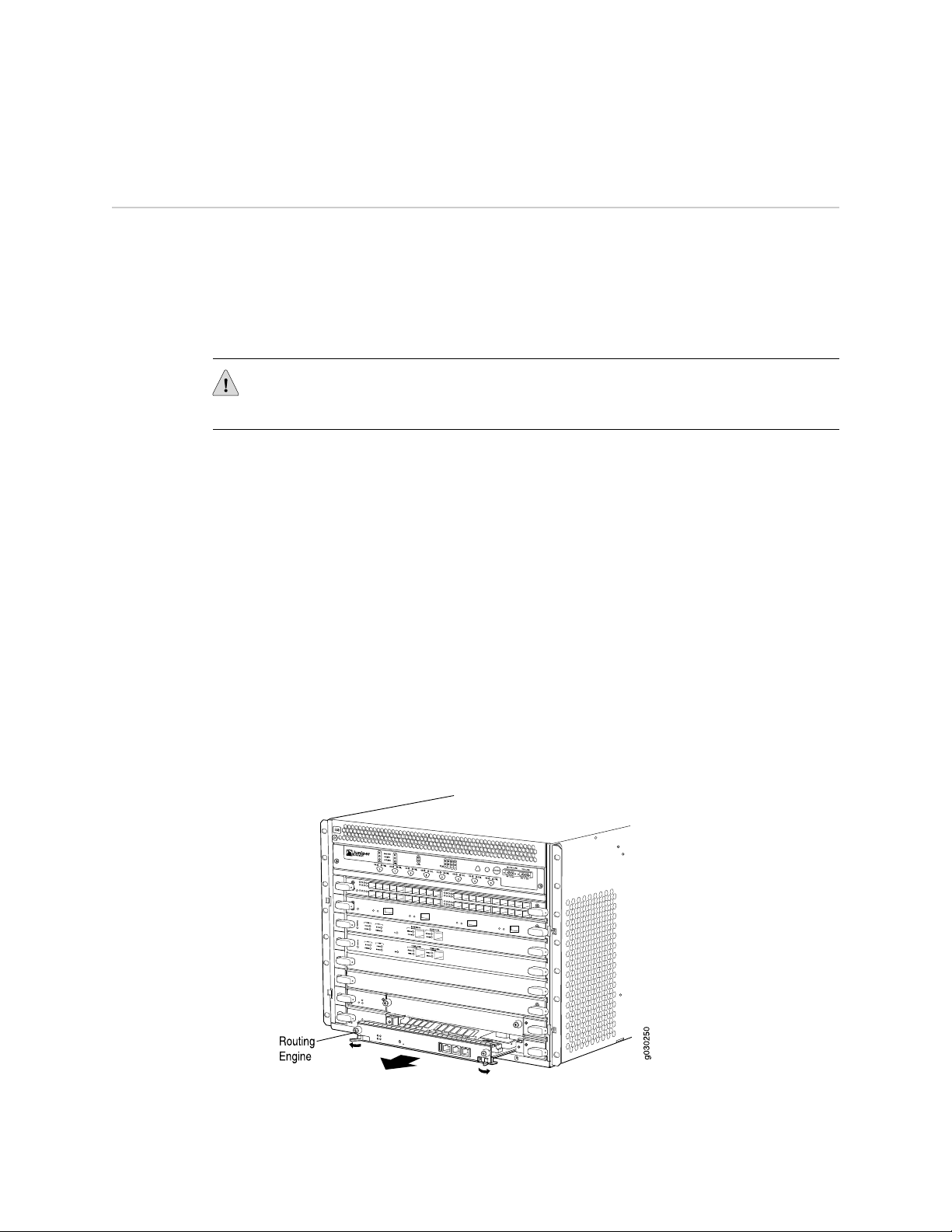

Figure 1: Removing a Routing Engine

Replacing the SRX5600 Services Gateway Routing Engine ■1

Installing the SRX5600 Services Gateway Routing Engine

To install a Routing Engine into an SCB (see Figure 2):

1. If you have not already done so, take the host subsystem offline. See Taking the

SRX5600 Services Gateway Host Subsystem Offline.

2. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and

connect the strap to one of the ESD points on the chassis.

3. Ensure that the ejector handles are not in the locked position. If necessary, flip

the ejector handles outward.

4. Place one hand underneath the Routing Engine to support it.

5. Carefully align the sides of the Routing Engine with the guides inside the opening

on the SCB.

6. Slide the Routing Engine into the SCB until you feel resistance, and then press

the Routing Engine's faceplate until it engages the connectors.

7. Press both of the ejector handles inward to seat the Routing Engine.

8. Tighten the captive screws on the right and left ends of the Routing Engine

faceplate.

9. Power-on the services gateway. The OK LED on the power supply faceplate should

blink, then light steadily.

The Routing Engine might require several minutes to boot.

After the Routing Engine boots, verify that it is installed correctly by checking the

RE0 and RE1 LEDs on the craft interface. If the services gateway is operational and

the Routing Engine is functioning properly, the green ONLINE LED lights steadily. If

the red FAIL LED lights steadily instead, remove and install the Routing Engine again.

If the red FAIL LED still lights steadily, the Routing Engine is not functioning properly.

Contact your customer support representative.

To check the status of the Routing Engine, use the CLI command:

user@host> show chassis routing-engine

Routing Engine status:

Slot 0:

Current state Master ...

For more information about using the CLI, see the JUNOS Software manuals.

2■Installing the SRX5600 Services Gateway Routing Engine

Figure 2: Installing the Routing Engine

Published: 2009-11-03

Installing the SRX5600 Services Gateway Routing Engine ■3
