Juniper NFX150 Manuel utilisateur
Day One+
NFX150
IN THIS GUIDE
Step 1: Begin | 1
Step 2: Up and Running | 5
Step 3: Keep Going | 8
Step 1: Begin
IN THIS SECTION
Meet the NFX150 | 1
NFX150 Models | 2
Install the NFX150 | 2
Power On | 4
Meet the NFX150
The Juniper Networks®NFX150 Network Services Platform is a software-driven customer premises equipment (CPE)
platform that delivers fully automated, secure SD-WAN, secure router, and cloud CPE solutions. Equipped with SRX Series
next-generation firewall software and 4G/LTE interface speeds, you can use the NFX150 to manage multiple Juniper and
third-party virtual network functions (VNFs) on a single device. Plus, it’s easy to deploy and manage the NFX150 with
zero-touch provisioning (ZTP).
NFX150 Models
The NFX150 comes in a 1-U rack mount model (NFX150-S1) and a compact desktop model (NFX150-S1-C). Both models
are available with or without LTE support. For increased capacity, you can install an expansion module in the NFX150-S1
rack mount model.
The NFX150 has:
•Four 10/100/1000BASE-T RJ-45 ports that can be used either as access ports or as uplinks
•Two 1GbE/10GbE SFP+ ports
•One 10/100/1000BASE-T RJ-45 management port
•Two console ports (RJ-45 and mini-USB)
•One USB 3.0 port
•One built-in power supply
•Two built-in fans
•Air-flow out (front-to-back) cooling
Install the NFX150
IN THIS SECTION
What’s in the Box? | 3
What Else Do I Need? | 3
Install the NFX150-S1-C on a Desk | 3
Install the NFX150-S1 in a Two-Post Rack | 3
You can install the NFX150 on a desktop, in a two-post or four-post rack, or on the wall. The NFX150 comes with the
mounting brackets you need to install it in a two-post rack. You’ll need to order a separate rack mount kit if you want to
2
install it in a four-post rack. Likewise, you’ll need to order a separate wall mount kit if you want to install the NFX150 on
the wall.
What’s in the Box?
•Power cord appropriate for your geographic location
•RJ-45 Ethernet cable
•RJ-45 to DB-9 serial port adapter
•Accessory kit
The accessory kit contains four rubber feet (for desktop installations), one pair of mounting blades, and eight Phillips
mounting screws.
What Else Do I Need?
•Someone to help you secure the switch to the rack
•A number 2 Phillips (+) screwdriver
•Four rack mount screws
•Cage nuts and washers, if your rack requires them
•An electrostatic discharge (ESD) grounding strap
•Grounding cable
•A management host, such as a laptop or desktop PC, with a serial port
•Serial-to-USB adapter (if your laptop or desktop PC doesn’t have a serial port)
Install the NFX150-S1-C on a Desk
To install the NFX150-S1-C on a desk or flat surface, simply attach the four rubber feet included in the accessory kit to
the bottom of the chassis, and then place the chassis on a desk or level surface.
g100025
Install the NFX150-S1 in a Two-Post Rack
1. Review General Safety Guidelines and Warnings.
2. Depending on how you want the NFX150 to sit in the rack, secure the mounting brackets to the front, center, or rear
mounting holes on the side panels. Use the supplied mounting screws.
3
g100013
3. Lift the NFX150 and position it in the rack. Line up the bottom hole in each mounting bracket with a hole in each rack
rail, making sure the NFX150 is level.
g100014
4. While you’re holding the NFX150 in place, have a second person insert and tighten the rack mount screws to secure
the mounting brackets to the rack rails. Make sure they tighten the screws in the two bottom holes first and then
tighten the screws in the two top holes.
5. Check that the mounting brackets on each side of the rack are level.
Power On
1. Wrap the ESD grounding strap around your bare wrist and ground yourself to an ESD point or to the rack.
2. Attach a grounding cable to earth ground and then attach it to the grounding point on the rear panel of the NFX150.
NOTE: The NFX150 gets additional grounding when you plug the AC power cord into a grounded AC power
outlet using the AC power cord.
4
3. Attach the power cord retainer clip:
a. Squeeze the two sides of the power cord retainer clip.
b. Insert the L-shaped ends into the holes in the bracket on each side of the AC power cord inlet on the rear panel.
The power cord retainer clip extends out of the chassis by three inches.
4. Insert the power cord firmly into the AC power cord inlet.
5. Push the power cord into the slot in the adjustment nut of the power cord retainer clip. Turn the nut until it is tight
against the base of the coupler and the slot in the nut is turned 90° from the top of the NFX150.
g100007
6. If the AC power source outlet has a power switch, turn it off.
7. Plug in the AC power cord to the power source outlet.
8. If the AC power source outlet has a power switch, turn it on.
The NFX150 powers on as soon as it receives power.
9. Verify that the power LED on the front panel of the NFX150 is steady green.
Step 2: Up and Running
IN THIS SECTION
Plug and Play | 6
Connect and Configure | 6
Now that the NFX150 is powered on, let’s get it up and running!
5
Plug and Play
The NFX150 already has factory-default settings configured right out of the box to make it a plug-and-play device. These
settings are loaded as soon as you power it on. By default, DHCP, HTTPS, and TFTP services are enabled, and a basic set
of screens are configured on the untrust zone. To see other default settings, see “Factory-Default Settings” in Initial
Configuration on NFX150 Devices.
You can easily customize the default configuration with just a few commands. You can always revert to the factory-default
configuration anytime you want.
Connect and Configure
Before you begin connecting and configuring your NFX150, verify that your laptop or desktop PC is set to these defaults:
•Baud Rate—9600
•Flow Control—None
•Data—8
•Parity—None
•Stop Bits—1
•DCD State—Disregard
1. Connect the RJ-45 console port (labeled CON on the front panel) to a laptop or desktop PC using the supplied RJ-45
cable and RJ-45 to DB-9 adapter. The CLI displays a login prompt.
NOTE: Alternately, you can use a USB cable to connect to the mini-USB console port on the device. To use
the mini-USB console port, you’ll need to download the USB driver from the following page and install it on
your laptop or desktop PC:
https://www.juniper.net/support/downloads/junos.html
2. Log in as root. You don’t need to enter a password. If the software boots before you connect the cable to the console
port, you might need to press the Enter key for the prompt to appear.
login: root
3. Start the CLI.
root@:~ # cli
root@>
6
4. Enter configuration mode.
root@> configure
[edit]
root@#
5. Add a password to the root administration user account. Enter a plain-text password.
[edit]
root@# set system root-authentication plain-text-password
New password: password
Retype new password: password
6. Enable SSH service for the root user.
[edit]
root@# set system services ssh root-login allow
7. Commit the configuration.
[edit]
root@# commit

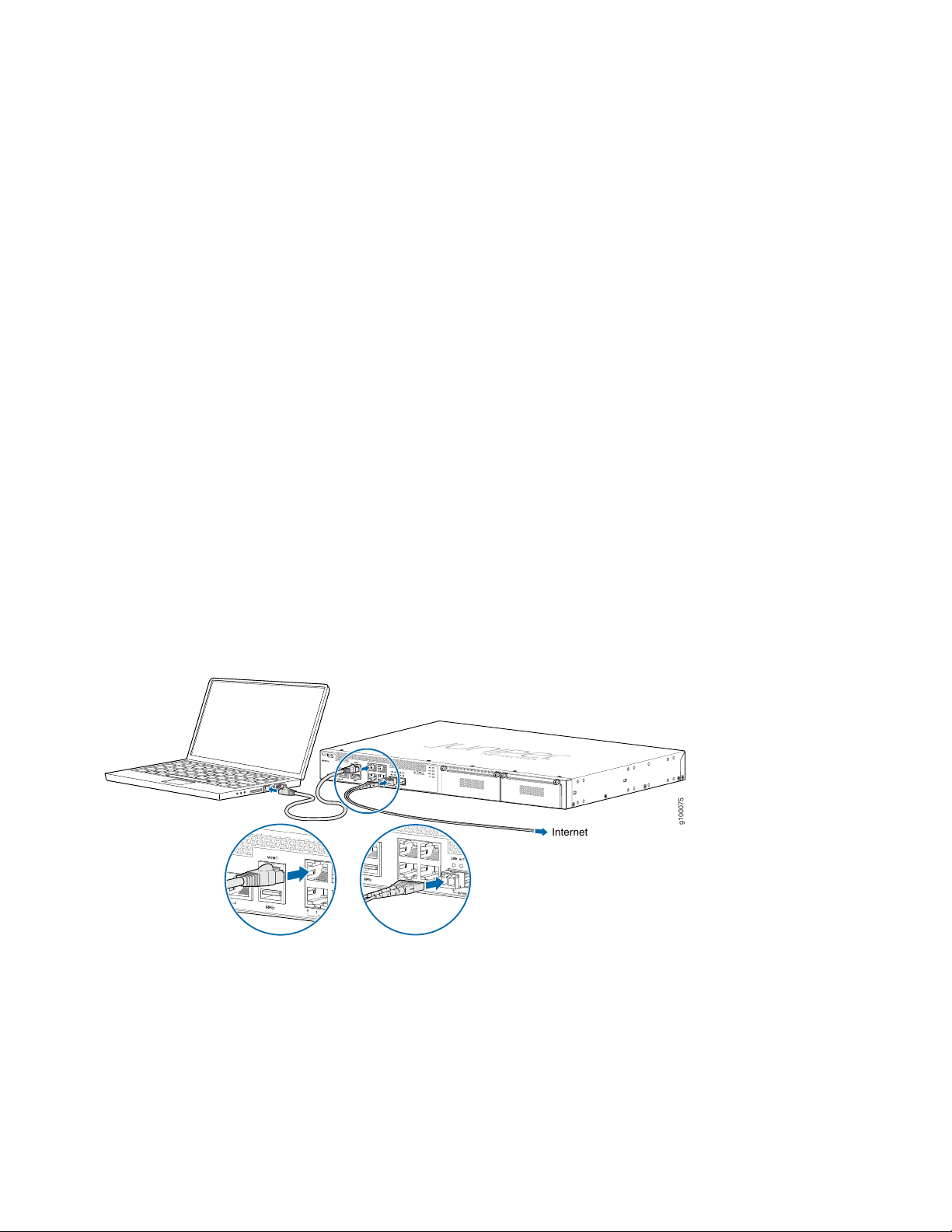

8. Connect the NFX150 to the Internet (WAN ports 0/4 or 0/5).
The ISP assigns an IP address to the NFX150 through DHCP.
g100075
Internet
9. Connect your laptop to a LAN port (ports 0/0 through 0/3).
The DHCP server running on the NFX150 assigns an IP address to your laptop.
10. Open a browser on your laptop, navigate to https://www.juniper.net, and verify your connectivity.
7
Step 3: Keep Going
Congratulations! Your NFX150 is ready to go. Here are some things you can do next:
ThenIf you want to
See Installing and Configuring the NFX150 Expansion
Modules
Install and configure an LTE expansion module
Visit the NFX150 Documentation page in the Juniper
TechLibrary
See all documentation available for the NFX150
See the NFX150 Network Services Platform Hardware
Guide
Find more in-depth information about installing the NFX150
See How to Configure the NFX150Find more in-depth information about configuring the
NFX150
See the Software Installation and Upgrade GuideManage software upgrades on your NFX150
Visit the Security Design CenterSee, automate, and protect your network with Juniper
Security
See:
•Turn On Your Licenses
•Licensing Guide
Activate and install the licenses required to run advanced
software features on your NFX150
Juniper Networks, the Juniper Networks logo, Juniper, and Junos are registered trademarks of Juniper Networks, Inc. in the
United States and other countries. All other trademarks, service marks, registered marks, or registered service marks are the
property of their respective owners. Juniper Networks assumes no responsibility for any inaccuracies in this document. Juniper
Networks reserves the right to change, modify, transfer, or otherwise revise this publication without notice. Copyright © 2020
Juniper Networks, Inc. All rights reserved. Rev. 01, December 2020.
8
