Safety Notes

This manual shall be used in conjunction with the PowerSeries Pro User manual for the compatible alarm control

panel: HS3032, HS3128, HS3248.

Always ensure you obtain the latest version of the User Guide. Updated versions of this User Guide are available

by contacting your distributor.

Warning: Read and save these instructions! Follow all warnings and instructions specified within this document

and/or on the equipment.

Important Safety Instructions

To reduce the risk of fire, electric shock and/or injury, observe the following:

lDo not spill any type of liquid on the equipment.

lDo not attempt to service this product yourself. Opening or removing the cover may expose you to dan-

gerous voltage or other risk. Refer servicing to qualified service personnel. Never open the device your-

self.

lDo not touch the equipment and its connected cables during an electrical storm; there may be a risk of

electric shock.

lDo not use the Alarm System to report a gas leak if the system is near a leak.

Regular Maintenance and Troubleshooting

Keep your HS2TCHPRO/HS2TCHPROBLK Touchscreen keypad in optimal condition by following all the instruc-

tions that are included within this manual and/or marked on the product.

Handling Precautions

Do not apply excessive force to the display surface or the adjoining areas since this may cause the color tone to

vary.

Cleaning

lIf the display surface is contaminated, breathe on the surface and gently wipe it with a soft, dry cloth. If

still not completely clean, moisten cloth with isopropyl alcohol.

lDo not use abrasives, water, thinners, solvents or aerosol cleaners (spray polish), any aromatic solvents,

ketones etc. that may enter through holes in the HS2TCHPRO/HS2TCHPROBLK Touchscreen keypad

and cause damage.

Troubleshooting

Occasionally, you may have a problem with your system. If this happens, your Alarm Controller will display an

error message. Refer to the provided list when you see an error message on the display. If additional help is

required, contact your distributor for service.

Warning: This equipment, HS2TCHPRO/HS2TCHPROBLK Touchscreen keypad shall be installed and used

within an environment that provides the pollution degree max 2 and over-voltages category II non-hazardous loc-

ations, indoor only. It is designed to be installed, serviced and/or repaired by service persons only [service person

is defined as a person having the appropriate technical training and experience necessary to be aware of hazards to

which that person may be exposed in performing a task and of measures to minimize the risks to that person or

other persons]. There are no parts replaceable by the end-user within this equipment.

Warning: Never obstruct the access to the Alarm controller to which this equipment is connected. These safety

instructions should not prevent you from contacting the distributor and/or the manufacturer to obtain any further

clarification and/or answers to your concerns.

- 5 -

Safety Notes

Introduction

Figure 1- Controls and Indicators

The HS2TCHPRO/HS2TCHPROBLK Touchscreen is an interactive touch-sensitive color LCD that can be used on

any PowerSeries Pro control panel. Due to the custom requirements of individual installations, some of the fea-

tures described here may perform differently than described. Refer to your Installer's Instructions for the details of

your specific installation and to the User Manual for general security system information.

General System Operation

Your security system is made up of a DSC control panel, one or more keypads and various sensors and detectors.

The control panel will be mounted out of the way in a utility closet or in a basement. The metal cabinet contains

the system electronics, fuses and standby battery.

Note: Only the installer or service professional shall have access to the control panel.

All the keypads have an audible indicator and command entry keys. The keypad is used to send commands to the

system and to display the current system status. The keypad(s) will be mounted in a convenient location inside

the protected premises close to the entry/exit door(s).

The security system has several zones of protection, each connected to one or more sensors (motion detectors,

glassbreak detectors, door contacts, etc.). "Alarm Memory" on page14 for information on sensors in alarm for this

Touchscreen keypad.

About Your Security System

Your DSC Security System has been designed to provide you with the greatest possible flexibility and con-

venience. Read this manual carefully and have your installer instruct you on your system's operation and on which

features have been implemented in your system. All users of this system should be equally instructed in its use.

Fill out the “System Information” page with all of your zone information and access codes and store this manual

in a safe place for future reference.

Note: The PowerSeries security system includes specific false alarm reduction features and is classified in accord-

ance with ANSI/SIA CP-01-2010 Control Panel Standard - Features for False Alarm Reduction. Please consult your

installer for further information regarding the false alarm reduction features built into your system as all are not

covered in this manual.

- 6 -

Introduction

Carbon Monoxide Detection (must be enabled by your Installer)

This equipment is capable of monitoring carbon monoxide detectors and providing a warning if carbon monoxide

is detected. Please read the Family Escape Planning guidelines in this manual and instructions that are available

with the carbon monoxide detector.

Fire Detection (must be enabled by your Installer)

This equipment is capable of monitoring fire detection devices such as smoke detectors and providing a warning

if a fire condition is detected. Good fire detection depends on having adequate number of detectors placed in

appropriate locations. This equipment should be installed in accordance with NFPA 72 (N.F.P.A., Batterymarch

Park, Quincey MA 02269). Carefully review the Family Escape Planning guidelines in this manual.

Testing

To ensure that your system continues to function as intended, you must test it weekly. Please refer to the “Testing

your System” section in this manual. If your system does not function properly, call your installing company for

service.

Monitoring

This system is capable of transmitting alarms, troubles and emergency information to a central station. If you ini-

tiate an alarm by mistake, immediately call the central station to prevent an unnecessary response.

Note: The monitoring function must be enabled by the installer before it becomes functional.

Note: There is a communicator delay of 30 seconds in this control panel. It can be removed, or it can be increased

up to 45 seconds, at the option of the end-user by consulting with the installer.

Note: For CP-01 systems, the monitoring function must be enabled by the installer before it becomes functional.

Maintenance

With normal use, the system requires minimum maintenance. Note the following points:

lUse the system test described in “Testing Your System” to check the battery condition. We recommend,

however that the standby batteries be replaced every 3 - 5 years.

lFor other system devices such as smoke detectors, passive infrared, ultrasonic or microwave motion

detectors, or glassbreak detectors, consult the manufacturer's literature for testing and maintenance

instructions.

Important Notice

A security system cannot prevent emergencies. It is only intended to alert you and, if included, your central sta-

tion of an emergency situation. Security systems are very reliable but they may not work under all conditions, and

they are not a substitute for prudent security practices or life and property insurance. Your security system should

be installed and serviced by qualified security professionals who should instruct you on the level of protection

that has been provided and on system operations.

- 7 -

Introduction

Specifications and Features

Display 7" TFT (800 x 480) pixel) Color Touchscreen

Home button Home/Calibration/Reset

LED indicators 4 (Ready, Armed, Trouble, AC)

Dimensions (mounting) 8.5" x 5.1" x 0.8" [127.9 mm (L) x 195 mm (W) x 20.35 mm (D)]

Horizontal viewing angle 70°

Vertical viewing angle 70° (top), 50° (bottom)

Brightness 280 cd/m²

Operating environment 0°C to +49°C (32°F to 120°F)

93% (max) relative humidity non-condensing

SD card slot Holds any standard Secure Digital (SD) card* (32 x 24 x 2.1 mm)

*If necessary, the SD card can be formatted to file system FAT16 or 32 using a PC. The maximum size SD card

supported is 32GB.

Welcome Screen

The date and time are displayed in the upper right corner of the screen. The system status (i.e., Ready, Armed, Exit

Delay etc.) is displayed at the top of the screen.

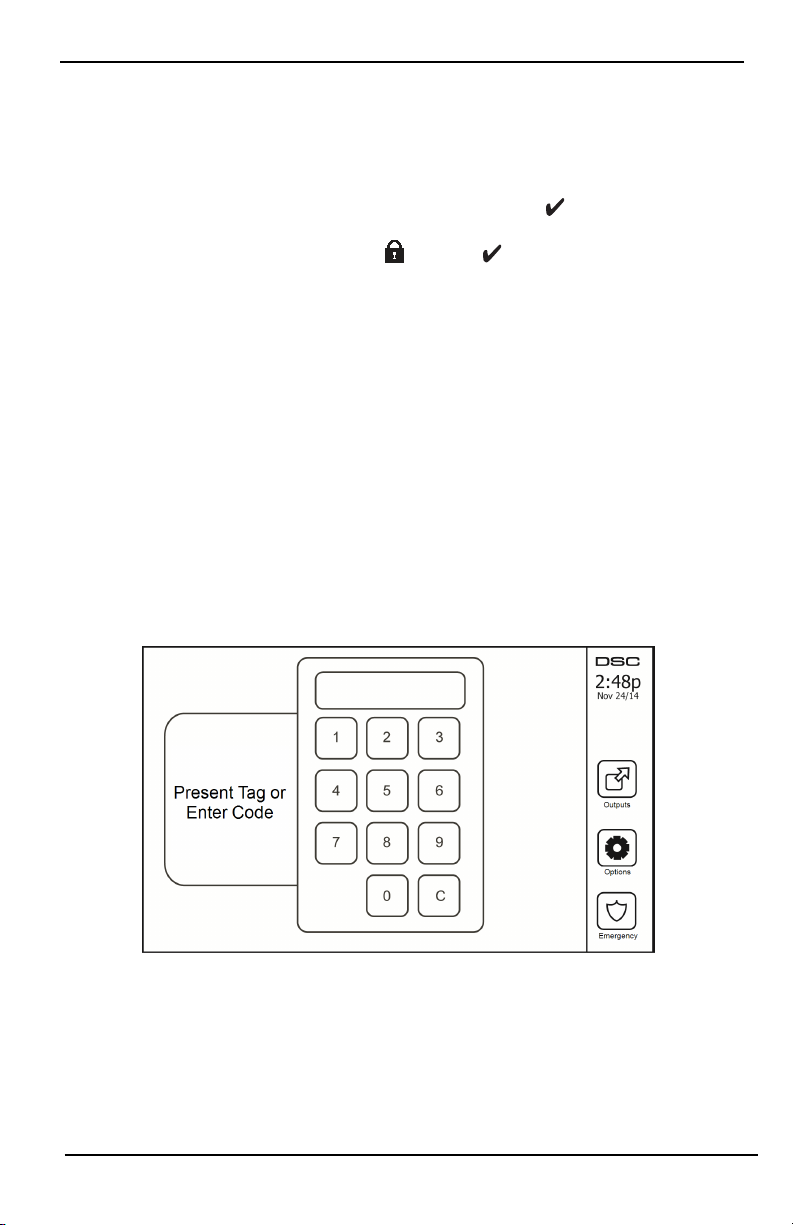

Figure 2- Welcome Screen

- 8 -

Specifications and Features

Emergency Keys

Figure 3- Emergency Screen

When the emergency key is pressed, a new screen is displayed with:

Fire Fire Assistance Required. Press and hold for 2 seconds to activate.

Medical Medical Assistance Required. Press and hold for 2 seconds to activate.

Panic Police Assistance Required. Press and hold for 2 seconds to activate.

Important: The Medical and Panic keys are ON by default. The Fire key will not function unless programmed by

the Installer. Please ask your installer if the Fire, Medical and Panic keys are enabled.

Note: These events are recorded in the log.

- 9 -

Emergency Keys

Arming and Disarming the System

Stay Arm (Arming the Perimeter)

Ask your alarm company if this function is available on your system.

Stay arming bypasses the interior protection (i.e., motion sensors) and arms the perimeter of the system (i.e., doors

and windows). Close all sensors (i.e., stop motion and close doors). The Ready ( ) indicator should be on. Press

the Stay Arm button and/or enter your Access Code and do not leave the premises (if your installer has pro-

grammed this button). During exit delay, the Armed ( ) and Ready ( ) indicators turn on to visually indicate

that the system is arming.

When the exit delay expires, the Ready LED turns off, the Armed LED remains on and the keypad stops sounding

to indicate that the alarm system is armed.

Note: For SIA FAR listed panels, the Stay Arming exit delay will be twice as long as the Away Arming exit

delay.

Silent Exit Delay

If the system is armed using the Stay Arm button or using the "No Entry" Arming method ([*][9][access code], the

audible progress annunciation (keypad buzzer) is silenced and the exit time doubled for that exit period only (CP-

01 versions only).

Note: For non CP-01 versions, Standard exit time is used.

When Stay Arm is selected from the Home screen:

lThe display indicates “Exit Delay in Progress,” and the pre-programmed exit delay begins.

lThe Armed LED Indicator turns on.

If Quick Arm is not enabled by the installer, then a numerical keypad is displayed (see following figure). Enter a

valid access code to proceed.

Figure 4- Keypad

If Disarm is selected during the exit delay, a numeric keypad is displayed.

lEnter (tap) your access code.

lThe arming sequence is aborted and the system returns to the Home screen.

lThe Armed LED turns OFF.

At the end of the pre-programmed exit delay:

- 10 -

Arming and Disarming the System

Autres manuels pour Tyco PowerSeries Pro HS2TCHPRO

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Johnson Controls écran tactile

Johnson Controls

Johnson Controls Tyco HS2TCHP E Manuel utilisateur

Johnson Controls

Johnson Controls Tyco HS2TCHP E Manuel utilisateur

Johnson Controls

Johnson Controls Tyco PowerSeries Pro HS2TCHPRO Manuel utilisateur

Johnson Controls

Johnson Controls Premier Series Mode d’emploi

Johnson Controls

Johnson Controls Tyco PowerSeries Pro HS2TCHPRO Manuel utilisateur

Johnson Controls

Johnson Controls Tyco HS2TCHP E Manuel utilisateur

Johnson Controls

Johnson Controls Tyco HC2TCHPRO Manuel utilisateur

Johnson Controls

Johnson Controls Tyco PowerSeries Pro HS2TCHPROBLK Manuel utilisateur

Johnson Controls

Johnson Controls Advanced Graphic Touchscreen Display Manuel utilisateur

Johnson Controls

Johnson Controls IQ4 HUB Manuel utilisateur

Johnson Controls

Johnson Controls S1-TTSCC01 Guide de démarrage rapide

Manuels écran tactile populaires d'autres marques

Elecro Engineering

Elecro Engineering Poolsmart Plus Instructions d'installation

Elo TouchSystems

Elo TouchSystems ET2270L Manuel utilisateur

Elo TouchSystems

Elo TouchSystems ET1002L Manuel utilisateur

Elo TouchSystems

Elo TouchSystems 3201L Manuel utilisateur

Duratec

Duratec S15 Manuel utilisateur

Crestron

Crestron TPMC-3SM Manuel utilisateur

Racelogic

Racelogic MFD Touch Manuel utilisateur

J2 580 Guide de l'utilisateur

HAI

HAI OmniTouch 10p Manuel utilisateur

panel

panel PC PSR108-FM Series Manuel utilisateur

Tipro

Tipro FREE+ Manuel utilisateur

Systemline

Systemline Commander Manuel utilisateur

Interactive Technologies

Interactive Technologies Insite Manuel utilisateur

GVision

GVision Legacy Manuel utilisateur

BeiJer

BeiJer T21C-C24 Manuel utilisateur

Advantech

Advantech ITM-5117 Series Manuel utilisateur

Edge

Edge CS Manuel utilisateur

Elo TouchSystems

Elo TouchSystems WALLABY PRO Manuel utilisateur
