ZONING COMMUNICATING CONTROL

ZONING COMMUNICATING MODELS:

S1-TTSCC01, S1-TCZCB01, S1-TCZSD01,

S1-TCZSN01

TECHNICAL

GUIDE

TECHNICAL

GUIDE

Energy Saver

885616-UTG-A-0812

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

DESCRIPTION

Johnson Controls, Unitary Products specializes in creating a

customized home comfort system tailored to the homeowner's

needs with our broad selection of residential heating and cool-

ing products. The Communicating Control System is the ulti-

mate control center for all of your system components. When

you add a Touch Screen Communicating Control to a compati-

ble modulating variable-speed furnace or air handler, and a pre-

mium air-conditioner or heat pump, you'll enjoy longer heating

and cooling cycles at lower fan speeds for a more consistent

temperature throughout your home, better humidity control, as

well as a more energy-efficient comfort system.

The communicating zoning control is the ultimate zoning sys-

tem in the industry. It features a color touch screen LCD that

can also be used as a zoning sensor to satisfy both tempera-

ture and humidity setpoints, making it the sole zoning system in

the market to deliver optimum comfort to the homeowner. The

communicating zoning system does not require the use of a

bypass damper.

WARRANTY

Standard 5-year limited parts warranty.

FEATURES & BENEFITS

The touch screen zoning communicating control offers the

same features listed in the non-zoning product with the follow-

ing additions.

• Up to 6 zones of control with a single zone panel

• Intuitive on-screen prompts for ease of service and installa-

tion

• Fan airflow adjustment by zone to compensate for duct work

variability

• 4 wire installation from each component in the system

• The color touch screen is designed to be used as a master

and a zoning sensor.

• Zoning system designed to provide optimum comfort based

on achieving both temperature and humidity setpoints

• Complete system integration to include whole house humidi-

fier, whole house dehumidifier, ventilation system, whole

house air cleaners, and UVC lights. All these components

are controlled from the touch screen zoning communicating

control.

• Programmable fan per zone

• Damper flexibility

• Power open / power close dampers (required when not using

a bypass damper)

• Normally open dampers

• Normally closed damper

• Bypass damper is optional

• 3 communicating zone sensors to choose from:

• Touch Screen Sensor - ability to monitor/adjust all zones'

information - Ability to control the zone's temperature and

humidity levels.

• Zone Display - allows for temperature and fan adjustability

• Zone Sensor

• Indoor air quality pop up reminders

• Quick Heat & Quick Cool functionality

• Easy timed temperature and schedule override

• Multiple schedules that can be assigned to a calendar year

• Simplified vacation scheduling

885616-UTG-A-0812

2Johnson Controls Unitary Products

MODEL NUMBER NOMENCLATURE

Touch Screen Master & Sensor

S1 - T TS C C 01 A

Zone Display

S1 - T C ZS D 01 A

Zone Panel

S1 - T C ZCB 01 A

Zone Sensor

S1 - T C ZS N 01 A

PRODUCT DATA INFORMATION

Physical Characteristics

Dimensions:

See drawing

Appearance:

Plastic, white color, textured

Electrical Characteristics/Communication

Input Volts/Amps 24VAC:

Each device in the communicating system has a four-pin con-

nector labeled A+, R, C, B-. It is recommended that the follow-

ing color code be used when wiring each device:

A+ Green = Data A+

R Red = 24VAC (Hot)

C Black = 24VAC (Com)

B- White = Data B-

Environmental Requirements

Operating Temperature/Relative Humidity:

User interface and all sensors: 32F to 104F / 0C to 40C, 95%

RH non-condensing.

Storage Temperature/Relative Humidity:

User interface: -40F to 134F /-40C to 56.7C, 95% RH non-con-

densing.

Wiring Requirements

Power supply:

Dedicated 24VAC, 40 va, 60 Hz, via indoor equipment A+, R, C,

B- Connector. Isolated transformer, field supplied.

Wiring material:

Standard thermostat wire 18 to 24 gauge.

Feature Specifications

• Temperature set point range: 40F to 90F / 4.4C to 32.2C

• Separate heat and cool setpoints

• Programming days: 7 day

• Programming periods:

2 Periods: Day, Away

3 Periods: Day, Away, Sleep

4 Periods: Awake, Away, Return, Sleep

• Non-Programmable

• Auto changeover (may be disabled)

• Programmable fan (installer selectable)

• Humidity Sensor Offsets

• Smart Recovery (in heating and cooling)

• Copy functions: Copy period, day and zone

• Permanent memory

• Humidity display and control

• Temperature sensor offsets (indoor and outdoor)

S1 Source 1

T Tag in a bag

TS Touch Screen

C Communicating

C Control

01 1st Generation

A Revision A

S1 Source 1

T Tag in a bag

C Communicating

ZS Zone Sensor

DWithDisplay

01 1st Generation

A Revision A

S1 Source 1

T Tag in a bag

C Communicating

ZCB Zone Control Board

01 1st Generation

A Revision A

S1 Source 1

T Tag in a bag

C Communicating

ZS Zone Sensor

NNoDisplay

01 1st Generation

A Revision A

Compatible Communicating Products

Model Description YORK COLEMAN LUXAIRE

Air Conditioning CZF, CZH AC6, AC8 AL6, AL8

Heat Pumps YZF, YZH HC6, HC8 HL6, HL8

Gas Furnaces YPLC, YP9C CPLC, CP9C LPLC, LP9C

Air Handlers MV, AV*, AHV MV, AV*, AHV MV, AV*, AHV

885616-UTG-A-0812

Johnson Controls Unitary Products 3

PRODUCT DIMENSIONS

Touch Screen Communicating Control Zoning Master & Sensor

EQUIPMENT

Equipment

PART NUMBER DESCRIPTION

S1-TTSCC01 Touch Screen Communicating Control Master & Sensor

S1-TCZCB01 Communicating Control Zone Panel

S1-TCZSD01 Communicating Control Zone Display

S1TCZSN01 Communicating Control Zone Sensor

Repair Parts

PART NUMBER DESCRIPTION

S1-02815904000 Face Plate (Rev A)

S1-02815904101 Face Plate (Rev B)

S1-02815905000 Rear Housing

S1-02815906000 Mounting Plate

5.50 .93

4.36

1.38

Optional Accessories

PART NUMBER DESCRIPTION

S1-02815909000 Hard Surface Mounting Plate and Decorative Backplate

S1-03102965000 USB Adapter

S1-02542694000 Wire Harness

S1-CVENTDEH01 ERV/HRV, Ventilation Control Damper and Whole Home Dehumidifier Auxiliary Board

S1-02543570000 6’ Service Wire Harness

885616-UTG-A-0812

4Johnson Controls Unitary Products

Zone Dampers

APPLICATION PART NUMBER DESCRIPTION

Round Dampers

S1-RDM06 DMPR,ZONING,RND,24V,PWR OPN-CLS,6"

S1-RDM07 DMPR,ZONING,RND,24V,PWR OPN-CLS,7"

S1-RDM08 DMPR,ZONING,RND,24V,PWR OPN-CLS,8"

S1-RDM09 DMPR,ZONING,RND,24V,PWR OPN-CLS,9"

S1-RDM10 DMPR,ZONING,RND,24V,PWR OPN-CLS,10"

S1-RDM12 DMPR,ZONING,RND,24V,PWR OPN-CLS,12"

S1-RDM14 DMPR,ZONING,RND,24V,PWR OPN-CLS,14"

S1-RDM16 DMPR,ZONING,RND,24V,PWR OPN-CLS,16"

S1-RDM18 DMPR,ZONING,RND,24V,PWR OPN-CLS,18"

S1-RDM20 DMPR,ZONING,RND,24V,PWR OPN-CLS,20"

Slip-In Round Damper

S1-RRM04 DMPR,ZONING,RETRO-RND,24V,PWR OPN-CLS,4"

S1-RRM05 DMPR,ZONING,RETRO-RND,24V,PWR OPN-CLS,5"

S1-RRM06 DMPR,ZONING,RETRO-RND,24V,PWR OPN-CLS,6"

S1-RRM07 DMPR,ZONING,RETRO-RND,24V,PWR OPN-CLS,7"

S1-RRM08 DMPR,ZONING,RETRO-RND,24V,PWR OPN-CLS,8"

Rectangular Bottom Mount Dampers

S1-ZDMB0808 DMPR,ZONING,RECT,24V,PWR OPN-CLS,8X8

S1-ZDMB0810 DMPR,ZONING,RECT,24V,PWR OPN-CLS,8X10

S1-ZDMB0812 DMPR,ZONING,RECT,24V,PWR OPN-CLS,8X12

S1-ZDMB0814 DMPR,ZONING,RECT,24V,PWR OPN-CLS,8X14

S1-ZDMB0816 DMPR,ZONING,RECT,24V,PWR OPN-CLS,8X16

S1-ZDMB0818 DMPR,ZONING,RECT,24V,PWR OPN-CLS,8X18

S1-ZDMB0820 DMPR,ZONING,RECT,24V,PWR OPN-CLS,8X20

S1-ZDMB0822 DMPR,ZONING,RECT,24V,PWR OPN-CLS,8X22

S1-ZDMB0824 DMPR,ZONING,RECT,24V,PWR OPN-CLS,8X24

S1-ZDMB1010 DMPR,ZONING,RECT,24V,PWR OPN-CLS,10X10

S1-ZDMB1012 DMPR,ZONING,RECT,24V,PWR OPN-CLS,10X12

Rectangular Bottom Mount Dampers

S1-ZDMB1014 DMPR,ZONING,RECT,24V,PWR OPN-CLS,10X14

S1-ZDMB1016 DMPR,ZONING,RECT,24V,PWR OPN-CLS,10X16

S1-ZDMB1018 DMPR,ZONING,RECT,24V,PWR OPN-CLS,10X18

S1-ZDMB1020 DMPR,ZONING,RECT,24V,PWR OPN-CLS,10X20

S1-ZDMB1022 DMPR,ZONING,RECT,24V,PWR OPN-CLS,10X22

S1-ZDMB1024 DMPR,ZONING,RECT,24V,PWR OPN-CLS,10X24

S1-ZDMB1212 DMPR,ZONING,RECT,24V,PWR OPN-CLS,12X12

S1-ZDMB1214 DMPR,ZONING,RECT,24V,PWR OPN-CLS,12X14

S1-ZDMB1216 DMPR,ZONING,RECT,24V,PWR OPN-CLS,12X16

S1-ZDMB1218 DMPR,ZONING,RECT,24V,PWR OPN-CLS,12X18

S1-ZDMB1220 DMPR,ZONING,RECT,24V,PWR OPN-CLS,12X20

S1-ZDMB1414 DMPR,ZONING,RECT,24V,PWR OPN-CLS,14X14

S1-ZDMB1416 DMPR,ZONING,RECT,24V,PWR OPN-CLS,14X16

S1-ZDMB1418 DMPR,ZONING,RECT,24V,PWR OPN-CLS,14X18

S1-ZDMB1420 DMPR,ZONING,RECT,24V,PWR OPN-CLS,14X20

S1-ZDMB1616 DMPR,ZONING,RECT,24V,PWR OPN-CLS,16X16

S1-ZDMB1618 DMPR,ZONING,RECT,24V,PWR OPN-CLS,16X18

S1-ZDMB1620 DMPR,ZONING,RECT,24V,PWR OPN-CLS,16X20

Continued on next page.

885616-UTG-A-0812

Johnson Controls Unitary Products 5

Rectangular Side Mount Dampers

S1-ZDMS0808 DMPR,ZONING,RECT,24V,PWR OPN-CLS,8X8

S1-ZDMS1008 DMPR,ZONING,RECT,24V,PWR OPN-CLS,10X8

S1-ZDMS1010 DMPR,ZONING,RECT,24V,PWR OPN-CLS,10X10

S1-ZDMS1208 DMPR,ZONING,RECT,24V,PWR OPN-CLS,12X8

S1-ZDMS1210 DMPR,ZONING,RECT,24V,PWR OPN-CLS,12X10

S1-ZDMS1212 DMPR,ZONING,RECT,24V,PWR OPN-CLS,12X12

S1-ZDMS1408 DMPR,ZONING,RECT,24V,PWR OPN-CLS,14X8

S1-ZDMS1410 DMPR,ZONING,RECT,24V,PWR OPN-CLS,14X10

S1-ZDMS1412 DMPR,ZONING,RECT,24V,PWR OPN-CLS,14X12

S1-ZDMS1414 DMPR,ZONING,RECT,24V,PWR OPN-CLS,14X14

S1-ZDMS1608 DMPR,ZONING,RECT,24V,PWR OPN-CLS,16X8

S1-ZDMS1610 DMPR,ZONING,RECT,24V,PWR OPN-CLS,16X10

S1-ZDMS1612 DMPR,ZONING,RECT,24V,PWR OPN-CLS,16X12

S1-ZDMS1614 DMPR,ZONING,RECT,24V,PWR OPN-CLS,16X14

S1-ZDMS1616 DMPR,ZONING,RECT,24V,PWR OPN-CLS,16X16

Barometric By-Pass Dampers

S1-SPRD08 DMPR,ZONING,RND,BYPASS,BARO,8"

S1-SPRD10 DMPR,ZONING,RND,BYPASS,BARO,10"

S1-SPRD12 DMPR,ZONING,RND,BYPASS,BARO,12"

S1-SPRD1208 DMPR,ZONING,RECT,BYPASS,BARO,12X8

S1-SPRD1210 DMPR,ZONING,RECT,BYPASS,BARO,12X10

S1-SPRD1212 DMPR,ZONING,RECT,BYPASS,BARO,12X12

Zone Dampers (Continued)

APPLICATION PART NUMBER DESCRIPTION

Subject to change without notice. Published in U.S.A. 885616-UTG-A-0812

York International Corp.

5005 York Drive

Norman, OK 73069

NOTES

Autres manuels pour S1-TTSCC01

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Johnson Controls Unité de contrôle

Johnson Controls

Johnson Controls F4-XPM Series Manuel utilisateur

Johnson Controls

Johnson Controls VP101DBB Manuel utilisateur

Johnson Controls

Johnson Controls Tyco DV-5a Series Manuel utilisateur

Johnson Controls

Johnson Controls Tyco PRV-1A Manuel utilisateur

Johnson Controls

Johnson Controls CKM-MR51E Instructions de montage

Johnson Controls

Johnson Controls VP1000 Series Manuel utilisateur

Johnson Controls

Johnson Controls Tyco DV-5a Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN P470 Manuel

Johnson Controls

Johnson Controls Autocall MX Indoor Isolated Callpoint Manuel utilisateur

Johnson Controls

Johnson Controls Tyco TJPX0500003 Manuel utilisateur

Johnson Controls

Johnson Controls GS Series Manuel utilisateur

Johnson Controls

Johnson Controls Mercury 3 Series Manuel

Johnson Controls

Johnson Controls M300CJ Manuel utilisateur

Johnson Controls

Johnson Controls M300CJ Manuel utilisateur

Johnson Controls

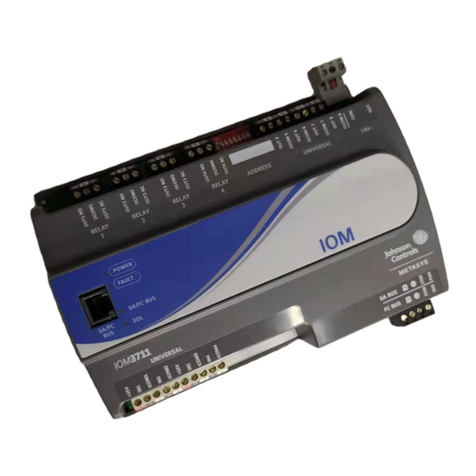

Johnson Controls IOM3711 Manuel utilisateur

Johnson Controls

Johnson Controls MS-IOM2710-0U Manuel utilisateur

Johnson Controls

Johnson Controls Penn System 350 S350P Manuel utilisateur

Johnson Controls

Johnson Controls Penn System 450 Series Manuel utilisateur

Johnson Controls

Johnson Controls FX-PCX2721 Manuel utilisateur

Johnson Controls

Johnson Controls Penn P28 Series Manuel utilisateur

Johnson Controls

Johnson Controls VG1xA5Gx Manuel utilisateur

Johnson Controls

Johnson Controls METASYS NU-XBN101-0 Manuel utilisateur

Johnson Controls

Johnson Controls EM-3000 Series Manuel utilisateur

Johnson Controls

Johnson Controls METASYS TC-9102 Series Manuel de service

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
