Metasys Network Technical Manual 636
Point Multiplex Modules Section
Technical Bulletin
Issue Date 0693
© 1993 Johnson Controls, Inc. 1
Order No. 636-027
Introduction Page 3
●
Description 3
●
Capabilities 5
●
Specification 6
Engineering 7
●
Theory of Operation 7
●
Design Considerations 9
●
XBN Switches 11
●
Wiring Details 12
●
Software Setup 27
Commissioning Procedures 29
●
Overview 29
●
Switch Settings 29
●
Power Up 32
Troubleshooting Procedures 33
●
Self-Diagnostics 33
●
Field Checks 33
●
Ordering Information 35
Multiplex Binary
2 Point Multiplex Modules—Multiplex Binary
Point Multiplex Modules—Multiplex Binary 3
Introduction
The Multiplex Binary (XBN) is a module that interfaces points to the
system and resides in the Network Control Unit (NCU) or Network
Expansion Unit (NEU). It monitors up to 32 binary inputs (voltage, dry
contact, or pulse), then reports changes in their states to the NCU for
processing. LEDs on the module face display the status for each
corresponding input.
Figure 1: Multiplex Binary
Description
4 Point Multiplex Modules—Multiplex Binary
The XBN interfaces a high concentration of binary input points to the
NCU or NEU. The inputs may be any combination of these points: dry
contact, up to 10 Hz frequency, and up to 120 VAC or VDC.
When residing in or remote to an NCU, the XBN serves to increase the
point capacity of the NCU.
If the points are clustered at a distant location, the XBN additionally
provides an economical way to connect them to the NCU
over the
N2 Bus
without having to hardwire each contact separately to the NCU.
Typically, the XBN monitors the status of 2-position devices such as fans,
pumps, or security panels. Voltage input from a starter or pilot device can
also indicate that the equipment has changed state.
In addition, the XBN can detect pulses from flow meters, electric utility
meters, or other pulse output devices whose frequency is 10 Hz or less.
The pulses are collected in the XBN’s accumulator, then transmitted to the
Network Control Module where they are converted into readable analog
values.

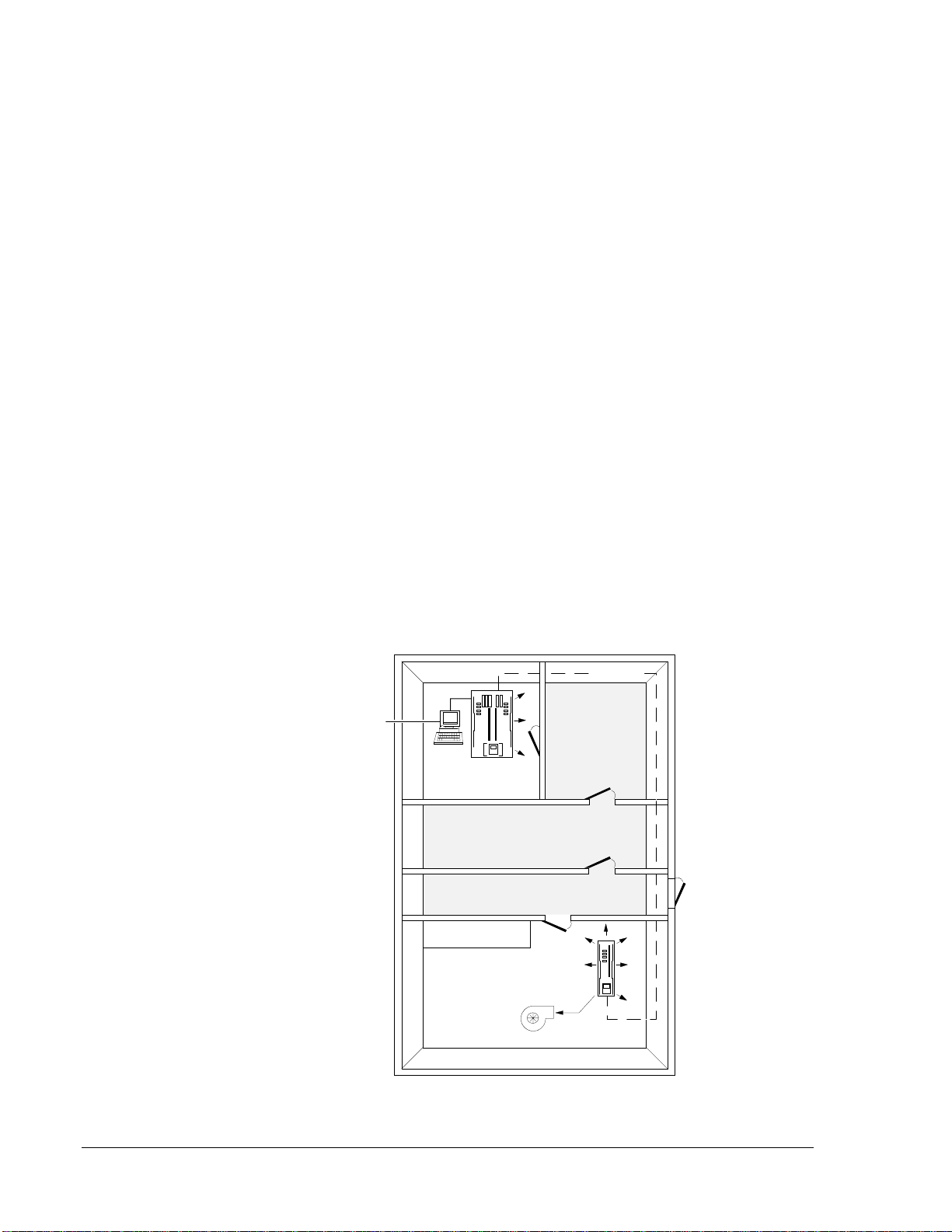

The diagram below illustrates a configuration using two XBNs: the first
XBN oversees HVAC-related fans and pumps near a building entrance.
The data is transmitted over an N2 Bus to the NCU in the main equipment
room. The second XBN is installed directly in the NCU, monitoring a
variety of binary inputs in the equipment room itself.
N1 LAN
Operator
Workstation
NEU
w/XBN Inside
N1 LAN
Equipment Room
NCU
w/XBN Inside
with2xbn
Building
Entrance
Figure 2: Typical Application with Two XBNs
Purpose
Application
Point Multiplex Modules—Multiplex Binary 5
Table 1: Capabilities
Capabilities
Capability Description Purpose
Modular Packaging XBN electronics are integrated with system circuitry
(eliminating the need for separate boxes for wires,
transducers, etc.) and are housed in durable cases.
Modules plug in and lock into position.
Simple to install and service; casing prevents
physical and ESD damage in addition to shielding
electronics from induced noise.
32 Binary Inputs DC, AC, Dry Contact, and Pulse Interfaces a high concentration of binary devices;
flexibility to retrofit existing devices.
LED Indicators 32 Binary Inputs (software-configured: light ON =
either closed contact/voltage absent), N2 Transmit,
N2 Receive, Power, and Error (sanity circuit reset,
check sum, RAM test result)
Determine module status by visual inspection.
Enhanced Input Circuitry Each input is balanced differentially, with a high
input impedance (significantly reducing amperage)
and high level of isolation from noise and
transients. Inputs withstand 120 VAC RMS of
normal mode voltage.
The XBN withstands high levels of noise, especially
common mode noise. Enables mixed input and
output lines through a conduit, when allowed by
local electrical codes.
Point Status Change
Reports The XBN latches and holds any valid data changed
from an input point; further data changes are
ignored until the first-detected change has been
reported to, and acknowledged from, the NCM.
Report COS for alarm analysis or program
triggering, and to notify operator(s).
Disable COS Reporting Suppresses COS, reporting capabilities on a per
input basis. While COS reporting is disabled, the
NCM can still request point status without re-
enabling the COS report functions.
Prevent constant COS reports from specified points
(e.g. fluttering airflow switch).
Debounce Filter Programs the XBN to ignore transient or intermittent
changes by requiring consecutive identical input
data before determining the current state.
Helps prevent false alarms or erroneous counts in
accumulator points.
Accumulator (Pulse
Applications) For each status input, detects and totals transitions
for pulses of less than or equal to 10 Hz (each
pulse yields two transitions). When requested by
the NCM, the Accumulator releases the number of
valid signal transitions (up to 65,535 before rolling
over).
Permit monitoring of devices that transmit
frequency signals.
6 Point Multiplex Modules—Multiplex Binary
Table 2: Specifications
Product Description
Code Name Multiplex Binary (NU-XBN101-0)
Microprocessor Intel 80C51
Memory 8K by 8-bit Static RAM
8K by 8-bit E2PROM
Binary Inputs 32 (contact, voltage present/absent, and low frequency pulses)
Maximum Input Voltage 120 VDC or 120 VAC RMS 50/60 Hz
Maximum Pulse Input
Frequency 10 Hz or less (at 10 Hz, 12 mS < positive pulse
width < 52 mS; and Debounce Filter set to 2)
Input Types DC-Low Thresh: 3 V, Hi Thresh: 8 V
AC - Low Thresh: 2V, Hi Thresh: 18 V
Dry Contact - Low Thresh: 100 K ohms, Hi Thresh: 800K ohms
Pulse—(0-10 Hz)
Minimum Output Load 10 mA at 5 VDC
Source Power Power is from PWR in the NCU/NEU
Operating Temperature 32°to 122°F (0°to 50°C)
Storage Temperature -40°to 158°F (-40°to 70°C)
Operating Humidity 10% to 90% RH
Storage Humidity 5% to 95% RH
Dimensions and Weight 14 in. H x 1.5 in. W x 6 in. D (355 x 36 x 152mm); 2 lbs 11 oz (1.13 kg)
Agency Compliance FCC Part 15, Subpart J, Class A
UL916
CSA C22.2 No. 205
Agency Listing UL Listed and CSA Certified as part of the MetasysNetwork
Specifications
Point Multiplex Modules—Multiplex Binary 7
Engineering

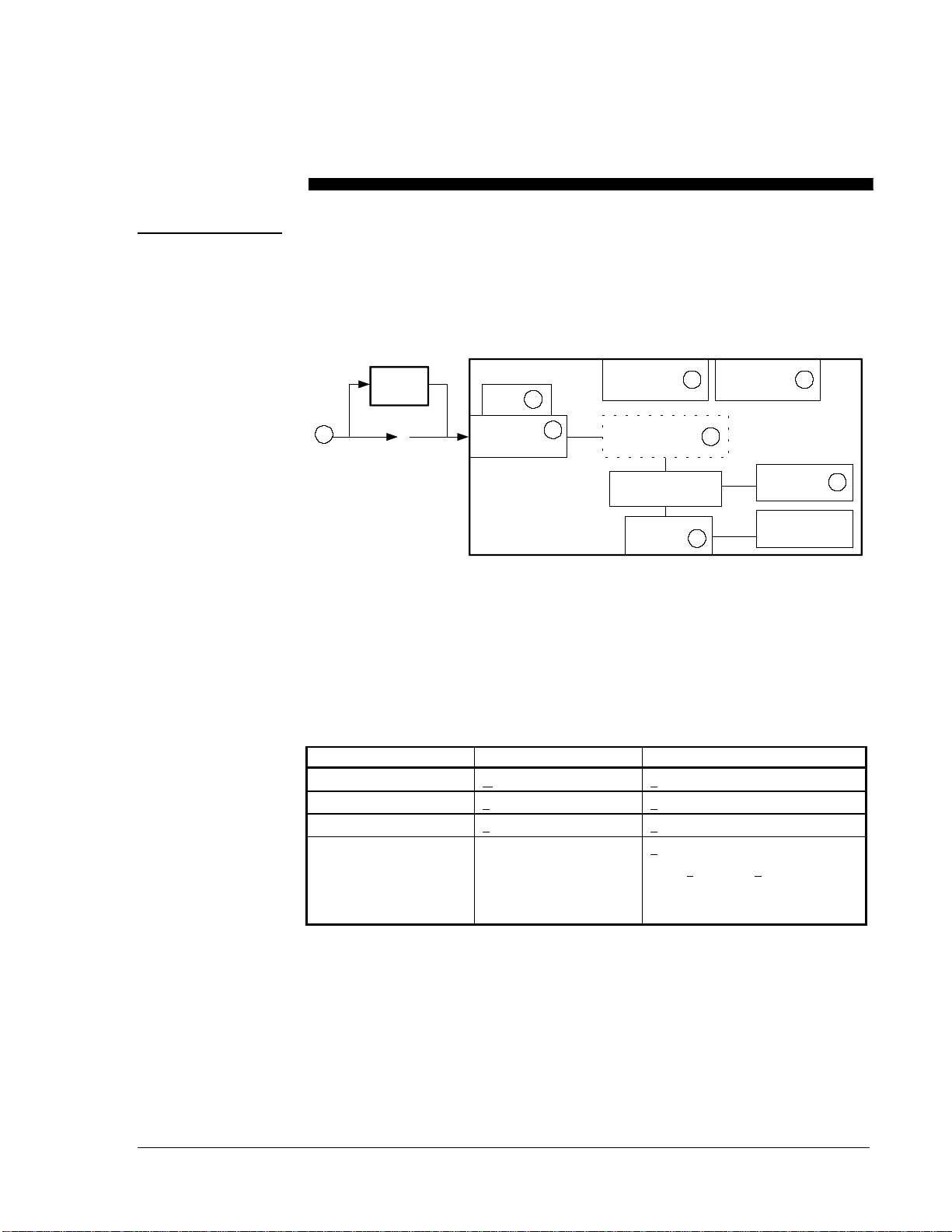

The figure below illustrates the XBN’s general components and their
functions.
Field input ①is routed either through an IUN function module or directly
into the base frame, depending on the XBN’s slot position.
V/C
IUN FM
Input
Circuit
Address
Debounce
Filter Software
EOL
Microprocessor
N2
Circuit
LEDs
N2 LEDs
or
3
2
4
6
5
1
8
7
Signal
XBN
Figure 3: XBN Block Diagram
Thirty-two identical binary input circuits ②monitor input signals (dry
contact, DC voltage, AC voltage, or frequencies of 10 Hz or less)
changing from logical status 0 (voltage absent, contact open) to 1 (voltage
present, contact closed) under these conditions:
Table 3: Input Signals
Sensed Input Logical 0 Logical 1
Contact > 800K ohms < 100K ohms
VDC <3 VDC > 8 VDC to limit of 120
VAC <2 VAC > 18 VAC to limit of 120
Frequency <10 Hz
12 mS < Pos. Pulse < 52 mS at 10 Hz
Debounce count set to 2
Point defined as accumulator
The user sets a switch for each input ③to select which type of signal the
input senses: voltage or contact.
●If the V/C switch is incorrectly set to voltage, no contact changes-of-
state can be sensed by the circuit.
●If the V/C switch is incorrectly set to contact, voltage differentials
greater than -12 (e.g., -10) produce a logical 1; voltages less than -12
Theory of
Operation
8 Point Multiplex Modules—Multiplex Binary
(e.g., -14) produce a logical 0. For large AC voltages, this may not
have consequences, but low voltage levels will result in errors.
Address switches ④provide a means to identify the module along the N2
Bus. An End-of-Line (EOL) switch ⑤must also be positioned correctly
for the N2.
Each input is protected to withstand all types of short circuits (input to
input, across an input, input to other potentials) without damage, although
operation would be temporarily unreliable. Input circuitry also protects
against transient overvoltages of up to 1000 volts peak, with current
tolerance to ESD static spikes protected to 6000 volts.
Input changes are filtered in software by a debounce filter ⑥downloaded
into memory.
LEDs ⑦indicate the state of the respective input as received by the
microprocessor after debounce filtering. The state of the input
representing LED On is software programmable (either contact
closed/voltage present or contact open/voltage absent).
The microprocessor outputs signals to the N2 communications circuitry ⑧
on the NCU/NEU backplane. Additional LEDs indicate N2 transmit and
receive signals, as well as power and sanity circuit/firmware errors.
Point Multiplex Modules—Multiplex Binary 9
The XBN monitors up to 32 binary inputs. As a module that fits into
specific slots on the NCU/NEU base frame, its environmental
requirements are identical to those of the NCU/NEU and may be
referenced in that technical bulletin. Power is supplied by an associated,
and separately ordered, Power Supply Module.
The figure below illustrates in which slots the module may be installed
(into any base frame’s slot except the number 3 slot of a 5-slot base
frame).
5-slot 2-slot
1-slot5-slot
2-slot
xbn2
Figure 4: Mounting Options for the XBN
When installing an XBN into a slot normally occupied by a DCM
(Slots 1 and 5 of a 5-slot, Slot 1 of a 2-slot), an IUN Function Module is
necessary to transmit signals from the first 16 terminal blocks of the
NCU/NEU to the XBN. Each IUN transmits two independent signals,
requiring a total of eight IUNs. Inputs 17-32 (see Figure 19 for input
locations) terminate on the bottom 16 terminal blocks and do not require
Design
Considerations
Mounting
Darkened slots indicate
Point Multiplex Module
location options.
When placed in slots
normally occupied by
DCMs, Point Multiplex
Modules require IUN
FMs (also darkened).
10 Point Multiplex Modules—Multiplex Binary
IUNs to transmit signals to the XBN. The presence of the IUN FM does
not change or expand the range of signals processed by the XBN.
All configurations of the XBN in relation to other modules in the
NCU/NEU panel are compatible, provided that the modules are properly
located and the points correctly defined in the software.

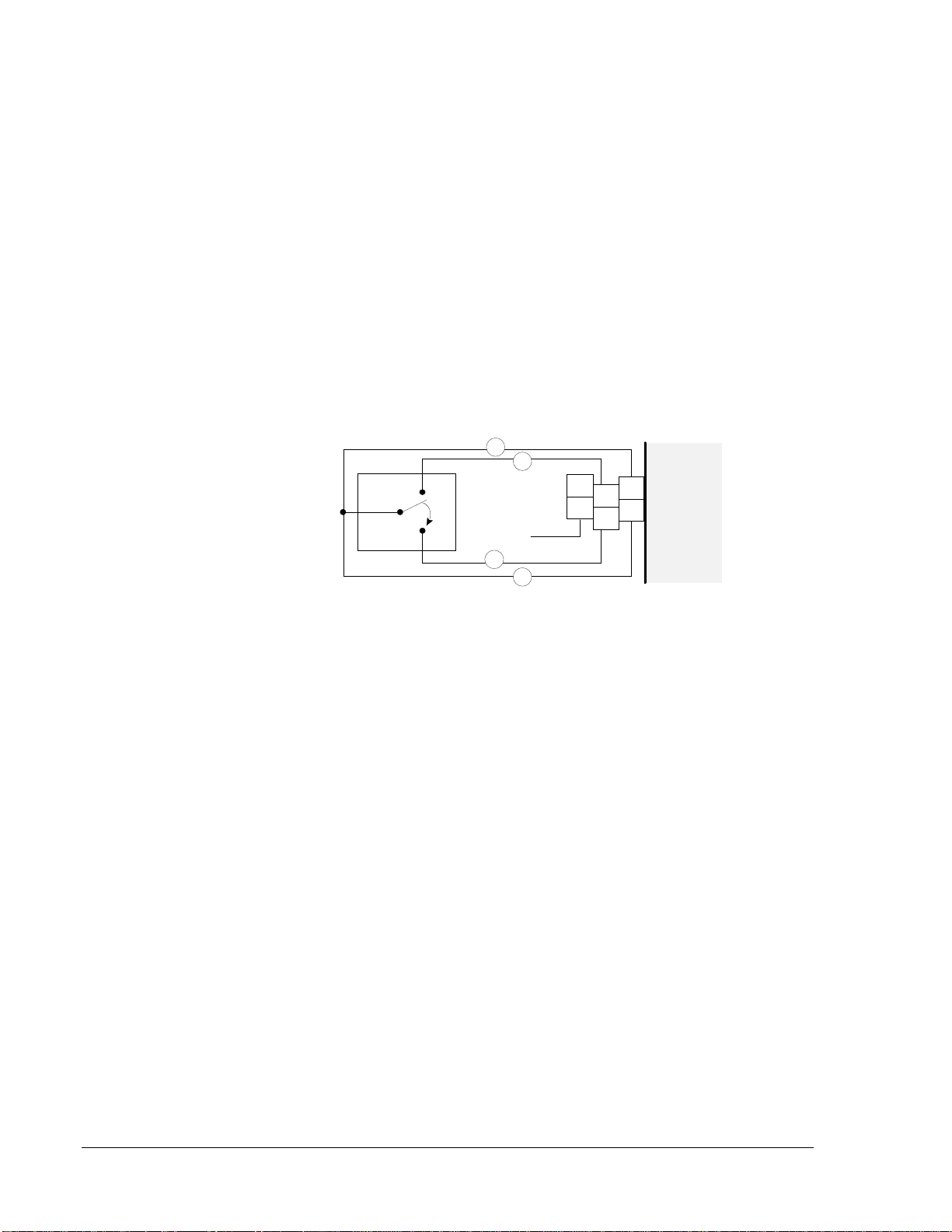

Wiring both states of a Form C input requires two binary input terminals,
as illustrated in Figure 5.
Note: Form C inputs must connect to adjacent screw terminal blocks,
starting at an odd-numbered block (i.e., 1 and 2, 27 and 28;
not 2 and 3, etc.).
Using all Form C inputs would reduce the point monitoring
capacity from 32 to 16.
xbn3
Binary
Device
GND
GND
-
+
-
+
-
-
+
+
(5)
(6)
Base
Frame
Figure 5: One Form C Input Terminating in Two Binary Inputs
To suppress nuisance signals from a noisy binary input, change the
Debounce Filter to a value higher than the default of 2 (24 milliseconds);
e.g., to 3, which yields 36 milliseconds.
An exception to this is when the input is a 0 to 10 Hz pulse input. In this
case, the Debounce filter must be 24 milliseconds or less, and shields or
other methods must be used to reduce the susceptibility of the lines to
induced noise. See Debounce Filter under the Binary Input Object
Technical Bulletin.
Form C Inputs
Binary Inputs In
Noisy Environments
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Johnson Controls Unité de contrôle
Johnson Controls
Johnson Controls EM-3000 Series Manuel utilisateur
Johnson Controls
Johnson Controls GM 20 Series Manuel utilisateur
Johnson Controls
Johnson Controls CKM-MR51E Instructions de montage
Johnson Controls
Johnson Controls V46SA Series Manuel utilisateur
Johnson Controls
Johnson Controls IOM1711 Manuel utilisateur
Johnson Controls
Johnson Controls G77 Series Manuel de service
Johnson Controls
Johnson Controls V43 Series Manuel
Johnson Controls
Johnson Controls VG1000 Series Manuel utilisateur
Johnson Controls
Johnson Controls M300CJ Manuel utilisateur
Johnson Controls
Johnson Controls NIE39 Manuel utilisateur
Johnson Controls
Johnson Controls S300 Series Instructions de montage
Johnson Controls
Johnson Controls tyco AMD-1 Manuel utilisateur
Johnson Controls
Johnson Controls Tyco PRV-1A Manuel utilisateur
Johnson Controls
Johnson Controls H Series Manuel utilisateur
Johnson Controls
Johnson Controls Penn System 350 S350P Manuel utilisateur
Johnson Controls
Johnson Controls GS-20 Series Manuel utilisateur
Johnson Controls
Johnson Controls tyco AMD-2 Manuel utilisateur
Johnson Controls
Johnson Controls Tyco DV-5a Series Manuel utilisateur
Johnson Controls
Johnson Controls VP1000 Series Manuel utilisateur
Johnson Controls
Johnson Controls MS-NCM4510-2 Manuel utilisateur
Manuels Unité de contrôle populaires d'autres marques
Festo
Festo Compact Performance CP-FB6-E Manuel de la liste des pièces
Elo TouchSystems
Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur
JS Automation
JS Automation MPC3034A Manuel utilisateur
JAUDT
JAUDT SW GII 6406 Series Guide rapide
Spektrum
Spektrum Air Module System Manuel utilisateur
BOC Edwards
BOC Edwards Q Series Manuel utilisateur
